Your Ultimate DOE Checklist Template: A Step-by-Step Guide

Introduction: Why a DOE Checklist is Essential

Design of Experiments (DOE) is a game-changer for any organization striving for process improvement, product optimization, or a deeper understanding of complex systems. However, the power of DOE isn't automatic. Simply running experiments without a well-defined plan is like navigating without a map - you might stumble upon something useful, but you're far more likely to get lost, waste resources, and ultimately fail to achieve your goals.

That's where a DOE checklist becomes indispensable. It provides a structured, step-by-step framework, ensuring that every experiment is meticulously planned, executed, and analyzed. Skipping crucial steps can lead to biased results, incorrect conclusions, and ultimately, costly mistakes. This checklist isn't just about ticking boxes; it's about cultivating a rigorous and repeatable scientific approach to problem-solving, guaranteeing that you extract maximum value from your DOE efforts. It's the foundation for reliable data, impactful insights, and ultimately, measurable results.

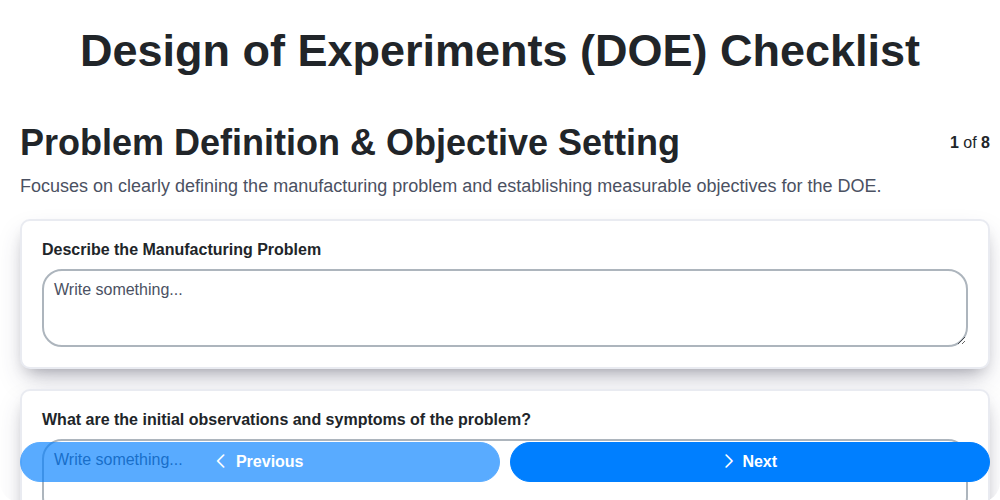

1. Define Your Problem & Set Clear Objectives

Before launching into any experimental design, it's absolutely critical to clearly define the problem you're trying to solve and set objectives that will guide your entire process. A vague problem statement or poorly defined objectives will lead to wasted time, inconclusive results, and ultimately, a failed experiment.

Think of it like this: you wouldn't start building a house without a detailed blueprint. Similarly, DOE requires a solid foundation of understanding what you're trying to achieve.

Here's a breakdown of how to approach this crucial first step:

1. Problem Statement - Be Specific!

Avoid broad statements like, Improve product quality. Instead, pinpoint the specific issue. Examples of well-defined problem statements include:

• "The rejection rate of our packaged cookies is currently 8%, exceeding our target of 5%."
• The average cycle time for our injection molding process is 60 seconds, but we need to reduce it to 50 seconds to meet increased production demands."
• Customer complaints regarding the color consistency of our painted furniture are rising, impacting customer satisfaction.

2. Setting SMART Objectives:

Your objectives should be SMART:

• Specific: Clearly define what you want to achieve.
• Measurable: How will you know you've achieved it? Use quantifiable metrics.
• Achievable: Is your goal realistic given your resources and constraints?
• Relevant: Does the objective align with your overall business goals?
• Time-bound: Set a deadline for achieving your objective.

Example Transformation:

Let's say you initially thought, Improve widget production. This is vague. Using the SMART framework, this could become: "Reduce the number of defective widgets produced per shift from 10 to 3 within two weeks, using existing equipment and materials."

3. Identifying Constraints:

Don't forget about limitations! Consider:

• Budget: What's your spending limit?
• Time: How much time can you dedicate to the experiment?
• Resources: What equipment and personnel are available?
• Regulatory requirements: Are there any restrictions you must adhere to?

Clearly identifying these constraints before you start will help you design a realistic and achievable experimental plan.

2. Select Your Factors & Responses: What Matters Most?

Okay, you're ready to move beyond just identifying a problem and start thinking about how to solve it. This stage is about pinpointing the levers you can pull (factors) and what you're trying to improve (responses). It's not just a brainstorming session; it's a strategic narrowing down based on your understanding of the process.

Brainstorming Potential Factors:

Start broad. Gather your team (if applicable) and list everything that might influence your response. Don't dismiss ideas at this point, even if they seem unlikely. Think about:

• Materials: Type, grade, supplier, batch
• Equipment: Settings, maintenance, calibration
• Process Parameters: Temperature, pressure, speed, time, flow rates
• Environment: Humidity, temperature, cleanliness

Prioritizing Factors - The Pareto Principle in Action:

You're unlikely to be able to test everything. That's where prioritization comes in. A helpful tool here is the Pareto Principle (the 80/20 rule). The idea is that roughly 80% of the effect comes from 20% of the causes. Use these techniques to help you focus:

• Fishbone Diagram (Ishikawa Diagram): Visually map out potential causes, categorizing them (e.g., Manpower, Machines, Methods, Materials, Measurement, Environment).
• Brainstorming & Voting: Have team members vote on which factors they believe are most likely to have an impact.
• Expert Opinion: Consult with experienced personnel who have a deep understanding of the process.

Choosing Your Response - What Are You Measuring?

The response is the thing you're trying to optimize. It needs to be:

• Measurable: You need to be able to quantify it. "Better" isn't good enough - you need numbers.
• Relevant: It must directly relate to your objective. If your objective is to increase customer satisfaction, your response might be a customer satisfaction score.
• Controllable: You should be able to influence it through your factors. There's little point in measuring something you can't affect.

Example:

Let's say you want to improve the throughput of a packaging line.

• Potential Factors: Machine speed, conveyor belt speed, operator skill, box dimensions, adhesive type.
• Response: Number of packages processed per hour.

Remember, selecting the right factors and responses is critical. A poorly chosen set can lead to wasted time and misleading results. Take your time, gather information, and be strategic!

3. Choosing the Right Experimental Design

Selecting the appropriate experimental design is arguably the most critical step in a successful DOE. There's no one-size-fits-all solution; the best choice depends entirely on your objectives and the nature of your problem. Here's a breakdown of common designs and when to use them:

Factorial Designs: The Screening Powerhouse

These designs are fantastic for identifying which factors significantly impact your response. They involve testing all combinations of factor levels, allowing you to see the individual effects of each factor, as well as potential interactions between them.

• Full Factorial Designs: Test every possible combination of factor levels. They provide the most comprehensive understanding but can be resource-intensive as the number of runs grows exponentially with each additional factor. Best for situations with a relatively small number of factors (typically 2-5).
• Fractional Factorial Designs: A clever way to reduce the number of runs needed when you have many factors. They test a carefully selected subset of all possible combinations. They sacrifice some information but can still provide valuable insights, particularly for screening a large number of factors to identify the most important ones. Beware: this can mask some interaction effects.
• 2^k Designs: A popular type of factorial design where 'k' represents the number of factors, each tested at two levels. Easy to implement and understand.

Response Surface Methodology (RSM): Fine-Tuning for Optimization

When you've already identified the key factors and want to fine-tune them to achieve optimal performance, RSM is your go-to method. RSM focuses on modeling the relationship between the factors and the response using a surface, enabling you to find the combination of factors that maximizes or minimizes the response.

• Central Composite Designs (CCD): A widely used RSM design that provides good estimates of curvature and allows for efficient optimization.
• Box-Behnken Designs: Another RSM design that's often preferred when you want to avoid testing at extreme factor levels.

Choosing the Right Approach: A Quick Guide

Objective	Design Type
Identify Key Factors	Factorial Design (Full or Fractional)
Optimize Response	Response Surface Methodology (RSM)
Understand Interaction Effects	Factorial Design (Full)
Minimize Runs, Screen Factors	Fractional Factorial Design

4. Setting Up Your Experiment & Ensuring Validity

Setting up your experiment isn't just about tweaking knobs and recording numbers; it's about creating a system that minimizes bias and maximizes the reliability of your data. A poorly designed setup can invalidate even the most sophisticated analysis. Here's how to ensure your experiment is robust and generates trustworthy results.

1. Detailed Procedure Documentation: Develop a step-by-step procedure for each experimental run. This ensures consistency between runs, even if different people are performing them. Include specific instructions for equipment operation, material handling, and data recording.

2. Randomization is Key: The order in which you run your experiments can introduce unwanted bias. Randomize the sequence of runs to distribute any systematic errors evenly across all conditions. This prevents lurking variables from unfairly influencing the outcome. Consider using a random number generator or a table of random numbers for true randomization.

3. Replication: Strength in Numbers: Replication means repeating each experimental condition multiple times. This allows you to estimate the inherent variability in the process and increases the statistical power of your analysis. Aim for at least three replications per condition, but more is often better.

4. Calibration - The Cornerstone of Accuracy: Make sure all your measuring equipment - thermometers, pressure gauges, flow meters, and more - are properly calibrated. Even slight inaccuracies can significantly impact your results. Follow the manufacturer's instructions for calibration and maintain a calibration log.

5. Pilot Run - A Dry Run for Success: Before committing to a full-scale experiment, conduct a pilot run. This allows you to identify and resolve any potential issues with the procedure, equipment, or materials. It's a cost-effective way to catch mistakes and refine your approach.

6. Control Variables - The Silent Influencers: Identify and control any variables that could influence the response but aren't part of your experimental factors. These are often called nuisance variables. Holding these constant minimizes their impact on your results.

Considerations for special cases:

• Materials: Account for batch-to-batch variation through proper sampling and/or testing.
• Environment: Maintain consistent temperature, humidity, and other environmental conditions, or at least monitor and document them.
• Operator: If operator skill significantly affects the process, consider using a single operator or training all operators to the same standard.

5. Data Collection & Initial Analysis

The heart of any successful DOE is accurate and reliable data. A sloppy data collection process can invalidate even the most brilliantly designed experiment. Here's a breakdown of best practices for collecting your data and performing initial checks.

1. Standardize Your Data Collection:

• Develop a Data Sheet: Create a clearly formatted data sheet (digital or paper) with labeled columns for each factor and the response. This ensures consistency and minimizes errors.
• Train Personnel: If multiple people are collecting data, ensure they're all trained on the data collection procedure to avoid variability in recording methods.
• Units of Measure: Explicitly define the units of measure for each variable. (e.g., Temperature in °C, Speed in m/min, Yield as a percentage).

2. Real-Time Checks and Error Prevention:

• Range Checks: Implement range checks during data entry. If a value falls outside the expected range for a factor, trigger an alert to prevent erroneous data from being recorded.
• Double Entry: Consider having a second person independently enter a portion of the data and compare the results to identify transcription errors. This is particularly useful for critical data.
• Immediate Recording: Record data immediately after each run. Delay can lead to forgotten details and increased risk of error.

3. Initial Data Assessment: Spotting the Anomalies

Once data collection is complete, perform some quick checks before diving into formal statistical analysis. These initial assessments can identify potential problems early on:

• Scatter Plots: Create scatter plots of the response variable against each factor. These plots can reveal non-linear relationships or unusual patterns that might warrant further investigation.
• Residual Plots: After a preliminary analysis (e.g., a linear regression), examine residual plots. They're crucial for assessing the validity of your model's assumptions (linearity, constant variance, normality of residuals). Patterns in the residuals suggest the model might not be a good fit.
• Outlier Detection: Identify any data points that appear significantly different from the rest. Investigate these outliers - they could be due to measurement errors, equipment malfunctions, or genuine experimental variation. Never blindly remove outliers; understand why they are different.

Remember: careful data collection and a critical eye during initial assessment are fundamental to obtaining meaningful results from your DOE.

6. Interpreting Results & Drawing Meaningful Conclusions

The data analysis provides the raw materials, but interpreting the results and drawing meaningful conclusions is where the real magic happens. It's not enough to know what the numbers are; you need to understand what they mean in the context of your original problem.

1. Identify Significant Factors: Statistical analysis, typically ANOVA (Analysis of Variance), will highlight which factors had a statistically significant impact on the response. Don't focus solely on p-values. Consider the magnitude of the effect - a small p-value with a tiny impact might not warrant a change. Look for factors with both statistical significance and practical importance.

2. Examining Interactions: Interactions between factors can reveal complex relationships. For example, increasing temperature might only improve yield when combined with a specific coating speed. Interaction plots help visualize these relationships. Pay close attention to these, as they often hold the keys to optimization.

3. Response Surface Plots (RSM): If you used Response Surface Methodology, these plots are your best friend. They provide a visual representation of the response surface, showing how the response changes as a function of the factors. Contour plots, 3D plots, and color maps can all be incredibly insightful. Look for sweet spots - regions of the factor space where the response is maximized or minimized.

4. Evaluating Model Adequacy: Before drawing conclusions, ensure your model adequately describes the data. R-squared values, residual plots, and lack-of-fit tests help assess model fit. A poor model can lead to misleading conclusions.

5. Considering Practical Significance: Statistical significance doesn't always equal practical significance. A tiny improvement in yield, even if statistically significant, might not be worth the effort or cost of implementing a change. Consider the cost-benefit analysis before making any adjustments.

6. Relating Back to Objectives: Always circle back to your initial objectives. Did you achieve what you set out to do? If not, why not? Are there any limitations to your conclusions? Documenting these limitations is crucial for future investigations.

Ultimately, interpreting results is a blend of statistical expertise, domain knowledge, and critical thinking. It's about transforming raw data into actionable insights that drive real-world improvements.

7. Implementing Changes & Verifying Improvements

Implementing the insights gleaned from your DOE isn't the finish line - it's the beginning of a new phase. Simply changing process parameters or materials based on your analysis isn't enough; a structured verification process is vital to ensure the improvements are real, sustainable, and don't introduce unexpected consequences.

From Analysis to Action: A Phased Approach

1. Pilot Implementation: Don't roll out changes across your entire production line immediately. Start with a limited-scale pilot implementation in a controlled environment. This allows you to fine-tune the changes and identify any unforeseen issues before widespread adoption.

2. Documentation is Key: Meticulously document exactly what changes you're implementing - the new settings, material specifications, equipment adjustments, etc. This creates a clear baseline for comparison and allows for easy rollback if needed.

3. Verification Runs - The Crucial Test: Conduct a series of verification runs using the new process conditions. These runs should mirror the original experimental design as closely as possible, utilizing the same equipment, measurement techniques, and operator skill levels. Importantly, aim for a sufficient number of runs (at least 3-5) to ensure statistical significance.

4. Statistical Comparison: Compare the results of the verification runs to the baseline data collected during the initial experiment. Statistical tests (t-tests, ANOVA) can confirm whether the observed improvements are statistically significant and not simply due to random variation.

5. Monitor for Unintended Consequences: Observe the process closely for any unintended side effects or negative impacts on other metrics. While you were optimizing for your primary response, changes can ripple across the entire system. Look for changes in quality, throughput, or resource consumption.

6. Iterative Adjustment: If the verification runs fall short of expectations or reveal new issues, don't be afraid to iterate! Small adjustments to your initial implementation can often lead to significant improvements.

7. Full-Scale Rollout & Ongoing Monitoring: Once verification is successful and you're confident in the changes, a full-scale rollout can commence. However, the journey doesn't end here. Implement a continuous monitoring system to track the process performance and proactively identify any deviations from the desired state. Regular check-in's and periodic DOE refreshers will ensure sustained success.

8. Documentation & Reporting: Sharing Your Findings

Thorough documentation isn't just a "nice to have"; it's the bedrock of a repeatable and valuable DOE process. Think of it as building a roadmap that others - and even your future self - can follow. What gets documented should be comprehensive, but also organized to be easily understood.

What to Include:

• Experimental Plan: Your initial problem statement, objectives, factor selection, response variable, design matrix, and any assumptions made.
• Raw Data: All collected data, meticulously recorded with date, time, and any relevant observations.
• Analysis Details: The statistical methods used, software settings, and any code used for data analysis.
• Results and Interpretations: Clearly presented findings, including graphs, charts, and detailed explanations. Don't just present numbers; tell the story they reveal.
• Lessons Learned: A critical reflection on what went well, what could have been improved, and any unexpected challenges encountered.

Sharing Your Findings:

Craft a concise and informative report tailored to your audience. Executives need a high-level overview of the impact, while engineers might appreciate deeper technical details. Consider these formats:

• Formal Report: A detailed document suitable for archival and wider distribution.
• Presentation: A visual summary highlighting key findings and recommendations.
• Short Summary/Executive Summary: A brief overview for senior management.
• Knowledge Base Article: Add the DOE findings to an internal knowledge base for future reference.

By diligently documenting and reporting your DOE process, you ensure its impact extends far beyond the initial experiment, fostering continuous improvement and building a foundation of data-driven decision-making.
