The Ultimate Poka-Yoke Checklist Template: Eliminate Errors & Boost Efficiency

Introduction: Why Poka-Yoke Matters

We've all experienced it: that sinking feeling when a mistake crops up, derailing a project, wasting resources, or disappointing a customer. While aiming for perfection is admirable, expecting flawless execution solely through human effort is unrealistic. That's where Poka-Yoke - the ingenious principle of mistake-proofing - steps in.

It's easy to view errors as inevitable, often blaming individuals for lapses in judgment or carelessness. But Poka-Yoke flips that perspective. Instead of focusing on who made the mistake, it asks how can we design the process to prevent the mistake from happening in the first place?

This isn't about micromanagement or stifling creativity. It's about building robust systems that support consistent, accurate results, regardless of operator experience or fatigue. Implementing Poka-Yoke leads to more than just reduced errors; it fosters a culture of continuous improvement, empowers your team, and ultimately, elevates the quality and efficiency of your operations. In a world demanding ever-increasing precision and reliability, understanding and applying Poka-Yoke is no longer a luxury-it's a necessity.

What is Poka-Yoke? A Simple Explanation

Poka-Yoke, a Japanese term, literally translates to mistake-proofing or error prevention. It's a core principle of the Toyota Production System (TPS) and a powerful approach to improving quality and efficiency in any process.

Think of it this way: instead of relying on people to consistently do things perfectly, Poka-Yoke designs systems that prevent errors from happening in the first place. It's about shifting the focus from detection to prevention.

It doesn't mean eliminating human involvement - it means designing the process so that mistakes are either impossible or very difficult to make. These preventative measures can be as simple as a color-coded system to prevent miswiring, or as sophisticated as a sensor that halts a machine if a part is missing. Ultimately, Poka-Yoke aims to create a more reliable and predictable outcome by building safeguards directly into the process.

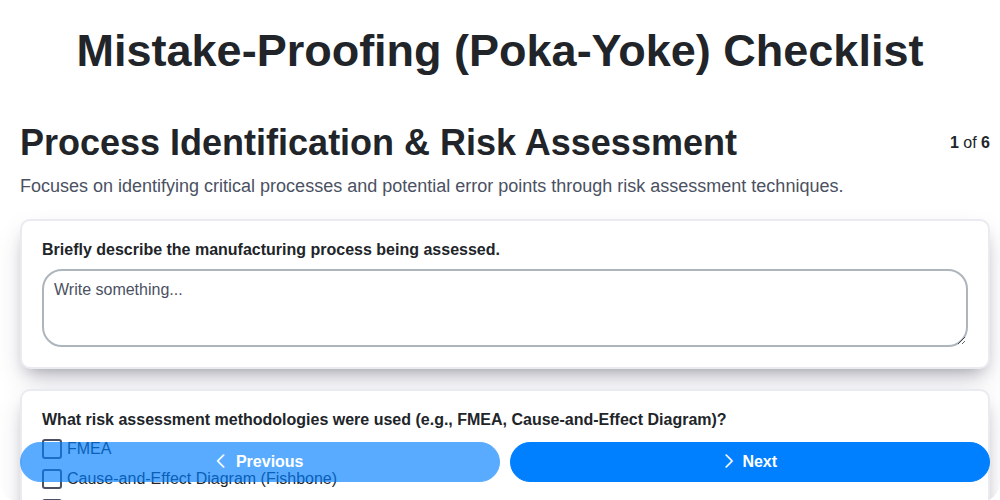

The Ultimate Poka-Yoke Checklist: Your Step-by-Step Guide

Implementing a robust Poka-Yoke system requires a structured approach. This checklist outlines the essential steps, ensuring you systematically identify, prevent, and continuously improve processes prone to errors. Consider it your roadmap to building a mistake-proofing powerhouse.

1. Process Identification & Risk Assessment: Pinpointing Vulnerabilities

• Identify Critical Processes: Begin by listing processes vital to product quality, customer satisfaction, and operational efficiency. Prioritize those with the greatest impact on overall business goals.
• Risk Assessment (FMEA): Conduct a Failure Mode and Effects Analysis (FMEA) for these critical processes. This critical evaluation identifies potential failure modes (what could go wrong), their potential effects, and assigns a risk priority number (RPN) based on severity, occurrence, and detection. A higher RPN signals a higher priority for Poka-Yoke intervention.
• Process Mapping: Visually represent each process flow using a flowchart or similar technique. This clarifies steps, handoffs, and potential points of error.
• Documentation: Create a documented record of all identified processes, their associated risks, and the RPN scores.

2. Design & Implementation of Mistake-Proofing Solutions

• Brainstorming & Ideation: Engage a cross-functional team (operators, engineers, quality personnel) in a brainstorming session to generate potential Poka-Yoke solutions. Encourage out-of-the-box thinking.
• Solution Categorization: Classify potential solutions into categories:
  • Contact-Based: Physical barriers or sensors that prevent incorrect actions. (e.g., shaped connectors, color-coded labels)
  • Constant Number: Requires a specific number of actions to be performed. (e.g., sequential button presses)
  • Sequential Steps: Forces execution in a predetermined order. (e.g., check-lists, guided assembly processes)
  • Elimination: Redesigning the process or product to remove the potential for error entirely.
• Prototyping & Testing: Develop prototypes of the chosen solutions and rigorously test them under simulated and real-world conditions. Gather feedback from operators.
• Implementation & Rollout: Implement the validated Poka-Yoke solutions incrementally, starting with a pilot program before full rollout.

3. Standardized Training & Communication

• Develop Training Materials: Create clear and concise training materials that explain the purpose and proper use of each Poka-Yoke device.
• Hands-On Training: Conduct hands-on training sessions for all affected personnel. Emphasize the importance of adhering to the new procedures.
• Visual Aids: Utilize visual aids (e.g., posters, diagrams) at the work area to reinforce the correct procedures and the purpose of the Pokoka-Yoke devices.
• Regular Refresher Training: Provide periodic refresher training to ensure ongoing adherence and to address any new questions or concerns.

4. Monitoring, Review & Continuous Improvement

• Performance Metrics: Define key performance indicators (KPIs) to measure the effectiveness of the Pokoka-Yoke implementations. (e.g., defect rates, process cycle time, operator error frequency)
• Data Collection: Implement a system for collecting data on these KPIs.
• Regular Review Meetings: Schedule regular (e.g., monthly or quarterly) review meetings to analyze the data and assess the effectiveness of the Pokoka-Yoke implementations.
• Feedback Mechanism: Establish a formal mechanism for operators to provide feedback on the Pokoka-Yoke devices and processes.
• Iterative Refinement: Based on the review findings and operator feedback, continuously refine and optimize the Pokoka-Yoke systems. Document all changes.

Step 1: Process Identification & Risk Assessment

The foundation of any successful Poka-Yoke implementation is a thorough understanding of your processes and the risks they entail. We're not looking to blame; we're aiming to proactively eliminate opportunities for errors to occur. This process begins with pinpointing the most critical areas for improvement.

1. Defining Critical Processes:

Start by listing all processes essential to your goals: product quality, customer satisfaction, and operational efficiency. Think beyond just manufacturing - consider order fulfillment, customer service interactions, data entry, and even software deployment. Prioritization is key; you can't tackle everything at once. Consider factors like process frequency, impact on customer experience, and cost of failure.

2. The Power of FMEA (Failure Mode and Effects Analysis):

FMEA is your most valuable tool here. It's a structured approach for identifying potential failure modes - what could go wrong within a process. For each critical process, conduct an FMEA, systematically documenting:

• Potential Failure Modes: What can go wrong? Be as detailed as possible.
• Effects of Failure: What's the impact of that failure? (e.g., scrap, rework, delayed shipment, customer dissatisfaction).
• Severity: How serious is the effect? (Assign a numerical rating, e.g., 1-10, with 10 being the most severe).
• Occurrence: How likely is the failure to occur? (Again, a numerical rating).
• Detection: How likely are you to detect the failure before it reaches the customer? (Numerical rating).

By multiplying these three factors (Severity x Occurrence x Detection), you're calculating a Risk Priority Number (RPN). Processes with higher RPNs should be your initial focus for implementing Poka-Yoke solutions.

3. Beyond RPN: Considering Other Factors

While RPN provides a valuable prioritization tool, don't rely on it exclusively. Consider factors like:

• Customer Impact: Even if an error has a low RPN, the impact on the customer might be devastating.
• Ease of Implementation: Some high-RPN processes might be too complex or costly to address immediately.
• Quick Wins: Identifying processes with lower RPNs but potential for rapid, noticeable improvements can build momentum and demonstrate the value of the Poka-Yoke approach.

Step 2: Brainstorming & Designing Your Poku-Yokes

Okay, you're armed with a prioritized list of error-prone processes. Now comes the fun part: generating those mistake-proofing solutions! This isn't about punishing mistakes; it's about clever design. Here's a breakdown to guide your brainstorming and design process:

1. The 5 Whys - Dig Deeper Than the Surface

Don't just treat the symptom. Use the "5 Whys" technique to understand why the error is happening in the first place. Keep asking why until you uncover the root cause. For instance:

• Problem: Parts are often installed backwards.
• Why? Operators are rushing.
• Why? Production targets are too aggressive.
• Why? The process hasn've been optimized for efficiency.
• Why? There hasn't been a recent process review.

This reveals the underlying issue isn't just operator carelessness, but a system that encourages it.

2. Categorize Poku-Yoke Methods: A Toolkit for Prevention

There's a wide array of Poku-Yoke techniques. Consider these categories:

• Contact Methods: These use physical shapes or guides to prevent incorrect assembly. Think of jigs, fixtures, or molds that only allow parts to be placed correctly.
• Blocking Methods: These prevent an action from being performed unless a condition is met. For example, a sensor that prevents a machine from starting until a part is correctly positioned.
• Sequential Methods: These force operations to be performed in the correct sequence. A device might only allow the next step to be taken after the previous one has been verified.
• Failure-Free Devices: These are designed so if used correctly, cannot result in errors. They incorporate built-in checks and balances.

3. Brainstorming Techniques - Unleash Creativity

• Reverse Brainstorming: Instead of asking How can we prevent this error?, ask How could we cause this error? Then, figure out how to do the opposite.
• SCAMPER: This checklist helps spark innovative ideas:
  • Substitute: Can a different material or component be used?
  • Combine: Can parts or steps be combined for simplification?
  • Adapt: Can we adapt an existing solution from another process?
  • Modify: Can we alter the design to prevent the error?
  • Put to other uses: Can this part be used in a way that verifies correct placement?
  • Eliminate: Can a step or part be eliminated to reduce complexity?
  • Reverse: Can we change the order of steps or the orientation of parts?
• Cross-Functional Teams: Get input from operators, engineers, and quality personnel. They bring diverse perspectives.

4. Design Considerations:

• Simplicity: Keep it simple. Complex solutions are harder to implement and maintain.
• Cost-Effectiveness: Balance effectiveness with cost. A sophisticated solution isn't worth it if the benefits don't outweigh the expense.
• Ease of Use: The Poku-Yoke shouldn't create new bottlenecks or inconveniences for the operator.
• Maintainability: Consider how the device will be cleaned and maintained.

Step 3: Implementing & Testing Your Solutions

Bringing your brainstormed Poka-Yoke ideas to life requires a structured approach. Rushing into full-scale implementation can lead to costly errors and resistance from operators. Here's a breakdown of how to effectively implement and rigorously test your solutions.

Start Small: The Pilot Program

Don't roll out a new Poka-Yoke across an entire process at once. Initiate a pilot program in a limited area or on a specific shift. This allows for controlled experimentation, identifies unforeseen issues, and allows for adjustments before a widespread rollout. Choose a process with relatively low risk initially to build confidence and gather valuable lessons.

Prototyping is Key

Before committing to materials and permanent fixtures, build low-cost prototypes. These can be made from cardboard, foam board, or readily available components. The goal isn't a polished product, but a functional model to test the concept. Involve operators in this prototyping phase! Their practical experience can highlight flaws or suggest improvements you might have overlooked.

Testing Protocols: Beyond Simple Functionality

Testing needs to extend beyond simply confirming the Poka-Yoke works as designed. Consider these aspects:

• Usability Testing: Observe operators using the prototype. Is it intuitive? Does it slow down the process unnecessarily? Are there any ergonomic concerns?
• Error Simulation: Intentionally try to defeat the Poka-Yoke. Try to bypass the intended safeguards. This reveals weaknesses in the design.
• Durability Testing: Assess the prototype's ability to withstand normal wear and tear. Will it hold up to repeated use and potential mishandling?
• Data Collection: Track relevant metrics like cycle time, error rates, and operator feedback during the testing phase. This provides objective data for evaluating the solution's effectiveness.

Iterative Refinement:

The testing phase should be iterative. Based on the results, make adjustments to the design. Re-test. Repeat this cycle until the Poka-Yoke consistently performs as intended and is readily accepted by the operators. Don't be afraid to scrap a design and start anew if it's not working! Remember, a well-tested and operator-approved Pokoka-Yoke is far more effective than a poorly implemented one.

Step 4: Operator Training & Buy-in

Operator training for Pokeya isn't about simply handing out instructions - it's about fostering a genuine understanding of why these safeguards are in place. Too often, well-intentioned mistake-proofing measures are circumvented when operators don't grasp the rationale behind them, or feel that the systems are overly restrictive.

Start by clearly communicating the benefits of the Pokeya system. Explain how it protects them from rework, reduces stress, and ultimately contributes to a more efficient and satisfying work environment. Frame it as a collaborative effort to improve processes together, not as a way to monitor or penalize.

Practical, hands-on training is key. Demonstrate how the Pokeya functions, allowing operators to experience it firsthand. Encourage questions and feedback - their insights are invaluable for fine-tuning the system and ensuring it've been optimized for real-world use. Regular refresher sessions reinforce proper procedures and address any recurring challenges.

Most importantly, create a safe space for operators to voice concerns or suggest improvements. Their practical experience offers a unique perspective that can reveal hidden bottlenecks or potential workarounds. Recognize and reward suggestions that lead to positive changes-this fosters a culture of continuous improvement and solidifies operator buy-in. A system built with the operators is far more likely to succeed than one imposed upon them.

Step 5: Monitoring & Maintaining Effectiveness

Implementing a Poka-Yoke is only the beginning. The true power lies in consistently monitoring and maintaining its effectiveness. Think of it like preventative maintenance for your error prevention system - neglecting it can lead to a slow, insidious return of the very problems you worked so hard to eliminate.

Here's how to keep your Poka-Yokes performing at their peak:

1. Regular Performance Reviews: Don't wait for errors to pop up. Schedule periodic reviews - ideally quarterly or at least annually - to assess Poka-Yoke performance. Compare current error rates and cycle times against established baselines to gauge the impact.

2. Audits and Inspections: Integrate visual inspections of the Poka-Yoke devices themselves into routine maintenance schedules. Are sensors clean and unobstructed? Are jigs in good condition? Are physical guides aligned correctly? Even the best-designed system can degrade with use.

3. User Feedback & Observations: Create a simple, accessible channel (suggestion box, quick survey, informal chats) for operators to share observations. They're often the first to notice subtle deviations or potential bypasses of the Poka-Yoke. Act on their input promptly - it demonstrates that their voices are valued and reinforces the system's integrity.

4. Trend Analysis & Data Visualization: Go beyond simple numbers. Use graphs and charts to visualize trends in error rates, cycle times, and user feedback. This makes it easier to spot subtle changes that might indicate a problem brewing.

5. Documentation Updates: As processes evolve or new equipment is introduced, ensure your Poka-Yoke documentation (procedures, diagrams, maintenance schedules) is updated accordingly. Outdated documentation creates confusion and increases the likelihood of errors.

6. Addressing Bypass Behaviors: Sometimes, operators might find ways to "work around" a Poka-Yoke, even unintentionally. Investigate these bypasses to understand the underlying reasons and either modify the Poka-Yoke design or provide additional training.

Step 5.1: Common Pitfalls to Avoid

Implementing Poka-Yoke isn't always smooth sailing. Several common pitfalls can derail your efforts and render your mistake-proofing ineffective. Being aware of these challenges upfront can significantly improve your chances of success.

1. Operator Workarounds: Perhaps the biggest threat. If operators find a Poka-Yoke inconvenient or restrictive, they may develop workarounds to bypass it. This defeats the entire purpose! Solution: Involve operators in the design phase and address their concerns directly. Emphasize the benefits of the system and make it as user-friendly as possible. Regularly audit processes to identify and eliminate workarounds.

2. Over-Reliance on Technology: Poka-Yoke isn't solely about fancy sensors and automated systems. While technology can be useful, it's important to remember that simple, low-cost solutions can be highly effective. Don't fall into the trap of thinking that a complex, expensive system is always the best approach.

3. Ignoring the Root Cause: Poka-Yoke addresses symptoms, not the underlying causes of errors. If a process is inherently flawed, a Poka-Yoke might mask the problem rather than solving it. Focus on improving the process itself alongside implementing mistake-proofing measures.

4. Lack of Management Support: Without buy-in from management, Poka-Yoke initiatives can struggle to gain traction. Ensure that leadership understands the benefits of mistake-proofing and is committed to providing the necessary resources and support.

5. Treating it as a One-Time Fix: Poka-Yoke isn't a 'set and forget' solution. Processes change, new risks emerge, and workarounds can creep in. Regular review and continuous improvement are essential for maintaining the effectiveness of your mistake-proofing efforts.

Step 6: Documentation & Standardization

Effective Poka-Yoke implementation isn't just about installing a device or changing a process step; it's about creating a lasting system. That's where robust documentation and standardization come in. Without clear records, knowledge can easily be lost when personnel change, processes evolve, or you attempt to replicate your successes across different areas.

Here's what good documentation and standardization should include:

• Detailed Procedure Manuals: These should outline the purpose of the Poka-Yoke, how it functions, step-by-step instructions for operators, and troubleshooting guidelines. Use clear, concise language and visual aids whenever possible.
• Device Schematics & Maintenance Schedules: For physical Poka-Yoke devices, include schematics or diagrams illustrating their construction and components. Develop a proactive maintenance schedule to ensure continued functionality - even the best device can fail with neglect.
• Standard Operating Procedures (SOPs): Integrate the Poka-Yoke's operation directly into relevant SOPs. This reinforces its importance and ensures it's consistently followed.
• Visual Work Instructions (VWI): These are especially helpful for frontline operators. Use pictures, diagrams, and minimal text to clearly illustrate the correct process.
• Version Control System: Implement a system (digital or physical) to track revisions to documentation. Clearly label each version and maintain a history of changes.
• Training Records: Document which personnel have been trained on each Poka-Yoke and when refresher training is required.
• Centralized Repository: Store all documentation in a centralized, accessible location (e.g., a shared drive or online database).

By investing in thorough documentation and standardization, you transform a temporary fix into a reliable, scalable, and enduring system for error prevention.

Poka-Yoke Examples: Real-World Applications

Let's move beyond the theory and dive into some concrete examples of Poka-Yoke in action. These scenarios highlight the versatility of the approach and demonstrate how it can be adapted across various industries.

1. Automotive Manufacturing: Connector Orientation

In car production, incorrectly oriented electrical connectors can lead to serious malfunctions. To prevent this, manufacturers often use connectors with asymmetrical pins - they only fit one way. This simple design change eliminates the possibility of incorrect installation, saving time and preventing costly rework.

2. Food Processing: Lid Placement on Containers

A food processing plant struggled with improperly sealed containers, leading to spoilage and product loss. They implemented a color-coded lid system, where different colored lids match specific container types. The lid design also features a tactile bump that requires alignment with a corresponding slot on the container, ensuring a secure and correct fit every time.

3. Electronics Assembly: Polarized Capacitors

Polarized capacitors, crucial components in many electronic devices, must be installed with the correct polarity. Incorrect installation can cause device failure. To address this, manufacturers use jigs that physically prevent the capacitor from being inserted incorrectly, often utilizing differently shaped slots corresponding to the capacitor's leads.

4. Pharmaceutical Manufacturing: Filling Machines

Ensuring accurate medication dosages is paramount. Pharmaceutical companies use filling machines equipped with sensors that check the weight of each filled vial. If the weight falls outside the acceptable range, the machine automatically stops, preventing under- or over-filled containers from being packaged.

5. Software Development: Unit Testing & Code Reviews

Poka-Yoke principles aren't just for physical products. In software development, unit tests act as Poka-Yokes, automatically verifying code functionality and preventing errors from propagating further. Similarly, mandatory code reviews by senior developers catch potential issues before they make it into production.

These are just a few examples illustrating how Poka-Yoke principles can be applied to prevent errors and improve quality in various settings. The key is to identify potential failure points and design simple, effective mechanisms to prevent them from occurring.

Leveraging Technology for Enhanced Poku-Yoke

While traditional Poku-Yoke often relies on physical guides and visual cues, technology is rapidly expanding the possibilities for error prevention. Integrating digital solutions can lead to even more robust and adaptable systems. Here's how:

Smart Sensors & IoT Integration: Imagine a production line where sensors detect the absence of a part or the incorrect orientation, instantly halting the process and alerting a supervisor. The Internet of Things (IoT) enables just that - connecting physical processes to digital dashboards for real-time monitoring and intervention. This moves beyond simple presence detection to include more nuanced checks, like torque verification or material composition analysis.

Digital Work Instructions & Augmented Reality (AR): Paper-based instructions are prone to misinterpretation. Digital work instructions, often accessible through tablets or integrated into AR headsets, can guide operators through complex procedures step-by-step, with visual overlays and interactive prompts. AR can even project virtual jigs or guides onto the physical workspace, effectively creating a dynamic, digital Poku-Yoke.

Automated Error Detection with Machine Learning (ML): ML algorithms can be trained on historical data to identify patterns indicative of errors. These models can then be deployed to monitor processes in real-time, flagging anomalies and potential mistakes before they lead to defects. This is particularly useful for complex, highly variable processes.

Programmable Logic Controllers (PLCs) & Robotics: PLCs can be programmed to enforce specific process parameters and halt operations if those parameters are not met. Integrating Poku-Yoke principles into robotic programming further minimizes human error, ensuring consistent and accurate execution.

Blockchain for Traceability and Verification: While less direct, blockchain technology can enhance Poku-Yoke by providing an immutable record of process steps and verification checks, increasing transparency and accountability.

The key is to thoughtfully combine traditional and technological approaches to create a Poku-Yoke system that is both effective and adaptable to the evolving needs of your organization.

Conclusion: Building a Culture of Error Prevention

Ultimately, successful Poka-Yoke implementation isn't just about the tools and techniques; it's about fostering a fundamental shift in mindset. It's about moving beyond a reactive approach to quality, where errors are investigated after they occur, to a proactive system that anticipates and prevents them. This means empowering every team member, from the shop floor to the boardroom, to identify potential risks and suggest improvements. Encourage open communication, reward innovative solutions, and celebrate the collective effort in building a safer, more efficient, and more reliable operation. When error prevention becomes an ingrained value, quality isn't just a goal-it's a natural consequence.
