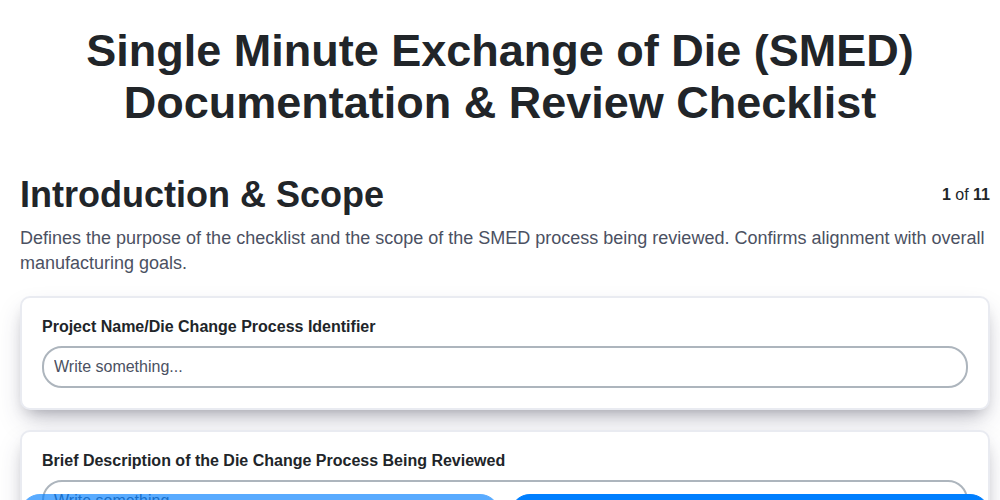

Your Ultimate S.M.E.D. Checklist: Documentation & Review for Leaner Die Changes

Why Document & Review Your S.M.E.D. Efforts?

Simply changing a few steps during a die change isn't enough to realize the full potential of Single Minute Exchange of Die (S.M.E.D.). A robust documentation and review process is the backbone of a sustainable and effective S.M.E.D. implementation, acting as more than just a record - it's a roadmap for continuous improvement and long-term success.

Think of it this way: without documentation, you risk losing the knowledge gained during the optimization process, particularly as personnel change. Standardized Work Instructions (SWIs) provide a clear reference point for operators, ensuring consistency and minimizing the chance of reverting to less efficient practices.

Regular reviews aren't just about confirming that the documented process is still being followed. They offer invaluable opportunities to identify subtle inefficiencies, adapt to changing conditions, and discover further optimization possibilities. A well-structured review process helps prevent drift - the gradual erosion of improvements over time - and ensures that your S.M.E.D. efforts remain a source of competitive advantage. Ultimately, documented processes and regular reviews solidify your investment in S.M.E.D. and help maintain a culture of continuous improvement.

1. Defining Scope & Objectives

Before diving into process mapping and optimization, it's absolutely vital to clearly define the scope of your S.M.E.D. project. "Scope creep" - where the project expands beyond its initial boundaries - is a common pitfall that can derail even the most well-intentioned efforts.

Start by identifying exactly which die(s) or processes will be included. Will it be a pilot project focused on a single, particularly problematic die change, or a broader initiative encompassing multiple dies and production lines? Be specific: Die #47 for the Widget production line is far more useful than all dies in the stamping department."

Equally important is setting clear, measurable objectives. Don't just say you want to "improve" die change time. Instead, state your goals in quantifiable terms: "Reduce die change time for Die #47 from 45 minutes to 30 minutes within 90 days" or "Decrease downtime associated with die changes by 20% across all selected dies within six months."

Document these initial scope and objectives clearly - preferably in a formal project charter. This provides a reference point for everyone involved and helps ensure that the project stays focused and delivers tangible results. Regularly revisit and adjust these objectives as needed, but always with careful consideration and documented justification.

2. Mapping Your Current Die Change Process

Understanding where you currently stand is the crucial first step towards meaningful improvement. Simply assuming you know the process isn't enough - you need a visual representation to expose inefficiencies and identify opportunities for optimization. This isn't just about documenting the "official" procedure; it's about capturing how things actually happen on the shop floor.

We advocate for using a combination of methods for a complete picture:

• Direct Observation: Spend time observing die changes from start to finish. Don't interrupt - simply record everything you see. Note the sequence of events, the time spent on each step, and any bottlenecks or delays.
• Operator Interviews: Talk to the people who perform the die change regularly. Ask them to walk you through the process, explaining their actions and the reasons behind them. Encourage them to point out any challenges or frustrations they experience.
• Video Recording: A video camera can be incredibly valuable for capturing nuances and details that might be missed during observation or interviews. Video also allows you to review the process multiple times, pausing and zooming in on specific actions.
• Flowchart Creation: Once you've gathered your data, translate it into a visual flowchart. This will clearly illustrate the sequence of steps, the time spent on each step, and the flow of materials and information. Use standard flowchart symbols to ensure clarity and consistency.

Don't be surprised if the resulting map reveals unexpected steps, delays, or dependencies. This is valuable information that can guide your improvement efforts. Remember, the goal isn't to criticize - it's to understand.

3. Identifying & Engaging Subject Matter Experts (SMEs)

Identifying the right Subject Matter Experts (SMEs) is the cornerstone of a successful S.M.E.D. implementation. These are the individuals who live the die change process - they're the ones with the deep, practical knowledge that's essential for optimization. But simply having SMEs isn't enough; you need to actively engage them and value their contributions.

Who are your SMEs? They're typically long-term operators, maintenance technicians, tooling specialists, or even supervisors with extensive experience in die changes. Look for individuals who not only know how things are done, but can also articulate why they're done that way.

Engagement is Key: Don't just assign SMEs; collaborate with them. Schedule dedicated time for brainstorming sessions, process observation, and data analysis. Actively solicit their feedback on proposed changes, and be prepared to adjust plans based on their insights. Recognize and reward their contributions - their expertise is invaluable. Make sure they understand the project's goals and how their involvement directly contributes to the overall success. Remember, SMEs are not just consultants; they're partners in this journey.

4. Creating Standardized Work Instructions (SWIs)

Creating clear, concise, and easily understood Standardized Work Instructions (SWIs) is the backbone of any successful S.M.E.D. implementation. These aren't just a list of steps; they're a visual and procedural guide that ensures anyone trained can perform the die change safely and consistently.

Forget lengthy, jargon-filled documents. The best SWIs are:

• Visually Driven: Use photos, diagrams, and even short videos to illustrate each step. A picture truly is worth a thousand words, especially when communicating complex procedures.
• Step-by-Step: Break down the process into small, manageable steps. Avoid ambiguity - be specific about tools, locations, and expected results.
• Operator-Friendly: Use language that your operators understand. Avoid technical jargon unless absolutely necessary, and when you do use it, provide a brief explanation.
• Sequenced Logically: Arrange steps in the order they are performed. This may seem obvious, but clear sequencing eliminates confusion and reduces errors.
• Regularly Reviewed & Updated: SWIs aren't static documents. They should be reviewed and updated regularly to reflect process improvements or changes. Encourage operator feedback - they are the experts on the shop floor.

Consider using a standardized SWI format - perhaps with numbered steps, clear headings, and readily accessible icons. This uniformity makes them easier to follow and helps ensure consistency across the team. Remember, well-crafted SWIs are a powerful tool for both training new operators and sustaining improvements in your die change process.

5. Optimizing the Die Change Sequence

The order in which you perform die change steps has a massive impact on overall efficiency. Often, seemingly minor adjustments to the sequence can shave significant time off the entire process. The core principle here is to analyze each step and ask: Can this be done before the die is removed? Can a step be overlapped with another? Can we eliminate unnecessary movements?

Don't just assume the current sequence is optimal. Go back to your process map (created in Step 2) and critically evaluate each action. Look for opportunities to:

• Pre-stage materials: Can you have all necessary materials, tools, and the next die ready before the old die is even removed?
• Overlap tasks: Can one team member start prepping the next die while another is finishing up with the current one?
• Eliminate wait times: Identify any points where operators are waiting for something or someone, and find ways to eliminate those delays.
• Consider parallelism: Can two or more tasks be performed simultaneously?
• Prioritize activities: Focus on the most time-consuming or critical steps and optimize those first.

Remember to document any changes you make, no matter how small they seem. Track the impact of these changes on your KPIs (Step 10) to ensure you're moving in the right direction and that your optimizations are truly effective. Small changes, carefully analyzed and documented, add up to substantial gains.

6. Standardizing Equipment & Tooling

Standardized equipment and tooling are the unsung heroes of efficient die changes. Imagine scrambling for the right wrench, or discovering a crucial tool is missing mid-changeover - a recipe for delays and frustration. Moving beyond that requires a deliberate strategy.

This isn's just about using the same tools; it's about controlling them. Document exactly which specific models and manufacturers are approved for use in the die change process. Include part numbers and supplier contact information in this documentation - this simplifies reordering and avoids compatibility issues. Implement a system for regular tool inspections and maintenance. A dedicated tool crib with organized and labeled tooling is highly recommended. Consider shadow boards to quickly identify missing tools. Furthermore, define clear responsibility for tool management - who is accountable for ensuring the right tools are available, in good working order, and properly stored? This proactive approach minimizes downtime, improves operator confidence, and ensures consistent results with every die change.

7. Pre-Staging Materials & Parts

The chaos of a frantic die change often stems from the last-minute scramble for necessary components. Eliminating this scramble is surprisingly impactful - and it all begins with pre-staging. This means proactively gathering and positioning all materials, tools, and parts required before the die change process even begins.

Think about it: instead of an operator hunting for a specific bolt or a specialized lubricant during the critical changeover window, it's readily available, within arm's reach. This simple shift drastically reduces downtime and minimizes the risk of errors.

Here's what effective pre-staging looks like:

• Clearly Defined Locations: Establish designated areas for pre-staging - these should be easily accessible and clearly marked. Consider using shadow boards for quick visual confirmation of tool presence.
• Kanban Systems: Implementing a simple Kanban system can ensure materials are replenished just as they're needed, preventing shortages and overstocking.
• Dedicated Preparation Time: Schedule a short period before each die change specifically for material preparation. This prevents it from being overlooked in a busy schedule.
• Operator Involvement: Involve operators in the pre-staging process. Their firsthand knowledge of the tooling and materials needed is invaluable.
• Documentation: Clearly document the pre-staging process, including what needs to be gathered, where it should be placed, and who is responsible.

By prioritizing pre-staging, you're not just preparing materials; you're building a foundation for a smoother, more efficient, and less stressful die change process.

8. Prioritizing Safety & Ergonomics

Die changes inherently involve risk. Heavy components, awkward postures, and potential pinch points are commonplace. Ignoring these hazards not only jeopardizes operator well-being but also introduces downtime and potential legal liabilities. A proactive approach to safety and ergonomics is therefore essential for a successful S.M.E.D. program.

This isn't simply about slapping on some gloves and calling it a day. It requires a systematic evaluation of the entire process. Consider:

• Risk Assessments: Conduct thorough risk assessments before any process changes are implemented. Identify potential hazards and their severity.
• Ergonomic Design: Evaluate the physical demands of the task. Can components be pre-positioned to minimize lifting? Can quick-release mechanisms reduce strain? Invest in ergonomic tooling and workstations.
• Personal Protective Equipment (PPE): Clearly define and enforce PPE requirements - safety glasses, gloves, appropriate footwear, etc. Ensure operators are properly trained in their use.
• Safe Lifting Techniques: Provide training on proper lifting techniques and encourage the use of mechanical assistance (hoists, carts) whenever possible.
• Pinch Point Protection: Implement physical barriers or guards to prevent accidental contact with moving parts.
• Emergency Procedures: Ensure operators are familiar with emergency stop procedures and have access to first aid supplies.
• Continuous Improvement: Regularly solicit feedback from operators regarding safety concerns and implement corrective actions promptly. Safety is not a one-time fix - it's an ongoing commitment.

9. Training and Communication Strategies

Successful S.M.E.D. implementation hinges on a well-trained and informed team. It's not enough to simply change the process; operators need to understand why the changes are being made, how to execute them safely and effectively, and how their contributions are vital to the overall improvement.

Our training program goes beyond a simple walkthrough of the new procedure. We employ a layered approach:

• Initial Classroom Training: This introduces the principles of S.M.E.D., explains the reasoning behind the changes, and covers safety protocols. Visual aids, videos of the old and new processes, and interactive Q&A sessions are key.
• On-the-Job Coaching: Each operator receives one-on-one coaching during the initial implementation phase, ensuring they are comfortable and confident in their ability to perform the new die change sequence.
• Skills Assessment & Certification: A practical assessment verifies competency and certifies operators in the revised process. This reinforces proper technique and provides a benchmark for future training.
• Regular Refresher Sessions: Short, focused refresher sessions are scheduled periodically to reinforce best practices and address any emerging challenges.
• Open Communication Channels: We foster a culture of open communication. Toolboxes talks, suggestion boxes (both physical and digital), and regular team meetings provide opportunities for feedback and problem-solving.

Effective communication isn't just about conveying information; it's about creating a sense of ownership and shared responsibility for continuous improvement. A well-informed and engaged team is the backbone of any successful S.M.E.D. program.

10. Establishing Key Performance Indicators (KPIs)

Implementing S.M.E.D. isn't just about changing processes; it's about proving the value of those changes. Key Performance Indicators (KPIs) provide that proof and guide your continuous improvement efforts. Without them, you're flying blind.

But which metrics matter most? Here's a breakdown of essential KPIs to track, along with why they're important:

• Changeover Time: This is the most obvious one. Track the total time from the completion of one production run to the readiness of the next. Reducing this directly impacts productivity.
• Downtime: Measure the total time equipment is unavailable due to die change activities. This includes setup time, adjustment time, and any delays.
• Error Rate: Track the number of errors or defects occurring during or immediately following the die change. This points to issues with standardized work or operator training.
• Throughput: Assess the overall production rate after S.M.E.D. implementation. Increased throughput demonstrates the tangible benefits of faster changeovers.
• Overall Equipment Effectiveness (OEE): OEE combines Availability, Performance, and Quality, providing a holistic view of equipment performance. Improved S.M.E.D. practices should positively impact all three components.
• Operator Satisfaction: Don't underestimate the importance of operator buy-in. Conduct surveys or informal check-ins to gauge operator feedback and identify potential roadblocks.
• Material Waste: Track any scrap or wasted materials during the changeover process. Reducing waste contributes to sustainability and cost savings.

Beyond the Numbers:

Remember, KPIs aren't just about hitting targets. They're about understanding why things are happening. Regularly analyze the data, identify trends, and use the insights to drive further improvements. Consider implementing visual dashboards to make the data readily accessible to your team.

11. Continuous Improvement: The PDCA Cycle

S.M.E.D. isn't a one-and-done project; it's a journey of continuous improvement. This is where the Plan-Do-Check-Act (PDCA) cycle becomes your guiding principle. Think of it as a structured loop, ensuring that your die change process never stops evolving.

Plan: Regularly review your S.M.E.D. documentation, performance metrics, and operator feedback. Identify potential areas for further optimization. This could involve examining minor inefficiencies, experimenting with new tooling, or revisiting sequence changes.

Do: Implement your planned changes on a small scale - perhaps for a single shift or a limited number of dies. This allows for controlled experimentation and minimizes disruption.

Check: Meticulously monitor the results of your changes. Compare the new performance data with the baseline established during the initial S.M.E.D. implementation. Were your predictions accurate? Did the change have the intended effect? Don't be afraid to acknowledge failures - they're valuable learning opportunities.

Act: Based on your findings, either standardize the changes and roll them out across the entire operation, or adjust your approach and start the cycle again. Document all modifications and update your S.M.E.D. documentation accordingly. This ongoing cycle ensures that your die change process remains lean, efficient, and responsive to changing needs. Remember, a commitment to continuous improvement is the key to long-term success with S.M.E.D.

12. Maintaining & Updating Your S.M.E.D. Documentation

Documentation isn't a one-and-done task. It's a living document that needs regular upkeep to remain relevant and effective. The most brilliantly designed S.M.E.D. process will degrade if the instructions become outdated or if changes aren't properly recorded. Here's how to keep your S.M.E.D. documentation thriving:

• Assign Ownership: Designate a specific individual or small team responsible for maintaining the S.M.E.D. documentation. This ensures accountability and prevents neglect.
• Scheduled Reviews: Establish a recurring schedule (e.g., quarterly, semi-annually) for comprehensive reviews of the entire documentation set. These reviews should involve key stakeholders, including operators, supervisors, and engineers.
• Version Control: Implement a clear version control system. Date and clearly label all revisions. This allows you to track changes and revert to previous versions if necessary. Digital document management systems are ideal for this.
• Feedback Loop: Encourage continuous feedback from operators. They are the ones executing the process daily and will quickly identify discrepancies or areas for improvement. A simple suggestion box (physical or digital) can be surprisingly effective.
• Change Management: Any modification to the process, equipment, or tooling must trigger an immediate update to the relevant documentation. Don't let undocumented changes creep into the system.
• Training Updates: When documentation is updated, ensure that all affected personnel receive the necessary training on the changes. This prevents confusion and errors.
• Audit Trails: Maintain a log of all changes made to the documentation, including the date, author, and reason for the change. This provides a valuable audit trail and helps identify patterns.
