Level Crossing Safety: Your Inspection Checklist Template

Why Level Crossing Inspections Matter

Level crossings represent a unique intersection of risk and necessity. While they facilitate travel and connect communities, their very nature demands meticulous attention to safety. Neglecting regular inspections can have devastating consequences - tragically, level crossing accidents often result in serious injuries or fatalities. Beyond the human cost, these incidents disrupt railway operations, damage infrastructure, and erode public trust.

Frequent, thorough inspections aren't merely about ticking boxes on a checklist; they're about proactively identifying and mitigating potential hazards before they escalate into incidents. Early detection of issues like signal malfunctions, gate obstructions, or compromised visibility allows for timely repairs and adjustments, drastically reducing the likelihood of an accident. Investing in robust inspection programs demonstrates a commitment to safety, protects vulnerable road users, and ensures the ongoing reliability of our transportation network. Ultimately, these inspections are a critical investment in the wellbeing of the communities we serve.

Understanding Your Inspection Checklist

A well-structured inspection checklist is more than just a list of items to check; it's a roadmap for ensuring safety and compliance. Let's break down how to effectively use and interpret your checklist. First, familiarize yourself with the purpose of each section. The General Information establishes the context, while sections on signals, gates, and signs highlight critical warning systems. Understand that many checklist items will have specific acceptance criteria - a defined level of performance or condition that must be met. These criteria might be numerical (e.g., light intensity measurements) or qualitative (e.g., "no visible corrosion"). Don't simply check boxes; document your observations. A clear description of any deviations from the expected condition is vital for effective follow-up and corrective action. Utilize the Deficiencies and Recommendations section diligently, assigning a severity rating and proposing actionable steps. Remember that collaboration between inspectors, maintenance personnel, and relevant authorities is crucial for a proactive and continuous improvement approach to level crossing safety.

Key Sections of the Checklist: A Detailed Breakdown

Let's dive deeper into the core sections of your level crossing safety inspection checklist. Each area demands meticulous attention and a systematic approach. Here's a more granular look at what each section covers and why it's crucial.

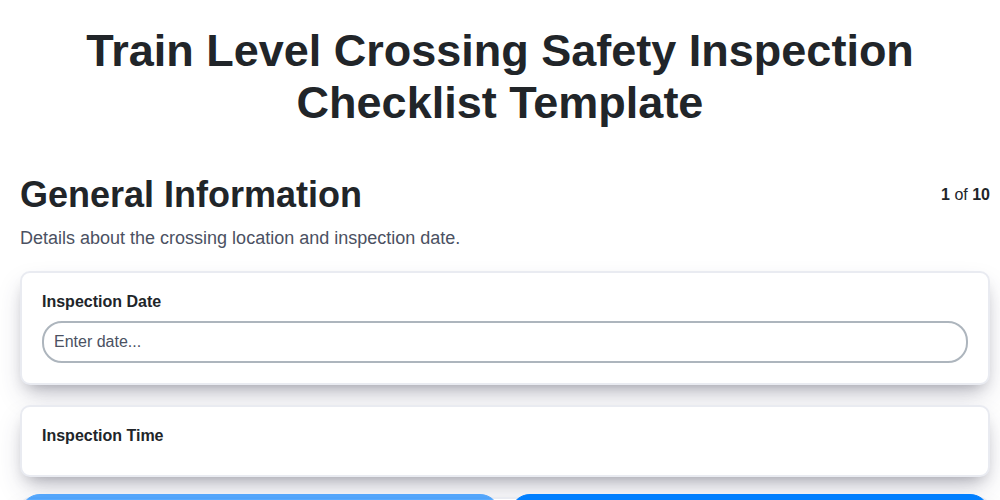

1. General Information: Laying the Foundation

This isn't just about paperwork; it's about establishing a clear record. Accurate location details, including GPS coordinates, are vital for emergency services and future reference. The date and time are critical for tracking inspection frequency and identifying trends over time. Finally, documenting the inspector's credentials ensures accountability and demonstrates the inspection's validity.

2. Crossing Signals and Lights: Ensuring Visual and Audible Warnings

The functionality of signals is paramount. This section goes beyond simply checking if the lights are on. It requires a full assessment of sequencing, intensity - particularly at night and in fog - and the audibility of warning sounds. Backup power systems must be tested to guarantee operation during outages.

3. Gates and Barriers: Assessing Mechanical and Electrical Integrity

Gates and barriers offer a physical separation, but their operation must be flawless. This involves checking gate speed, alignment, and identifying any unusual noises that might indicate mechanical issues. Electrical connections need scrutinizing for corrosion and proper function.

4. Warning Signs and Markings: Clear Communication is Key

Signs must be visible, legible, and in compliance with regulations. Look for damage, fading, graffiti, and ensure reflectors are intact. Road markings, like stop lines and crosswalks, are equally important for driver guidance.

5. Track Geometry and Alignment: Detecting Subtle Deviations

While a detailed track inspection requires specialized expertise, this section involves observing for any noticeable irregularities. Changes in alignment or unusual track conditions should be documented for further investigation by qualified track maintenance personnel.

6. Maintenance Records: Learning from the Past

Reviewing maintenance logs provides a historical perspective on issues and repairs. This allows for the identification of recurring problems or areas requiring more frequent attention. Verifying the completion of scheduled maintenance tasks is also essential.

Signals & Lights: Ensuring Clear Warnings

Signals and lights are the primary means of communicating with drivers approaching a level crossing. Their effectiveness hinges on consistent functionality and clear visibility. This section of the checklist focuses on verifying these critical aspects.

First, meticulously observe the signal sequence. Each light and sound should activate in the prescribed order, providing ample warning time for drivers to react. Note any deviations - a delayed activation or a missed step could compromise safety. Intensity is also paramount; lights must be bright enough to be seen under varying weather conditions, including fog, rain, and glare from the sun. Utilize a light meter to ensure compliance with established luminance standards.

Audible warnings play a vital secondary role. Confirm the loudness and clarity of bell or horn sounds. The range should extend sufficiently to alert drivers who may not have a clear line of sight to the signals. Power supply to both signals and audible devices should be checked, including backup systems, to ensure continuous operation even during power outages. Finally, look for any physical damage or obstructions that might impair signal visibility, and document accordingly. Consistent and reliable signals and lights are a cornerstone of level crossing safety.

Gates & Barriers: Mechanical Integrity Checks

A thorough assessment of gate and barrier systems goes beyond simply observing their operation. Mechanical integrity is paramount to ensuring reliable and predictable performance, especially during emergency situations. This involves a detailed visual inspection for signs of wear and tear, including:

• Rust and Corrosion: Carefully examine all metal components - hinges, pivots, locking mechanisms, and gate frames - for signs of rust. Corrosion can significantly weaken these parts, increasing the risk of failure. Pay particular attention to areas where metal is in contact with other materials or exposed to the elements.
• Loose Fasteners: Check all bolts, nuts, and screws for tightness. Vibration and weather can cause these to loosen over time. A simple tightening may prevent more serious problems later.
• Hinge and Pivot Condition: Inspect hinges and pivots for wear, binding, or damage. Smooth, unrestricted movement is crucial for proper gate operation. Look for signs of pitting or deformation.
• Locking Mechanisms: Verify the functionality of locking mechanisms, including electric locks or manual latches. These must secure the gate in both the open and closed positions.
• Gate Alignment: Observe the gate's alignment with both the roadway and the railway tracks. Misalignment can indicate underlying structural issues or track settling.
• Spring Tension (if applicable): If the gate utilizes spring mechanisms for opening and closing, check the spring tension to ensure consistent and predictable operation.
• Impact Damage: Look for signs of impact damage, which may indicate a past incident and potential structural compromise.

Visibility & Clearance: Roadway & Track Considerations

Maintaining clear visibility and adequate clearance are non-negotiable aspects of level crossing safety. This extends beyond simply trimming bushes; it's about a holistic assessment of the surrounding environment. Roadway visibility is paramount - obstructions like parked vehicles, faded road markings, or even temporary displays can significantly reduce a driver's reaction time. Regular inspections should meticulously check for these issues, ensuring sightlines are as unobstructed as possible approaching from all directions.

Equally critical is trackside clearance. Overhanging vegetation, particularly trees and shrubs, can obscure signals, gates, and warning signs, not just for drivers but also for train operators. Furthermore, adequate vertical clearance above the track is essential to prevent collisions with low-hanging structures or obstructions. A proactive approach to vegetation management, combined with regular clearance checks and prompt remedial action, is vital for maintaining a safe operating environment and minimizing the risk of incidents. Remember to document any visibility issues or clearance deficiencies precisely, noting their location and severity for follow-up and corrective measures.

Documentation & Follow-Up: Maintaining Records & Addressing Deficiencies

Thorough documentation and a robust follow-up system are as crucial as the inspection itself. A detailed record of each inspection provides valuable insight into trends, identifies recurring issues, and serves as vital evidence for audits and investigations.

Key Elements of Effective Documentation:

• Complete Checklist Copies: Maintain complete, signed copies of all inspection checklists, both digital and hard copies.
• Photographic Evidence: Supplement written observations with photographs or videos to clearly document any deficiencies. Capture the context and severity of the issue.
• Date-Stamped Records: Ensure all records are accurately date-stamped and easily searchable.
• Witness Signatures: Include signatures from any witnesses present during the inspection to corroborate findings.

Closing the Loop: Addressing Identified Deficiencies:

Simply identifying issues isn't enough; a structured follow-up process is essential. This includes:

• Severity Prioritization: Assign a clear priority level (e.g., High, Medium, Low) to each deficiency, driving the urgency of corrective action.
• Action Item Assignment: Clearly assign responsibility for corrective action to a specific individual or team.
• Target Completion Dates: Establish realistic and measurable completion deadlines for each corrective action.
• Tracking & Verification: Implement a system for tracking the progress of corrective actions and verifying their effectiveness. This could involve re-inspections or visual confirmation.
• Record Updates: Document all corrective actions taken, including dates of completion and responsible parties, directly within the inspection record. Note if the original issue was fully resolved or if further action is required.
• Escalation Procedures: Establish clear escalation procedures for deficiencies that are not addressed within the assigned timeframe.

Staying Compliant: Regulations & Best Practices

Navigating the regulatory landscape surrounding level crossing safety can feel complex, but adherence is critical. In the United States, the Federal Railroad Administration (FRA) sets forth standards and guidelines, detailed in Title 49 of the Code of Federal Regulations (CFR), specifically Parts 135 and 139. These address areas such as active warning systems, signal maintenance, and signage requirements. State and local authorities often have supplemental regulations that must also be followed.

Beyond formal regulations, embracing industry best practices is vital for a proactive safety approach. The American Railway Engineering and Maintenance-of-Way Association (AREMA) Manual provides invaluable guidance on track maintenance, signaling systems, and other related areas. Regularly consulting these resources and staying abreast of updates is crucial.

Key areas for compliance include:

• Regular Inspections: Conducting and documenting inspections at the frequency stipulated by regulations.
• Signal System Maintenance: Adhering to stringent maintenance schedules for all warning devices.
• Signage Visibility: Ensuring all warning signs are clear, visible, and compliant with size and placement requirements.
• Record Keeping: Maintaining comprehensive records of inspections, maintenance, and any corrective actions taken.
• Emergency Response Planning: Developing and regularly reviewing emergency response plans to address potential incidents.

Failing to comply with these regulations and best practices can lead to substantial fines, legal liabilities, and, most importantly, compromises the safety of communities and railroad personnel. Proactive compliance isn't just a legal obligation; it's a moral imperative.
