Keeping Rails Safe: Your Guide to a Train Signal System Inspection Checklist Template

Why a Signal System Inspection Checklist Matters

A seemingly minor oversight during a signal system inspection can have cascading, and potentially catastrophic, consequences. It's not just about ticking boxes; it's about proactively safeguarding the lives of passengers, crew, and the public. A well-executed checklist provides a framework for consistency, ensuring every inspection covers the same critical areas regardless of the inspector's experience level. This minimizes the risk of human error, a significant factor in many incidents. Beyond immediate safety, a structured checklist contributes to a more reliable railway network. Identifying and rectifying minor issues before they escalate into major failures reduces maintenance costs, minimizes service disruptions, and improves overall operational efficiency. Finally, detailed inspection records generated by a checklist provide invaluable data for trend analysis, allowing for predictive maintenance strategies and continuous improvement in signal system reliability.

Understanding Train Signal Systems: A Quick Overview

Train signal systems are the silent conductors of the railway, orchestrating the safe and efficient movement of trains. At their core, they're a network of intricate components working together to prevent collisions and manage train spacing. Think of them as a sophisticated traffic control system specifically designed for rail.

These systems typically involve signals positioned along the track, each indicating a specific aspect - a colored light or combination of lights - that dictates what a train operator must do. These signals aren't arbitrary; their meaning is based on the track's condition ahead - whether it's clear, occupied by another train, or requires reduced speed.

Beyond the visible signals, a complex infrastructure supports this visible communication. This includes track circuits that detect train occupancy, relays and logic circuits that process information, power supply systems to keep everything running, and vital communication lines connecting the signals to a central control point. Modern systems often incorporate computerized interlocking, which is essentially a digital safety lock ensuring that routes are properly set and protected before a train is authorized to proceed. Understanding this foundational layer is key to appreciating the importance of a robust inspection program.

Essential Components of a Train Signal System

A train signal system isn't a single device; it's a network of interconnected components working in concert. Understanding these elements is crucial for effective inspection and maintenance. Here's a breakdown of the essential pieces:

• Signals (Aspects): These are the visual indicators (red, yellow, green, etc.) displayed to train crews, communicating track occupancy and authorization to proceed. Signal types range from simple fixed signals to complex color-lit signals and advanced cab signals.
• Track Circuits: These circuits use a direct current voltage applied to the rails to detect the presence of a train on a section of track. When a train is present, the circuit is shorted, indicating occupancy.
• Relays and Logic Circuits: Relays are electrically operated switches used to route signals and control track switches. Logic circuits interpret the inputs from track circuits, signals, and other sensors to determine the proper signal aspects and route settings.
• Interlocking Equipment: This equipment is the brain of the system, ensuring safe routing and preventing conflicting movements. It's designed to enforce interlocking rules, preventing hazardous conditions like a train entering a track circuit occupied by another train.
• Control Centers: These are the central hubs where signal operators monitor train movements and manage the entire signaling system. They often utilize computer-based systems for enhanced control and data visualization.
• Communication Systems: Essential for transmitting signals and information between control centers, trackside equipment, and train crews. These can include radio systems, fiber optic cables, and digital communication protocols.
• Power Supply and Backup Systems: Reliable power is vital. These systems provide the electricity needed to operate the signaling equipment, including backup systems to ensure continued operation during power outages.
• Track Switches (Points): Mechanically or electrically operated devices that allow trains to be directed from one track to another. Their proper functioning and secure locking are critical for safe train movements.

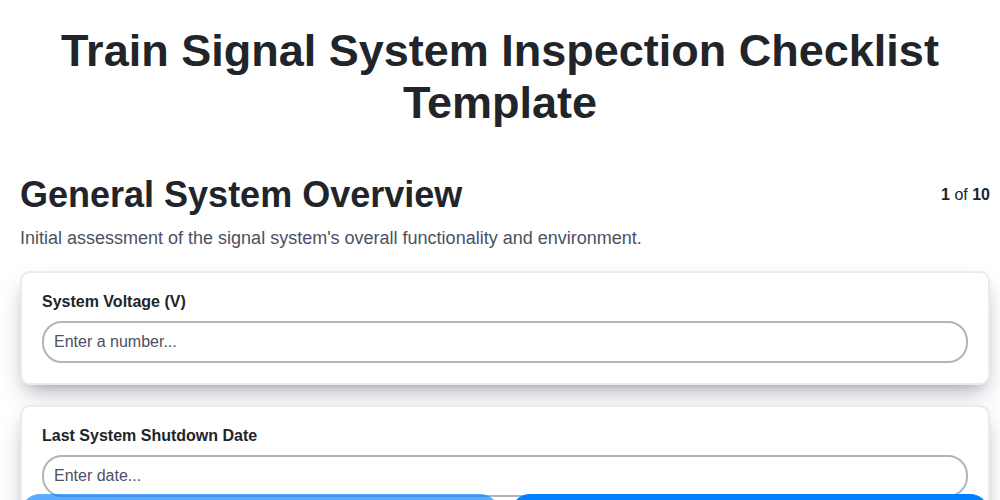

Step-by-Step: Your Inspection Checklist Template

Let's break down the inspection process into manageable steps. This isn't just about ticking boxes; it's a methodical approach to safeguarding rail operations. Remember to always consult the specific system documentation for detailed procedures and acceptance criteria.

1. Preliminary Checks & Documentation Review: Before physically inspecting any equipment, review the system's current documentation, including schematics, maintenance records, and any recent modification reports. Verify the document version aligns with the system in place. Note the date and time of your inspection, your name and credentials, and any weather conditions that might influence your observations.

2. Signal Aspect Verification: Begin by visually inspecting all signal aspects (red, yellow, green, approach, restrictive, etc.). Ensure they illuminate correctly and are free from obstructions. Conduct functional testing: simulate train movements and verify signals respond appropriately, adjusting their aspects as needed. Record the response time for each aspect change. Pay close attention to any flickering or unusual light patterns.

3. Track Circuit Integrity: Utilize a multimeter to measure track circuit voltage at various points. Discrepancies from specified values could indicate a problem with wiring or rail connections. Perform a continuity test to detect open circuits and a megger test to identify insulation breakdown. Look for signs of corrosion or damage to track circuit wiring.

4. Relay and Logic Circuit Assessment: Listen carefully for any unusual noises from relays - humming, clicking, or grinding - which can be indicative of wear or internal faults. Use specialized diagnostic software (if available and you are trained) to analyze logic circuit operation and identify errors. Inspect relay contacts and wiring connections for signs of corrosion, overheating, or physical damage.

5. Cable and Wiring Examination: Methodically trace signal cables and wiring, looking for any signs of physical damage, such as abrasion, crushing, or rodent damage. Perform continuity and insulation resistance tests on cable runs to ensure signal integrity. Document any damaged cables and recommend immediate replacement.

6. Power Supply Validation: Verify the stability and voltage of the power supply to the signal system. Fluctuations or drops in voltage can cause erratic signal behavior.

7. Communication System Testing: Test all voice and data communication systems to ensure reliable communication between dispatchers, train crews, and signal maintainers.

8. Record Keeping and Reporting: Document all findings, corrective actions taken, and any unresolved issues in a detailed inspection report. Maintain a log of all maintenance performed on the signal system. Escalate critical issues to the appropriate personnel immediately.

1. General System Overview & Documentation

Understanding the foundation of any inspection begins with a thorough review of the system's documentation and a grasp of its overall design. This isn's about simply glancing at diagrams; it's about building a mental model of how the signal system functions within the broader rail network.

Begin by identifying the specific version of the system's design documentation in use. Discrepancies between the actual system and outdated documentation can lead to misinterpretations and incorrect assumptions during inspection. Note the location of this documentation - often stored digitally or in hard copy form within a control center or maintenance facility.

Define the system's boundaries - where does this specific signal system begin and end? Understanding its interactions with adjacent signaling systems is crucial for identifying potential cascading effects of failures. A diagram illustrating these boundaries is invaluable.

Finally, create a physical layout map. This doesn't need to be exhaustive, but should clearly identify the major components - signal posts, control panels, relay rooms, track circuits - and their relative locations. This visual reference helps orient the inspector and facilitates a systematic approach to the inspection process. Without a solid understanding of these basics, subsequent checks become significantly less effective and potentially unsafe.

2. Signal Aspects and Indications: Ensuring Clear Communication

Signals are the language of the railway, conveying vital information to train crews regarding track conditions, upcoming hazards, and authorized speed. Accurate and consistent signal aspects - the colors and patterns displayed - are absolutely critical for safe train operation. This section of your inspection checklist focuses on verifying that these signals are functioning as intended, communicating the correct message, and remain visible under varying environmental conditions.

The inspection process begins with a thorough visual assessment of each signal. Look for any physical damage to the signal head, including cracked lenses, broken bulbs or LEDs, and compromised housing. Dirt, grime, and obstructions can significantly reduce signal visibility, particularly in adverse weather. Cleanliness is paramount. Beyond the visual, functional testing is essential. This involves observing signal behavior in response to simulated train movements and track circuit occupancy. Are signals changing aspects promptly and correctly? Are the indications clear and unambiguous? Pay attention to the order and timing of aspect changes. Any deviation from the expected sequence warrants immediate investigation. Finally, consider the impact of environmental factors. Test signal visibility in bright sunlight, heavy rain, and fog. Ensure that retroreflective materials on signal heads are functioning properly. Accurate signal communication is the cornerstone of rail safety - any doubt necessitates a thorough assessment and corrective action.

3. Track Circuits: Monitoring Train Presence

Track circuits are the foundational element for detecting train presence on a railway line. Essentially, a track circuit is a short section of track energized with a low-voltage alternating current (AC) signal. This current forms a complete electrical circuit between the rails. When a train occupies the track circuit, its wheels and axles bridge the gap between the rails, interrupting the current flow. This interruption signals to the control system that a train is present.

Monitoring these circuits goes beyond just confirming the presence or absence of a train. Key areas of focus include:

• Voltage Measurement & Interpretation: Proper voltage levels within the specified range are critical. Low voltage can indicate a faulty connection or a shorted rail. Excessive voltage might point to an open circuit.
• Circuit Length & Accuracy: The length of a track circuit directly impacts its accuracy. Too short, and it might miss a long train; too long, and it could combine occupancy data from multiple trains.
• Overlap Considerations: Track circuits often overlap - the point where one circuit ends and the next begins. This overlap is intentional to prevent signals from clearing prematurely as a train moves between circuits. Analyzing this overlap for proper function is vital.
• Signal Response: The interruption of the track circuit signal should trigger the appropriate signal indications and interlocking actions. This linkage needs to be verified.
• Rail Bonding Integrity: The electrical connection between rails is essential for proper track circuit operation. Poor bonding can cause spurious occupancy indications or system failures.

4. Relays and Logic Circuits: The Brains of the System

Relays and logic circuits form the very brain of the signal system, orchestrating the complex sequence of events that govern train movements. These components don't directly 'do' anything visible; instead, they receive signals, process information, and trigger actions like changing signal aspects or routing trains. Inspecting these circuits requires a deeper understanding of the system's logic and functionality, often involving specialized diagnostic tools.

Our checklist should focus on several key areas:

• Relay Functionality: Each relay has a specific timing and sequence of operation. We're looking for any deviations from the expected behavior - unusual noises (clicks, hums suggesting wear or improper contact), slow response times, or failure to energize/de-energize as required. A relay test set or similar device is crucial for accurate assessment.
• Logic Circuit Analysis: These circuits use combinations of relays, logic gates (AND, OR, NOT), and potentially microprocessors to implement interlocking logic. We're checking that these circuits process information correctly, ensuring that safe routes are established and maintained. This often involves using a logic analyzer or multimeter to trace signals and verify circuit operation.
• Wiring Connections: Relays and logic circuits rely on a dense network of wiring. Loose connections, corrosion, or damaged insulation can all disrupt proper operation. Each connection must be visually inspected and, where possible, tested for continuity and resistance. Proper torque on connectors is also critical.
• Component Aging: Relays, in particular, are mechanical devices prone to wear. Their lifespan is finite, and regular replacement based on manufacturer recommendations or performance degradation is essential for long-term reliability. Record relay operating hours as part of the inspection.

5. Power Systems: Reliable Operation is Key

A robust power supply is the backbone of any train signal system. Without a consistent and reliable flow of electricity, signals fail, track circuits become unresponsive, and the entire system's integrity is compromised. This section focuses on ensuring that power, and its backups, are performing flawlessly.

First, verify the main power source's voltage levels. They should consistently fall within the manufacturer's specified range, and fluctuations should be noted and investigated. Equally vital is the condition of uninterruptible power supplies (UPS) - these serve as crucial bridges during power outages. Load testing these UPS systems is paramount; simulating a power failure allows you to confirm they seamlessly take over, maintaining signal functionality without interruption. Battery health is another critical consideration. Regularly inspect battery terminals for corrosion, check electrolyte levels (if applicable), and monitor battery voltage to ensure they're within optimal charging parameters. Don't overlook the less obvious; inspect all power cabling for wear, tear, or rodent damage, and ensure proper grounding to prevent electrical hazards. Finally, any alarms or warnings related to power supply issues should be addressed immediately - they're often early indicators of potential system failures.

6. Interlocking & Control: Safe Routing & Procedures

The interlocking and control system is the brain of the signal system, dictating safe train routing and preventing conflicting movements. This section of the checklist focuses on validating that logic and ensuring adherence to established procedures. During inspection, verify the interlocking logic's accuracy by simulating various train movements and observing the resulting signal indications and route selections. This isn't just about confirming the presence of logic; it's about validating its correctness under a range of operational scenarios, including potential unusual conditions.

Specifically, check the following:

• Route Validation: Confirm that routes established by the system are safe and adhere to predefined track occupancy rules. Cross-check these routes with physical track layouts and signal indications.
• Conflict Prevention: Simulate potential conflicts (e.g., two trains attempting to occupy the same block) and verify that the system correctly prevents these movements.
• Override Procedures: If override or exception handling procedures exist (and they should be meticulously documented and controlled), test their functionality and ensure only authorized personnel can initiate them. These should have multiple layers of authorization.
• Control Panel Interface: Inspect the control panel for clear and unambiguous labeling of controls, ensuring ease of operation by authorized personnel. Verify that any automated features function as intended.
• Data Integrity: Verify data integrity related to routes, track occupancy, and signal states. Look for errors or inconsistencies.
• Security Measures: Examine security measures protecting the interlocking and control system from unauthorized access and manipulation.

7. Emergency Systems: A Critical Safety Net

Emergency systems are the last line of defense against potentially catastrophic events. Their reliability isn't just important; it's essential. This section of your inspection checklist focuses on ensuring these systems function flawlessly under pressure. We're talking about more than just a single emergency stop button; it encompasses a range of critical components designed to halt train movement and protect personnel.

Your inspection should include rigorous testing of:

• Emergency Stop Buttons (ESBs): Verify each ESB's immediate and complete cessation of train movement. Note the response time. Inspect the physical condition of buttons and surrounding enclosures.
• Automatic Train Protection (ATP) Systems: If your system incorporates ATP, ensure its functionality is confirmed. This involves testing its ability to intervene and stop a train that exceeds speed limits or disregards signals.
• Fail-Safe Circuits: Thoroughly examine fail-safe circuits - those designed to default to a safe state in the event of a system failure. This includes checking wiring, relays, and logic.
• Communication Pathways: Validate that communication pathways between the control center and trackside emergency systems are clear and reliable. Any interruption can delay crucial interventions.
• Power Backup for Emergency Systems: Confirm that emergency systems maintain functionality during power outages via backup power sources (batteries, generators). Test their automatic switchover.
• Inspection of Emergency Route Clearing Procedures: Verify that procedures for clearing a route blocked by an emergency situation are documented, understood, and readily executable.

Remember, a failure in any emergency system component can have devastating consequences. This area demands meticulous attention to detail and a conservative approach to interpreting test results. Any deviation from expected performance should be immediately investigated and corrected.

8. Communication Systems: Keeping Everyone Informed

Communication systems are the vital arteries of a rail network, ensuring seamless information flow between the control center, trackside equipment, and train crews. A breakdown in communication can lead to delays, misinterpretations, and, in the worst-case scenario, a safety incident. This section of the inspection checklist focuses on maintaining the integrity and reliability of those channels.

Our scrutiny begins with verifying signal transmission - confirming that signals are being accurately relayed between the control center and the trackside equipment. This involves testing the integrity of the transmission lines, checking for signal degradation or distortion, and validating the timing of signal updates. Data integrity is equally critical; we're checking for any signs of corruption or loss of data during transmission.

Voice communication systems, used for direct communication between dispatchers, train crews, and maintenance personnel, are also tested rigorously. This includes verifying clear audio quality, range, and responsiveness under various environmental conditions. We assess both the infrastructure itself (cabling, repeaters, antennas) and the functionality of the communication devices. Failures can range from static and garbled speech to complete loss of contact, so each aspect is carefully evaluated. Finally, we're looking for indications of unauthorized access or interference - a critical security consideration. Regular testing and maintenance of these systems are essential for maintaining situational awareness and ensuring a coordinated response to any operational challenges.

9. Record Keeping & Continuous Improvement

Maintaining meticulous records isn't just about ticking boxes; it's the cornerstone of a robust and continuously improving signal system maintenance program. Every inspection, repair, modification, or even a seemingly minor observation should be documented with precision. This includes the date of inspection, the inspector's name, specific findings (including severity ratings assigned), corrective actions taken, and any follow-up items requiring attention. Digital checklists excel here, allowing for easy data capture, analysis, and reporting.

But record-keeping isn't a static process. It's the foundation for continuous improvement. Regularly analyze inspection data to identify trends, recurring issues, and areas where the system or maintenance procedures can be optimized. Are certain components failing prematurely? Are there patterns in inspection findings related to specific environmental conditions or maintenance activities? Use this information to adjust maintenance schedules, refine inspection techniques, update training programs, and ultimately, enhance the overall reliability and safety of the signal system. Feedback from inspectors should be actively solicited and incorporated into the improvement process - they are on the front lines and often possess valuable insights. A proactive approach to record keeping and analysis transforms routine tasks into opportunities for continuous refinement and a safer railway for all.

10. Customizing Your Checklist: Adapting to Your System

Each railway signal system is unique, a product of its specific geography, age, and operational requirements. A generic checklist, while providing a foundation, will inevitably miss nuances critical to your particular setup. Customization isn't merely about adding a few extra items; it's about fundamentally understanding your system's architecture and tailoring the checklist to reflect that.

Here's how to effectively customize your checklist:

• System Architecture Deep Dive: Thoroughly review the system design documentation, including schematics, wiring diagrams, and logic flowcharts. Identify any unique components, configurations, or interdependencies.
• Manufacturer Specifications: Consult the equipment manufacturer's manuals for specific inspection procedures, test points, and troubleshooting guidance.
• Historical Data Analysis: Analyze past inspection records, maintenance logs, and incident reports to identify recurring issues or potential weak points in the system.
• Risk Assessment: Conduct a risk assessment to identify hazards associated with specific components or procedures. Prioritize inspection items based on the level of risk.
• Geographic Considerations: Adjust the checklist to account for environmental factors specific to the railway's location, such as extreme temperatures, humidity, or exposure to wildlife. For example, a system in a coastal environment will require more focus on corrosion.
• Age and Technology: Older systems may require more frequent inspections or different testing methods compared to newer, more advanced systems.
• Operator Input: Include input from train operators and maintenance personnel who have firsthand experience with the system. They can often provide valuable insights into potential issues or areas for improvement.
• Regular Review & Update: Your customized checklist should not be static. Schedule regular reviews (e.g., annually or after significant system modifications) to ensure it remains relevant and effective.

11. Common Pitfalls to Avoid

Skipping Visual Inspections

It's tempting to rely heavily on diagnostic tools and automated tests, but don't underestimate the value of a thorough visual inspection. A frayed cable, a corroded connection, or a cracked signal lens might be missed by automated systems but can be easily spotted by a trained eye. These seemingly minor issues can escalate into major failures if left unaddressed. Encourage inspectors to take their time and document any observed anomalies, no matter how insignificant they may seem.

Neglecting Documentation Updates

Signal systems evolve. Modifications, upgrades, and repairs happen. Failing to update system diagrams, manuals, and other documentation to reflect these changes is a recipe for confusion and potential errors. An inspector working with outdated information is operating at a significant disadvantage. Establish a clear process for documentation updates and ensure everyone is aware of the latest revisions.

Overlooking Environmental Factors

Temperature fluctuations, humidity, and exposure to the elements can all impact signal system performance. Ignoring these environmental factors during inspections can lead to a failure to identify potential issues. Consider how weather conditions might influence component behavior and adjust inspection procedures accordingly. For instance, inspect for condensation buildup during humid conditions or check for thermal stress on cables in extreme heat.

Assuming Functionality After Previous Inspections

Just because a component passed inspection last time doesn't guarantee its continued reliability. Signal systems are constantly exposed to vibrations, electrical stress, and mechanical wear. Each inspection should be a fresh assessment, not simply a confirmation of previous results. Avoid complacency and maintain a critical mindset.

Rushing the Process

Signal system inspections are not a race. A hurried inspection increases the likelihood of overlooking crucial details and making mistakes. Allocate sufficient time for each inspection and encourage inspectors to work methodically and deliberately. Prioritize quality over speed.

Failing to Cross-Validate Data

Don't rely solely on a single data point. Cross-validate readings from different instruments and compare them to established baselines. Discrepancies warrant further investigation. For example, compare voltage readings at different points in a circuit to identify potential shorts or open circuits.

Ignoring Minor Findings

Even seemingly minor issues, like a slightly elevated temperature or a minor vibration, can be indicators of underlying problems. Ignoring these canaries in the coal mine can allow a small issue to escalate into a major system failure. Log and track all findings, even minor ones, and ensure they are addressed promptly.

Lack of Communication & Collaboration

Signal system inspections often involve multiple disciplines and stakeholders. A lack of clear communication and collaboration between engineers, maintenance personnel, and signal technicians can lead to misunderstandings and missed opportunities to improve system reliability. Foster a culture of open communication and teamwork.

Insufficient Training & Refresher Courses

Signal technology is constantly evolving. Providing initial training is not enough. Regular refresher courses and specialized training on new equipment and procedures are essential for maintaining competency and ensuring safety.

Failure to Analyze Trends

Collecting data is only half the battle. Analyzing that data to identify trends and patterns can provide valuable insights into system performance and potential future problems. Implement a system for tracking inspection findings and using that data to proactively address potential issues.

Lack of a System for Corrective Action Follow-Up

Identifying problems is only useful if they are fixed. A robust system for tracking corrective actions, ensuring timely completion, and verifying effectiveness is essential for continuous improvement and maintaining system reliability.

12. Resources and Further Learning

Staying current on railway signaling technology and safety regulations is essential for anyone involved in maintenance or operation. Here's a curated list of resources to deepen your understanding:

• Federal Railroad Administration (FRA): https://www.fra.dot.gov/ - The FRA website provides access to regulations, safety advisories, and technical guidance related to railway signaling and operations. Specifically, explore their Safety and Regulations section.
