Train Signaling System Maintenance: Your Checklist Template Guide

Introduction: Why Signaling System Maintenance Matters

The rhythmic hum of a train, the seamless flow of rail traffic - these are the hallmarks of a well-functioning railway system. But beneath the surface lies a complex network orchestrating every movement: the train signaling system. This intricate system, a blend of electrical circuits, logic processors, and communication networks, acts as the silent guardian of safety, ensuring trains maintain safe distances and adhere to designated routes. Without meticulous upkeep, this vital network becomes a potential hazard.

Neglecting signaling system maintenance isn't merely about postponing repairs; it's about jeopardizing passenger safety, disrupting operations, and risking substantial financial losses. A single failure can trigger delays, derailments, and even catastrophic accidents. This blog explores the critical importance of proactive signaling system maintenance, delving into the procedures that keep the rails safe and the trains moving efficiently. Understanding the 'why' behind the work is the first step toward prioritizing its execution.

Understanding Train Signaling Systems: A Brief Overview

Train signaling systems are the unsung heroes of railway safety and efficiency. At their core, they act as a complex communication network, ensuring trains maintain safe distances and proceed along the track in a controlled manner. Think of them as the traffic controllers for the rail network.

Historically, signaling relied on mechanical devices like levers and block instruments. These systems were labor-intensive and limited in their capabilities. Today, modern train signaling encompasses a wide array of technologies, including:

• Track Circuits: These detect the presence of a train on a section of track by using electrical current.
• Signals: These provide visual indications to train operators, displaying aspects like "clear," "caution," or "stop."
• Interlockings: These are sophisticated systems that ensure signals and switches (points) are operated in a coordinated and safe sequence.
• Centralized Traffic Control (CTC): This allows a centralized control center to monitor and control signals and routes over a large area.
• Automatic Train Protection (ATP): ATP systems automatically enforce speed limits and stop trains if the driver fails to respond to a signal.
• Communications-Based Train Control (CBTC): CBTC utilizes continuous communication between the train and a control center, enabling shorter headways and increased capacity.

These elements work together, often relying on a combination of electrical circuits, logic systems, and increasingly, digital communication networks, to guide trains safely and efficiently. The complexity of these systems highlights the critical importance of regular maintenance and inspections, ensuring the continued safety and reliability of rail operations.

The Importance of a Robust Checklist

A well-defined checklist isn't merely a procedural document; it's the bedrock of a safe and reliable signaling system. Imagine a complex orchestra without sheet music - chaos would ensue. Similarly, without a structured checklist, maintenance and inspections can become inconsistent, overlooking critical details and increasing the risk of human error. A robust checklist ensures every essential element is inspected, tested, and documented in a standardized manner, regardless of who's performing the work. This consistency promotes safety, improves operational efficiency, and fosters a culture of accountability within the maintenance team. Furthermore, detailed checklists provide a historical record, allowing for trend analysis to identify recurring issues and proactively address potential failures before they escalate into costly disruptions or, worse, safety hazards. They're not just about what's done today; they'll inform best practices for years to come.

Essential Components of a Signaling System Maintenance Checklist

A truly comprehensive signaling system maintenance checklist isn't a one-size-fits-all document. It's a meticulously crafted tool reflecting the unique architecture and technology deployed within a specific railway network. However, several core components consistently appear in effective checklists, forming the foundation for robust safety and operational reliability. Let's break down these essentials:

1. Track Circuit Verification: This goes beyond simply confirming power. A thorough check includes verifying impedance values, identifying shorts or opens, and analyzing track circuit occupancy times. Expect deviations require immediate investigation.

2. Signal Head and Aspect Examination: Detailed visual inspection for damage (cracks, corrosion, broken lenses) is paramount. This includes validating aspect sequences (the order and combination of colors displayed) under various train position scenarios. A photometric check ensures adequate signal illumination.

3. Interlocking Logic Testing: Interlocking systems control signal and route operations. Checklist items here involve simulating train movements and verifying that signals respond correctly, preventing conflicting routes. This includes thorough testing of relay settings and logic functions.

4. Pointwork & Switch Functionality: Switches (points) direct trains onto the correct track. Maintenance includes visual inspection for wear, lubrication checks, and operational testing to ensure smooth and reliable switching. Monitoring switch position indicators is crucial.

5. Cab Signaling System Validation: Many modern systems utilize cab signaling - signals displayed directly in the train's cab. Checklist items confirm signal reception, correct interpretation, and proper display, ensuring the driver receives accurate information.

6. Communication Network Integrity: Signaling systems increasingly rely on digital communication. Testing includes verifying data transmission rates, signal strength, and the health of fiber optic or wireless links connecting control centers and field equipment.

7. Power Supply Stability: Consistent and reliable power is vital. Regular checks include measuring voltage levels at key points in the system, verifying battery backup functionality, and identifying potential power fluctuations.

8. Emergency Equipment Functionality: Don't forget critical emergency systems! Checklist items should cover brake testing, emergency power activation, and the overall readiness of backup systems designed to handle critical situations.

These components are not exhaustive, but represent the core areas demanding constant vigilance. A well-structured checklist, combined with skilled personnel and diligent execution, is your best defense against potential hazards and ensures a safe and efficient railway operation.

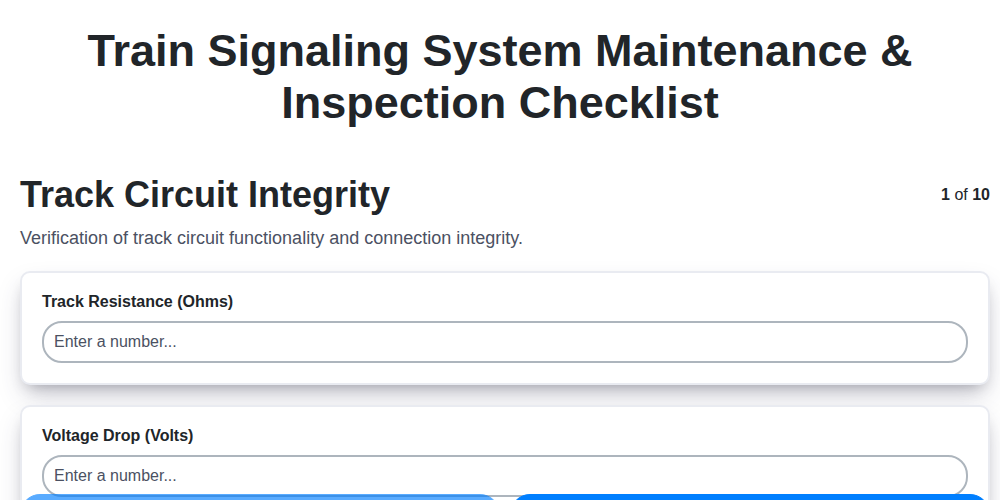

Step-by-Step: Your Checklist Template Breakdown

Let's break down a sample signaling system maintenance checklist. Keep in mind this is a template-your specific checklist must be tailored to your system's documentation and local regulations. This example focuses on core elements, but your list will likely be more detailed. We're assuming a mixed system incorporating both traditional relay logic and newer, fiber-optic-based components.

1. Pre-Inspection Setup & Safety:

• Date & Time: Record the inspection's start time.
• Personnel: Document the names and qualifications of the inspectors.
• System Isolation: Verify proper isolation procedures are followed. Ensure appropriate lockout/tagout procedures are implemented.
• Safety Briefing: Conduct a pre-inspection safety briefing.
• Weather Conditions: Note weather conditions, as they can impact signal visibility and equipment performance.

2. Track Circuit Integrity (TC) Verification:

• TC Voltage Measurement: Measure and record voltage levels at designated points. Compare to specified tolerances.
• Resistance Check: Perform a resistance check of track circuit feeders.
• Train Detection Response: Simulate a train occupancy and verify proper detection.
• Fault Recording: Note any instances of false occupancy or failed detection.

3. Signal Aspect & Indication Testing:

• Visual Inspection: Check signal heads for damage, corrosion, and correct lens color.
• Aspect Sequence: Verify the correct sequence and timing of signal aspects under various simulated conditions.
• Illumination Check: Confirm adequate illumination of signal lamps and LEDs.
• Remote Indication Verification: Check signal indication at the control center matches the field indication.

4. Relay Logic Assessment (for legacy systems):

• Relay Contact Inspection: Visually inspect relay contacts for wear and corrosion.
• Wiring Inspection: Examine wiring for damage and proper connections.
• Functionality Test: Perform functional tests of key relay functions.

5. Fiber Optic Cable & Equipment Validation (for modern systems):

• OTDR Testing: Conduct Optical Time Domain Reflectometry (OTDR) testing to identify cable breaks, bends, and splices.
• Attenuation Measurement: Measure fiber optic cable attenuation.
• Transceiver Performance: Evaluate transceiver power levels and error rates.

6. Control System Interface:

• Data Integrity: Verify proper data transmission between field devices and the control system.
• Communication Protocol Validation: Confirm communication protocols are functioning correctly.
• System Log Review: Review system logs for any error messages or anomalies.

7. Post-Inspection:

• Documentation: Record all findings, actions taken, and recommendations for corrective action.
• Sign-off: Obtain signatures from personnel involved in the inspection.
• Follow-up: Schedule follow-up maintenance or inspections as needed.

Remember: This template is a starting point. Refer to your system's specific documentation for detailed procedures and acceptance criteria.

1. Track Circuit Integrity: Ensuring Reliable Detection

Track circuits are the foundational element upon which much of modern railway signaling relies. They function as a simple yet ingenious detection system: an electrical current is continuously sent through the rails within a defined section of track, known as a block. This current creates a complete circuit, indicating that the block is clear. When a train occupies the block, it shunts the current to ground, interrupting the circuit and signaling to the control system that the track is occupied.

Maintaining track circuit integrity is, therefore, paramount. Failures can result in trains proceeding onto occupied tracks, a scenario with potentially devastating consequences. A comprehensive inspection of track circuits involves several critical checks. These include verifying the continuity of the rail circuits using specialized resistance testers, confirming appropriate voltage levels at the track circuit relay, and assessing the track's impedance. A short circuit can indicate a foreign object bridging the rails, while an unusually high impedance might signal a loose connection or corrosion. Furthermore, visual inspection for debris, vegetation encroachment, or any physical damage to the rail or connections is essential. Sophisticated testing often incorporates transient response testing, measuring the circuit's ability to react reliably when a train enters and leaves the block. Regular and meticulous track circuit integrity checks are a non-negotiable component of safe railway operation.

2. Signal Aspect Verification: Correct Indications, Every Time

Ensuring signals display the correct aspect - red, yellow, green, or a combination thereof - is absolutely paramount to safe train operation. A single incorrect indication can have catastrophic consequences. Signal Aspect Verification isn't just a visual check; it's a multifaceted process that encompasses several key steps.

First, we visually inspect the signal head itself for any physical damage - cracked lenses, corrosion, or obstructions that might distort the displayed aspect. The brightness and uniformity of the illumination are also crucial; dim or uneven light can lead to misinterpretation by train crews.

Next, we utilize specialized testing equipment, often a signal aspect meter, to precisely measure the voltage and current applied to the signal head. These measurements are then compared to established thresholds to verify that the signal is operating within the specified parameters. It's not just about seeing the correct aspect; it's about confirming the electrical conditions that produce it.

Furthermore, a crucial component of this process is often a "walk-through" test. This involves manually triggering the signal and observing its response, ensuring the sequence of aspects is correct and follows the established logic. This step often utilizes a test train or a remote-controlled vehicle to simulate train movement and trigger the signals.

Finally, documentation is key. Every aspect verification should be meticulously recorded, noting the date, time, personnel involved, and any deviations from expected performance. This record serves as a valuable tool for identifying trends and proactively addressing potential issues before they escalate.

3. Block Equipment Functionality: Interlocking and Route Control

Block equipment forms the backbone of railway signaling, orchestrating the safe movement of trains through a defined section of track. At its heart lies the interlocking, a complex system of relays, logic circuits, and mechanical levers (in older systems) that prevents conflicting movements. Think of it as the traffic controller for the railroad - ensuring that signals and points (track switches) are aligned correctly before a train can proceed.

Route control is the process by which the interlocking selects and sets the appropriate points and signals to allow a train to travel from one location to another. This isn't a simple 'go' button. Route setting requires meticulous coordination. Before a route can be 'locked' and a signal displayed, the interlocking verifies:

• Track Occupancy: Ensuring the intended route is clear of obstructions and trains.
• Signal Integrity: Confirming that signals along the proposed route are in the correct aspect.
• Point Alignment: Verifying that track switches are aligned to guide the train along the chosen path.
• Protection of Adjacent Blocks: Guaranteeing that movements won't compromise the safety of trains in neighboring blocks.

Failures within block equipment, particularly the interlocking, can have severe consequences. Regular testing and verification are crucial. This includes simulated train movements, verification of route locking sequences, and checking for any unexpected behavior in the interlocking logic. Modern interlocking systems increasingly incorporate digital technology, adding complexity but also offering advanced diagnostic capabilities.

4. Relay and Logic Testing: The Heart of the System

Relays and logic circuits are truly the heart of many train signaling systems, acting as the decision-makers that translate track conditions and signal aspects into actions. Thorough testing of these components is essential for ensuring the system's reliability and safety. This isn't just about verifying that a relay clicks when it's supposed to; it's a comprehensive assessment of their timing, sequencing, and response to various inputs.

Our relay testing procedures involve a multifaceted approach. We conduct static tests to confirm proper voltage drop, coil resistance, and contact closure times. Dynamic testing simulates real-world scenarios - train occupancy, route setting, and signal changes - to evaluate the entire logic sequence. We employ specialized test equipment, like logic analyzers and oscilloscopes, to precisely measure signal timing and identify any anomalies.

Beyond the physical relays, we also rigorously test the logic gates and interlocks that govern their operation. This involves verifying the correct implementation of Boolean logic, ensuring that AND, OR, and NOT functions are functioning as designed. Fault injection techniques, where simulated failures are introduced, help us validate the system's ability to detect and respond to errors gracefully. Proper documentation of test results, including voltage levels, timing diagrams, and any deviations from expected behavior, is crucial for maintaining a reliable and traceable maintenance record. Identifying and rectifying even minor deviations during relay and logic testing can prevent larger, more critical failures down the line.

5. Signal Cable Inspection & Fiber Optic Testing

Signal cables and fiber optic cables are the nervous system of your signaling system - transmitting crucial data and control signals. A compromised cable can lead to signal degradation, intermittent failures, and potentially catastrophic consequences. Inspection and testing of these cables are therefore paramount.

Signal Cable Inspection:

Visual inspection is the first line of defense. Look for the tell-tale signs of cable damage:

• Physical Damage: Cuts, abrasions, crushing, or rodent damage can compromise the integrity of the cable.
• Corrosion: Moisture ingress leads to corrosion of conductors and shielding, increasing resistance and introducing noise. Pay close attention to termination points.
• Fraying: Outer jacket damage exposes the inner layers, leaving the cable vulnerable.
• Improper Support: Cables should be properly supported to prevent sagging, tension, and abrasion. Check for wear on suspension clamps and cable trays.
• Grounding Issues: Verify proper grounding of cable shields to minimize electrical noise and interference.

Regularly document any observed damage and promptly address identified issues.

Fiber Optic Cable Testing:

Fiber optic cables offer superior bandwidth and immunity to electromagnetic interference, but they are not immune to failure. Testing goes beyond visual inspection, requiring specialized equipment and techniques. Common tests include:

• Visual Fault Locator (VFL): A simple and quick method to pinpoint breaks or sharp bends in the fiber. A red laser is injected, and its appearance at the far end indicates cable integrity.
• Optical Time Domain Reflectometer (OTDR): The workhorse of fiber optic testing. An OTDR sends a pulse of light down the fiber and analyzes the reflected signal. This reveals distance to faults, connector loss, and overall fiber performance. Understanding OTDR traces requires training.
• Power Meter and Light Source: Measures the optical power transmitted through the fiber, indicating signal strength and connector losses.
• Attenuation Measurement: Determines the signal loss over a specific distance, ensuring it remains within acceptable limits.

Proper fiber optic testing requires qualified technicians and adherence to established procedures. Regular testing schedules and meticulous record-keeping are crucial for maintaining system reliability.

6. Power Supply & Emergency Power System Checks

The reliability of a train signaling system hinges on a constant and stable power supply. Without it, signals can fail, routes can be blocked, and the entire network's safety is compromised. Our power supply checks go beyond a simple voltage test; they encompass a comprehensive evaluation of both the primary and emergency power systems.

Primary Power System Verification: This involves meticulously checking the incoming voltage levels, ensuring they remain within acceptable ranges as outlined by manufacturer specifications and regulatory standards. We examine power distribution panels, transformers, and circuit breakers, looking for signs of wear, overheating, or potential failure. Load testing is often performed to assess the system's capacity under peak demand.

Emergency Power System (EPS) - The Critical Backup: When the primary power fails, the Emergency Power System - typically comprised of battery banks and/or a diesel generator - must seamlessly take over. Our EPS checks include:

• Battery Capacity & Health: We conduct load tests to assess battery capacity and check for signs of degradation, such as corrosion or sulfation. Regular battery maintenance, including topping off electrolyte levels (if applicable) and cleaning terminals, is also performed.
• Automatic Transfer Switch (ATS) Functionality: The ATS automatically switches power sources during an outage. We thoroughly test its operation under simulated power failure conditions, verifying that it transfers the load correctly and within the specified timeframe. This includes checking the transfer switch's control circuitry and ensuring proper contactor operation.
• Generator Testing (If Applicable): For systems utilizing diesel generators, we conduct periodic operational tests to ensure the generator starts reliably, maintains stable voltage and frequency, and runs smoothly under load. This involves checking fuel levels, exhaust systems, and overall mechanical condition.
• UPS (Uninterruptible Power Supply) Checks (If Applicable): Where UPS systems are integrated, we evaluate their performance, including battery health, load transfer capabilities, and output stability.

Failure to adequately maintain these vital systems can lead to catastrophic consequences. Our meticulous approach ensures a robust and reliable power supply, safeguarding the integrity of the signaling network.

7. Software & Firmware Update Validation

Software and firmware updates are critical for maintaining the security, reliability, and performance of modern train signaling systems. However, improper implementation can introduce instability or, worse, compromise safety. Therefore, a rigorous validation process is paramount. This isn's just about confirming the update installed successfully; it's about verifying its impact on the entire system.

Our validation process begins before any update is applied. We meticulously review release notes, known issues, and compatibility matrices to understand the scope of changes and potential impact. A test environment mirroring the production environment is utilized whenever possible.

Post-update, validation encompasses several key checks:

• Functional Testing: This goes beyond basic functionality. We simulate realistic operational scenarios, including train movements, signal changes, and route settings, to ensure the system behaves as expected.
• Regression Testing: We systematically re-run previously passed tests to ensure the update hasn't inadvertently broken existing functionality.
• Performance Monitoring: We closely monitor system performance metrics - latency, throughput, resource utilization - to detect any degradation introduced by the update.
• Data Integrity Checks: We verify the integrity of critical data stores and configuration files to ensure no corruption occurred during the update process.
• Rollback Plan Verification: A documented rollback plan must be in place and tested before any update goes live. This ensures a swift return to the previous stable version if unforeseen issues arise.

Comprehensive documentation of the entire validation process, including test results and any deviations from expected behavior, is essential for traceability and future reference.

8. Record Keeping and Documentation Best Practices

Record keeping isn't just about ticking a box; it's the backbone of a reliable and safe signaling system. A comprehensive and organized documentation system allows for effective trend analysis, simplifies troubleshooting, and provides crucial evidence of compliance. But what constitutes best practice when it comes to signaling system record keeping?

Here's a breakdown of essential elements:

• Standardized Forms: Utilize pre-designed, standardized forms for inspections, maintenance activities, and any unusual occurrences. This ensures consistency and facilitates data analysis.
• Detailed Descriptions: Vague entries like "signal tested" are insufficient. Record exactly what was tested, the results obtained (including readings and measurements), and any deviations from expected performance.
• Timestamps & Signatures: Each entry should be accurately timestamped and signed (or digitally acknowledged) by the person performing the work. This establishes accountability and creates a chronological record.
• Digital vs. Paper - Or a Hybrid Approach? While paper records still have a place, a digital system offers significant advantages in terms of searchability, data accessibility, and security. Consider a system that integrates with your maintenance management software.
• Photo & Video Documentation: Visual evidence can be invaluable. Photos or short videos documenting the condition of equipment, unusual findings, or repair processes can significantly aid in future troubleshooting.
• Centralized Storage & Access Control: Implement a centralized system for storing all records, with appropriate access controls to protect sensitive information and ensure data integrity.
• Retention Policies: Establish clear retention policies to define how long records must be maintained, complying with regulatory requirements and internal procedures.
• Regular Audits: Periodically audit your record-keeping practices to identify areas for improvement and ensure compliance with established procedures.

Well-maintained records aren't just about satisfying regulations; they're a vital tool for proactive maintenance and ensuring the continued safety and reliability of your signaling system.

Common Pitfalls and How to Avoid Them

Even with a well-defined checklist, subtle errors and oversights can creep into signaling system maintenance. Here are some common pitfalls and practical advice to prevent them:

1. Rushing the Process: Signaling system maintenance isn't a race. Cutting corners to save time often leads to missed details and potential errors. Allocate adequate time for each task, allowing for thoroughness and careful observation. Solution: Implement time allocation guidelines for each checklist item. Encourage a slow is smooth, smooth is fast mentality.

2. Insufficient Visual Inspection: Many issues are readily apparent with careful visual inspection. Don't underestimate the power of a keen eye. Look for signs of corrosion, damage, or unusual wear. Solution: Require a dedicated visual assessment step for each component, with specific points to check listed (e.g., wire insulation, connector tightness, panel labeling).

3. Ignoring Environmental Factors: Vibration, temperature fluctuations, and weather exposure can all impact signaling system components. Don't just focus on the equipment itself - consider the surrounding environment. Solution: Document environmental conditions during inspections (temperature, humidity, visible signs of weather damage). Consider protective measures for vulnerable components.

4. Lack of Calibration & Testing Equipment Accuracy: Relaying on outdated or uncalibrated testing equipment gives false readings and can lead to incorrect conclusions. Solution: Establish a strict calibration schedule for all testing equipment. Document calibration dates and results.

5. Overlooking Documentation Updates: Signaling systems evolve. Firmware updates, equipment modifications, and procedural changes require corresponding updates to the maintenance checklist. Solution: Create a system for regularly reviewing and updating the checklist, incorporating feedback from maintenance personnel and engineering teams.

6. Insufficient Communication Between Teams: Maintenance, engineering, and operations teams must be aligned. Miscommunication can result in conflicting instructions or missed dependencies. Solution: Implement clear communication channels and regular coordination meetings to ensure everyone is on the same page.

7. Failure to Analyze Trends: Sporadic errors are concerning, but patterns of recurring issues are vital. Solution: Implement a system for tracking maintenance records and analyzing trends to identify underlying problems and prevent future failures.

Advanced Maintenance Techniques: Predictive & Condition-Based

Traditional signaling system maintenance often relies on scheduled inspections and reactive repairs-addressing issues after they're detected. While still necessary, these approaches can be significantly enhanced through the implementation of predictive and condition-based maintenance strategies. These techniques leverage data and technology to anticipate failures and optimize maintenance schedules, moving beyond a "time-based" approach.

Predictive Maintenance (PdM): Data-Driven Anticipation

PdM utilizes sensors and data analytics to monitor key performance indicators (KPIs) and predict when a component is likely to fail. This involves continuously gathering data on parameters such as relay contact resistance, signal head illumination levels, fiber optic attenuation, power supply voltage fluctuations, and even subtle vibrations within track circuits. Machine learning algorithms analyze this data, identifying patterns and anomalies that indicate impending failure. For instance, a gradual increase in relay contact resistance over time can signal the need for replacement before the relay fails catastrophically, preventing a signal failure. PdM shifts maintenance from a schedule to a need, minimizing unnecessary interventions and maximizing asset lifespan.

Condition-Based Maintenance (CBM): Real-Time Assessment

CBM takes a similar approach, but emphasizes real-time assessment of component condition. Rather than solely relying on historical data, CBM utilizes online monitoring systems and diagnostic tools to continuously evaluate performance. This might involve using an OTDR (Optical Time Domain Reflectometer) to continuously monitor fiber optic cable health, or deploying vibration sensors to detect anomalies in signaling relays. If a component's condition deviates from pre-defined thresholds, maintenance is triggered immediately, minimizing the risk of failure. CBM provides a granular understanding of asset health and allows for proactive interventions based on current operating conditions.

Benefits and Challenges

The advantages of PdM and CBM are clear: reduced downtime, optimized resource allocation, extended asset lifespan, and improved safety. However, implementing these techniques requires significant investment in sensors, data acquisition systems, and skilled personnel capable of interpreting data and implementing corrective actions. Data security and privacy are also crucial considerations, as sensitive information is constantly being collected and analyzed. Despite these challenges, the increasing availability of affordable sensors and powerful data analytics tools is making PdM and CBM increasingly accessible to a wider range of railway operators.

Training Your Team: Ensuring Competency & Safety

A robust signaling system maintenance checklist is only as effective as the team executing it. Investing in comprehensive and ongoing training is paramount, not just for operational efficiency, but for the unwavering safety of the rail network. Generic safety courses aren't enough; your team needs specialized knowledge and practical skills tailored to the complexities of the signaling system.

Beyond the Basics: Initial training should cover foundational principles: track circuit operation, relay logic, fiber optic cable testing, and emergency power system protocols. Crucially, this must be coupled with hands-on experience under the supervision of seasoned professionals.

Continuous Development: Signaling technology is constantly evolving. Regular refresher courses, updates on new equipment and procedures, and specialized training on software updates are essential. Simulated scenarios and virtual reality training can provide realistic practice in troubleshooting and responding to unexpected events in a safe environment.

Certification and Qualification: Encouraging and supporting relevant certifications - those recognized within the railway industry - demonstrates a commitment to professionalism and competence. Formal qualification processes ensure that personnel possess the necessary knowledge and skills to perform their duties safely and effectively.

Documentation & Assessment: Maintain meticulous records of all training received, including dates, content, and assessment results. Periodic competency assessments should be conducted to verify practical skills and identify areas for improvement. This structured approach ensures that your team remains sharp, capable, and ready to meet the challenges of maintaining a critical infrastructure.

Future Trends in Signaling System Maintenance

The future of signaling system maintenance is shifting from reactive and preventative approaches to a proactive, data-driven paradigm. Two key trends are leading this transformation: predictive analytics and digital twins.

Predictive Analytics: Anticipating Failure Before it Happens

Traditionally, maintenance has been based on time-based schedules or reactive responses to failures. Predictive analytics leverages data collected from various sources - including track circuit performance, relay status, power supply readings, and even environmental conditions - to identify patterns and predict potential failures before they occur. Machine learning algorithms analyze this data, establishing baseline performance and flagging anomalies that indicate degradation or impending issues. This allows maintenance teams to proactively schedule interventions, optimizing resource allocation and minimizing disruptions. Implementing these systems requires investment in data acquisition infrastructure and skilled data scientists, but the return on investment through reduced downtime and improved safety is substantial.

Digital Twins: Virtual Prototyping for Enhanced Understanding

Complementing predictive analytics, digital twins offer a virtual representation of the signaling system. This digital replica integrates real-time data streams, allowing operators to simulate various scenarios, test upgrades, and diagnose problems remotely. A digital twin can visualize complex system interactions, allowing for a deeper understanding of performance and potential bottlenecks. This technology is particularly valuable for planning major system upgrades or modifications, minimizing risk and ensuring a smooth transition. By effectively merging physical asset data with digital models, we're moving toward a future where signaling system maintenance becomes far more efficient, reliable, and ultimately, safer.
