Tram Wheel & Rail Inspection: Your Complete Checklist Template

Why Tram Wheel & Rail Inspections Matter

Think of your tram system as a finely tuned machine - its wheels and rails are crucial for smooth, safe, and reliable operation. Neglecting these vital components isn't just about avoiding minor inconveniences; it's about preventing potentially serious incidents. Derailments, increased maintenance costs, and compromised passenger safety are just a few of the risks associated with insufficient wheel and rail inspections.

Regular, meticulous inspections identify developing cracks, unusual wear patterns, and contamination before they escalate into major structural failures. These early detections allow for proactive maintenance, extending the lifespan of your trams, minimizing disruptions to service, and most importantly, ensuring the safety and well-being of your passengers and operators. A small investment in regular inspections pays dividends in avoiding costly repairs and maintaining public trust.

Introducing Our Complete Checklist Template

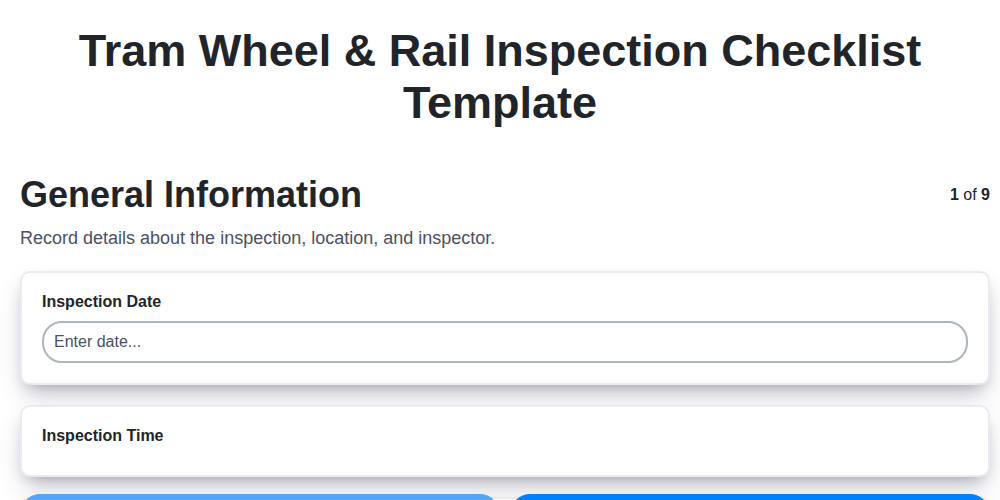

Our comprehensive checklist template goes beyond a simple list-it's a meticulously designed tool to streamline your tram wheel and rail inspection process. It's structured to ensure every critical area is evaluated consistently and thoroughly. The template is available in PDF, Excel, CSV and Web Form.

Inside, you'll find:

• Pre-defined assessment criteria: Clear guidelines for evaluating wheel and rail condition.
• Space for detailed notes: Capture specific observations and potential issues.
• Corrective action tracking: Log recommended repairs and their priority level.
• Photographic evidence placeholders: Dedicated sections to attach supporting images.
• Inspector signature and date fields: Formalize the inspection record.

We've included tips and best practices within the template to assist inspectors, even those with less experience. Download your copy today and elevate your tram maintenance program to the highest standard of safety and efficiency.

Section 1: General Information - Setting the Stage

This section lays the groundwork for a thorough and traceable inspection process. Before even glancing at the wheels or rails, taking a few moments to accurately record the "who, what, when, and where" is crucial. The date and time establish a timeline for tracking inspection trends and scheduling follow-up work. Precise tram/vehicle identification ensures clarity and prevents errors. Recording the inspector's name and credentials verifies accountability, while documenting the track location pinpoints the specific area assessed. This seemingly simple information builds a foundation for consistent record-keeping and allows for efficient analysis of maintenance history, ultimately contributing to a safer and more reliable tram system.

Section 2: Assessing Wheel Condition

A thorough wheel condition assessment is paramount to identifying potential failures before they compromise safety. Begin with a detailed visual inspection, paying close attention to the wheel's surface for any signs of fatigue cracking, particularly around the wheel seat and flange. Look for unusual grooves or wear patterns that could indicate misalignment or track irregularities.

Next, measure the tread depth precisely using calibrated gauges. Compare these measurements against manufacturer specifications and previous inspection records to identify trends in wear. Flange condition is equally vital; check for cracks, excessive wear, or deformation that could impact derailment prevention. Finally, scrutinize the wheel rim for any signs of damage, pitting, or localized wear that could increase the risk of friction or instability. Photographic documentation of any observed anomalies is crucial for tracking progress and facilitating detailed analysis.

Section 3: Evaluating Rail Integrity

Rail integrity is paramount to safe tram operation. This section goes beyond simple visual checks, focusing on quantifiable data and potential failure points. We'll assess the rail head, web, and foot, looking for signs of wear, cracking, and deformation. Rail profile measurements are crucial; deviations from the specified geometry can impact tram stability and increase stress on both wheels and rails. Pay particular attention to areas prone to increased wear, such as curves and points. We utilize ultrasonic testing (UT) for subsurface crack detection, a non-destructive method allowing for early identification of potentially hazardous flaws invisible to the naked eye. Regular checks of rail fastening integrity - ensuring bolts are tightened to the correct torque and insulators are free from damage - are equally vital. Furthermore, documenting any instances of shelling, a surface defect caused by repeated wheel contact, is essential for tracking trends and implementing preventative measures. Finally, a comprehensive assessment considers the surrounding trackbed; movement or instability of the foundation can compromise rail integrity and create dangerous conditions.

Section 4: Precise Gauge Measurements

Maintaining the correct gauge - the distance between the rails - is paramount for tram safety and stability. Deviations, even seemingly minor ones, can lead to derailment, increased stress on wheel and rail components, and a degraded ride quality. Precise gauge measurement isn't simply about taking a single reading; it's about establishing a baseline, monitoring for changes over time, and identifying potential issues before they escalate.

This section requires specialized equipment, typically including laser-based gauge measurement systems or contact gauges with high accuracy. Measurements are taken at regular intervals along the track, and the data is meticulously recorded. It's not enough to simply note the gauge; variations from the nominal value should be documented, along with their location. Trend analysis of these measurements provides valuable insights into track settlement, thermal expansion/contraction, and other factors that can affect gauge integrity. Regular calibration of measurement equipment is absolutely critical to ensure the accuracy and reliability of the data. Finally, any gauge deviations detected must be promptly addressed through corrective actions such as rail realignment or packing.

Section 5: Analyzing Alignment & Wear Patterns

Identifying and interpreting wheel and rail alignment and wear patterns is crucial for proactive maintenance and preventing more serious issues. Subtle changes often indicate underlying problems that, if left unaddressed, can lead to derailments, increased friction, and accelerated component wear.

Look beyond just identifying visible defects. Analyze the patterns of wear. For example, uneven wear on the wheel flanges might suggest track misalignment or a consistent oversteering condition. Similarly, variations in rail profile wear could be indicative of uneven load distribution or issues with suspension components.

Tools like laser trackers, profilometers, and even detailed visual inspection techniques can help identify these patterns. Document your findings meticulously. Note the location of wear, its severity, and any accompanying anomalies. Compare current observations with historical data to establish trends and predict future needs. This data-driven approach allows for more targeted maintenance, minimizing downtime and maximizing the lifespan of your tram system. Don't just fix what's broken; understand why it's breaking.

Section 6: Addressing Contamination & Lubrication

Contamination and inadequate lubrication are silent enemies of tram wheel and rail health. Over time, dirt, debris, grease, oil, and even atmospheric pollutants can build up, accelerating corrosion, increasing friction, and reducing the lifespan of critical components.

Identifying the Culprits:

During inspection, meticulously examine both wheel treads and rail surfaces. Look for:

• Visible Debris: Stones, leaves, sand, and other foreign objects.
• Grease & Oil: Leaks from tram components or track lubrication systems.
• Rust & Corrosion: Indicating moisture and lack of protection.
• Rail Dust: A common problem, especially in dry climates.

Removal & Prevention:

Regular cleaning is essential. Methods can range from simple brushing and vacuuming to more intensive pressure washing, always mindful of environmental impact. Ensure drainage is adequate to prevent standing water, which can worsen corrosion.

Lubrication: The Friction Fighter

Proper lubrication is equally vital. Lubricants reduce friction between wheels and rails, minimizing wear and tear. However, incorrect lubrication can be as damaging as no lubrication at all.

• Approved Lubricants Only: Never substitute unauthorized lubricants. Refer to your tram's maintenance manual for the correct type and application method.
• Application Points: Identify all lubrication points (wheel flanges, bearing surfaces, etc.) and ensure they's properly serviced.
• Lubricant Condition: Visually inspect lubricants for signs of degradation (thickening, discoloration). Replace as needed.
• Environmental Considerations: Opt for environmentally friendly lubricants whenever possible.

Section 7: Documenting Findings & Corrective Actions

Thorough documentation isn't just a formality; it's the backbone of a proactive maintenance program. This section focuses on accurately recording your findings and outlining necessary corrective actions. Each inspection should generate a detailed report that includes:

• Specific Defect Description: Avoid vague terms. Instead of rail wear, note rail head wear - 3mm loss on the inner rail, 150m from the station.
• Location Details: Precise location of any defect is critical for tracking trends and coordinating repairs. Use station markers, track kilometers, or other relevant identifiers.
• Severity Assessment: Categorize findings with a clear severity level (e.g., High, Medium, Low) to prioritize actions. A High severity finding might indicate an immediate risk to safety and require urgent attention.
• Recommended Corrective Action: Clearly outline the recommended repair or adjustment needed. Be specific: Grind rail head versus repair rail.
• Responsible Party: Assign responsibility for the corrective action to a specific individual or team.
• Completion Date: Set a target date for completion of the corrective action.
• Confirmation of Completion: Include a space for confirmation that the action has been completed, ideally with a signature or digital verification.

Don't underestimate the value of photographic evidence. Pair each written description of a defect with a clear and well-lit photograph. These visuals provide valuable context and serve as an objective record of the condition at the time of inspection. A well-documented inspection is not only vital for safety but also provides crucial data for analyzing maintenance trends and optimizing your tram system's performance.
