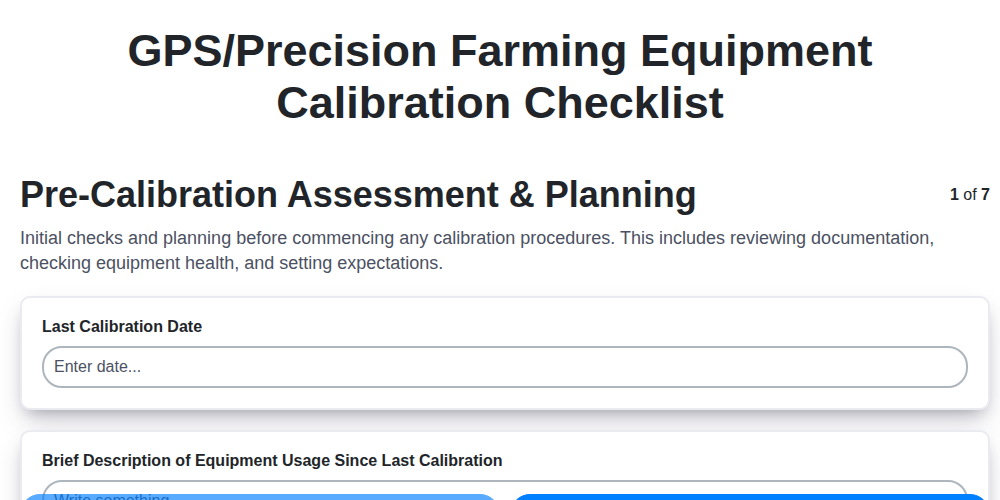

The Ultimate GPS & Precision Farming Calibration Checklist Template

Why GPS & Precision Farming Calibration Matters

Beyond the initial excitement of implementing GPS and precision farming technology, it's easy to overlook the crucial step of calibration. Many perceive it as a technical hurdle or an extra expense, but neglecting calibration is akin to driving a high-performance vehicle with a faulty engine - you're not realizing its full potential, and you risk damaging the system in the long run.

Think about it: your GPS receiver isn't just providing location data; it's the foundation for accurate variable rate application, precise steering, and reliable data collection. If that foundation is off, every subsequent step is compromised. Inaccurate fertilizer application leads to wasted product and environmental concerns. Misaligned implements can damage crops and reduce yields. Flawed data hinders informed decision-making and limits the ability to optimize inputs effectively.

Moreover, calibration drift is a reality. Environmental factors, wear and tear on equipment, and even software updates can gradually impact the accuracy of your systems. Regular calibration acts as a preventative measure, ensuring your technology remains a valuable asset rather than a costly liability. It's an investment in efficiency, sustainability, and ultimately, a healthier bottom line.

Pre-Calibration Assessment: Laying the Foundation

Before diving into the technical calibration procedures, a thorough pre-calibration assessment is absolutely essential. Think of it as laying the foundation for a stable and accurate precision farming system. This initial phase isn't about adjusting settings; it's about understanding the current state of your equipment and planning the calibration process effectively.

Start by reviewing the manufacturer's recommendations for each piece of equipment. These manuals often contain specific calibration frequencies, procedures, and troubleshooting tips. Don't skip this step - it's your primary reference.

Next, identify precisely which systems require calibration. This might include your GPS receiver, guidance system (steering and implement), variable rate application (VRA) equipment, and various sensors (yield, moisture, NDVI). A comprehensive list ensures no crucial element is overlooked.

Assess environmental factors. Check for potential obstructions, like trees or buildings, that might impact satellite visibility and GPS accuracy. Note any recent events, such as equipment relocation or physical impacts, that could have affected calibration.

Finally, take time to plan your approach. Schedule downtime strategically to minimize disruption to fieldwork and gather the necessary tools and materials beforehand. A well-planned assessment significantly streamlines the entire calibration process and maximizes its effectiveness.

GPS Receiver Calibration: Ensuring Accurate Positioning

The cornerstone of any precision farming operation is accurate positioning, and that starts with your GPS receiver. Without a reliably calibrated receiver, your guidance systems, variable rate applications, and data collection efforts are all compromised. Here's a breakdown of essential GPS receiver calibration steps to ensure pinpoint accuracy:

1. Satellite Visibility & DOP Assessment:

The first step is to assess satellite visibility. Obstructions like trees, buildings, and even hilly terrain can block satellite signals, degrading accuracy. Use your receiver's display to check for the number of satellites currently in view. A minimum of 6 satellites is generally recommended for optimal performance. Critically, monitor the Dilution of Precision (DOP) value. DOP represents the impact of satellite geometry on accuracy; lower DOP values (ideally below 4) indicate better positioning accuracy. High DOP values suggest poor satellite geometry and potential inaccuracies.

2. RTK Initialization and Base Correction:

Real-Time Kinematic (RTK) GPS offers significantly higher accuracy than standard GPS. Proper RTK initialization is crucial. This process involves the receiver locking onto a base station signal, establishing a highly accurate baseline correction. Ensure a stable and reliable RTK signal before commencing fieldwork. Check for signal lock indicators on your receiver's display - typically a solid indicator light.

3. Firmware Updates:

GPS receiver manufacturers continuously improve performance through firmware updates. Outdated firmware can lead to suboptimal accuracy and functionality. Regularly check for and install the latest firmware versions available from your equipment manufacturer. These updates often include bug fixes, improved algorithms, and enhanced compatibility.

4. Antenna Health & Connection:

Inspect the GPS antenna for any physical damage or corrosion. Ensure the antenna cable is securely connected to the receiver. A loose connection can disrupt the signal and introduce errors. Clean the antenna periodically to remove any debris that may be obstructing the signal.

5. Static Positioning Check:

Periodically perform a static positioning check. This involves allowing the receiver to remain stationary for a designated period (often 15-30 minutes) to refine its position. This process can improve long-term accuracy and compensate for any positional drift. Compare the static position with known reference points to verify accuracy.

Guidance System Calibration: Perfecting Steering and Implement Control

Achieving truly accurate and efficient field operations hinges on meticulous guidance system calibration. It's more than just ensuring a straight line; it's about precise implement positioning and consistent path following. Let's break down the essential steps to perfect your steering and implement control.

Wheel Track Compensation: The Foundation of Straight Rows

Your tractor's wheels don't follow a perfect line. They create a track, which, if uncorrected, will cause implements to drift over time. Wheel track compensation adjusts for this offset, ensuring your rows remain straight and parallel. Most guidance systems have an automated process for this; however, periodically verify the settings based on your tractor's tire configuration and soil conditions. Minor adjustments can significantly impact row accuracy over larger fields.

Implement Offset: Precise Positioning is Paramount

The distance between the tractor's wheel track and the center of your implement - whether it's a planter, sprayer, or fertilizer applicator - is crucial. An incorrect offset results in uneven application or planting, leading to yield variability. Your guidance system allows you to define this offset, and it's vital to measure it accurately. Use a measuring tape and a reliable reference point. Remember to account for any changes in implement configuration (e.g., different hitch types).

Turn Compensation: Maintaining Consistency Through Curves

Even with straight-line accuracy, implements tend to drift during turns. Turn compensation automatically adjusts the implement's position to maintain a consistent path through curves. This is particularly important for tasks like spraying and fertilizer application, where uniform coverage is critical. Fine-tune turn compensation settings based on your implement's size and turning radius. Many systems allow for manual adjustment or offer automatic compensation options.

Verifying Path Following: A Visual Inspection

After calibrating your guidance system, a visual inspection is essential. Drive a test pattern across a small area of the field and observe the implement's path. Look for any signs of drift or inconsistency. Use field markers or visual cues to assess the accuracy of your path. Regularly repeating this process helps identify and correct any emerging issues before they impact large areas of your fields.

Pro Tip: Keep a log of your calibration settings for each implement. This allows you to quickly revert to proven settings and troubleshoot any future issues.

Variable Rate Application (VRA) Calibration: Matching Prescription to Reality

Variable Rate Application (VRA) is only as good as its calibration. A beautifully crafted prescription map for fertilizer, seed, or pesticide is useless if your equipment isn't applying those rates accurately. This isn't a simple set and forget process; regular calibration is vital to ensure you're optimizing inputs and achieving the intended results.

The core principle is verifying that the actual application rate aligns precisely with what your prescription map dictates. This isn't about visual assessment alone; it requires methodical testing and adjustments.

Key Calibration Steps:

• Nozzle Calibration (Sprayers): Uneven nozzle patterns are a major source of VRA inaccuracy. Conduct a thorough nozzle check, ensuring all nozzles deliver the same droplet size and volume. Use a standardized testing method - a simple catch can test is a good starting point. Record nozzle output rates and adjust as needed. Consider using a drift reduction additive, and regularly check for nozzle wear.
• Dry Fertilizer Calibration: Calibrate your dry fertilizer applicator to ensure consistent flow rates across varying application rates. Use a weigh scale to determine the actual output for a specific time period, and make adjustments to the metering system accordingly. Check for bridging or clumping of fertilizer, which can significantly impact accuracy.
• Planter Calibration: Precise seed placement is essential for optimal emergence and yield. Regularly verify the planter's seed rate, spacing, and depth. Conduct a seed drop test to confirm that the correct number of seeds are being delivered per row foot. Adjust planter settings to match the prescription map's recommendations.
• Rate Controller Verification: The rate controller is the brain of your VRA system. Verify its functionality by applying a range of rates and confirming that the actual application matches the commanded rate. Calibrate the controller's sensors and check for any communication errors.
• GPS Accuracy: Your VRA system relies on accurate GPS positioning. Ensure your receiver is properly configured and that the GPS signal is strong and reliable. Periodically check the GPS accuracy using a known reference point.

Beyond the Numbers:

Don't solely rely on numerical data. Observe the field during application. Are there visible patterns or variations that don't align with the prescription? These could indicate issues with equipment functionality or prescription accuracy. Regularly review yield maps to identify any correlations between prescription rates and yield performance.

Sensor Calibration: Validating Yield, Moisture, and NDVI Data

Precision agriculture's power lies in its ability to collect and interpret data - but that data is only as good as the sensors providing it. Regular calibration is vital to ensure the accuracy of yield monitors, soil moisture sensors, and NDVI (Normalized Difference Vegetation Index) instruments. Failing to calibrate these sensors can lead to flawed decision-making, misapplied inputs, and ultimately, reduced profitability.

Yield Monitor Calibration: Measuring Grain with Confidence

A properly calibrated yield monitor is essential for accurate yield mapping and informed fertilizer management. The process typically involves weighing a known quantity of grain (e.g., a full truckload or a specific bin) while the yield monitor is recording. This allows you to compare the measured yield with the actual weight and adjust the sensor's output accordingly. Consult your yield monitor's manual for detailed calibration procedures; often, this involves a simple multiplier adjustment within the system's software. Remember to calibrate annually, and more frequently if you suspect inconsistencies.

Soil Moisture Sensor Calibration: Optimizing Irrigation

Soil moisture sensors guide efficient irrigation practices, preventing both water stress and overwatering. Calibration ensures the sensor's readings accurately reflect the true soil moisture content. This often involves comparing sensor readings with gravimetric soil moisture measurements (oven-drying soil samples to determine water content). Calibration frequency depends on the sensor type and environmental conditions, but annual checks are generally recommended. Keep in mind that soil type and salinity can affect sensor readings, requiring adjustments based on your specific field conditions.

NDVI Calibration: Assessing Crop Health with Accuracy

NDVI sensors provide valuable insights into crop health and stress levels. Calibration ensures that NDVI values accurately represent vegetation density and photosynthetic activity. This commonly involves ground truthing - comparing NDVI readings with visual assessments of crop health (e.g., leaf color, plant vigor). In some cases, a known reference area with a consistent NDVI value can be used for calibration. Proper calibration minimizes errors caused by sensor variability and atmospheric conditions, allowing for more reliable crop monitoring and timely intervention.

Field Verification & Accuracy Testing: Validating Performance in the Field

Once your equipment has been calibrated according to manufacturer guidelines, it's crucial to verify its performance under real-world conditions. Field verification isn't just about checking numbers - it's about visually confirming that your technology is translating into tangible results in your fields.

Start by establishing clearly marked reference points within your field before any application or data collection begins. These points will serve as benchmarks for comparison. During and after operations like variable rate fertilizer application or harvest, carefully observe the patterns created. Does the applied rate visually match the prescription map? Are there signs of drift, overlap, or uneven distribution?

Utilize ground-truthing techniques for sensor data. For example, with NDVI sensors, compare sensor readings in specific areas with visual assessments of crop health. Are areas flagged as stressed by the sensor also exhibiting visual signs of stress (discoloration, stunted growth)?

Don't underestimate the power of a simple walk-through. A trained eye can often detect inconsistencies that might be missed by relying solely on data numbers. Document your observations meticulously - photos and notes are invaluable for identifying recurring issues and fine-tuning your calibration procedures. Finally, compare subsequent data layers (yield maps, soil moisture maps) over multiple seasons to identify long-term trends and ensure consistent performance.

Calibration Record Keeping: Tracking and Improving Results

Maintaining meticulous calibration records isn't just good practice - it's essential for optimizing your precision farming operation and demonstrating due diligence. Think of it as your system's memory, allowing you to track performance, identify trends, and make informed adjustments.

What should you record? At a minimum, document the date of each calibration event, the equipment calibrated (model number!), the person performing the calibration, the initial readings before adjustments, the adjustments made, and the final readings after adjustments. Go beyond just numbers. Note why adjustments were necessary - was it due to wear and tear, environmental conditions, or a suspected equipment malfunction?

A well-organized record-keeping system allows you to:

• Identify Recurring Issues: Spot patterns in calibration data that point to underlying equipment problems or require adjustments to your operating procedures.
• Benchmark Performance: Compare calibration results over time to gauge the effectiveness of your maintenance schedule and identify opportunities for improvement.
• Troubleshoot Problems: When issues arise, your records provide a valuable historical perspective, helping you pinpoint the root cause quickly.
• Demonstrate Compliance: Accurate records are often required for regulatory compliance and can be crucial in demonstrating responsible stewardship of resources.

Consider using a digital spreadsheet or dedicated farm management software for efficient record keeping. This allows for easy data analysis and sharing. Physical notebooks are also perfectly acceptable, just ensure they are well-protected and easily accessible. The method doesn't matter as much as the consistency and accuracy of the information captured.

Troubleshooting Common Calibration Issues

Even with meticulous planning, calibration hiccups can happen. Recognizing the signs and addressing them promptly is key to maintaining precision. Here's a look at some common issues and how to resolve them.

1. GPS Receiver Inaccuracy: If you're seeing inconsistent guidance or variable rate application errors, suspect GPS receiver issues. Possible causes: Poor satellite visibility (obstructions like trees), atmospheric interference, outdated firmware. Solutions: Relocate equipment to a more open area, check for firmware updates, perform a static RTK initialization, check DOP values.

2. Guidance System Drift: Noticeable deviations from the desired path, especially during turns, indicate guidance system drift. Possible causes: Improper wheel track compensation, inaccurate implement offset, incorrect turn compensation settings. Solutions: Recalibrate wheel track compensation, verify implement offset, adjust turn compensation, ensure proper tire pressure.

3. Variable Rate Application Discrepancies: If the applied rates don't match the prescription map, your VRA system needs attention. Possible causes: Nozzle blockage or wear (sprayers), inaccurate flow meters (fertilizer/seed), faulty communication between the controller and application equipment. Solutions: Clean or replace nozzles, calibrate flow meters, verify electrical connections, check controller settings, and ensure proper data transmission.

4. Sensor Data Anomalies: Unusual or erratic readings from yield monitors, moisture sensors, or NDVI sensors point to sensor calibration problems. Possible causes: Sensor contamination, environmental factors, damaged sensors, incorrect sensor placement. Solutions: Clean sensors, check for environmental interference (e.g., shadows), inspect sensors for physical damage, verify sensor placement, perform a sensor-specific calibration procedure.

5. Communication Errors: Issues transmitting data between different components-prescription maps from a computer to the applicator, or data from the applicator back to a data platform-can disrupt the entire process. Possible causes: Faulty cables, software incompatibility, network issues. Solutions: Inspect cables and connectors, update software, troubleshoot network connectivity, check for error messages.

Proactive Tip: Regularly monitor your equipment's performance and establish baseline calibration readings. This makes it easier to identify deviations and diagnose problems quickly. Don't wait for noticeable errors-routine checks are your best defense against costly calibration issues.
