Essential Guide: Your Train Bridge & Tunnel Inspection Checklist Template

Why Train Bridge & Tunnel Inspections Matter

The safety and longevity of our transportation network hinge on the integrity of train bridges and tunnels. They're not just concrete and steel; they're critical links enabling the movement of people and goods across vast distances. Neglecting their upkeep can lead to catastrophic consequences - from service disruptions and costly repairs to, most importantly, safety hazards and potential accidents.

Consider the economic ripple effect: a major bridge failure can paralyze entire regions, impacting supply chains and crippling businesses. Beyond the financial implications, the human cost of a tunnel collapse or a bridge failure is immeasurable.

Regular, thorough inspections aren't simply a regulatory requirement; they're a proactive investment in public safety, a commitment to reliable infrastructure, and a demonstration of responsible asset management. By identifying and addressing potential problems early on, we can prevent small issues from escalating into major crises, ensuring the continued safe and efficient operation of our vital transportation networks.

Building a Robust Inspection Checklist

A truly robust inspection checklist isn't simply a list of items to check; it's a carefully constructed tool that anticipates potential issues and ensures thoroughness. Here's how to build one that stands the test of time:

• Start with the Design Documents: Your checklist should be rooted in the original design specifications and construction drawings. This ensures you're evaluating the structure against its intended performance parameters.
• Risk Assessment is Key: Identify potential failure modes and prioritize inspection areas based on risk. High-risk areas deserve more frequent and detailed inspections. Consider factors like age, environmental exposure (corrosion potential), traffic volume, and past incidents.
• Define Clear Acceptance Criteria: Don't just note a crack; specify what constitutes an acceptable crack size and severity. This provides consistent evaluation across inspectors and over time. Use numerical data where possible (e.g., crack width in millimeters, deflection in inches).
• Incorporate Visual Aids: Include photographs or diagrams illustrating common defects. This helps inspectors accurately identify and document findings, especially those with varying levels of experience.
• Promote Inter-Inspector Reliability: Conduct periodic calibration exercises where multiple inspectors assess the same area. This helps identify discrepancies in interpretation and refine the checklist.
• Embrace Technology: Consider digital checklists that allow for photo documentation, GPS tagging, and real-time data sharing. This improves accuracy, efficiency, and communication.
• Feedback Loop: Establish a system for inspectors to provide feedback on the checklist's effectiveness. This ensures it remains relevant and responsive to evolving conditions.

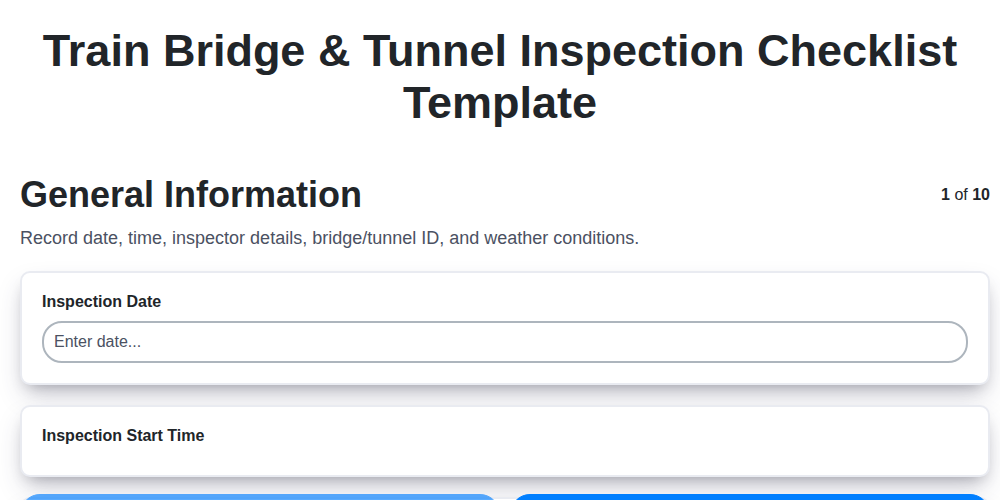

General Information & Setup

Before you even glance at a crack or check a fastener, the foundational information is critical. This section establishes the context for the entire inspection and provides essential documentation. Don't underestimate its importance - a well-documented general information section can be invaluable for tracking trends, identifying recurring issues, and ensuring accountability.

Here's what you should include:

• Date and Time: Record the exact date and time of the inspection. This allows for accurate tracking of inspection frequency and correlation with weather events or other relevant factors.
• Inspector Identification: Clearly document the names and credentials (licenses, certifications) of all inspectors involved. This establishes responsibility and allows for verification of expertise.
• Structure Identification: Use a unique, official identifier for the bridge or tunnel being inspected. Include GPS coordinates for precise location tracking. Cross-reference this with any existing asset management systems.
• Weather Conditions: Briefly note the weather conditions at the time of the inspection - temperature, precipitation, wind speed, visibility. This can impact inspection visibility and potentially influence observed defects.
• Previous Inspection Review: Crucially, document that the previous inspection report has been reviewed and note any outstanding issues or recommendations that need to be addressed during this inspection. A simple Reviewed, Findings Addressed or Reviewed, Pending Action is sufficient. Attach a copy of the previous report as supporting documentation.
• Purpose of Inspection: State the specific reason for this inspection - routine maintenance, post-incident assessment, or as part of a scheduled program.
• Equipment Used: List any specialized equipment used during the inspection, such as drones, ground-penetrating radar, or specialized measurement tools.

Structural Integrity - Supersetructure (Bridges) & Tunnel Linings

The structural integrity of both bridge superstructures and tunnel linings is paramount to overall safety. This section focuses on a thorough visual assessment, looking for signs of degradation that could compromise stability.

For Bridges:

Begin by inspecting the deck, girders, and supporting piers. Look for:

• Cracking: Document the size, pattern (e.g., hairline, map cracking), and location of all cracks. Pay close attention to areas near joints and connections.
• Spalling: This refers to the chipping or flaking of concrete. Extensive spalling often indicates underlying corrosion or freeze-thaw damage.
• Corrosion: Steel components are particularly vulnerable to corrosion. Look for rust, pitting, and evidence of previous repairs.
• Deformation: Note any visible warping, sagging, or bulging of the bridge deck or supporting structures.
• Joint Movement: Observe and record any excessive or unusual movement between bridge segments, which may indicate structural issues.

For Tunnels:

Tunnel linings require a similar level of scrutiny, focusing on:

• Concrete Deterioration: Examine the tunnel lining for signs of cracking, spalling, and scaling. Look for efflorescence (a white, powdery substance on the concrete surface) which indicates moisture ingress.
• Shotcrete Delamination: For tunnels reinforced with shotcrete, look for areas where the shotcrete is separating from the rock face.
• Rock Bolt Protrusion: Inspect rock bolts for signs of corrosion or excessive protrusion, which may indicate ground movement.
• Ground Swelling: Observe the tunnel lining for any signs of bulging or deformation caused by ground pressure.
• Water Ingress: Note any signs of water leakage or dampness on the tunnel lining.

Structural Integrity - Substructure (Bridges) & Tunnel Foundations

The substructure of a bridge - its piers, abutments, and foundations - bears the immense load of the superstructure and surrounding traffic. Similarly, a tunnel's foundation anchors the entire structure against ground pressure and potential instability. A thorough assessment of these elements is paramount to identifying potential weaknesses before they escalate into serious problems.

Bridge Substructure Inspection: Our checklist focuses on:

• Abutment & Pier Condition: Look for signs of cracking, spalling, tilting, or displacement. Document the type, size, and location of any defects. Pay close attention to areas exposed to water and weathering.
• Foundation Settlement: Monitor for any noticeable sinking or differential settlement. Use surveying techniques to accurately measure elevation changes over time.
• Backfill Stability: Evaluate the soil behind abutments and piers. Look for signs of erosion, saturation, or inadequate compaction. Assess drainage and ensure it's functioning correctly to prevent water buildup.
• Scour Assessment: For bridges crossing waterways, scour is a significant concern. Inspect the riverbed around piers for erosion and undermining.

Tunnel Foundation Inspection: Tunnel foundations are directly tied to ground stability. Inspections should focus on:

• Ground Support: Carefully examine any rock bolts, shotcrete, or other ground reinforcement systems. Look for signs of corrosion, loosening, or cracking.
• Settlement Monitoring: Similar to bridges, tunnel foundations are susceptible to settlement. Implement a monitoring program to track any movement.
• Geotechnical Surveys: Regularly conduct geotechnical surveys to assess ground conditions and identify any potential instability.
• Water Ingress: Tunnel foundations are especially vulnerable to water intrusion. Meticulously inspect for any signs of leakage and assess the condition of any waterproofing membranes.

Detailed Assessment of Structural Elements

The structural integrity of a train bridge or tunnel hinges on the health of its core components. This detailed assessment goes beyond a superficial glance, demanding a careful examination of cracks, corrosion, and the connections that bind everything together.

Cracks: We categorize cracks by their width (measured in millimeters), length, angle (vertical, horizontal, diagonal), and location. Hairline cracks (less than 0.1mm) may be monitored but don't always require immediate action. Wider cracks (over 1mm) are typically a cause for concern, particularly if they're actively growing. Diagonal cracks often indicate structural stress, while vertical cracks may suggest settlement issues. Photographic documentation is crucial for tracking progression.

Corrosion: This is a relentless enemy, especially in environments exposed to moisture, de-icing salts, or industrial pollutants. We assess the extent and severity of corrosion on steel elements, noting pitting, scaling, and general thinning. For concrete structures, we look for signs of rebar corrosion, such as rust staining and spalling (concrete breaking away). Electrochemical testing can also be employed to evaluate the condition of rebar.

Connections: Bolted connections, rivets, and welds are vital for load transfer. We examine these for signs of loosening, corrosion, and fatigue cracking. Bolt heads and nuts should be checked for proper tightness. Welds should be visually inspected for cracks, porosity, and incomplete fusion. Ultrasonic testing can be used to detect hidden flaws in welds. Special attention should be paid to connections near areas of known stress or deformation. Identifying and addressing issues with connections is key to preventing catastrophic failure.

Water Management - Detecting and Preventing Intrusion

Water is a relentless enemy to bridges and tunnels. Its corrosive nature compromises structural integrity, accelerates deterioration, and can lead to costly repairs and service disruptions. Effective water management isn't just about fixing leaks; it's about proactively detecting potential intrusion points and implementing preventative measures.

Understanding the Risks:

• Freeze-Thaw Cycles: Water seeping into cracks and porous materials expands when frozen, exerting immense pressure that causes spalling and further damage.
• Corrosion: Water, especially when carrying dissolved salts and minerals, is a primary driver of corrosion in steel and other metal components.
• Biological Growth: Moisture promotes the growth of mold, mildew, and other organisms that can degrade materials and pose health risks.

Inspection Focus: Identifying Entry Points:

During inspection, pay close attention to:

• Joints and Seals: Cracks and deterioration in expansion joints and waterproof seals are common entry points.
• Drainage Systems: Clogged or damaged drains prevent water from escaping, leading to pooling and saturation.
• Cracks in Concrete/Masonry: Even hairline cracks can allow significant water infiltration. Examine for signs of efflorescence (a white, powdery residue indicating water passage).
• Deck Surfaces: Look for signs of ponding water, dampness, or discoloration on bridge decks.
• Tunnel Walls & Roof: Examine for water streaks, staining, and evidence of seepage.

Preventative Strategies:

• Regular Drain Cleaning: Implement a schedule for clearing debris from drains.
• Sealing Cracks: Promptly seal any cracks identified during inspection.
• Waterproofing Membranes: Inspect and maintain waterproofing membranes (where present). Consider recoating or repair as needed.
• Improved Drainage: Explore opportunities to improve drainage systems, such as adding downspouts or redirecting surface runoff.
• Protective Coatings: Apply protective coatings to exposed surfaces to create a barrier against water penetration.
• Vegetation Management: Keep vegetation away from structures to prevent moisture retention and root damage.

Electrical & Lighting Systems - Ensuring Safe Operation

The reliable operation of electrical and lighting systems is absolutely critical for both the structural integrity and the safe passage through bridges and tunnels. Beyond simply providing illumination, these systems support vital safety features like emergency ventilation, fire suppression, and communication systems. A failure in any of these areas can have severe consequences.

During your inspection, meticulously examine the following:

• Lighting Fixtures: Assess each fixture for damage, corrosion, and proper alignment. Look for signs of flickering, dimming, or complete failure. Verify the type of bulb/lamp is appropriate for the environment (e.g., explosion-proof in tunnels).
• Wiring and Connections: Inspect all wiring for insulation damage, fraying, and proper termination. Loose connections are a common source of electrical failures; check for corrosion and tightness. Pay close attention to conduit and junction boxes.
• Emergency Lighting: This is a must-check. Verify the functionality of backup power sources and the illumination provided by emergency lights. Test the transfer switch to ensure automatic activation upon power loss.
• Power Distribution Panels: Check for proper labeling, secure mounting, and signs of overheating or arcing. Verify circuit breakers are functioning correctly and are appropriately sized.
• Grounding Systems: Ensure a reliable grounding system is in place to protect against electrical shock and equipment damage.
• Surge Protection: Confirm the presence and functionality of surge protection devices, particularly in areas exposed to lightning strikes or power fluctuations.
• Control Systems: If automated lighting controls are present, test their functionality and verify correct operation.
• Cable Management: Assess the condition of cable trays, conduits, and other cable management systems. Ensure cables are properly supported and protected from damage.

Document any anomalies, no matter how minor they seem, and prioritize repairs based on potential safety risks.

Ventilation & Air Quality (Tunnels Only) - Maintaining a Safe Environment

Unlike bridges exposed to open air, tunnels present a unique challenge: a confined environment with potentially compromised air quality. Effective ventilation is absolutely critical for ensuring the safety of workers, passengers, and operational personnel. Poor ventilation can lead to a buildup of pollutants, reduced oxygen levels, and elevated temperatures, creating hazardous conditions.

Your inspection checklist should thoroughly assess the functionality and efficiency of the tunnel's ventilation system. This includes:

• System Operation: Verify that all fans and blowers are operating at the design airflow rate. Check for unusual noises or vibrations that may indicate mechanical issues.
• Airflow Patterns: Use smoke tubes or other visual methods to confirm that air is being drawn in and exhausted as intended, eliminating stagnant zones.
• Exhaust Stack Integrity: Inspect exhaust stacks and vents for obstructions, damage, or corrosion. Ensure they are free from debris and function properly.
• Air Quality Monitoring: Utilize air quality sensors to measure levels of pollutants like carbon monoxide (CO), particulate matter (PM), and nitrogen dioxide (NO2). Compare readings to established safety thresholds. Note any unusual odors.
• Smoke and Heat Detection: Test the functionality of smoke and heat detectors, including alarms and automatic ventilation adjustments. Ensure detectors are properly positioned and free from obstructions.
• Emergency Ventilation Systems: Validate the operation of emergency ventilation systems designed to quickly remove smoke and hazardous fumes during incidents. Confirm power supply and control systems.
• Temperature and Humidity: Monitor temperature and humidity levels within the tunnel. Excessive heat or humidity can compromise worker comfort and equipment performance.

Addressing any deficiencies identified during the inspection is paramount to maintaining a safe and breathable environment within the tunnel. Regular maintenance and proactive upgrades to the ventilation system are essential investments in the long-term safety and reliability of the infrastructure.

Safety Features - Prioritizing Personnel and Passenger Safety

The integrity of a bridge or tunnel isn't just about structural soundness; it's fundamentally about protecting the people who work on and travel through them. This section of your checklist moves beyond the purely technical and focuses on the systems and infrastructure designed to safeguard both maintenance personnel and passengers. A failure in this area can have devastating consequences, so meticulous assessment is paramount.

Your inspection should cover a wide range of critical components, starting with fire suppression systems. Verify the functionality of fire extinguishers, sprinkler systems (if present), and fire alarms - ensuring they are properly maintained and accessible. Conduct a visual inspection of emergency exit signage, confirming they are clearly visible and unobstructed. Security systems, including surveillance cameras and access control points, must be tested to ensure their effectiveness in preventing unauthorized access and responding to potential threats.

Don't overlook seemingly minor details. A quick assessment of emergency lighting functionality and the presence of appropriate personal protective equipment (PPE) storage areas for maintenance staff can reveal vulnerabilities often missed by superficial inspections. Regularly scheduled drills, simulating emergency scenarios, should also be documented and their effectiveness evaluated. Finally, ensure clear and concise emergency procedures are posted and understood by all relevant personnel. Remember: proactive safety measures are the first line of defense against potential hazards.

Track & Rail Condition - Safeguarding Smooth Transit

The condition of the tracks and rails is paramount to ensuring a safe and efficient journey for passengers and cargo. Deviations from optimal track geometry or rail integrity can lead to increased maintenance costs, reduced train speeds, and, most critically, potential safety hazards. Our inspection focuses not just on visual assessment, but a systematic evaluation of key elements.

We're looking for several critical indicators. Rail Alignment and Gauge: We meticulously measure rail alignment and gauge - the distance between the rails - noting any deviations from specified tolerances. Even slight misalignments can contribute to track instability and cause discomfort for passengers. Rail Wear and Defects: We carefully examine the rail surface for signs of wear, such as grinding marks, corrugation, and fatigue cracks. These defects are indicative of the rail's remaining lifespan and potential for failure. The presence of transverse or longitudinal cracks is a serious concern requiring immediate attention. Fastener Condition: Rail fasteners, crucial for securing the rail to the ties, are inspected for corrosion, loosening, and wear. Faulty fasteners can lead to rail movement and track instability. Beyond visual checks, we often employ non-destructive testing methods, such as ultrasonic rail inspection, to detect internal flaws that are not visible to the naked eye. Regular monitoring and prompt repair of any identified issues are essential to maintaining a consistently smooth and safe transit experience.

Putting it All Together - Recommendations and Next Steps

Your inspection isn't just about identifying problems; it's about creating a roadmap for their resolution. The 'Overall Assessment & Recommendations' section of your checklist is where this transition happens. Here's how to translate those findings into actionable steps:

Prioritization is Key: Not all issues are created equal. Categorize defects based on severity - minor, moderate, and severe - and assign a timeline for repair. Severe defects impacting structural integrity demand immediate attention. Moderate issues should be addressed within a defined timeframe, while minor issues can be incorporated into routine maintenance schedules.

Detailed Action Items: Vague recommendations are useless. Instead of "Repair cracks," specify: "Repair transverse crack in beam 3, south side, using epoxy injection method. Estimate repair time: 8 hours. Assign to: Concrete Repair Team." This clarity ensures accountability and prevents delays.

Beyond Immediate Repairs: Your checklist shouldn't just focus on current defects. Use the data gathered to identify trends and potential future problems. Are you seeing increased corrosion rates? Is water intrusion becoming more frequent? These observations should trigger preventative measures, like improved drainage or protective coatings.

Documentation is Everything: Maintain meticulous records of all inspections, findings, and repairs. This historical data is invaluable for tracking the effectiveness of your maintenance program, identifying recurring issues, and supporting future planning. Integrate your checklist findings into a centralized asset management system for easy access and analysis.

Regular Review & Adaptation: Your inspection program is not a static entity. Regularly review your checklist and procedures to ensure they remain relevant and effective. Incorporate feedback from inspectors and engineers, and adapt to changes in regulations or industry best practices. A proactive and evolving inspection program is the cornerstone of a safe and reliable transportation infrastructure.
