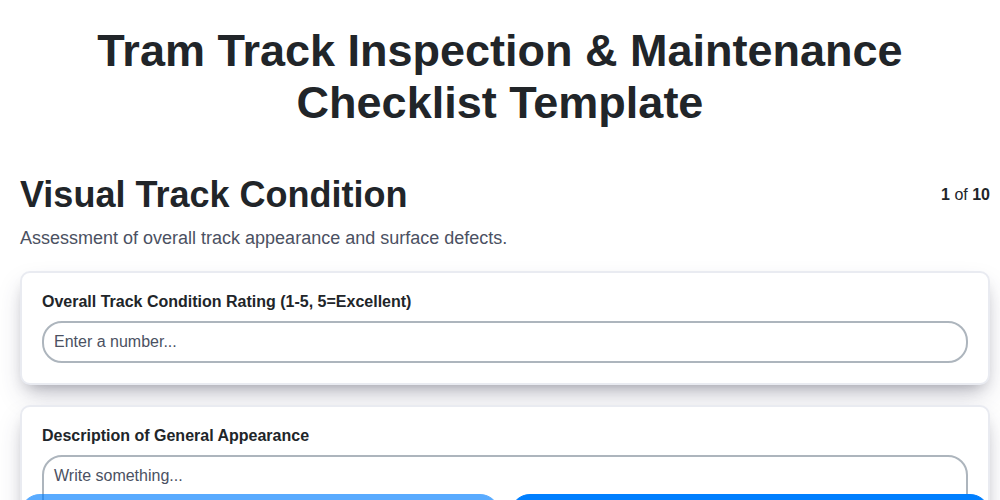

Tram Track Inspection & Maintenance: Your Checklist Template Guide

Why Tram Track Inspection & Maintenance Matters

Beyond the smooth ride passengers experience, a robust tram track inspection and maintenance program is a critical investment in safety, efficiency, and long-term cost savings. Neglecting these essential processes can trigger a cascade of negative consequences.

Consider the ripple effect of even a seemingly minor issue. A small crack in a rail, if left undetected, can rapidly escalate into a significant structural compromise, requiring costly emergency repairs and causing extensive service disruptions. Similarly, compromised fasteners or deteriorating ballast can contribute to track instability, increasing the risk of derailment - a scenario with potentially devastating consequences.

The economic impact extends beyond immediate repairs. Track failures lead to delays, reduced capacity, and increased operating costs. Passenger confidence erodes, impacting ridership and potentially straining public perception of the transit system. Furthermore, deferred maintenance often results in more extensive and expensive repairs down the line, effectively compounding the problem.

Prioritizing proactive inspection and maintenance isn't just about fixing problems after they arise; it's about preventing them altogether. A well-executed program extends the lifespan of critical infrastructure, optimizes operational efficiency, and most importantly, protects the safety of passengers and employees. It's a vital component of a responsible and sustainable public transit system.

Building a Robust Tram Track Inspection Checklist

A truly robust tram track inspection checklist isn't a one-size-fits-all solution. It needs to be carefully crafted to reflect the specific characteristics and challenges of your tram network. Here's a breakdown of key considerations when building yours:

1. Understand Your Network's Unique Factors: Consider track age, alignment complexity (curves, gradients), typical loading (frequency and weight of trams), and local environmental conditions (climate, soil type). A network with many tight curves will require more frequent inspections of switch and crossing areas, for example.

2. Define Inspection Frequency & Scope: Based on your network's factors, determine how often each area needs to be inspected. Factors like track history, past failures, and passenger volumes should heavily influence these frequencies. Scope can also be tiered - a routine visual check versus a more in-depth inspection requiring specialized equipment.

3. Leverage Existing Standards and Best Practices: Organizations like AREMA (American Railway Engineering and Maintenance-of-Way Association) and similar bodies in other regions provide valuable guidance. While you shouldn't blindly copy these, they offer a strong foundation for your checklist.

4. Incorporate a Risk-Based Approach: Focus your inspection efforts on areas posing the greatest potential risk. This helps prioritize resources effectively. For instance, sections of track with a history of defects or those experiencing unusually high stress should be inspected more rigorously.

5. Ensure Clear and Measurable Criteria: Avoid vague terms. Instead of moderate wear, specify groove depth exceeding 1mm. Use consistent measurement units and established grading scales (e.g., Low, Medium, High) to facilitate data analysis and trending.

6. Include Photographic Documentation: A picture is worth a thousand words (and is invaluable for reporting). Provide space on the checklist for inspectors to document findings with photos. This assists with clear communication and tracking deterioration.

7. Design for Ease of Use and Data Capture: The checklist should be intuitive and easy for inspectors to complete, even in less-than-ideal conditions. Consider a digital format, which allows for easier data capture, GPS tagging, and photo uploads.

8. Regularly Review and Update: A robust checklist isn't static. It should be reviewed periodically (at least annually) and updated to reflect changes in technology, best practices, or network conditions. Feedback from inspectors is critical for continuous improvement.

Key Elements of a Tram Track Inspection: A Deep Dive

Let's move beyond the checklist categories and delve into the specifics of what inspectors are actually looking for. Each area demands a nuanced approach and often utilizes specialized tools.

1. Rail Head & Profile: Beyond the Surface

A seemingly minor groove or slight discoloration can be a precursor to significant issues. Inspectors use rail profile gauges and visual acuity to detect wear patterns - low-flat, high-flat, and rail roll - which indicate uneven loading and require grinding or profile correction. Look for shelling, a surface degradation that compromises rail integrity. Ultrasonic testing might be employed to detect internal flaws like fatigue cracks before they become visible. Documentation with precise measurements and photographs is paramount.

2. Fasteners and Baseplates: Torque is Key

Loose fasteners are a common culprit in track instability. While visual inspection for corrosion and damage is vital, torque checks are absolutely critical. Using calibrated torque wrenches, inspectors verify that all bolts and clips are tightened to the manufacturer's specifications. A small amount of creep or movement within the fastener system is a red flag, suggesting underlying issues with the rail or sleeper. Careful documentation of torque values is essential for identifying trends and potential problems.

3. Sleeper/Tie Condition: Assessing Longevity

Sleeepers don't just support the rail; they absorb vibrations and distribute the load. Inspect for decay, splitting, and insect damage. A tap test can reveal internal voids. Undercutting, where the ground has eroded beneath the sleeper, requires immediate remediation to prevent track settlement. Replacement schedules are often predicated on sleeper condition ratings, factoring in age, wood type (if applicable), and observed degradation.

4. Ballast: More Than Just Gravel

Ballast isn't just filler; it's a critical drainage and stabilization system. Inspectors assess ballast cleanliness, noting the presence of debris like vegetation, trash, and contaminants. Compaction is checked using specialized probes or plate load tests. A loose or poorly compacted ballast bed increases track movement and accelerates wear. Proper depth is also a key indicator - insufficient ballast exposes the sleeper and increases instability. The color and composition of the ballast can also provide clues about its history and potential degradation.

5. Switch & Crossing Mechanics: Precision and Alignment

Switches and crossings experience dramatically higher stress than straight track. Here, inspectors meticulously examine point angles, gauge, and stock rail alignment. They listen for unusual noises during movement and check the operation of locking mechanisms. Any deviation from prescribed tolerances demands immediate corrective action to prevent derailments and maintain operational efficiency. Regular greasing of moving parts is essential for smooth operation and longevity.

1. Visual Track Condition Assessment

A thorough visual track condition assessment is the first line of defense in identifying potential issues before they escalate into costly repairs or safety hazards. This isn't just a cursory glance; it's a systematic observation of the entire track bed, paying close attention to subtle changes.

Here's what to look for:

• Surface Defects: Examine the rails for signs of fatigue cracks (often appearing as hairline fractures), corrugation (wavy appearance caused by repeated wheel contact), shelling (loss of surface material), and wear patterns. Note the location and severity of any defects.
• Track Alignment: Look for any visible signs of track misalignment, such as uneven rail profiles or shifts in the track bed. Slight deviations can be subtle but accumulate over time.
• Subgrade Condition: Assess the soil or aggregate supporting the track. Look for signs of erosion, settlement, or instability. Soft spots or excessive vegetation growth can indicate underlying problems.
• Joint Condition: Closely inspect rail joints (where rail sections are connected) for signs of spreading, instability, or excessive gap width. Proper joint fixation is crucial for track integrity.
• Presence of Debris: Note any accumulation of debris, such as rocks, snow, or vegetation, which can contribute to track degradation and obstruct drainage.
• Evidence of Previous Repairs: Observe any previous repair work and note its condition. Has the repair held up, or are there signs of new issues developing?

Document all observations with photographs, noting the date, time, location, and a brief description of the findings. This baseline data is invaluable for tracking trends and informing maintenance decisions.

2. Rail Head and Profile Examination

The rail head and profile examination is arguably one of the most critical aspects of tram track inspection. It goes beyond a simple visual check, requiring a more detailed assessment of the rail surface. We're looking for a range of potential issues that can compromise track integrity and passenger comfort.

What We're Looking For:

• Wear Patterns: Uneven wear indicates potential issues with wheel-rail contact, track alignment, or loading. Common patterns include "smile wear" (more wear in the center) and "wave wear" (a wavy appearance).
• Grinding Needs: Rail grinding is a preventative measure to restore the optimal rail profile and smooth out surface irregularities. This assessment determines when grinding is necessary.
• Shelling & Fatigue Cracks: These are indicators of significant stress and potential failure. Shelling appears as small pieces of material flaking off the rail surface. Fatigue cracks are tiny fractures that propagate over time.
• Corrosion: While less common than in traditional railways, corrosion can still impact rail integrity, particularly in areas exposed to de-icing salts or environmental pollutants.

Tools and Techniques:

• Visual Inspection: A careful visual survey for surface defects.
• Rail Profile Gauges: Devices that measure the rail's cross-sectional shape, allowing for accurate comparison to the ideal profile.
• Ultrasonic Rail Testing: A non-destructive method to detect internal flaws, such as cracks, that are not visible on the surface. (Note: This is a more advanced technique typically performed at intervals determined by a maintenance plan).
• Photographic Documentation: Detailed images of any detected defects are essential for record keeping and trend analysis.

3. Fastener and Baseplate Integrity

The integrity of fasteners and baseplates is absolutely critical for maintaining stable track geometry and ensuring passenger safety. These components act as the vital connection between the rails and the sleepers, transferring load and securing the track. Neglecting their condition can lead to track buckling, rail displacement, and ultimately, derailment.

What to Inspect:

• Fasteners (Rail Clips, Bolts, Springs): Look for signs of corrosion, fatigue cracks, and loosening. Check the clip grip on the rail head and web. Pay close attention to areas with high stress, like curves and switches. Torque readings should be regularly verified and maintained within the manufacturer's specifications. Deviations from standard torque values indicate potential issues.
• Baseplates: These plates distribute load from the rail onto the sleeper. Inspect for cracking, corrosion, and any signs of distortion. Damage to baseplates can significantly reduce their load-bearing capacity. Look for any signs of movement or displacement.
• Pad Condition (if applicable): Many systems utilize pads between the rail and baseplate to reduce noise and vibration. Check for deterioration or degradation of these pads.

Common Issues & Preventative Measures:

• Corrosion: A major threat, especially in areas exposed to salt or harsh chemicals. Regular cleaning and the application of protective coatings can mitigate this.
• Fatigue: Repeated stress can lead to fatigue cracks. Implement a schedule for fastener replacement based on usage and environmental factors.
• Loosening: Vibration and temperature fluctuations can cause fasteners to loosen. Periodic torque checks and retightening are essential.

Documentation: Any signs of damage or deviation from standard condition should be meticulously documented, including photographs, location identifiers, and recommended corrective actions. A proactive approach to fastener and baseplate maintenance is a cornerstone of a reliable tram system.

4. Sleeper/Tie Inspection & Maintenance

Sleeper/ties are the unsung heroes of any tram track, providing crucial support and distributing the immense weight of passing vehicles. Their condition directly impacts track stability, passenger comfort, and overall safety. A comprehensive inspection goes beyond a simple visual assessment.

What to Look For:

• Decay & Rot: Wood ties are particularly susceptible to decay, especially in damp environments. Look for discoloration, crumbling, and soft spots. Composite or concrete ties will show different signs of degradation, such as cracking or spalling.
• Displacement: Sleeper displacement - movement out of alignment - can lead to track geometry issues and increase stress on other track components. Note the direction and extent of any displacement.
• Fastener Condition: Examine the connection between the sleeper and the rail. Loose or corroded fasteners compromise the sleeper's ability to secure the rail.
• Under-running: Check for signs of soil erosion or settlement beneath the sleeper, which can lead to instability.
• Cracking (for Concrete Ties): Hairline cracks are common, but larger, interconnected cracks indicate structural weakness.
• Delamination (for Composite Ties): Look for separation of layers within the sleeper material.

Maintenance Actions:

• Tightening/Replacement of Fasteners: Address loose or corroded fasteners promptly.
• Sleeper Bracing: In some cases, bracing can help stabilize displaced sleepers.
• Sleeper Replacement: Severely degraded or significantly displaced sleepers must be replaced. Follow a scheduled replacement program based on sleeper condition assessments.
• Ballast Regrading: Re-leveling ballast around the sleepers can help restore stability and drainage.
• Monitoring: Implement a system for regularly monitoring sleeper condition and tracking trends.

5. Ballast Condition and Management

Ballast, the crushed stone foundation supporting the tram tracks, is often overlooked, yet its condition directly impacts track stability, drainage, and overall system longevity. Proper ballast management is a proactive, not reactive, strategy.

Assessing Ballast Condition:

A visual inspection is the first step. Look for:

• Cleanliness: Ballast should be free of debris like dirt, vegetation, and trash. Contamination reduces its ability to drain water and can accelerate degradation.
• Depth and Compaction: Ensure adequate ballast depth under the sleepers. Compaction should be sufficient to provide stability, but not so severe as to restrict drainage.
• Grading & Distribution: Check for uniform distribution of stone sizes. Proper grading provides optimal support and load distribution.
• Signs of Degradation: Watch for signs of weathering, crushing, and fragmentation. This indicates the ballast is losing its effectiveness.
• Subgrade Condition: Examine the soil beneath the ballast. Signs of settlement or instability in the subgrade can compromise the entire track structure.

Ballast Management Techniques:

Beyond inspection, effective ballast management involves several key activities:

• Cleaning: Regularly remove debris and vegetation.
• Re-grading/Re-cushioning: Periodically redistribute and compact the ballast to restore its original density and support.
• Top-up/Renewal: Add fresh ballast to compensate for losses due to wear, washing, and contamination. Consider using recycled ballast where appropriate, but ensure it meets quality standards.
• Stabilization (If Necessary): In areas with excessive ballast displacement or washout, stabilization techniques like geogrids or chemical stabilization might be considered, although these are generally reserved for more severe issues.

6. Geometric Alignment Verification

Maintaining proper geometric alignment is crucial for passenger comfort, vehicle stability, and overall track safety. Deviations from the designed alignment, even seemingly minor ones, can lead to increased wear and tear on wheels and rails, reduced ride quality, and potentially, derailment risks.

Geometric verification involves systematically assessing several key parameters. Gauge - the distance between the rails - must be consistently maintained within tolerance. Super elevation (cant), the banking of the track on curves, requires precise calculation and adherence to design standards to balance passenger comfort and vehicle stability. Twist, the gradual change in super elevation along a curve, also needs careful monitoring. Finally, curvature and gradient (slope) must be verified against design specifications.

Verification methods range from simple visual inspection for obvious distortions to sophisticated surveying techniques employing total stations, laser scanners, and GPS equipment. Periodic route surveys and track geometric reference data updates are essential. Data should be compared with baseline measurements and analyzed for trends, allowing proactive intervention before problems escalate. Any significant deviations warrant immediate investigation and corrective action, which may include rail realignment, ballast adjustment, or even more extensive track reconstruction.

7. Switch and Crossing Examination

Switches and crossings are arguably the most critical, and frequently the most problematic, areas of a tram track system. These points handle the redirection of trams and are therefore subjected to intense stress, wear, and potential for misalignment. A thorough examination here is paramount to preventing derailments and ensuring smooth, reliable operation.

Our inspections go beyond a simple visual check. We assess:

• Switch Point Condition: Look for signs of wear, cracks, and potential for rail separation. We're looking for excessive wear profiles on the points and stock rails.
• Frog Integrity: Frogs are particularly vulnerable to fatigue. We check for cracks, shelling, and any evidence of plastic deformation.
• Guard Rail Alignment: Proper alignment of guard rails is essential for stability. We verify their position relative to the main rails.
• Movement and Operation: We observe switch operation during simulated tram passage, noting any hesitation, binding, or unusual noises. The switching mechanism itself, including linkages and operating rods, is examined for wear and proper lubrication.
• Geometric Accuracy: Precise measurements are taken to verify switch geometry and ensure it conforms to specified tolerances.
• Lubrication: Adequate and appropriate lubrication of all moving parts is essential. We check for lubrication effectiveness and apply as needed.

Any deviation from acceptable parameters triggers immediate investigation and corrective action, prioritizing safety and minimizing disruption to service.

8. Drainage System Effectiveness

Effective drainage is absolutely critical for the longevity and stability of your tram track infrastructure. Standing water accelerates corrosion, degrades ballast, and can even contribute to track buckling and misalignment. Regular inspection of your drainage systems isn't just a preventative measure; it's a vital component of ensuring passenger safety and minimizing costly repairs.

During your inspection, meticulously examine all drainage channels, ditches, and catch basins. Look for signs of blockage from debris like leaves, sediment, or overgrown vegetation. Verify that water flows freely and doesn't pool anywhere along the track alignment. Pay particular attention to areas prone to water accumulation, such as low-lying sections or near bridges.

Consider these specific points:

• Channel Capacity: Ensure channels are appropriately sized to handle peak rainfall events.
• Inlet/Outlet Functionality: Check that inlets and outlets are not obstructed.
• Pipe Integrity: Inspect any underground drainage pipes for cracks or leaks.
• Vegetation Overgrowth: Trim back any vegetation encroaching on drainage pathways.
• Sediment Buildup: Regularly remove accumulated sediment from channels and catch basins.

Document any deficiencies and promptly schedule necessary repairs or cleaning. A well-maintained drainage system is a cornerstone of a reliable and durable tramway.

9. Vegetation Control Strategies

Uncontrolled vegetation poses a multifaceted threat to tram track infrastructure. Beyond the aesthetic concerns, encroaching plants can physically damage sleepers, obstruct visibility for operators, increase fire risk, and contribute to ballast degradation by trapping moisture and reducing drainage. A proactive and integrated vegetation control strategy is, therefore, essential.

Here's a breakdown of effective approaches:

• Regular Inspections & Mapping: Consistent visual assessments to identify problem areas and track vegetation growth patterns. GIS mapping can be invaluable for long-term monitoring and targeted interventions.
• Manual Removal (Hand Clearing): Labor-intensive but often necessary for localized problem areas, particularly near switches and crossings where precise clearance is crucial.
• Herbicide Application: A common and efficient method, but requires careful planning and execution. Select herbicides appropriate for the vegetation type and apply according to manufacturer instructions and environmental regulations. Consider using spot spraying techniques to minimize impact on non-target plants.
• Vegetation-Resistant Sleeper Treatment: Applying wood preservatives or using alternative sleeper materials (e.g., concrete) can significantly reduce vegetation growth directly on the sleepers.
• Strategic Planting: In some areas, planting low-growing, non-invasive ground cover can help suppress weed growth while maintaining visual appeal.
• Ballast Stabilization: Stabilizing the ballast with geotextiles or similar materials can reduce the opportunity for weeds to establish a foothold.
• Integrated Pest Management (IPM): Combining various control methods - manual removal, herbicides, biological controls (where applicable) - to minimize environmental impact and reduce reliance on chemical interventions.
• Collaboration with Local Authorities: Coordinate efforts with local municipalities or landowners, especially in areas where the track borders public spaces.
• Record Keeping: Document all vegetation control activities, including herbicide application dates and rates, to track effectiveness and comply with regulations.

10. Comprehensive Record Keeping and Documentation

Detailed and organized record keeping isn't just a good practice - it's absolutely vital for effective tram track maintenance. Beyond simply ticking boxes on a checklist, comprehensive documentation provides a historical perspective on track condition, enabling predictive maintenance strategies and informed decision-making.

What should be included? At a minimum, records should capture the date and time of each inspection, the inspector's name and credentials, the specific location (track number, section), and a detailed description of any observed defects or anomalies. Photos are incredibly valuable - a picture speaks a thousand words and provides irrefutable evidence of a problem's severity.

Furthermore, records of all maintenance activities performed - repairs, grinding, ballast adjustments, fastener torqueing - should be meticulously documented, including materials used and the technician responsible. Digital record-keeping systems are increasingly preferred as they allow for easy searching, data analysis, and integration with maintenance management software. Trend analysis of recorded data can highlight recurring problems, allowing for proactive interventions before issues escalate. Finally, ensure records are securely stored and readily accessible to authorized personnel.

Choosing the Right Checklist Template

Not all checklist templates are created equal. Selecting the right one can save time, improve accuracy, and ensure compliance. Here's what to consider:

• Customization Options: A good template shouldn't be rigid. Look for one that allows you to easily add, remove, or modify inspection points to match your specific track layout, tram type, and maintenance protocols. Pre-populated fields are helpful, but the ability to personalize is crucial.
• Format & Accessibility: Consider how the checklist will be used - paper-based, digital tablet, or desktop computer. A well-designed digital template offers advantages like photo integration, GPS tracking, and real-time data syncing. Ensure the format is user-friendly for your team.
• Reporting Capabilities: Can the data collected from the checklist be easily exported or integrated with your existing maintenance management system? Automated report generation can significantly streamline analysis and decision-making.
• Industry Standards Alignment: While customization is important, a foundation rooted in recognized rail industry best practices (e.g., AREMA guidelines, local regulatory requirements) provides a solid starting point.
• Ease of Use: A complex or confusing checklist will be ignored or filled out inaccurately. Prioritize a template with clear instructions, logical flow, and a visually appealing layout. Look for a user testing or feedback process used by the template provider.

Implementing and Refining Your Checklist

Simply having a checklist isn't enough. Successful implementation and ongoing refinement are crucial to its effectiveness. Here's how to make sure your tram track inspection checklist delivers maximum value.

1. Training is Key: Ensure all inspectors are thoroughly trained on the checklist's purpose, procedures, and proper data recording. This includes demonstrating how to identify and categorize defects accurately. Regularly refresh this training to maintain consistency and incorporate any updates to the checklist itself.

2. Pilot Program & Feedback: Before a full-scale rollout, consider a pilot program with a small group of inspectors. Their feedback is invaluable for identifying ambiguities, omissions, or impracticalities in the checklist. Actively solicit suggestions for improvement.

3. Data Analysis & Trend Identification: The data collected through your checklist isn't just for reporting; it's a goldmine for proactive maintenance. Regularly analyze inspection results to identify trends. Are certain areas consistently showing more defects? Are specific types of failures occurring more frequently? This information should drive resource allocation and preventative maintenance schedules.

4. Regular Review & Updates: Rail technology and operational practices evolve. Your checklist should too. Schedule periodic reviews (e.g., annually or bi-annually) to assess its relevance and accuracy. Incorporate any new inspection techniques, equipment advancements, or changes in regulatory requirements.

5. Embrace Digitalization: Consider transitioning from a paper-based checklist to a digital format. Digital checklists offer several advantages, including real-time data capture, automated reporting, GPS location tagging, and easier data analysis.

6. Continuous Improvement Cycle: View your checklist as a living document that requires ongoing refinement. Implement a formal feedback loop where inspectors can readily submit suggestions for improvement, and ensure these suggestions are evaluated and acted upon. A culture of continuous improvement will help ensure your tram track inspection checklist remains a vital tool for maintaining a safe and reliable transit system.
