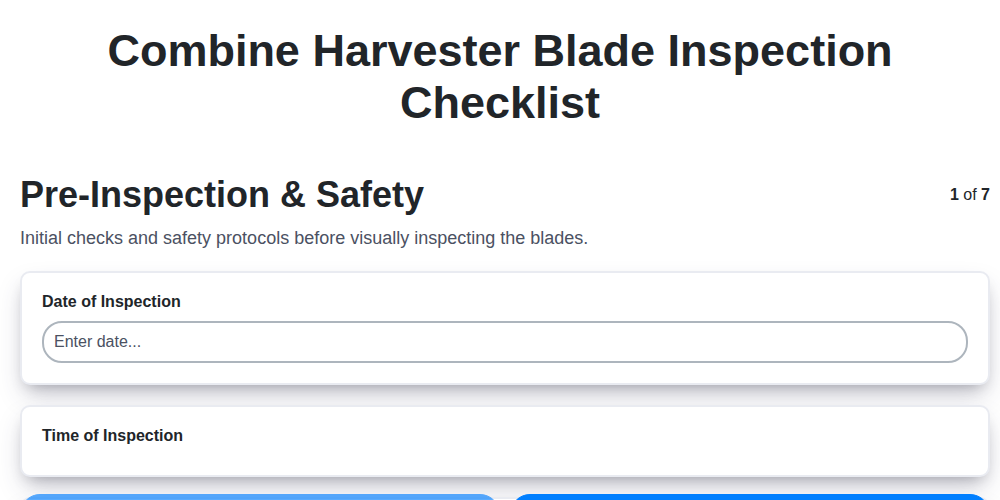

The Ultimate Combine Harvester Blade Inspection Checklist Template

Why a Combine Harvester Blade Inspection Checklist Matters

Regular combine harvester blade inspections aren't just a good practice; they're essential for a successful and profitable harvest. Think of your blades as the first line of defense in getting grain from the field to the bin. When blades are dull, damaged, or misaligned, the consequences ripple throughout the entire harvesting process.

Beyond the immediate frustration of a less-than-ideal cut, neglected blades lead to tangible losses. Increased grain loss directly reduces your yield and profit margins. Damaged crops can be bruised and discolored, lowering their market value. Furthermore, the combine has to work harder - consuming more fuel and putting additional stress on other crucial components, potentially leading to costly repairs down the line. Prioritizing blade inspections minimizes these risks, ensuring a smoother, more efficient, and ultimately more rewarding harvest season.

Gathering Your Tools and Safety Gear

Before you even approach the combine, ensuring you have the right tools and safety gear is paramount. This isn's just about efficiency; it's about protecting yourself and preventing further damage. Here's a rundown of what you'll need:

• Safety Glasses: Absolutely essential to protect your eyes from debris and flying fragments.
• Heavy-Duty Gloves: Provide grip and protect your hands from sharp edges.
• Sturdy Footwear: Steel-toed boots are ideal for added protection.
• Wrench Set: A comprehensive set of wrenches is needed for tightening and loosening hardware.
• Socket Set: Similar to wrenches, sockets will cover a range of bolt sizes.
• Torque Wrench: Critical for ensuring hardware is tightened to the manufacturer's specifications. (Refer to your operator's manual for correct torque values.)
• Sharpie or Marking Pen: Useful for marking blade positions or noting any damage.
• Bright Light Source: Adequate lighting is vital for a thorough inspection.
• Clean Rags: For wiping down blades and hardware.
• Blade Removal/Installation Tools (if applicable): Some combine models have specialized tools for blade removal.

Step 1: Pre-Inspection Safety Procedures

Safety is paramount when working on any farm equipment, and combine harvester blade inspection is no exception. Before you even touch a blade, a thorough safety assessment is essential. This isn't just about avoiding minor scrapes; it's about preventing serious injuries.

First, always engage the lockout/tagout procedure. Disconnect the combine's power source - whether it's the engine or hydraulic system - and apply a lock and tag to prevent accidental activation during your inspection. This single step drastically reduces the risk of unintended movement.

Next, gear up with the appropriate Personal Protective Equipment (PPE). Safety glasses are non-negotiable to shield your eyes from flying debris. Heavy-duty gloves will protect your hands, and sturdy footwear provides a stable base.

Ensure the combine is parked on level ground and properly secured to prevent it from rolling. Finally, and crucially, consult your combine's operator manual before beginning any inspection. It contains vital safety warnings and specific procedures related to your model. Ignoring the manual is a recipe for disaster.

Step 2: General Blade Condition Assessment

A thorough visual inspection is your first line of defense. Start by carefully examining the entire blade's surface, looking for any immediate signs of distress. Common issues include cracks (often hairline and difficult to spot, so look closely!), chips along the cutting edge, and areas of excessive wear. Pay particular attention to the blade material - steel blades will show different wear patterns than carbide-tipped blades. A dull blade isn't just about a less sharp edge; it will tear the crop instead of making a clean cut, leading to increased grain damage and lodging. To gauge sharpness, perform a brief test cut with a few stalks of your harvest crop - a truly sharp blade will slice cleanly through, while a dull blade will require more force and leave a ragged edge. Finally, note any unusual discoloration or pitting, which could indicate corrosion or other issues affecting the blade's integrity.

Step 2.1: Identifying Common Blade Damage Types

Identifying damage early can prevent bigger problems down the line. Here's a breakdown of common blade damage types and what they indicate:

• Chips & Nicks: These are the most frequent culprits, often caused by contact with rocks, debris, or foreign objects in the field. While minor chips might be acceptable, larger nicks significantly reduce cutting efficiency and can bruise grain.
• Cracks: Cracks, even hairline ones, are serious. They weaken the blade and can lead to catastrophic failure during harvest. Replace cracked blades immediately.
• Bends: Bent blades result in uneven cutting and increased grain loss. They can often be straightened, but the metal's integrity may be compromised, making replacement the safer option.
• Rounding/Wearing: Excessive rounding of the leading edge reduces cutting sharpness. While a slight roundness can be beneficial in certain conditions, significant wear necessitates replacement.
• Corrosion/Rust: While not always immediately detrimental, corrosion weakens the blade and can make it more susceptible to other forms of damage. Clean and protect blades from rust.
• Tip Breakage: Broken blade tips are a common occurrence, particularly in fields with heavy residue or abrasive soil. This severely impacts cutting performance and increases grain loss.

Step 3: Detailed Leading Edge Inspection

The leading edge is the blade's frontline soldier, constantly impacting crop material. It's therefore the area most susceptible to damage. A thorough inspection here is critical for ensuring a clean, efficient cut. Don't rush this step! Use a bright light to illuminate the leading edge, allowing you to spot even minor imperfections.

Specifically, look for:

• Nicks and Chips: These are common, especially when harvesting in fields with rocks or debris. Even small nicks can lead to increased grain loss.
• Cracks: Cracks, even hairline ones, are a serious concern. They indicate metal fatigue and the blade is likely to fail soon. Replace immediately.
• Rounding: While a slight rounding of the leading edge can sometimes improve cutting in tough conditions, excessive rounding reduces cutting efficiency and increases grain lodging. Assess if the rounding is within acceptable limits (refer to your operator's manual for guidelines).
• Uneven Wear: Check for areas along the leading edge that are significantly more worn than others. This could indicate a misalignment issue with the blade or header.
• Bowing/Warping: Visually inspect the leading edge for any bowing or warping. This can disrupt the cutting action and lead to grain damage.

Step 3.1: Assessing Leading Edge Wear Patterns

Leading edge wear patterns offer valuable insight into how your blades are performing and what challenges they're facing. A uniform, slight rounding along the entire leading edge is generally acceptable and can even improve cutting in certain conditions like tough straw. However, localized, uneven wear indicates a problem.

Here's what to look for:

• Concentrated Wear on One Side: This often points to misalignment of the header or a problem with the reel speed or pressure. It can also signify that the blade is hitting something consistently on one side of the cut.
• Cupping or Hollowing: This pattern, where the leading edge is significantly thinner in the middle, suggests excessive friction and wear. Check for debris buildup between the blade and the reel.
• Patchy Wear: This can be caused by inconsistent cutting conditions or contact with foreign objects in the field.
• Significant Chipping or Grooving: These are clear signs of damage that require immediate blade replacement.

Step 4: Examining Blade Tips for Damage

Blade tips are particularly vulnerable to impact damage, making them a critical area for inspection. A damaged tip can lead to uneven cutting, increased grain loss, and potential for crop bruising. Carefully examine each tip for signs of bending, cracking, chipping, or any other distortion. Even a seemingly minor bend can significantly impact cutting performance. Use a bright light source to aid in your visual assessment, and feel free to use a magnifying glass for a closer look. Pay attention to the alignment of the tips relative to one another - misaligned tips will cut unevenly and contribute to grain loss. If a tip is severely damaged or bent beyond minor adjustment, replacement is recommended to maintain optimal harvesting efficiency and minimize crop damage.

Step 5: Shank and Mounting Hardware Check

The blade shank and mounting hardware are often overlooked but are crucial for safe and efficient harvesting. A compromised shank or loose hardware can lead to blade failure, causing damage to your crop, the combine itself, and potentially posing a safety hazard.

Here's what to look for:

• Shank Integrity: Carefully inspect the shank (the metal piece connecting the blade to the header) for any signs of cracks, bends, or fatigue. Pay close attention to areas near the mounting points. Even small cracks can quickly worsen under the stress of harvesting.
• Hardware Inspection: Examine all bolts, nuts, and washers securing the blade. Look for signs of corrosion, rust, stretching (indicated by a flattened appearance), or thread damage. Replace any hardware exhibiting these signs.
• Torque Verification: This is critical. Ensure all mounting hardware is tightened to the manufacturer's specified torque. Under-tightened hardware can lead to blade movement and premature wear, while over-tightening can strip threads or damage components. Refer to your operator's manual for the correct torque specifications for your combine model. Using a torque wrench is highly recommended.
• Locking Mechanisms: Some headers utilize locking mechanisms or safety pins to further secure the blades. Verify these are properly engaged and in good working order. A missing or damaged locking mechanism significantly increases the risk of blade failure.

Step 5.1: Torque Verification - Crucial for Safety

Properly torquing the blade mounting hardware isn't just about ensuring the blade stays in place; it's a critical safety measure. Loose bolts can lead to catastrophic blade failure during operation, potentially causing injury or damage to the combine and surrounding areas. Over-tightening, conversely, can damage the threads and weaken the hardware, also leading to failure.

Always refer to your combine's operator manual for the precise torque specifications for all blade mounting bolts, nuts, and washers. Use a calibrated torque wrench to ensure accurate tightening. If you're unsure about the correct torque value or how to use a torque wrench, consult with a qualified mechanic. Never guess - safety always comes first. Regularly check torque, especially after blade replacements or if you suspect any hardware issues.

Step 5.2: Identifying Corroded or Stretched Hardware

Corrosion and stretched hardware are silent dangers that can compromise blade integrity and overall safety. Closely examine all mounting bolts, nuts, and washers for signs of rust, pitting, or discoloration. Even seemingly minor corrosion can weaken the metal, reducing its ability to withstand the stresses of harvesting.

Look for signs of stretching, which may manifest as a shiny, elongated appearance of the bolt threads or a loss of the nut's grip. Stretched bolts have lost their original strength and are at risk of shearing. If you find any signs of corrosion or stretching, do not reuse those fasteners. Replace them with new, high-quality hardware that meets the manufacturer's specifications. Using the correct grade and torque is absolutely vital to ensure reliable performance and prevent failures during operation.

Step 6: Blade Angle and Alignment - Getting the Cut Right

Incorrect blade angle and misalignment can significantly impact cutting efficiency, grain loss, and overall harvest quality. The ideal blade angle allows for a clean, precise cut, minimizing damage to the crop and maximizing grain recovery.

Verifying the Angle: Your combine's operator manual will specify the correct blade angle for optimal performance. Use a protractor or angle gauge (often available from farm supply stores) to measure the blade angle relative to the header frame. Compare your measurement to the manual's specification. Even slight deviations can have a noticeable effect.

Adjusting the Angle: Most combines have adjustment mechanisms to fine-tune the blade angle. These might involve shims, bolts, or rotating brackets. Consult your operator's manual for the specific adjustment procedure for your combine model. Small adjustments - often just a degree or two - can make a big difference.

Beyond the Angle: Header Alignment: It's not just about the blade itself; the entire header must be properly aligned with the combine's frame. Misalignment can cause uneven cutting and increased grain loss. Check for any signs of warping or damage to the header frame. Some combines have alignment gauges or procedures to ensure the header is straight and true. A qualified technician can help with this more complex adjustment.

Regular Checks are Key: Blade angle and header alignment can drift over time due to vibration and wear. Make it a habit to check these settings regularly throughout the harvest season, especially after any significant impact or field condition change.

Step 7: Documentation and Record Keeping

Consistent documentation is the cornerstone of a successful preventative maintenance program. Don's skip it! Simply inspecting the blades isn't enough; you need a record of what you find, when you find it, and what actions you take. This allows you to identify trends, anticipate future problems, and optimize your blade maintenance schedule.

Here's what you should include in your documentation:

• Date of Inspection: Essential for tracking maintenance intervals.
• Blade Identification: Note the blade type, size, and any identifying numbers.
• Findings: Be specific! Record any damage observed (e.g., "3-inch chip on leading edge," "significant wear on tip"). Use photos or sketches to illustrate the damage.
• Actions Taken: Describe any repairs made, adjustments made, or blades replaced.
• Parts Used: Record the part numbers of any replacement blades or hardware.
• Inspector's Initials: Accountability helps ensure the inspection was thorough.
• Next Inspection Date: Set a reminder for the next scheduled inspection.

Keeping Records Simple: You don't need fancy software. A simple spreadsheet, a notebook, or even a dedicated section in your farm management system can work effectively. The key is consistency and accessibility. Regularly review your records to identify patterns - perhaps you notice blades on a certain side of the header wear out faster than others. This information can help you adjust your cutting angle or blade selection to improve performance and extend blade life.

Step 8: Post-Inspection Actions and Next Steps

The inspection itself is only half the battle. What you do after the assessment is crucial for ensuring long-term efficiency and preventing future problems. Here's a breakdown of the essential post-inspection actions:

1. Detailed Documentation is Your Friend: Don't just mentally note your findings. Create a clear, concise record. This should include:

• Date of Inspection: Essential for tracking maintenance schedules.
• Blade Condition Notes: Specifically detail any damage observed (e.g., Leading edge chipped, tip bent outwards on right-hand blade). Be precise!
• Adjustments Made: Document any angle adjustments or hardware tightening performed. Include torque values if applicable (always referencing the manufacturer's specifications).
• Replacement Recommendations: Clearly identify which blades require replacement and the recommended part numbers.
• Inspector's Signature/Initials: Adds accountability and provides a record of who performed the inspection.

2. Prioritize Replacement Orders: Immediately generate a parts order for any blades identified for replacement. Don't wait; downtime during harvest is costly. Check your existing inventory first, but have backups readily available.

3. Scheduling Your Next Inspection: Consistency is key. Mark your calendar for the next blade inspection. Consider factors like usage hours, crop conditions, and the severity of wear observed during the current inspection. A good rule of thumb is to schedule inspections at least every 100 hours of combine operation, and more frequently under heavy-use conditions.

4. Communication is Critical: If you're part of a larger farming operation, share your inspection findings and replacement recommendations with the rest of the team. This ensures everyone is aware of the combine's condition and can plan accordingly.

5. Review and Refine: Periodically review your inspection checklist and procedures. Are they comprehensive? Are they efficient? Are there any improvements that can be made based on your experience? Continuous improvement is vital for maximizing harvest performance.
