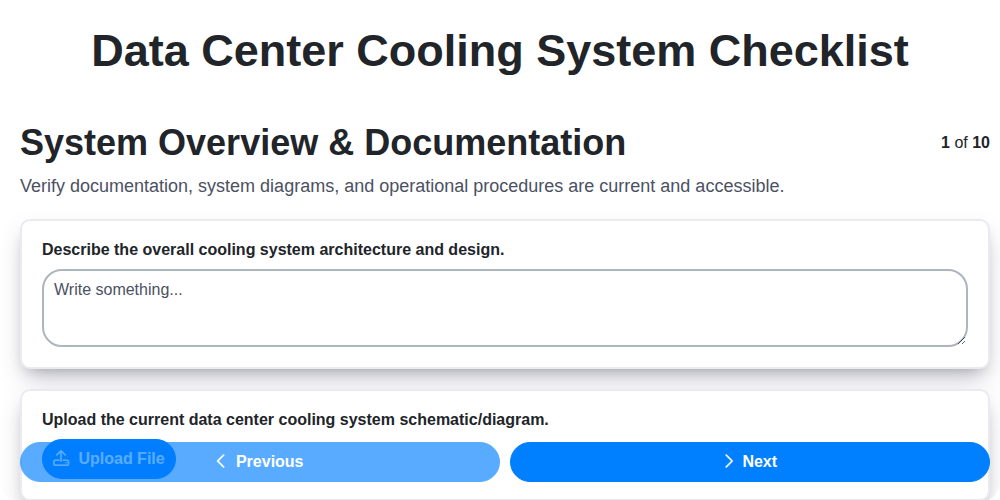

Data Center Cooling System Checklist Template

Introduction: Why a Data Center Cooling Checklist Matters

Data centers are the backbone of modern business, powering everything from customer-facing applications to critical internal systems. Yet, the immense processing power they house generates significant heat-and without a reliable cooling system, disaster can strike. Downtime isn't just inconvenient; it's costly, impacting productivity, revenue, and even reputation.

A proactive approach to cooling system maintenance isn't merely a "nice-to-have"; it's a business imperative. Think of a cooling system checklist as your early warning system. It's a structured and consistent way to identify potential problems before they escalate into full-blown crises. This isn't just about ticking boxes; it's about establishing a culture of preventative care that safeguards your data, protects your infrastructure, and ensures business continuity. A well-executed checklist fosters reliability, optimizes efficiency, and ultimately, provides peace of mind-knowing your data center is operating as safely and effectively as possible.

System Overview and Documentation Essentials

A robust cooling system isn't just about the equipment itself; it's about knowing that system inside and out. Comprehensive documentation is the bedrock of effective data center operations. Without it, troubleshooting becomes a guessing game, upgrades are risky, and regulatory compliance is a significant challenge.

Here's why meticulous documentation is essential:

• As-Built Drawings: These are critical. They should accurately reflect the current configuration of your cooling system, including the location of all components, piping, ductwork, and electrical connections. Outdated drawings can lead to costly errors during maintenance or upgrades.
• Equipment Inventory: Maintain a detailed inventory of all cooling system components, including manufacturer, model number, serial number, and original specifications. This simplifies ordering replacement parts and aids in troubleshooting.
• Standard Operating Procedures (SOPs): Document clear, step-by-step procedures for operating the cooling system, responding to alarms, and performing routine maintenance. Ensure all operations staff are trained on these SOPs.
• Emergency Procedures: Develop and document emergency procedures for situations like chiller failures, power outages, or refrigerant leaks. Regularly review and test these procedures to ensure they are effective.
• Single Line Diagrams (SLDs): These provide a simplified overview of the electrical distribution system for your cooling infrastructure, making it easier to trace power paths and identify potential issues.

Regularly update your documentation - at least annually - or whenever changes are made to the cooling system. Consider using a centralized document management system to ensure easy access and version control.

Environmental Monitoring: Temperature, Humidity, and Airflow

Data center cooling effectiveness hinges on precise environmental control. It's not enough to simply run cooling equipment; you need to know that it's working as intended and that conditions within your racks are within acceptable ranges. Robust environmental monitoring provides that critical feedback loop.

Temperature - The Prime Concern: Excessive heat is the enemy of reliable data center operation. Continuous temperature monitoring at multiple points - rack inlets, rack exhausts, and room-level - is paramount. Acceptable temperature ranges vary based on equipment specifications, but generally, maintaining temperatures below 80°F (27°C) is a good starting point. More sophisticated monitoring systems utilize predictive analytics to anticipate potential hotspots before they impact performance.

Humidity - Striking the Balance: While temperature is the most obvious concern, humidity plays a crucial role in preventing electrostatic discharge (ESD) and corrosion. Ideal relative humidity levels typically fall between 40% and 60%. Low humidity increases the risk of ESD, which can damage sensitive electronics. High humidity, conversely, can lead to condensation and corrosion. Sensors should be strategically placed to identify potential problem areas.

Airflow - Mapping the Path: Temperature and humidity are meaningless if the air isn't flowing correctly. Poor airflow can lead to uneven temperatures, hotspots, and reduced cooling efficiency. Regularly assess airflow patterns using methods like:

• Computational Fluid Dynamics (CFD) Modeling: Provides detailed visualizations of airflow patterns within the data center.
• Smoke Tests: Simple and effective for identifying airflow obstructions.
• Anemometers: Used to measure airflow velocity at specific locations.

Beyond just measurement, trend analysis of airflow data helps identify gradual degradation in cooling performance or changes in rack configuration that impact airflow patterns. Regularly reviewing airflow data is a proactive step towards maintaining optimal conditions.

Chiller Maintenance Checklist (If Applicable)

Chillers are critical components in many data center cooling systems, requiring diligent maintenance to ensure efficient and reliable operation. Neglecting chiller upkeep can lead to reduced cooling capacity, increased energy consumption, and costly downtime. Here's a focused checklist for maintaining your chillers:

Regular Inspections (Monthly):

• Visual Inspection: Examine the chiller unit for leaks, corrosion, or any signs of physical damage. Check refrigerant piping for insulation integrity.
• Refrigerant Pressure Readings: Monitor suction and discharge pressures against manufacturer specifications. Record readings.
• Oil Level & Condition: Verify oil level within the sight glass and visually inspect for signs of contamination.
• Vibration Monitoring: Observe and record any unusual vibrations - a potential indicator of mechanical issues.

Quarterly Maintenance:

• Condenser/Evaporator Coil Cleaning: Clean condenser and evaporator coils to remove debris and maintain efficient heat transfer. Consider professional cleaning services for thorough results.
• Pump Performance Verification: Assess the performance of chilled water pumps associated with the chiller. Check motor amperage and flow rates.
• Filter Changes: Replace air filters in the condenser and evaporator sections.
• Belt Inspection & Adjustment (if applicable): Inspect belts for wear, cracks, or slippage. Adjust belt tension as needed.
• Leak Detection: Perform a more detailed leak detection inspection, potentially using electronic leak detectors.

Annual Maintenance (Recommended Professional Service):

• Refrigerant Analysis: A qualified technician should analyze refrigerant composition and purity.
• Oil Analysis: Extract and analyze chiller oil to identify contaminants and assess its condition.
• Mechanical Inspection: Comprehensive inspection of all mechanical components, including compressors, motors, and bearings.
• Performance Testing: Conduct performance testing to verify chiller capacity and efficiency against baseline data.
• Safety Valve Testing: Test safety valves to ensure proper operation in case of overpressure situations.
• Calibration of Instrumentation: Calibrate all critical instrumentation, such as pressure gauges and temperature sensors.
• Review and Update Maintenance Records: Consolidate all maintenance records and update the preventative maintenance schedule as needed.

Cooling Tower Maintenance Checklist (If Applicable)

Cooling towers are vital for heat rejection in many data centers, but their operation demands consistent and thorough maintenance to prevent inefficiencies, equipment failure, and potential waterborne illness risks. This checklist focuses on key areas:

1. Water Quality Management:

• pH Level: Monitor and adjust pH levels within the recommended range (typically 6.5 - 9.0) using appropriate chemicals. Document adjustments.
• Conductivity: Regularly measure conductivity to assess the concentration of dissolved solids. High conductivity indicates scaling potential.
• Algae & Biological Growth: Inspect water for algae, bacteria, and other biological contaminants. Implement biocides as needed, following manufacturer guidelines. Document biocide application.
• Scaling & Corrosion: Visually inspect tower internals for signs of scaling or corrosion. Implement scale and corrosion inhibitors as necessary.
• Water Treatment Program Verification: Regularly review the water treatment program's effectiveness with a qualified water treatment specialist.

2. Mechanical Components:

• Fan Inspection: Inspect fan blades for damage, dirt accumulation, and balance. Clean or repair/replace as needed. Check fan motor amperage draw.
• Fill Inspection: Visually inspect fill media for scaling, fouling, and damage. Clean or replace fill per manufacturer recommendations.
• Basin Cleaning: Schedule and perform regular basin cleaning to remove sediment and debris.
• Pump Inspection: Inspect the cooling tower pump for leaks, unusual noises, and vibrations. Check pump seals and bearings.
• Gearbox Lubrication: Lubricate the gearbox (if applicable) according to the manufacturer's specifications. Check oil level and condition.

3. Operational Checks:

• Water Levels: Regularly check and maintain proper water levels in the tower basin.
• Blowdown Rate: Monitor and adjust the blowdown rate to control dissolved solids and maintain water quality.
• Approach and Range: Measure and record approach and range to assess cooling tower performance and identify potential issues.
• Leak Detection: Inspect the tower structure and piping for leaks.

Note: Always consult the cooling tower manufacturer's recommendations and local regulations for specific maintenance procedures and requirements. Proper safety precautions, including lockout/tagout procedures, should be followed during all maintenance activities.

CRAH/CRAC Unit Inspection and Maintenance

Computer Room Air Handlers (CRAH) and Computer Room Air Conditioners (CRAC) are the workhorses of many data center cooling systems, responsible for maintaining precise temperature and humidity levels within the critical IT environment. Consistent inspection and maintenance are vital to their reliability and longevity. Here's a breakdown of key tasks:

Regular Visual Checks (Monthly):

• Physical Condition: Look for signs of damage, corrosion, or leaks on the unit's exterior. Document any findings.
• Fan Blades: Visually inspect fan blades for debris, damage, or imbalance.
• Condensation: Check for excessive condensation on the coils or surrounding areas, indicating potential humidity issues or drain blockage.
• Drain Pans and Lines: Verify proper drainage. Blockages can lead to water damage and reduced cooling efficiency.

Filter Replacement (Monthly/Quarterly - Based on Environment):

• Frequency: Adhere to manufacturer's recommendations, but adjust frequency based on particulate levels in the air. A dirty environment will necessitate more frequent changes.
• Documentation: Record filter types and replacement dates.
• Consider Upgrades: Evaluate high-efficiency filters for improved air quality and energy savings.

Coil Cleaning (Semi-Annually/Annually):

• Method: Employ appropriate cleaning methods depending on coil type (e.g., chemical coil cleaner, brushing). Always follow manufacturer guidelines.
• Documentation: Record cleaning methods and dates.
• Professional Cleaning: Consider professional coil cleaning services for optimal results.

Electrical Component Inspection (Annually):

• Wiring and Connections: Check for loose connections, frayed wires, and signs of overheating.
• Capacitors and Relays: Visually inspect capacitors and relays for swelling, corrosion, or other signs of degradation.
• Fan Motor: Test fan motor bearings for noise or friction. Lubricate as needed (follow manufacturer's instructions).

Performance Testing (Annually):

• Temperature and Humidity Readings: Verify that the unit is maintaining the desired temperature and humidity levels.
• Airflow Measurement: Measure airflow rates and compare them to design specifications.
• Refrigerant Level Check: Have a qualified technician check refrigerant levels and identify any leaks. Note: Refrigerant handling requires specialized training and certification.

Record Keeping: Maintain detailed records of all inspections, maintenance, and repairs. This information is invaluable for troubleshooting future issues and tracking unit performance over time.

Pump System Health Checks

Pump systems are the unsung heroes of data center cooling, tirelessly circulating chilled water or refrigerant to maintain stable temperatures. Neglecting these critical components can lead to reduced cooling efficiency, increased energy consumption, and ultimately, system failure. Here's a breakdown of essential health checks for your data center pump systems:

1. Motor Current Monitoring: Regularly monitor the amperage draw of each pump motor. Significant deviations from the baseline can indicate issues like impeller obstructions, bearing wear, or motor winding problems. A gradual increase over time often signals bearing degradation.

2. Bearing Inspection & Lubrication: Pump bearings are subject to constant friction and require periodic inspection and lubrication. Listen for unusual noises (grinding, squealing) that might indicate worn bearings. Implement a consistent lubrication schedule based on manufacturer recommendations. Consider vibration analysis (see below) for more precise bearing health assessment.

3. Seal Integrity: Pump seals prevent leakage of the fluid being pumped. Regularly inspect seals for signs of leakage, such as drips or staining. Replace seals proactively based on manufacturer's recommended intervals or when leakage is detected.

4. Vibration Analysis: Vibration analysis is a powerful diagnostic tool for identifying pump-related issues. Increased vibration can indicate imbalance, misalignment, bearing wear, or cavitation. Regular vibration monitoring allows for early detection of problems and prevents catastrophic failure. A qualified technician should perform this analysis.

5. Flow Rate Verification: Periodically verify the flow rate of each pump to ensure it's within the specified range. Reduced flow can indicate impeller damage, blockage, or reduced pump efficiency. Compare actual flow rates to design specifications and investigate any discrepancies.

6. Suction and Discharge Pressure Checks: Monitor suction and discharge pressures to ensure they are within expected ranges. Abnormal pressure readings can indicate problems within the piping system or pump itself.

7. Cavitation Detection: Cavitation occurs when vapor bubbles form in the pump due to low pressure. This can damage the impeller and reduce pump efficiency. Listen for a characteristic buzzing or gravel-like sound, and investigate any suspected cavitation issues.

Air Distribution Optimization

Effective air distribution is just as crucial as the cooling system itself. Without it, even the most powerful chillers and CRAHs will be working overtime, leading to inefficiencies and potential hotspots. The goal is to deliver cold air directly to the server intakes, minimizing mixing with warmer air and maximizing cooling effectiveness.

Here's what to look for:

• Hot Aisle/Cold Aisle Containment: Verify the integrity of your containment system. Check for gaps in doors, seals, and blanking panels that allow warm air to infiltrate the cold aisle. Regularly inspect and repair any breaches.
• Blanking Panels: Ensure all unused rack spaces are completely filled with blanking panels. Even a small gap can disrupt airflow and create turbulence. Consider using color-coded blanking panels for easy identification and management.
• Underfloor Plenum (if applicable): For data centers utilizing underfloor air distribution, ensure the plenum is free of obstructions like cabling or debris. Regularly inspect for uneven floor plates and adjust as necessary to maintain consistent airflow. Consider airflow mapping to identify stagnant areas.
• Diffuser Placement and Performance: Evaluate the placement and performance of diffusers. Are they directing airflow correctly? Are they experiencing obstructions? Consider airflow balancing techniques to optimize distribution. Smoke pencils or thermal imaging can be invaluable tools for visualizing airflow patterns.
• Cable Management: Poor cable management can significantly impede airflow. Implement and maintain a robust cable management system to keep cables out of the path of cooling airflow.
• Raised Floor Inspection: Check the condition of the raised floor tiles. Damaged or missing tiles can disrupt airflow and create uneven temperatures. Replace or repair damaged tiles promptly.

Power Supply and Redundancy Verification

The reliable operation of your data center cooling system hinges on a consistent and redundant power supply. Cooling system failures due to power outages are among the most disruptive and costly events a data center can experience. This section outlines critical checks to ensure the cooling system remains operational even during power disruptions.

1. UPS (Uninterruptible Power Supply) Assessment:

• Load Testing: Regularly conduct load testing on UPS units to verify capacity and performance under simulated load conditions. Document test results.
• Battery Health: Monitor battery voltage, temperature, and state of charge. Implement a battery replacement schedule based on manufacturer recommendations and historical performance.
• Bypass Functionality: Test UPS bypass functionality to ensure seamless transition to emergency power in case of UPS failure.
• UPS Firmware: Maintain current UPS firmware to ensure optimal performance and security.

2. Generator Validation:

• Load Testing: Perform regular generator load tests, simulating full cooling system power draw, to confirm proper operation and fuel consumption rates.
• Fuel Supply: Verify adequate fuel supply for the generator, including reserve fuel levels and fuel quality.
• Automatic Transfer Switch (ATS): Test the ATS functionality to ensure automatic switchover to generator power in the event of utility power failure.
• Exhaust Inspection: Inspect generator exhaust systems for proper venting and absence of obstructions.

3. Power Cabling & Infrastructure:

• Circuit Integrity: Inspect power cabling, connections, and breakers for signs of damage, corrosion, or overheating.
• Redundancy Confirmation: Verify that redundant power feeds are fully operational and can independently support the cooling system.
• Load Balancing: Confirm that the cooling system load is balanced across available power feeds.
• Phase Monitoring: Monitor phase voltage and current to identify any imbalances or anomalies.

4. Documentation Review:

• Single Line Diagrams: Review single-line diagrams to ensure accuracy and reflect current power infrastructure.
• Power Consumption Data: Analyze power consumption data to identify trends and potential inefficiencies.
• Emergency Power Procedures: Validate emergency power procedures and ensure they are readily accessible to data center personnel.

Alarm System Monitoring and Trending

Effective alarm system monitoring and trending isn't just about reacting to alerts - it's about preventing failures. A reactive approach addresses symptoms; a proactive one identifies underlying causes. Regularly reviewing alarm data allows you to spot patterns and anticipate potential problems before they escalate into critical downtime.

Here's what to focus on:

• Alarm Testing & Validation: Regularly test all cooling system alarms, not just during scheduled maintenance, but also as part of routine operations. Verify that alarms trigger appropriately and that notification procedures work correctly. Don't assume an alarm is working just because it hasn't gone off recently.
• Threshold Review & Optimization: Alarm thresholds should be periodically reviewed and adjusted. What was acceptable a year ago might be pushing the limits today due to equipment aging or increased server density. Incorrectly set thresholds can lead to unnecessary alerts (alert fatigue) or, conversely, miss crucial warnings.
• Trending Analysis - The Key to Prevention: Implement robust trending tools to visualize cooling system performance over time. Analyze temperature, humidity, power consumption, and other key metrics. Look for gradual drifts, cyclical patterns, or unexpected spikes that could indicate impending failures. For example, a slow increase in CRAC unit discharge air temperature could signal fouling on the evaporator coil.
• Root Cause Analysis: When alarms do trigger, don't just fix the immediate problem. Conduct thorough root cause analysis to identify the underlying reason for the alarm. Was it a sensor malfunction, a system imbalance, or a symptom of a larger issue? Document findings and implement corrective actions to prevent recurrence.
• Alert Fatigue Mitigation: Repeated, unnecessary alarms can lead to alert fatigue, where operators start ignoring alerts altogether. Refine alarm thresholds, improve diagnostic procedures, and provide better training to minimize false positives and ensure that operators take all alerts seriously.
