Escalator & Moving Walkway Inspection Checklist Template

Introduction: Why Regular Inspections Matter

Beyond just preventing breakdowns, regular inspections offer several key benefits:

• Safety: Identify and address potential hazards before they lead to accidents, protecting users and minimizing liability. A seemingly minor issue, like a loose handrail or damaged step, can quickly escalate into a serious safety risk.
• Longevity: Proactive maintenance extends the lifespan of your equipment, delaying costly replacements and maximizing your return on investment. Catching wear and tear early allows for targeted repairs instead of major overhauls.
• Efficiency: Optimizing operation reduces energy consumption and associated costs. Properly aligned and lubricated systems run more efficiently, saving money and reducing environmental impact.
• Compliance: Meet regulatory requirements and avoid potential fines. Escalators and moving walkways are subject to strict safety codes - regular inspections ensure you're staying in compliance.
• Positive User Experience: Consistent, smooth operation builds trust and confidence among users, contributing to a more pleasant and welcoming environment. A well-maintained escalator simply feels safer and more reliable.

Section 1: General Information and Documentation

Before a single visual inspection begins, establishing a foundation of accurate and complete documentation is paramount. This initial step ensures accountability, tracks inspection history, and provides a baseline for future assessments.

Begin by clearly recording the date and time of the inspection, along with the full name and credentials of the inspector performing the assessment. Don't underestimate the importance of clearly identifying the specific equipment being inspected - include the manufacturer's model number, serial number, and precise location within the building or facility. This level of detail prevents any ambiguity and simplifies future reference.

Crucially, always review the notes from the previous inspection. This provides valuable context, highlights recurring issues, and demonstrates a proactive approach to maintenance. Documenting any corrective actions taken following the previous inspection and verifying their completion is essential for continuous improvement and preventative maintenance. A digital system for managing these records is highly recommended, facilitating easy access, analysis, and reporting. Finally, retain copies of relevant manuals, schematics, and safety data sheets for quick reference throughout the inspection process.

Section 2: Visual Inspection - Structural Integrity

A thorough visual inspection is your first line of defense in identifying potential structural issues. Begin by stepping back and observing the entire escalator or moving walkway from a distance. Look for any noticeable sagging, twisting, or misalignment of the frame.

Next, move in closer to examine individual components. Pay particularly close attention to areas prone to stress and corrosion, such as the base, support columns, and handrail supports. Look for:

• Cracks: Even hairline cracks can indicate underlying stress and potential failure. Document the location and size of any cracks found.
• Corrosion: Rust and corrosion weaken the metal and compromise structural integrity. Pay close attention to areas exposed to the elements or moisture.
• Deformation: Look for any bending, warping, or other deformations in the frame or supports.
• Loose Connections: Check for any visible signs of loose bolts, rivets, or other fasteners. A slight wobble or movement can be a telltale sign.
• Welds: Examine welds for cracks or signs of incomplete fusion. If possible, use a dye penetrant test for critical welds.
• Previous Repairs: Note any previous repair work and assess the quality of the repair. Are there any signs of recurring problems?

Document all findings with photos and detailed notes. These observations will be invaluable for tracking issues and planning preventative maintenance.

Section 3: Step/Tread and Handrail Assessment

The step/tread and handrail are critical components for user safety and comfort, demanding meticulous inspection. Begin by visually assessing each step/tread for signs of uneven wear, cracks (particularly at the leading and trailing edges), and any loose sections. Note any debris accumulation, as this can create tripping hazards.

The handrail deserves even closer scrutiny. It's essential to confirm proper alignment with the steps - a misaligned handrail can be disorienting and potentially dangerous. Equally important is verifying the handrail speed; it must move at a consistent and safe speed relative to the steps. Any variation could cause discomfort or even injury.

Look for any cracks, damage, or looseness in the handrail itself. Grasp the handrail firmly at various points along its length to check for movement or play. Remember that a seemingly minor handrail issue can quickly escalate into a significant safety concern. Finally, ensure the handrail returns smoothly and consistently after being moved, indicating proper functionality of its return mechanism. Document any irregularities - even seemingly minor ones - for follow-up investigation and potential repair.

Section 4: Comb and Chain System Examination

The comb and chain system is a critical component, acting as the interface between the stationary portion of the escalator and the moving steps. Proper function here is essential for safe and smooth operation. This section focuses on a detailed examination of these parts.

Visual Inspection: Begin with a thorough visual assessment of both the comb and the chain. Look for signs of wear, corrosion, or damage. Pay particular attention to the comb teeth - are they intact, evenly spaced, and free from cracks or breakage? Examine the chain for any signs of stretching, rust, or kinked links.

Comb-to-Chain Engagement: This is arguably the most crucial aspect. Observe the engagement point carefully. The comb teeth must be consistently and securely meshing with the chain links. Any slippage, inconsistent engagement, or misalignment indicates a potential problem requiring immediate attention. A technician should assess the chain tension and comb positioning to rectify this.

Debris Accumulation: Over time, dust, dirt, and small objects can accumulate within the comb and chain system. This debris not only hinders proper engagement but can also accelerate wear and corrosion. Regularly clean the system using compressed air or a suitable cleaning solution, ensuring that any cleaning agents are compatible with the materials used in the escalator.

Chain Tension: Incorrect chain tension significantly impacts the comb's ability to function properly. A chain that is too loose can slip, while a chain that is too tight puts excessive stress on the comb teeth. Regularly check and adjust the chain tension according to the manufacturer's specifications.

Lubrication: Proper lubrication of the chain and comb teeth minimizes friction and wear. Refer to the escalator's maintenance schedule for recommended lubricants and application methods.

Remember: Any deviation from normal operation in the comb and chain system warrants further investigation by a qualified escalator technician.

Section 5: Drive System Components - Motor and Gearbox

The motor and gearbox are the heart of the drive system, responsible for converting electrical energy into the mechanical motion that drives the escalator or moving walkway. A failure in either component can lead to significant downtime and safety concerns.

Motor Inspection:

Visually inspect the motor for signs of overheating, such as discoloration or burnt odors. Listen for unusual noises during operation - grinding, squealing, or humming can indicate bearing failure or internal issues. Check the motor's housing for any signs of damage or leaks. Verify proper ventilation to prevent overheating. Check the motor's electrical connections for tightness and corrosion. Record the motor's operating temperature and compare it to manufacturer's specifications.

Gearbox Inspection:

The gearbox transmits power from the motor to the drive shaft. It's critical to regularly check the gearbox's oil level and condition. Low oil levels or degraded oil (dark, foamy, or metallic sheen) signal potential problems requiring immediate attention. Listen for unusual noises emanating from the gearbox - these often indicate failing bearings or gear damage. Inspect the gearbox housing for leaks and signs of corrosion. Adhere strictly to the manufacturer's recommended lubrication schedule, using the correct type of oil. If any unusual noises or vibrations are detected, consult with a qualified technician for further diagnosis. A gearbox failure can be costly and disruptive, so proactive maintenance is key.

Section 6: Safety Devices and Emergency Stop Functionality

Safety devices and emergency stop functionality are your last line of defense against potential accidents. Regular, meticulous testing is paramount to guaranteeing their reliability.

Testing Procedures:

• Emergency Stop Buttons: Each emergency stop button must be physically tested during every inspection. Verify that the escalator or moving walkway immediately halts upon activation and remains stationary. Document the tester's initials and the date of the test on the inspection record.
• Skirt Edge Sensors: These sensors detect obstructions at the edges of the steps or treads. Simulate an obstruction (safely!) to ensure the system stops as designed.
• Handrail Sensors: Verify that handrail sensors detect discrepancies in handrail speed and activate the emergency stop system.
• Safety Switches: All other safety switches, such as those linked to door interlocks or presence detectors, should be tested for proper function.

Maintenance Considerations:

• Button Condition: Inspect emergency stop buttons for physical damage, wear, and proper labeling. Replace damaged or illegible buttons immediately.
• Wiring Integrity: Conduct periodic inspections of the wiring associated with safety devices to identify and address any frayed wires, loose connections, or corrosion.
• Sensor Calibration: Ensure sensors are properly calibrated according to the manufacturer's recommendations.
• Documentation: Record all testing and maintenance activities related to safety devices in detail. This documentation is crucial for demonstrating compliance and troubleshooting any future issues.

Section 7: Electrical System Evaluation

The electrical system is the heart of an escalator or moving walkway, and its reliable operation is paramount for safety and performance. This section details the critical electrical components that require evaluation during inspection.

1. Visual Inspection of Wiring & Connections: A thorough visual inspection of all wiring, conduit, and connections is the first step. Look for signs of damage, fraying, cracking, or discoloration. Loose connections can cause intermittent operation and potential fire hazards. Pay close attention to areas where wiring passes through metal framing, as these are common points of abrasion. Any damaged wiring should be immediately replaced by a qualified electrician.

2. Electrical Panel Assessment: The electrical panel housing the escalator's motor and control systems must be inspected for proper labeling, organization, and functionality. Ensure all circuit breakers are correctly sized and labeled. Verify that the panel door is secure and that there is adequate ventilation to prevent overheating. Document any unusual odors or signs of moisture.

3. Motor Starter & Overload Protection: The motor starter is responsible for controlling the motor's starting and stopping. Its condition should be assessed for any signs of wear or malfunction. Overload protection devices are critical for preventing motor damage; their functionality should be confirmed.

4. Grounding Verification: Proper grounding is essential for safety and to prevent electrical shock. Continuity tests should be performed to verify the integrity of the grounding system. A weak or missing ground can create a significant hazard.

5. Control System Components: The control system components, including sensors, switches, and relays, regulate the escalator's speed, direction, and safety features. Their functionality should be verified to ensure proper operation and responsiveness to safety signals.

6. Emergency Power-Off (EPO) System: The EPO system provides a means of quickly de-energizing the escalator in an emergency. Its functionality must be tested regularly to ensure it's readily available and operational.

NOTE: All electrical work must be performed by a licensed and qualified electrician.

Section 8: Lubrication and Maintenance Practices

Proper lubrication and diligent maintenance form the backbone of a long-life, trouble-free escalator or moving walkway system. Neglecting these practices can lead to accelerated wear, noisy operation, and ultimately, costly repairs or unexpected downtime.

Understanding Lubricant Types:

Refer to the manufacturer's documentation to determine the specific lubricant types recommended for your system. Common types include:

• Greases: Used for bearings, gears, and other moving parts requiring consistent lubrication. Look for multi-purpose greases rated for heavy loads and extreme pressure.
• Oils: Used for chain lubrication and hydraulic systems. Ensure the correct viscosity is used to prevent leakage or inadequate lubrication.
• Specialty Lubricants: Some escalators utilize specialized synthetic lubricants designed for specific components or operating conditions.

Scheduled Lubrication:

Adhere strictly to the manufacturer's recommended lubrication schedule. This schedule is based on factors like usage intensity, environmental conditions, and component design. Keeping a detailed lubrication log is vital to ensure timely application and track performance.

Key Lubrication Points:

• Bearings: Regular greasing of bearings minimizes friction and extends their lifespan. Over-greasing can be as detrimental as under-greasing, so follow guidelines carefully.
• Gearboxes: Monitor gearbox oil levels and condition. Regular oil changes, following manufacturer's recommendations, are crucial.
• Chain Drives: Apply chain lubricant to reduce friction and prevent corrosion. Wipe away excess lubricant to avoid attracting dirt and debris.
• Step Chains: Apply a compatible lubricant to step chains.
• Guide Rails: Periodically lubricate guide rails to ensure smooth step travel.

Beyond Lubrication: General Maintenance:

• Visual Inspections: Regularly inspect components for signs of wear, damage, or corrosion.
• Cleaning: Keep the escalator/moving walkway clean of debris, which can interfere with operation and accelerate wear.
• Component Replacement: Replace worn or damaged components promptly to prevent further issues.
• Belt Tension Adjustment: Monitor and adjust belt tension as needed.
• Comb Cleaning: Regularly clean the handrail combs to ensure passenger safety and comfort.

Section 9: Noise and Vibration Analysis

Noise and vibration, often subtle, can be early indicators of underlying problems within an escalator or moving walkway system. While some operational sounds are normal, changes in pitch, intensity, or the appearance of unusual vibrations warrant closer inspection.

During your assessment, actively listen for sounds like grinding, squealing, or rattling. These could signify issues with bearings, gearboxes, or worn components. Observe the escalator or moving walkway during operation; excessive vibration, particularly noticeable in the steps or handrail, suggests imbalance, misalignment, or worn bearings.

Document all observations, even seemingly minor ones. A change in the typical noise profile or vibration level, even if not immediately alarming, can serve as a baseline for future comparisons and potential problem diagnosis. Record the date, time, and a description of the noise or vibration observed. Photographic or video evidence can also be invaluable when consulting with maintenance specialists. Ignoring these early warning signs can lead to more significant and costly repairs down the line.

Section 10: Signage and Regulatory Compliance

Effective signage is more than just aesthetics; it's a critical component of safety and regulatory compliance for escalators and moving walkways. Clear, visible signage communicates essential information to users and demonstrates a commitment to safety.

Required Signage:

• Warning Signs: These must be prominently displayed, outlining potential hazards like trip hazards, pinch points, and the risk of falling. Specific wording requirements often exist, so consult local regulations and ASME A17.1.
• Directional Signs: Ensure clear directional signage guides users to destinations and minimizes congestion.
• Emergency Information: Post emergency contact information and evacuation procedures in easily accessible locations.
• Handrail Warning: A dedicated sign is often required to warn users about the moving handrail and its potential for entanglement.

Regulatory Compliance - Beyond the Signs:

Signage is just one facet of compliance. Staying current with applicable regulations is paramount. Key areas of focus include:

• ASME A17.1: This standard outlines design, construction, operation, maintenance, and inspection requirements. Regular review and updates are essential.
• Local Codes: Many municipalities have specific codes pertaining to escalator and moving walkway safety.
• ADA Compliance: Ensure accessibility guidelines are followed, including signage placement and readability for individuals with disabilities.
• Documentation: Maintain thorough records of all inspections, maintenance, and compliance efforts. This documentation serves as proof of due diligence and can be vital in the event of an incident.
• Regular Audits: Periodically conduct internal or external audits to verify compliance with all applicable regulations and identify areas for improvement. Keeping abreast of changes in regulations is a continuous responsibility.

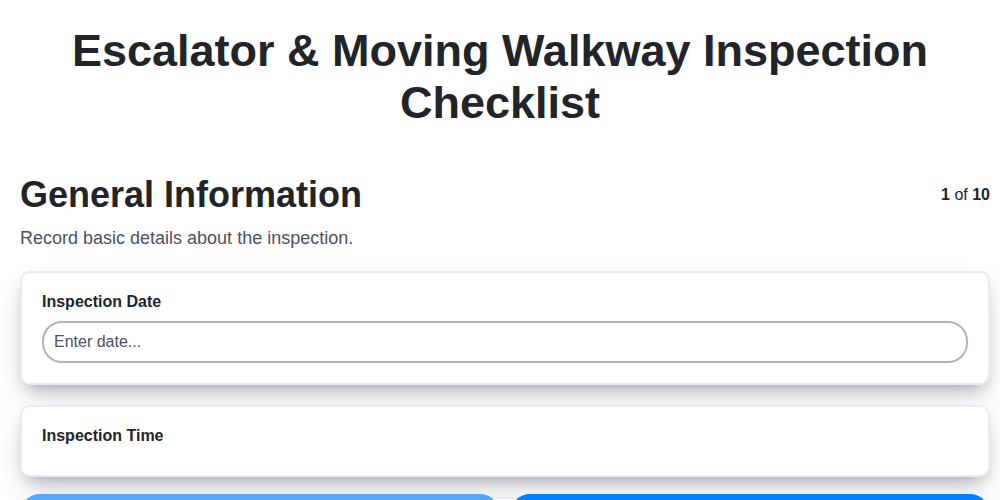

Section 11: Template Download & Resources

We understand that maintaining escalators and moving walkways requires ongoing effort and readily accessible tools. To support your inspection process, we're providing a downloadable inspection checklist template. This template is designed to be a helpful starting point, customizable to fit your specific equipment and local regulations.

Further Resources:

• ASME A17.1 Safety Code for Elevators and Escalators: https://www.asme.org/codes-and-standards/asme-standards/a171 - The definitive standard for escalator safety.
• Local Building Codes & Regulations: Consult your local authorities for specific requirements.
• Escalator/Moving Walkway Manufacturer Manuals: Always refer to the manufacturer's documentation for detailed inspection and maintenance procedures.
• Professional Escalator Maintenance Organizations: Consider joining or consulting with industry organizations for best practices and ongoing support.
