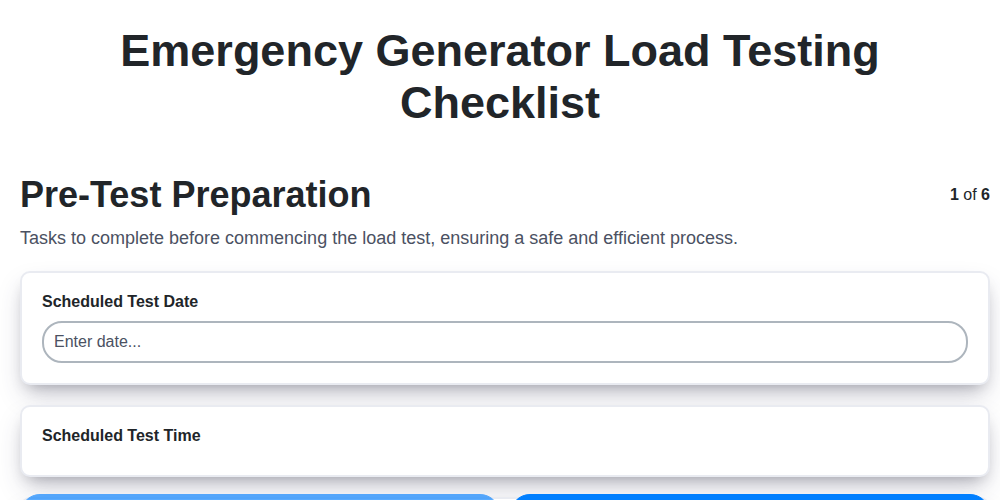

Emergency Generator Load Testing Checklist Template

Introduction: Why Load Testing Matters

Imagine a power outage cripples your facility - the lights go out, critical equipment fails, and your operations grind to a halt. You have an emergency generator, right? But is it really ready to shoulder the load? Many facilities mistakenly believe that simply having a generator is enough. The truth is, a generator that hasn't been properly tested and maintained can be just as useless as no generator at all. Load testing simulates real-world emergency conditions, uncovering potential issues before they manifest during a crisis. It's not just about verifying that the generator starts; it's about ensuring it can consistently deliver the power your facility needs, when it needs it most, under sustained demand. This proactive approach minimizes downtime, protects your bottom line, and safeguards the safety of your personnel.

Understanding Your Generator's Specifications

Before you even think about load testing, you need to deeply understand what your generator is supposed to do. This isn't just about knowing the model number; it's about deciphering the numbers and jargon that define its capabilities.

Let's break down the key specifications you's need to be familiar with:

• Rated Power (kW or kVA): This is the maximum continuous power the generator can safely produce under defined operating conditions. It's your baseline for determining the load you're applying during testing. Understand the difference between kW (kilowatts - real power) and kVA (kilovolt-amperes - apparent power, including reactive power). Your facility's critical load calculations should be based on kW.
• Standby Power: This represents the maximum power available for a limited time (typically 30 minutes) during an emergency. It's often higher than the rated power.
• Voltage and Frequency: These are crucial for compatibility with your facility's electrical systems. Ensure the generator's output voltage (e.g., 120V, 208V, 240V, 480V) and frequency (usually 60 Hz in North America) match your critical loads.
• Fuel Type: Know what fuel your generator uses (diesel, natural gas, propane) and its associated storage and handling requirements.
• Engine Speed (RPM): This dictates the generator's operating speed and relates to its power output and efficiency.
• Phase: Generators can be single-phase or three-phase. Ensure the generator's phase matches your load requirements.
• Load Factor: This is a ratio between the rated power and the maximum power that the generator can produce.

Knowing these specifications will help you plan your load testing, interpret the results, and troubleshoot any issues that may arise. Don't guess - consult the manufacturer's documentation and seek professional assistance if needed.

Pre-Test Checklist: Preparation is Key

A rushed load test is a risky load test. Taking the time for thorough pre-test preparation significantly increases the accuracy of your results and minimizes potential issues. This isn't just about checking fluids; it's about ensuring a safe and reliable testing environment.

Here's a deeper dive into what Pre-Test Preparation truly entails:

• Review the Documentation: Refresh your understanding of the generator's operating manual, technical specifications, and relevant safety data sheets (SDS). Knowing the expected performance parameters is critical for accurate evaluation.
• Visual Inspection - Beyond the Obvious: Don't just look for leaks; examine hoses, clamps, wiring, and connections for signs of wear, corrosion, or damage. A tiny crack can become a major problem under load.
• Fluid Levels - Accuracy Matters: Use the manufacturer's recommended dipstick and filling procedures. Inaccurate readings can lead to misinterpretations of test results. Document the exact fluid types used.
• Battery Assessment - The Power Source: A weak battery can affect generator starting and performance. Check voltage, terminal condition, and check for any signs of corrosion. Consider load testing the battery separately if it's nearing its replacement age.
• Notification and Communication: Alert relevant personnel about the test schedule and anticipated noise levels. Coordinate with building security or neighboring businesses to avoid disruptions.
• Load Bank Readiness: Confirm the load bank's appropriate capacity and working order. Ensure connections are secure and functional. Test the load bank's controls to verify proper operation.
• Safety Gear: Ensure appropriate personal protective equipment (PPE) - gloves, eye protection, hearing protection - is readily available and used by all personnel involved.

Step-by-Step Load Testing Procedure

Here's a breakdown of the load testing procedure, designed to be practical and safe. Remember: This is a guideline. Always defer to your generator manufacturer's instructions and the expertise of qualified technicians.

1. Pre-Test Setup & Safety Checks:

• Ensure the load bank is properly grounded and positioned.
• Double-check all safety equipment is accessible and in good working order (gloves, eye protection, hearing protection).
• Confirm the area around the generator is clear of obstructions and personnel not involved in the test.
• Review the planned load application schedule and ensure everyone involved understands the procedure.

2. Initial Generator Start & Stabilization (0-10% Load):

• Follow the manufacturer's starting procedure to bring the generator online.
• Allow the generator to stabilize for a minimum of 10 minutes, monitoring voltage, frequency, oil pressure, and coolant temperature. Record these baseline readings.
• Visually inspect for any unusual noises, vibrations, or leaks during this initial stabilization period.

3. Gradual Load Application (10-100%):

• Apply the load in stages, typically at 25%, 50%, 75%, and 100% of the generator's rated capacity. Avoid sudden load changes.
• Wait 5-10 minutes at each load stage to allow the generator to stabilize before proceeding to the next.
• At each load stage, meticulously record:
  • Generator Voltage (Line-to-Line and Line-to-Neutral)
  • Generator Frequency
  • Engine Oil Pressure
  • Coolant Temperature
  • Exhaust Gas Temperature (EGT) - Crucial for engine health.
  • Load Current (Amps)
  • Any unusual noises, vibrations, or smells.

4. Extended Load Testing (Optional):

• For a more comprehensive evaluation, consider extending the load at 100% for a longer duration (e.g., 30 minutes - 1 hour). This allows for assessment of long-term stability and performance.
• Continue recording all parameters as in the previous steps.

5. Cool-Down & Shutdown:

• Reduce the load back to zero.
• Allow the generator to cool down for a sufficient period (typically 15-30 minutes).
• Monitor temperatures during the cool-down phase.
• Follow the manufacturer's recommended shutdown procedure.

Important Reminder: This procedure is a guide. Always prioritize safety, follow manufacturer instructions, and utilize the expertise of qualified professionals.

Load Bank Application and Monitoring Techniques

The heart of a successful generator load test lies in the precise application of the load bank and diligent monitoring of critical parameters. It's not simply about slapping on a load and seeing what happens; it's a controlled process that reveals a generator's true capabilities and potential weaknesses.

Staged Load Application: A Gradual Approach

Avoid the temptation to throw full load onto the generator immediately. This can be detrimental to the engine and may not accurately reflect how it would perform in a gradual emergency scenario. Instead, adopt a staged approach:

• Initial Stage (25% Load): Begin with a 25% load to allow the generator to stabilize and ensure basic functionality.
• Intermediate Stages (50% & 75%): Progress to 50% and 75% load, observing the impact on voltage, frequency, and temperatures. These stages allow for fine-tuning and early detection of minor issues.
• Full Load & Beyond (100%+): Once stable at 75%, slowly apply full load. Depending on your facility's requirements and generator capacity, you may even choose to test beyond 100% for a short duration (always within manufacturer's specified limits).

Key Parameters to Monitor During the Test:

Continuous monitoring is critical. A data logger is highly recommended for accuracy and ease of analysis, but careful manual observation can also be effective. Here's a breakdown of what to look for:

• Voltage: Should remain within the manufacturer's specified range (typically ±5%).
• Frequency: Equally important; should also stay within the tolerance band (typically 50-60 Hz).
• Oil Pressure: A sudden drop can indicate engine lubrication problems.
• Coolant Temperature: Rising temperatures can signal overheating issues. Pay close attention to the exhaust gas temperature (EGT) as a leading indicator of engine strain.
• Load Current: Verifies that the generator is supplying the expected power output.
• Exhaust Gas Temperature (EGT): A critical indicator of engine stress. Increasing EGT can signal impending problems.
• Audible Abnormalities: Listen for unusual noises like excessive vibration, knocking, or hissing. These can be early warning signs of mechanical issues.

Careful observation and a methodical approach during load application are fundamental to a reliable and informative generator test.

Data Recording and Analysis: What to Look For

Meticulous data recording is the backbone of a successful generator load test. It's not enough to simply run the test; you need to capture the data and analyze it to truly understand your generator's health. Here's a breakdown of critical parameters to record and what deviations might indicate:

Essential Data Points & What They Reveal:

• Voltage (V): Consistent voltage within the manufacturer's specified range (typically 120/240V for residential, 208/480V for commercial) indicates a healthy alternator. Voltage fluctuations, especially under load, can point to issues with the regulator or winding insulation.
• Frequency (Hz): A stable frequency of 60Hz (in North America) is vital for powering equipment correctly. Frequency dips suggest engine performance problems or overloading.
• Oil Pressure (PSI): Low oil pressure indicates a potential lubrication issue - a failing oil pump, low oil level, or blocked oil passages. Address this immediately.
• Coolant Temperature (°F): Overheating can cause severe engine damage. Rising temperatures under load might indicate a failing thermostat, radiator blockage, or inadequate cooling fan performance.
• Exhaust Gas Temperature (EGT) (°F): This is a critical indicator of engine combustion efficiency. Elevated EGTs signal an inefficient burn, potentially caused by incorrect fuel mixture, turbocharger problems, or exhaust restrictions. Always operate within manufacturer's EGT limits.
• Load Current (Amps): Tracking the current draw helps verify the generator is supplying the expected load and aids in identifying any inefficiencies.
• Fuel Consumption (Gallons/Hour - if possible): While not always recorded, fuel consumption data provides insights into engine efficiency. Significant increases can indicate problems with fuel delivery or combustion.

Analyzing Trends & Identifying Issues:

Don't just look at the immediate test results. Compare current data against historical data from previous load tests. This trend analysis can reveal:

• Gradual Degradation: A slow, consistent increase in coolant temperature or EGT over time may indicate a developing issue that needs addressing before it becomes a major failure.
• Sudden Changes: A sudden drop in oil pressure or a significant increase in fuel consumption demands immediate investigation.
• Non-Linear Behavior: Unusual patterns in the data, such as voltage fluctuations that correlate with specific load levels, can point to equipment-specific problems.

Thorough documentation and insightful analysis transform your load test from a routine task to a powerful diagnostic tool.

Performance Evaluation Criteria: Acceptable Ranges

Defining clear, measurable criteria for evaluating generator performance during load testing is essential for identifying potential issues early on. Acceptable ranges shouldn't be arbitrary; they should be based on the manufacturer's specifications and your facility's power requirements. Here's a breakdown of key parameters and typical acceptable ranges (always refer to your generator's manual for precise values):

1. Voltage: Most generators should maintain a stable voltage within ±5% of the nominal voltage (e.g., 120V ± 6V for a 120V generator). Significant voltage dips or surges indicate potential regulator problems or overloading.

2. Frequency: Frequency stability is equally critical. The frequency should remain within ±3% of the rated frequency (typically 60Hz). Deviations suggest engine speed issues or load fluctuations.

3. Oil Pressure: Oil pressure should remain within the manufacturer's specified range. A low oil pressure reading can indicate a failing oil pump or excessive engine wear.

4. Coolant Temperature: Coolant temperature should remain within the operational limits defined by the manufacturer. Overheating can result in engine damage.

5. Exhaust Gas Temperature (EGT): EGT is a crucial indicator of engine combustion efficiency. Elevated EGT readings can suggest issues with fuel mixture, air intake, or exhaust restrictions. Keep a detailed record of this.

6. Load Current: Verify the generator is capable of delivering the designed current at each load step. A significant drop in current delivery can signify winding issues.

7. Transient Response: Observe how quickly the generator recovers voltage and frequency after a sudden load change. Slow recovery times could indicate aging components.

8. Audible Anomalies: Note any unusual noises (knocking, grinding, hissing) during the test. These can be early warning signs of mechanical problems.

Important Note: Establishing a baseline performance profile during the initial commissioning of the generator will allow you to better identify deviations during subsequent load tests. Don't hesitate to consult with a qualified generator technician if you observe any readings outside the acceptable ranges.

Cool-Down and Generator Shutdown Protocol

The transition from full load back to idle is just as important as the load application itself. Rushing this process can put undue stress on the engine and other components. Here's a detailed protocol for a safe and effective cool-down and generator shutdown:

1. Gradual Load Reduction: Begin decreasing the load incrementally, reversing the order in which it was applied. Reduce the load in stages (e.g., from 100% to 75%, then 50%, 25%, and finally to idle) allowing sufficient time between each step. Aim for a load reduction rate that doesn't force the engine to rapidly decelerate.

2. Monitoring During Cool-Down: Continue diligently monitoring key parameters-oil pressure, coolant temperature, exhaust gas temperature (EGT), and voltage/frequency-during the cool-down phase. Elevated temperatures don't always immediately return to normal; observe for any continued signs of stress.

3. Engine Stabilization: Allow the engine to stabilize at each load reduction stage. This generally means waiting a few minutes to ensure temperatures and other readings have settled before proceeding to the next step.

4. Idle Operation: Once the load has been reduced to idle, allow the generator to run for a designated period (typically 5-10 minutes) to allow for complete engine cool-down and stabilization. This also provides an opportunity to observe operation at idle and identify any unusual noises or behavior.

5. Generator Shutdown Procedure: Follow the manufacturer's precise shutdown procedure as detailed in the generator's operations manual. This may include specific waiting times, switch positions, and fuel shut-off sequences. Do not simply switch the generator off abruptly, as this can lead to fuel dilution in the oil and potential engine damage.

6. Post-Shutdown Observation (Optional): Briefly observe the generator after shutdown to check for any unusual sounds or smells, though be aware that some residual sounds and smells are normal.

Post-Test Inspection and Reporting

The final stage of the load test isn't just about shutting down the generator; it's about ensuring you have a clear understanding of its performance and future maintenance needs. This begins with a thorough post-test inspection. Visually inspect the generator, fuel tank, and exhaust system for any signs of leaks, damage, or unusual wear. Check fluid levels (oil, coolant, fuel) and note any changes from pre-test levels.

Following the inspection, a comprehensive report is essential. This report shouldn't just be a collection of numbers; it should be a narrative of the generator's performance. Include the date and time of the test, generator model and serial number, a detailed record of all test parameters and results (voltage, frequency, temperatures, load current, etc.), and any deviations from expected behavior. Document observations-unusual noises, vibrations, smells-even if they seem minor.

Beyond the technical data, the report should also include recommendations for any necessary maintenance or repairs. Clear, concise recommendations allow maintenance teams to address potential issues proactively, preventing future breakdowns and maximizing the generator's lifespan. Finally, ensure the report is signed and certified by the technician who performed the test, verifying their expertise and accountability. Consistent and detailed reporting builds a valuable performance history, enabling informed decisions and continuous improvement of your emergency power system.

Troubleshooting Common Issues During Load Testing

Load testing doesn't always go smoothly. Identifying and addressing issues promptly is key to ensuring generator reliability. Here's a look at some frequent problems and potential solutions:

1. Voltage Instability:

• Problem: Fluctuating voltage readings during load application.
• Possible Causes: Low oil pressure, excessive engine load, faulty voltage regulator, loose connections, undersized generator.
• Troubleshooting: Check oil levels and pressure. Inspect wiring and connections. Verify generator size matches load requirements. Consult a qualified technician for voltage regulator diagnosis.

2. Frequency Drift:

• Problem: Frequency deviating outside acceptable limits (typically 50Hz or 60Hz).
• Possible Causes: Engine governor malfunction, insufficient fuel supply, air intake obstruction.
• Troubleshooting: Inspect engine governor linkage. Ensure adequate fuel delivery. Clean or replace air filters.

3. High Coolant Temperature:

• Problem: Coolant temperature exceeding manufacturer's specifications.
• Possible Causes: Low coolant levels, faulty thermostat, blocked radiator, failing water pump.
• Troubleshooting: Check coolant levels. Inspect radiator for blockage. Verify thermostat operation. Assess water pump functionality.

4. Excessive Vibration:

• Problem: Unusually high vibration during operation.
• Possible Causes: Loose mounting bolts, worn engine mounts, unbalanced rotating components.
• Troubleshooting: Tighten mounting bolts. Inspect engine mounts for wear. Have a qualified technician perform balance checks.

5. Fuel Delivery Problems:

• Problem: Difficulty starting, surging engine, or fuel starvation.
• Possible Causes: Clogged fuel filters, air in the fuel lines, faulty fuel pump.
• Troubleshooting: Replace fuel filters. Bleed fuel lines to remove air. Test fuel pump performance.

6. Unusual Noises:

• Problem: Any unexpected sounds, such as knocking, grinding, or hissing.
• Possible Causes: Worn bearings, internal engine damage, exhaust leaks.
• Troubleshooting: Requires thorough inspection and diagnosis by a qualified technician. Do not attempt repairs yourself.

Important Note: If you encounter any of these issues, or if you're uncomfortable troubleshooting yourself, immediately stop the test and contact a qualified generator technician. Continuing to operate a generator with unresolved problems can lead to further damage and potentially dangerous situations. Proper documentation of observed issues is critical for efficient repairs.

Maintenance Recommendations Based on Test Results

Your emergency generator load testing isn't just about identifying problems; it's about proactively shaping its future performance. The data you've gathered provides a roadmap for targeted maintenance. Here's a breakdown of common findings and their corresponding maintenance recommendations:

1. Voltage or Frequency Fluctuations:

• Minor Variations: Regularly inspect and clean generator connections. Consider a load bank calibration.
• Significant Deviations: Investigate regulator issues. Check for loose wiring or voltage drop within the system. Consult a qualified technician for assessment and repair.

2. Elevated Coolant Temperature:

• Slight Increase: Flush and refill the cooling system. Check for leaks in the radiator or hoses.
• Significant Increase: Inspect the water pump, thermostat, and radiator fan. Consider a coolant system overhaul.

3. High Exhaust Gas Temperature (EGT):

• Minor Increase: Check for air leaks in the intake manifold. Ensure proper fuel-air mixture.
• Significant Increase: Investigate turbocharger issues (if applicable), cylinder head gasket leaks, and piston ring wear. This warrants immediate professional attention.

4. Increased Oil Pressure:

• Minor Increase: Monitor closely in subsequent tests. May indicate a slight increase in engine wear, but not immediately critical.
• Significant Increase: Investigate potential issues with the oil pressure sensor or pump.

5. Fuel Consumption Anomalies:

• Increased Consumption: Check for fuel leaks, inefficient combustion, and issues with the fuel system's injectors or carburetor (depending on the generator type).
• Decreased Consumption: While seemingly positive, this could indicate a faulty fuel meter or issues with the fuel injection system. Investigation is necessary.

6. Unusual Noises or Vibrations:

• Any unusual sounds or vibrations require immediate investigation by a qualified technician. These could indicate bearing failure, loose components, or other serious mechanical problems.

Beyond the Numbers: A Proactive Approach

Remember that test results are just one piece of the puzzle. Regularly scheduled preventative maintenance, including fluid checks, filter replacements, and visual inspections, is essential for maintaining your generator's reliability. Treat your emergency generator load testing data as a valuable tool for continuous improvement and proactive problem-solving - your facility's resilience depends on it.

Safety Precautions and Best Practices

Load testing a generator isn't just about checking performance; it's about doing so safely and effectively. Prioritizing safety minimizes risk to personnel and prevents damage to equipment. Here's a detailed breakdown of essential precautions and best practices:

1. Qualified Personnel Only: This is paramount. Only trained and certified technicians should perform load testing. They must be familiar with generator operation, safety protocols, and emergency procedures.

2. Personal Protective Equipment (PPE): Mandatory PPE includes:

• Eye Protection: Safety glasses or goggles are essential to guard against flying debris or splashes.
• Hearing Protection: Generators produce significant noise levels; earplugs or earmuffs are crucial.
• Gloves: Appropriate gloves, resistant to fuel and oil, are needed for handling fluids.
• Flame-Resistant Clothing: Highly recommended, especially when working near fuel sources.
• Safety Shoes: To protect feet from potential hazards.

3. Hazard Area Control: Clearly define the load testing area and restrict access to authorized personnel only. Use caution tape and signage.

4. Fuel Handling Safety:

• Ventilation: Ensure adequate ventilation to prevent fuel vapor buildup.
• Spill Containment: Have spill containment materials readily available (absorbent pads, booms). Clean up any spills immediately.
• No Open Flames: Strictly prohibit open flames or ignition sources within the testing area.
• Grounding: Properly ground all equipment to prevent static electricity buildup.

5. Load Bank Operation:

• Manufacturer's Instructions: Strictly adhere to the load bank manufacturer's operating instructions.
• Visual Inspection: Regularly inspect the load bank for damage or wear.
• Load Application: Apply load gradually to avoid sudden stress on the generator.

6. Emergency Procedures:

• Emergency Shutdown: Know the location and operation of the emergency shutdown switch.
• First Aid: Ensure a readily accessible first-aid kit and trained personnel.
• Communication: Establish clear communication protocols.

7. Environmental Considerations:

• Noise Reduction: Minimize noise pollution by scheduling tests during less sensitive hours or using noise barriers.
• Exhaust Emissions: Be mindful of exhaust emissions and follow local regulations.

By diligently following these safety precautions and best practices, you can ensure a successful and safe generator load testing experience.

Generator Load Testing Frequency: A Schedule Template

Establishing a consistent schedule for generator load testing is just as important as the testing itself. While manufacturer recommendations offer a baseline, facility-specific factors should influence your frequency. Here's a template to guide your schedule, recognizing that adjustments may be needed:

Minimum Requirements (Generally Accepted)

• Monthly (Runtime Test): A brief (30-60 minute) runtime test under no load. This ensures the generator starts reliably and lubricates components.
• Annually (Full Load Test): A comprehensive load test simulating typical emergency power requirements. This verifies overall system performance and identifies potential issues before they escalate.

Adjustments Based on Facility Risk & Usage

• High-Risk Facilities (Hospitals, Data Centers, Critical Infrastructure): Consider load testing every 6 months or even quarterly. The cost of downtime is significantly higher.
• Facilities with Frequent Generator Use (Standby Power for UPS Systems): Increase load testing frequency to every 3-6 months. More frequent use means more wear and tear.
• Facilities with Harsh Environmental Conditions (Coastal Areas, Extreme Temperatures): Load test more frequently (every 3-6 months) to account for accelerated degradation.
• New Installations: Perform load testing at 3, 6, and 12 months after installation to ensure proper commissioning and identify any early-stage issues.
• After Repairs: Always conduct a load test after any significant repairs or maintenance work.
• Fuel Quality: Depending on fuel storage conditions (and frequency of turnover) consider more frequent fuel quality checks and associated testing.

Sample Schedule Template:

Frequency	Test Type	Duration	Purpose
Monthly	Runtime Test	30-60 minutes	Ensure starting reliability, lubrication
Quarterly	Partial Load Test (50-75%)	1-2 hours	Identify minor performance issues
Annually	Full Load Test	4-8 hours	Comprehensive performance verification
As Needed	Post-Repair/Maintenance	Varies	Validate repair effectiveness

Documentation is Key:

Maintain a detailed log of all load testing activities, including dates, results, and any corrective actions taken. This information is invaluable for tracking generator performance and optimizing the maintenance schedule.

Resources & Links

• Generac - Provides information on generator types, sizing, and maintenance.
• Cummins - A major generator manufacturer with technical resources and support.
• Kohler Power - Another significant generator manufacturer offering resources and documentation.
• Environmental Protection Agency (EPA) - Information on emissions regulations and generator operation.
• Occupational Safety and Health Administration (OSHA) - Safety guidelines for operating and maintaining generators.
• National Fire Protection Association (NFPA) - Standards and guidelines related to fire safety and generator installations.
• American Society of Mechanical Engineers (ASME) - Provides standards and resources for mechanical engineering, potentially relevant to generator design and maintenance.
• National Electrical Contractors Association (NECA) - Provides information and resources for electrical contractors who may install and maintain generators.
• Sensus - Provides power monitoring and control solutions, helpful for understanding generator load.
• Reliable Power Systems - Offers generator testing and maintenance services and resources.
