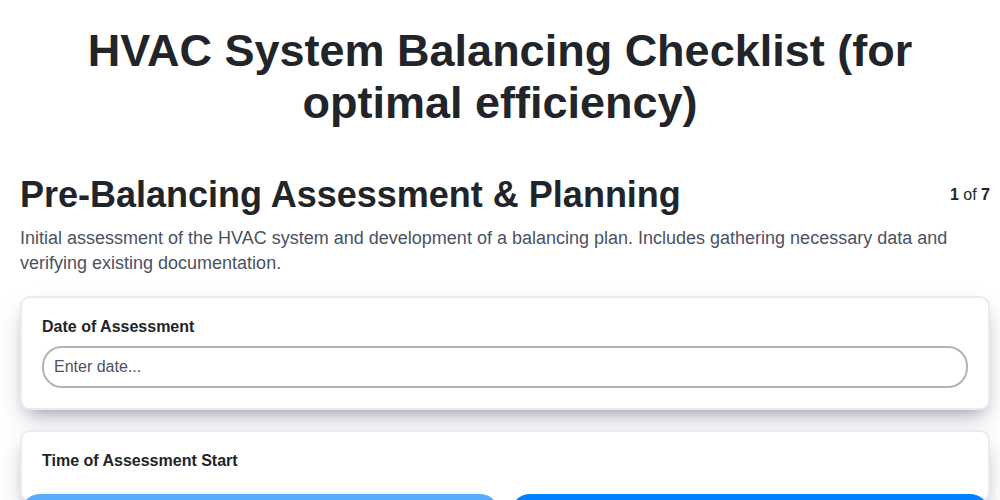

HVAC System Balancing Checklist: Your Path to Optimal Efficiency

Why HVAC System Balancing Matters

An unbalanced HVAC system isn't just about feeling a little chilly in one room and too warm in another. It's a symptom of deeper inefficiencies that impact your bottom line and the health of your building. Think of it like this: your HVAC system is a complex network designed to deliver conditioned air or water precisely where it's needed. When that network is out of sync, you're essentially throwing money away.

Here's a closer look at why HVAC system balancing is so critical:

• Energy Waste & Higher Bills: Unbalanced airflow or water flow leads to overworking certain components while others sit idle. This translates directly to increased energy consumption and, consequently, higher utility bills.
• Uneven Temperatures & Comfort Issues: Obvious discomfort for occupants is a major concern. Hot spots, cold drafts, and inconsistent temperatures can lead to decreased productivity and tenant dissatisfaction.
• Equipment Strain & Reduced Lifespan: Forcing your system to work harder than necessary accelerates wear and tear on components like fans, pumps, and compressors, leading to premature failures and costly repairs.
• Indoor Air Quality Concerns: Improper airflow can create stagnant areas where pollutants can accumulate, potentially impacting indoor air quality and occupant health.
• Noise Pollution: Unbalanced systems often operate noisier as components struggle to compensate for inefficiencies.

Ultimately, HVAC system balancing isn't just about optimizing comfort; it's about protecting your investment, enhancing sustainability, and creating a healthier, more productive environment.

Assessment & Planning - Setting the Stage

Before a single damper is touched or a valve is adjusted, a thorough assessment and planning phase is absolutely critical. This isn't about rushing into adjustments; it's about laying the groundwork for a truly effective and long-lasting balancing solution. The assessment isn't just about technical measurements; it's about understanding the context of the system. This includes a detailed review of the original system design drawings, noting intended airflow and water flow rates. We also need to understand how the building is actually used - occupancy patterns, changes in usage over time, and any unique operational requirements all influence the balancing approach.

A significant portion of this phase involves actively listening to occupants and documenting any complaints about uncomfortable temperatures, drafts, or uneven heating/cooling. These "hot spots" or "cold zones" provide valuable clues about potential imbalances. Finally, a complete inventory of all relevant components-diffusers, registers, dampers, coils, pumps, and more-must be created to establish a baseline for comparison. This initial data collection informs the entire balancing process and ensures that adjustments are targeted and effective. Without a solid foundation of assessment and planning, any subsequent balancing efforts are likely to be incomplete and may even exacerbate existing problems.

Airflow Balancing: Directing the Flow

Airflow balancing is arguably the most visible and impactful part of the overall process. It's about ensuring the right amount of conditioned air reaches each zone within your building. Think of it like directing traffic - without proper management, you're going to have bottlenecks and areas with too much or too little flow.

The process begins with careful measurement. Using a calibrated anemometer, technicians measure the actual airflow at each diffuser and register. These measurements are then compared to the design airflow rates outlined in the original system blueprints. Often, there's a significant discrepancy. Closed dampers from previous modifications, ductwork obstructions, or even simply settling over time can cause imbalances.

Adjusting dampers is the key. This isn't a "set it and forget it" operation. It involves a meticulous process of small adjustments, re-measuring, and fine-tuning until the airflow aligns with the design specifications. It's a balancing act, literally! We also troubleshoot any issues that arise - a closed damper might indicate a larger problem upstream, or a blocked duct could be restricting airflow.

Beyond simply adjusting dampers, true airflow balancing considers both supply and return air systems. A proper balance ensures that air is being drawn back to the central air handler efficiently, preventing pressure build-up and promoting better overall performance. It's about optimizing the entire airflow loop.

Hydronic System Balancing (If Applicable): Water's Role

Hydronic systems, relying on circulating water to transfer heat, are common in many commercial and institutional buildings. Balancing these systems isn't just about ensuring comfort; it's critical for energy efficiency and equipment longevity. A poorly balanced hydronic system can lead to uneven heating or cooling, increased energy consumption, and premature failure of pumps and coils.

The principle is straightforward: we need to ensure the right amount of hot or chilled water reaches each zone or coil. This isn't always the case - natural variations in pipe length, flow resistance, and valve settings can create imbalances. A zone closer to the pump might receive significantly more water than a zone further away, leading to overheating or undercooling.

Balancing involves a systematic approach. First, flow meters are strategically placed throughout the system to measure actual water flow rates. These measurements are then compared to the design flow rates specified by the engineer. If there's a discrepancy, valves are adjusted to restrict or increase flow as needed. Balancing valves, often equipped with flow indicators, are essential tools for this process.

Beyond simply adjusting valves, proper hydronic balancing also includes verifying system pressure and assessing the performance of circulating pumps. Pressure checks help identify issues like leaks or blockages, while pump performance evaluations can reveal signs of wear or inefficiency. Ultimately, a well-balanced hydronic system delivers consistent temperatures, minimizes energy waste, and protects your investment.

Static Pressure Verification: Maintaining Equilibrium

Static pressure, often overlooked, is the key to an efficiently operating HVAC system. Think of it as the "breathing" of your ductwork - it's the pressure within the system that pushes air through the vents. Incorrect static pressure can manifest as noisy operation, uneven heating or cooling, and significantly reduced system efficiency.

During static pressure verification, a qualified technician will use a manometer to measure this pressure at various points within the ductwork system. These measurements are then compared to the design specifications outlined in the original system plans. Ideally, the measured static pressure should closely match the intended values.

If the static pressure is too high, it can strain the fan motor and create excessive noise. Conversely, if it's too low, airflow can be restricted, leading to uneven temperatures and reduced heating or cooling capacity. Adjustments are then made, which may involve tweaking fan speed, strategically modifying ductwork, or addressing any obstructions within the system. Regular static pressure verification - ideally as part of a comprehensive HVAC balancing schedule - ensures your system maintains its equilibrium and operates at peak performance.

Equipment Performance Checks: Ensuring Healthy Components

Regular equipment performance checks are a crucial, often overlooked, part of the balancing process. They aren't just about adjusting airflow or water; they's about verifying the health and efficiency of the core components driving your HVAC system. A perfectly balanced system can't compensate for malfunctioning equipment. Here's a breakdown of the key checks performed:

• Refrigerant Charge Verification: Incorrect refrigerant levels in cooling systems drastically reduce cooling capacity and increase energy consumption. We're checking the pressure and saturation temperatures to ensure the proper charge.
• Coil Inspection: Cooling and heating coils accumulate dirt and debris, restricting airflow and reducing heat transfer. We inspect coils for cleanliness and potential damage, recommending cleaning or replacement as needed.
• Filter Condition: Air filters are the first line of defense against airborne contaminants. We assess their condition and replace them with clean, appropriately-rated filters to maximize airflow and indoor air quality. A clogged filter significantly impacts static pressure and overall system efficiency.
• Motor Amperage: Monitoring motor amperage draw provides valuable insight into motor health. Unusual amperage readings can indicate bearing issues, winding faults, or other problems that could lead to motor failure. Early detection allows for preventative maintenance and avoids costly downtime.
• Belt and Pulley Inspection (where applicable): Loose or damaged belts reduce efficiency and can cause excessive wear on equipment. We check belt tension and alignment.

Documentation & Reporting: Tracking Your Progress

Detailed documentation isn't just a good practice - it's essential for long-term HVAC system health and efficient operation. A comprehensive balancing report serves as a historical record, providing invaluable data for future maintenance, troubleshooting, and system upgrades.

Your balancing report should include, at minimum:

• Initial System Conditions: A thorough description of the existing system, including make/model numbers of equipment, ductwork layout, and any known issues.
• Measurement Data: Raw data collected during the balancing process, including airflow readings, static pressure measurements, and water flow rates. Clearly label each measurement with the location and date.
• Adjustments Made: A detailed log of every adjustment made to dampers, valves, and other components. Include the initial and final settings for each adjustment.
• Calculations & Analysis: Any calculations performed to verify results and analyze system performance.
• As-Built Drawings: Updated drawings reflecting the final balanced state of the system. These are critical for future reference and maintenance.
• Recommendations: Any recommendations for additional repairs, improvements, or preventative maintenance.

Beyond the report itself, consider maintaining digital records of all balancing data, accessible to building maintenance staff. This allows for easy comparison of results over time, proactive identification of potential problems, and streamlined communication with HVAC contractors. Consistent documentation transforms balancing from a one-time event into an ongoing process of system optimization.

Post-Balancing Verification: Sustaining Peak Efficiency

The initial balancing adjustments are just the beginning. To truly sustain peak efficiency and occupant comfort, a thorough post-balancing verification process is essential. This isn't a one-and-done check; it's about ensuring the system's stability and identifying any lingering issues.

Immediately following the balancing work, we re-check airflow and static pressure at key locations throughout the system. This confirms that the adjustments made have stabilized and haven't drifted due to settling or other factors. It's also crucial to monitor the system over a period of days or even weeks. This extended observation allows us to detect any subtle shifts or performance degradation that might not be immediately apparent.

Beyond simply re-measuring parameters, the post-balancing verification involves subjective assessments. We solicit feedback from occupants regarding temperature consistency and comfort levels. Any reports of hot or cold spots warrant further investigation and potential fine-tuning of the system.

Finally, we recommend establishing a schedule for periodic re-balancing - typically every 1 to 3 years, depending on the system's complexity, building usage patterns, and equipment age. This proactive approach helps maintain optimal performance, prevent costly repairs, and ensure long-term energy savings. Think of it like preventative maintenance for your HVAC system's efficiency.
