HVAC System Efficiency Audit Checklist Template

Introduction: Why an HVAC Efficiency Audit Matters

Your building's HVAC system quietly works behind the scenes, keeping occupants comfortable and productive. But have you ever stopped to consider how much energy that system consumes? In many cases, outdated or poorly maintained HVAC systems are significant energy drains, silently contributing to higher operating costs and a larger environmental footprint.

An HVAC efficiency audit isn't just about saving a few dollars on your next utility bill; it's about taking a proactive approach to building performance. It's an investment in long-term sustainability, improved comfort, and potentially extended equipment lifespan. Think of it as a health check for your HVAC system - identifying weaknesses, optimizing performance, and ensuring it's working as efficiently as possible. Ignoring these potential issues can lead to costly repairs down the line, decreased occupant comfort, and a missed opportunity to contribute to a greener future. Let's explore how a comprehensive audit can unlock these benefits.

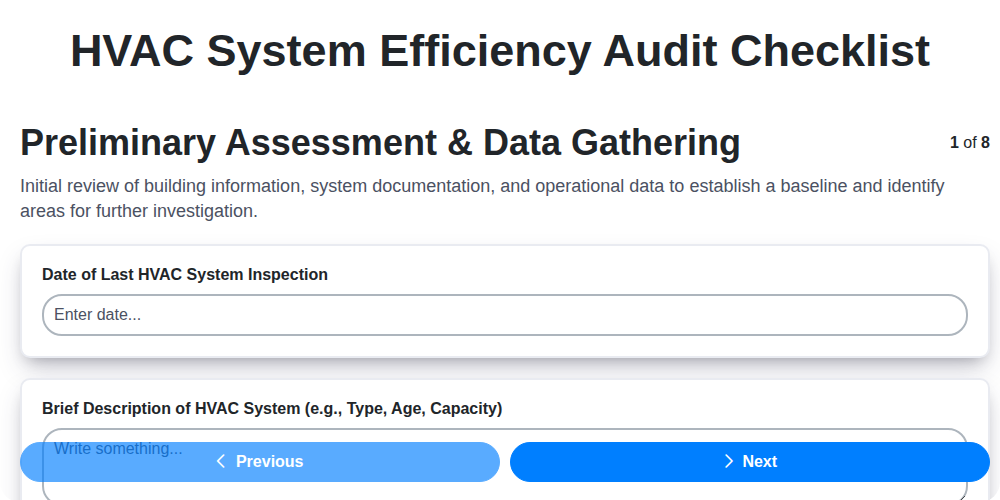

Preliminary Assessment & Data Gathering

Before we dive into the nitty-gritty of equipment inspections and calculations, the foundation of any successful HVAC efficiency audit is a thorough preliminary assessment and data gathering phase. Think of it as the detective work that sets the stage for targeted improvements. This initial step isn't about fixing anything yet; it's about understanding the current situation.

We start by collecting information about your building's history. This includes understanding its age, construction type (e.g., brick, metal, concrete), any previous renovations or upgrades, and a review of existing maintenance records. Knowing what's been done in the past helps us identify potential problem areas and understand the evolution of the system.

Next, we examine your building's operational patterns. We're interested in understanding occupancy schedules - when is the building occupied, and how does this impact HVAC usage? We'll carefully review historical utility bills (electricity, gas, and water) to identify trends, spikes in consumption, and potential anomalies that warrant further investigation. Even seemingly minor fluctuations can provide valuable clues.

Finally, a preliminary walkthrough allows us to visually assess the system. This isn't a detailed inspection at this point, but a chance to spot obvious issues like visible signs of corrosion, leaks, or equipment that appears to be operating unusually. This initial impression forms the basis for more focused investigation in later phases. All this information combined paints a clear picture of the current state, allowing us to develop a targeted and effective audit strategy.

Building Information & History

Understanding a building's history and current operational context is the crucial first step in any meaningful energy audit. We don't just look at equipment; we delve into the narrative of how the building has been used and modified over time. This includes gathering information on:

• Original Design & Construction: Knowing the year of construction, original design intent (e.g., office, manufacturing, retail), and initial HVAC system specifications provides a baseline understanding. Architectural drawings and original equipment manuals, if available, are invaluable.
• Previous Renovations & Retrofits: Documenting any past renovations, especially those involving HVAC system modifications or building envelope changes, is essential. This helps identify potential conflicts, assess the impact of previous upgrades, and understand how the building's energy performance has evolved.
• Occupancy & Usage Patterns: A detailed understanding of how the building is occupied - typical hours of operation, occupancy density, and types of activities taking place - informs load calculations and reveals opportunities for optimization. Changes in occupancy over time can significantly affect energy demand.
• Past Maintenance Records: Examining maintenance logs, repair orders, and other documentation provides insights into the system's reliability, recurring issues, and the effectiveness of past maintenance strategies.
• Tenant Profiles (if applicable): For buildings with multiple tenants, understanding their individual usage patterns and equipment loads is vital for tailored recommendations.
• Previous Energy Audits (if available): Analyzing prior audit reports can reveal past findings, implemented recommendations, and track performance improvements over time.

Utility Bill Analysis

Analyzing your utility bills is often the first, and surprisingly informative, step in an HVAC efficiency audit. It's about more than just noting the total cost; it's about understanding trends, identifying anomalies, and establishing a baseline for future improvements. Here's what we look for:

• Historical Data: We review at least 12-24 months of utility bills (electricity, gas, water - depending on your HVAC system) to establish historical energy consumption patterns.
• Seasonal Variations: Examining bills across different seasons reveals how your HVAC system performs under varying load conditions (peak summer, harsh winter, etc.). Significant deviations from expected seasonal trends can indicate inefficiencies.
• Demand Charges: For commercial buildings, demand charges (fees based on peak electricity usage) can be a major expense. We analyze demand patterns to identify opportunities to reduce peak demand.
• Rate Structure: Understanding your utility rate structure (time-of-use rates, tiered rates) is crucial for optimizing energy usage and minimizing costs.
• Benchmarking: Comparing your building's energy performance against similar buildings (benchmarking) can highlight areas where you'll see the biggest savings opportunities. We use industry-standard metrics like Energy Use Intensity (EUI) to make these comparisons.
• Identifying Anomalies: Sudden spikes or drops in energy consumption can signal problems with equipment or control systems. We investigate these anomalies to pinpoint the root cause.

Initial Visual Inspection

The first step in any thorough HVAC efficiency audit is a detailed visual inspection. This isn't just a quick glance; it's a methodical examination of all accessible equipment and components. We're looking for obvious signs of trouble that can often indicate underlying inefficiencies.

During this phase, we're assessing the physical condition of everything from chillers and boilers to air handling units and ductwork. Signs of corrosion, rust, leaks, or damage are all red flags. We're checking for proper insulation on pipes and ducts, looking for signs of rodent or insect infestation, and noting the overall cleanliness of equipment. Even seemingly minor observations, like a consistently dirty air filter, can provide valuable clues about the system's performance.

This initial walkthrough helps us form a preliminary understanding of the system's health and highlights areas that warrant further, more in-depth investigation. It's also a crucial opportunity to gather anecdotal information from building operators-their experiences and observations often provide invaluable context to what we see. Essentially, this visual inspection sets the stage for a more targeted and efficient audit process.

Understanding Heat Transfer: Why Your Building's Envelope Matters

The building envelope - encompassing your walls, roof, windows, and doors - acts as the first line of defense against the relentless forces of heat gain in summer and heat loss in winter. It's more than just keeping the elements out; it's about minimizing the rate at which energy is transferred. A poorly performing envelope significantly increases the load on your HVAC system, leading to higher energy bills and reduced comfort.

During Phase 2, we meticulously evaluate your building's envelope, going beyond a superficial glance. This involves a detailed assessment of several key areas:

• Insulation Levels: We're not just looking for missing insulation; we're measuring R-values (a measure of thermal resistance) to ensure adequate protection in walls, ceilings, and floors. Older buildings often have insulation that has settled or degraded over time, significantly reducing its effectiveness.
• Window Performance: Windows are often a major source of heat gain and loss. We analyze U-values (a measure of heat transfer) and Solar Heat Gain Coefficient (SHGC - how much solar heat enters through the window). Single-pane windows, even with treatments, are significantly less efficient than modern, double- or triple-pane options with low-E coatings.
• Air Leakage (Infiltration): Gaps and cracks in the building envelope allow conditioned air to escape and unconditioned air to enter. We utilize techniques like blower door testing to quantify air leakage rates and identify problem areas.
• Thermal Bridging: Areas where heat can easily transfer through materials, bypassing insulation. This often occurs at intersections of different building materials (e.g., concrete slabs meeting exterior walls).

Load Calculation: The Foundation for Efficient HVAC Design

Once we're satisfied with the envelope assessment, we move on to load calculation. This isn't just about guessing how much heating or cooling your building needs. It's a precise, data-driven process that considers:

• Climate Data: Average temperatures, humidity levels, and solar radiation for your location.
• Building Orientation: How your building faces the sun affects solar heat gain.
• Occupancy & Internal Loads: The heat generated by people, lighting, and equipment within the building.
• Envelope Characteristics: The insulation levels, window performance, and air leakage rates we'd already evaluated.

By combining these factors, we can accurately determine the peak heating and cooling loads your building experiences. This information is vital for ensuring that your HVAC system is appropriately sized - avoiding oversized systems that waste energy and undersized systems that struggle to maintain comfortable temperatures. It forms the foundation for optimizing your HVAC system's efficiency and ensuring long-term energy savings.

Envelope Assessment: Identifying Heat Loss & Gain

The building envelope - your walls, roof, windows, and doors - is your first line of defense against the elements and a major factor in energy efficiency. A thorough envelope assessment goes beyond a quick visual inspection. We're looking for the subtle vulnerabilities that can lead to significant heat loss in the winter and unwanted heat gain in the summer, directly impacting your energy bills and comfort levels.

Here's what we examine:

• Insulation Levels: We're not just looking for insulation; we're verifying its type and thickness. Older buildings may have insufficient or degraded insulation in walls and attics, while newer construction may benefit from upgrades to higher-performance materials. We use tools like thermal imaging to identify areas of heat loss.
• Window Performance: Windows are often a primary source of heat transfer. We analyze their U-values (a measure of heat transfer) and Solar Heat Gain Coefficient (SHGC, a measure of solar heat gain) to determine their effectiveness. Single-pane windows are notoriously inefficient and are often candidates for replacement with double- or triple-pane, low-E coated windows. We also check for air leaks around window frames.
• Air Leakage (Infiltration): Air leaks, even small ones, can significantly impact energy consumption. We use techniques like blower door testing to measure the overall air leakage rate of the building. Common leakage points include gaps around doors, windows, electrical outlets, and where pipes and wires penetrate the building envelope.
• Roof Condition: A damaged or poorly maintained roof can lead to significant heat loss. We assess the condition of roofing materials, flashing, and any existing insulation.
• Wall Construction: Understanding the construction of your walls - brick, siding, concrete - helps us identify potential weaknesses and recommend appropriate solutions. Thermal bridging, where heat flows more easily through certain materials, is a critical factor we investigate.

By identifying and addressing envelope weaknesses, we can dramatically reduce energy consumption and improve the overall performance of your building.

Understanding Your Building's Thermal Fingerprint

Load calculation isn't just about crunching numbers; it's about understanding your building's unique thermal fingerprint. It's the foundation upon which all other efficiency measures are built. A load calculation determines precisely how much heating and cooling your building requires at different times, considering a wide range of factors.

Traditionally, load calculations were often estimations based on square footage and general assumptions. However, modern methods utilize sophisticated software and detailed data to create a much more accurate picture. These calculations consider:

• Building Envelope Characteristics: This includes the materials used in walls, roofs, and windows, as well as their insulation values (R-values) and solar heat gain coefficients (SHGC). A poorly insulated building will naturally require more energy to maintain comfortable temperatures.
• Climate Data: Local weather patterns, including temperature, humidity, and solar radiation, play a significant role.
• Occupancy Patterns: How many people are typically in the building, and when, impacts internal heat gains.
• Internal Heat Gains: Heat generated by occupants, lighting, equipment (computers, servers, kitchen appliances), and other sources.
• Orientation: The direction your building faces impacts solar heat gain throughout the day. A south-facing building will receive significantly more solar energy than a north-facing one.
• Shading: The presence of trees, neighboring buildings, or overhangs that provide shade can reduce solar heat gain.

Why is an Accurate Load Calculation Crucial?

• Right-Sized Equipment: Over-sizing HVAC equipment leads to inefficiency, higher initial costs, and shorter equipment lifespan. Under-sizing results in inadequate heating or cooling.
• Optimized Zoning: A detailed load calculation helps determine the optimal zoning of your building, ensuring that different areas receive the appropriate amount of heating or cooling.
• Targeted Efficiency Measures: By pinpointing areas with high heat gains or losses, you can prioritize energy-saving improvements where they're most effective.
• Improved Comfort: An accurate load calculation helps maintain consistent and comfortable temperatures throughout the building.

Equipment and System Inspection

A thorough inspection of your HVAC equipment and systems is the cornerstone of a successful efficiency audit. This phase moves beyond visual assessment and involves detailed performance testing to pinpoint inefficiencies and potential issues. Our team utilizes specialized tools and techniques to evaluate each component, ensuring a comprehensive understanding of its operational status.

Here's what we examine during this crucial phase:

• Chillers: We analyze cooling capacity, efficiency ratios (EER/COP), refrigerant pressures and temperatures, and condenser fouling. Leak detection is a priority, as refrigerant loss significantly impacts efficiency and presents environmental concerns. Vibration analysis can also identify potential mechanical problems.
• Boilers: Combustion efficiency is a key metric we assess, along with heat output and flue gas analysis to identify potential problems like incomplete combustion or excessive emissions. We check for scale buildup and corrosion within the boiler system.
• Air Handling Units (AHUs): We evaluate fan motor efficiency, coil cleanliness and condition (both heating and cooling coils), and air leakage rates. Duct static pressure measurements are taken to assess airflow distribution. Filter condition is also checked and documented.
• Variable Frequency Drives (VFDs): We verify proper functionality and programmed settings to ensure optimal energy savings. Diagnostic testing is performed to identify any faults or communication issues.
• Pumps: We assess pump performance curves, impeller condition, and motor efficiency. Bearing lubrication and seal integrity are also checked.
• Cooling Towers: We analyze water quality, approach temperatures, and fan motor efficiency. Scaling and biological growth are examined.
• Terminal Units (VAV Boxes, Fan Coil Units): These units are evaluated for proper operation, damper position, and airflow delivery. Calibration and maintenance records are reviewed.

The data collected during this inspection phase forms the basis for identifying opportunities for improvement and developing targeted recommendations. It provides a clear picture of the current state of your HVAC systems and sets the stage for maximizing energy efficiency and minimizing operational costs.

Equipment Performance Evaluation (Chillers, Boilers, AHUs)

This phase focuses on the core of your HVAC system: the chillers, boilers, and air handling units (AHUs). It's about moving beyond a visual inspection and delving into quantifiable performance data.

Chillers: We're not just checking for leaks; we're measuring cooling capacity, condenser and evaporator temperatures, refrigerant pressures, and overall energy efficiency (often expressed as Coefficient of Performance or COP). A properly functioning chiller delivers maximum cooling with minimal energy input. Refrigerant charge verification is crucial, as undercharging or overcharging significantly impacts performance and can damage the compressor. Vibration analysis can also identify early signs of mechanical failure.

Boilers: Combustion efficiency is paramount. We assess burner operation, flue gas analysis (measuring oxygen, carbon dioxide, and carbon monoxide levels), heat output, and draft conditions. Inefficient combustion means wasted fuel and increased emissions. We also examine burner components for wear and tear, and check for proper venting and safety controls. Scale buildup within the boiler is also a common issue, impacting heat transfer and efficiency.

Air Handling Units (AHUs): Beyond checking for leaks in the fan housing, we're analyzing fan motor efficiency (measuring power consumption), coil cleanliness (which affects heat transfer), and airflow rates. Variable Frequency Drives (VFDs) on AHU fans are scrutinized to ensure they're operating correctly and providing the anticipated energy savings. Differential pressure across filters is monitored to determine when replacement is necessary, avoiding unnecessary energy waste from overworked fans. Coil cleanliness is assessed visually and using specialized tools.

Ductwork and Air Distribution Assessment

Ductwork is the highway for conditioned air within your building. Unfortunately, it's also a common source of energy loss and comfort issues. A thorough assessment of your ductwork and air distribution system goes beyond a simple visual inspection; it's about quantifying losses and identifying opportunities for improvement.

Our team utilizes a multi-faceted approach, including:

• Visual Inspection & Leak Detection: We meticulously examine all accessible ductwork for visible leaks, damage, and inadequate insulation. We employ techniques like smoke wand testing to pinpoint even small leaks that are otherwise undetectable.
• Static Pressure Measurement: This critical measurement helps us understand the resistance to airflow throughout the system. High static pressure indicates constricted airflow, which can strain HVAC equipment and increase energy consumption.
• Airflow Balancing: We use calibrated instruments to measure airflow to each zone and compare it to design specifications. Imbalances can lead to uncomfortable temperature variations and wasted energy. We'll identify areas that receive too much or too little air.
• Insulation Assessment: We evaluate the condition and R-value of duct insulation, identifying areas where it's missing, damaged, or insufficient. Proper insulation minimizes heat gain or loss, significantly improving overall efficiency.
• Duct Sealing Recommendations: Based on our findings, we're able to suggest specific duct sealing techniques - from simple tape and sealant applications to more complex solutions like duct liner replacement - with estimated cost and performance benefits.

Effective ductwork assessment is key to ensuring your building delivers consistent comfort and minimizes energy waste.

Control System Analysis & Optimization

The control system is the brain of your HVAC operation, orchestrating the interplay of equipment to maintain desired conditions. A thorough analysis goes beyond simply verifying that it's "on." We delve into its programming, sequencing, and responsiveness to building conditions.

Our control system analysis includes:

• Sequencing Review: We meticulously examine the programmed sequences - the step-by-step instructions that dictate how the system responds to changes in temperature, occupancy, and time of day. Are these sequences optimized for efficiency and comfort, or are they outdated or unnecessarily complex?
• Setpoint Optimization: Temperature setpoints are a delicate balance. We evaluate current setpoints to determine if they can be adjusted without compromising occupant comfort, potentially yielding significant energy savings. This involves considering factors like nighttime setback and demand response capabilities.
• Sensor Calibration and Verification: Accurate data is essential for effective control. We verify that all temperature, humidity, and pressure sensors are properly calibrated and functioning correctly. A faulty sensor can lead to inaccurate readings and inefficient operation.
• Fault Detection & Diagnostics (FDD): Many modern control systems incorporate FDD capabilities. We leverage these tools to proactively identify and diagnose faults, preventing minor issues from escalating into major problems. This can include identifying stuck damper positions, inefficient pump operation, or refrigerant leak indicators.
• Trending and Historical Data Analysis: Examining historical control system data allows us to identify patterns, anomalies, and potential areas for improvement that might not be apparent during a single snapshot inspection. This helps uncover inefficient behaviors and informs data-driven optimization strategies.
• Integration Assessment: If your HVAC system is integrated with other building systems (lighting, security, etc.), we assess the effectiveness of this integration and identify opportunities for enhanced coordination and efficiency.
