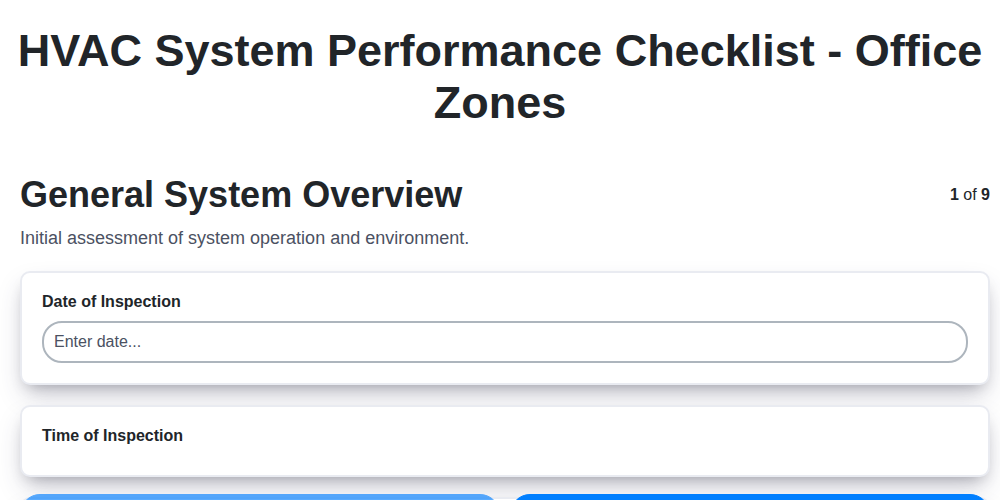

Hvac System Performance Checklist: Office Zones

Understanding Your Office HVAC System

Your office HVAC system isn't just one big machine; it's a complex network working to provide comfortable and healthy conditions for your employees. At its core, it's designed to control temperature, humidity, and air quality. Let's break down the key components you're likely to encounter.

Air Handling Units (AHUs): These are the workhorses of your system, responsible for drawing in fresh air, filtering it, conditioning it (heating or cooling), and distributing it throughout your office zones. They often house filters, coils, and fans.

Fan Coil Units (FCUs): Found in many offices, FCUs provide localized heating and cooling. They use a coil and a fan to distribute conditioned air directly into individual rooms or zones.

Variable Air Volume (VAV) Boxes: These smart devices regulate airflow to specific zones based on their temperature demands. VAV boxes are crucial for energy efficiency and personalized comfort.

Chillers and Boilers: These components generate the chilled water or hot water used to cool or heat the building. They's typically part of a larger central plant system.

Ductwork: This network of pipes and channels distributes conditioned air throughout the office space. Properly sealed and insulated ductwork is vital for efficiency.

Understanding these basic components will give you a better appreciation for how your office HVAC system operates and why regular maintenance is so important.

General System Overview: A Baseline Assessment

A thorough general system overview sets the stage for all subsequent checks. It's about establishing a baseline understanding of your HVAC system's history, design, and current configuration. Start by documenting the age of the entire system and each major component - AHUs, FCUs, chillers, and boilers. Older equipment is naturally more prone to issues and may require more frequent maintenance.

Next, review any existing system layout drawings or design specifications. Confirm that the current physical layout matches the original design. Any alterations or modifications made over time should be carefully recorded, as they can significantly impact system performance. Note the type of HVAC system you have (e.g., packaged units, chilled water system, VRF), as this dictates the specific checks required. Finally, verify that zone boundaries align with intended areas; misaligned zones can lead to discomfort and inefficient operation. A clear understanding of these foundational aspects allows for more accurate interpretation of subsequent performance data and facilitates proactive problem-solving.

Airflow & Distribution: Ensuring Even Comfort

Proper airflow and distribution are the cornerstones of a comfortable and energy-efficient office environment. Uneven airflow can lead to hot or cold spots, drafts, and general discomfort for employees, impacting productivity and satisfaction. A poorly distributed system also wastes energy, as it's working harder than it needs to.

Here's what to look for to ensure consistent comfort:

• Inspect Supply Registers & Return Grilles: Begin with a visual assessment. Are registers blocked by furniture or other obstructions? Are return grilles free of debris or obstructions that restrict airflow? Adjust register direction to optimize throw and coverage.
• Ductwork Integrity: While a full duct leakage test may require specialized equipment, a visual inspection can reveal obvious issues. Look for disconnected ductwork, tears, or crushed sections. Insufficient insulation on ductwork can also lead to temperature losses and affect overall system efficiency.
• Air Changes Per Hour (ACH): Ideal ACH varies by zone and activity level, but a measurement can help determine if airflow is adequate. Too low, and the space won't be properly ventilated. Too high, and it can create drafts and energy waste.
• Exhaust Fan Performance: Proper exhaust ventilation is critical for removing stale air and pollutants. Verify that exhaust fans are operating efficiently and that airflow rates are within design specifications. Listen for unusual noises or vibrations that could indicate problems.
• Balancing Dampers (if applicable): If your system utilizes balancing dampers, ensure they are appropriately adjusted to distribute airflow evenly across all zones. Improper balancing can lead to significant discomfort and energy waste.

Temperature & Humidity: Maintaining Ideal Conditions

Maintaining comfortable temperature and humidity levels is paramount for employee productivity and overall wellbeing. Fluctuations in either can lead to discomfort, decreased focus, and even health issues. Beyond personal preference, specific industries may have regulatory requirements for environmental conditions.

Here's a closer look at how to assess and maintain optimal levels:

Zone Temperature Assessment: The ideal temperature range for most office environments typically falls between 72-78°F (22-26°C). However, this range can be adjusted based on factors like clothing, activity level, and individual preferences. Regularly measuring temperatures throughout each zone, using a calibrated thermometer, will help identify areas that are consistently outside this range. Document these readings and investigate the root cause - is it a zoning issue, equipment malfunction, or airflow problem?

Humidity's Role: Humidity is often overlooked, but it's a critical component of comfort. Excessively high humidity (above 60%) can create a sticky, uncomfortable feeling and promote mold growth. Conversely, low humidity (below 30%) can lead to dry skin, irritated sinuses, and static electricity. A comfortable humidity level generally falls between 30-60%.

Addressing Imbalances: If temperatures or humidity are consistently outside the ideal range, consider the following:

• Equipment Calibration: Ensure thermostats and humidity sensors are accurately calibrated.
• Airflow Adjustments: Optimize airflow to distribute conditioned air evenly.
• Dehumidification/Humidification: Employ dehumidifiers or humidifiers to adjust moisture levels as needed.
• Building Envelope: Examine the building's insulation and sealing to minimize heat gain or loss.

Regular monitoring and proactive adjustments will ensure a consistently comfortable and healthy environment for everyone.

Equipment Health Check: AHUs, FCUs, and VAVs

The heart of your HVAC system lies in its core components: Air Handling Units (AHUs), Fan Coil Units (FCUs), and Variable Air Volume (VAV) boxes. Consistent and thorough checks of these units are crucial for maintaining optimal performance, energy efficiency, and occupant comfort. Here's a breakdown of what to look for during a routine health check:

Air Handling Units (AHUs):

• Fan Motor Performance: Monitor motor amperage draw. Significant deviations from rated values can indicate bearing issues, motor winding problems, or imbalances. Inspect belts (if applicable) for wear and proper tension. A loose or worn belt reduces efficiency and can cause noise.
• Coil Condition: Dirty coils restrict airflow and reduce cooling/heating capacity. Schedule regular coil cleaning according to manufacturer recommendations - typically every 6-12 months depending on operating conditions.
• Drainage: Verify condensate drain lines are clear and free of obstructions. Blocked drains can lead to water damage and promote mold growth.
• Filters: Consistent filter replacement is paramount. Check filter pressure drop regularly (using a manometer) and replace filters according to the manufacturer's schedule, or sooner if pressure drop is excessive.
• Bird/Rodent Exclusion: Check for signs of animal intrusion, which can damage wiring and insulation.

Fan Coil Units (FCUs):

• Fan Operation: Listen for unusual noises emanating from the fan, which could indicate bearing problems or imbalances.
• Water Valve Functionality: (For hydronic FCUs) Check water valve operation and monitor water temperature for proper heat exchange.
• Coil Cleanliness: Similar to AHUs, FCU coils accumulate dust and debris, reducing efficiency. Regular cleaning is essential.
• Airflow: Ensure proper airflow across the coil by checking supply and return registers.

Variable Air Volume (VAV) Boxes:

• Damper Positioning: Observe damper movement and ensure it responds accurately to zone temperature demands. Test damper actuator functionality.
• Airflow Verification: Verify airflow within the VAV box matches the design specifications. Use a flow meter to measure airflow if discrepancies are suspected.
• Static Pressure: Monitor static pressure readings to identify potential obstructions or ductwork issues.
• Control Signal: Confirm the VAV box is receiving the correct control signal from the building automation system (BAS).

Noise & Vibration: Identifying Potential Issues

Unusual noises or excessive vibration from your HVAC system are often early warning signs of underlying problems. Ignoring these indicators can lead to equipment failure, reduced efficiency, and even discomfort for occupants. Here's what to listen and feel for, and what those signs might indicate:

What to Listen For:

• Banging or Clanging: This could signify loose components, ductwork resonance, or issues with fan blades.
• Whining or Squealing: Often a sign of failing bearings in motors or fans.
• Rattling: Loose panels, screws, or ductwork are common culprits.
• Hissing: Might point to refrigerant leaks - a serious issue requiring immediate attention.
• Humming: Can be normal in some systems, but a change in the hum's intensity or frequency should be investigated.

What to Feel For:

• Excessive Vibration: Use your hand to feel for vibrations on equipment housings, ductwork, and piping. Significant vibration indicates imbalance or mechanical stress.
• Panel Rattling: Check for panels that vibrate and rattle during operation.
• Ductwork Movement: Feel for excessive movement of ductwork - it could signify inadequate supports or internal airflow issues.

Potential Causes & Recommended Actions:

• Loose Components: Tighten screws and bolts.
• Unbalanced Fans: Requires professional balancing by an HVAC technician.
• Failing Bearings: Professional repair or replacement of motor or fan.
• Ductwork Resonance: Redesign ductwork supports or airflow paths.
• Refrigerant Leaks: Contact a certified HVAC technician immediately.

Don't dismiss these sounds and vibrations as normal. Proactive investigation can save you from costly repairs and ensure a comfortable and efficient workspace.

Energy Efficiency & Consumption: Minimizing Costs

HVAC systems are significant energy consumers in office environments. Identifying opportunities for efficiency gains isn't just good for the environment; it directly impacts your bottom line. Start by analyzing your energy bills over the past year. Look for trends - are costs consistently rising, or are there seasonal spikes? These patterns can reveal underlying issues.

Beyond bill analysis, a deeper dive into system performance is crucial. Regularly check the power factor - a reading significantly below 1.0 indicates potential inefficiencies that can be addressed. Ensure your economizer cycle is functioning correctly, allowing for free cooling when outdoor temperatures and humidity are suitable. Dirty coils drastically reduce system efficiency, so incorporate regular coil cleaning into your maintenance schedule. Don't overlook the seemingly small things - ensuring proper insulation of ductwork and sealing any leaks can prevent energy loss. Implementing smart thermostats and optimizing building automation systems can also yield substantial savings by adjusting temperature settings based on occupancy and time of day. Consider performing an energy audit to pinpoint specific areas for improvement and quantify potential cost savings.

Control System Performance: Optimizing Responsiveness

Your HVAC control system is the brain of your entire operation, dictating how and when your equipment runs. A sluggish or poorly calibrated system can lead to temperature fluctuations, wasted energy, and frustrated occupants. Here's how to assess and optimize its performance:

Verify Setpoint Accuracy: Confirm that the programmed temperature setpoints for each zone are correct and aligned with desired comfort levels. Minor discrepancies can significantly impact occupant satisfaction and energy consumption.

Schedule Adherence: Ensure the system is following the programmed operating schedule. Are zones being conditioned during unoccupied hours unnecessarily? Review and adjust schedules as needed, factoring in occupancy patterns.

Sensor Calibration is Key: Temperature and humidity sensors degrade over time. Regularly check their accuracy using calibrated references. Recalibration or replacement is often necessary to maintain precision.

Communication Check: Verify seamless communication between all components - thermostats, controllers, VAV boxes, AHUs, and the central building management system (BMS). Interrupted communication can lead to erratic behavior and inaccurate readings. Look for error messages or unusual data patterns.

Advanced Control Algorithms: Are your control algorithms (e.g., PID loops) properly tuned? Overly aggressive tuning can cause instability, while under-tuned loops will be slow to respond to changes. Consider engaging an HVAC professional to optimize these settings for peak performance.

Trend Logging & Analysis: Utilize the trend logging capabilities of your BMS to monitor key performance indicators (KPIs) such as zone temperatures, damper positions, and fan speeds. Analyzing trends can reveal hidden inefficiencies and potential problems before they escalate.

Demand Response Integration: If your facility participates in demand response programs, ensure the control system is properly configured to respond to signals and reduce energy consumption during peak demand periods.

Safety First: Protecting Your Workspace

HVAC systems, while essential for comfort and productivity, present potential safety hazards if not properly maintained and inspected. Prioritizing safety should be paramount in any HVAC performance evaluation.

Potential Risks & How to Mitigate Them:

• Carbon Monoxide (CO) Poisoning: Gas-fired heating equipment poses a risk of CO leakage. Regularly inspect and maintain combustion equipment, and ensure functional CO detectors are installed and tested.
• Refrigerant Leaks: Exposure to refrigerant can cause respiratory issues and other health concerns. Look for signs of leaks (oily residue, hissing sounds) and address them immediately. Ensure proper ventilation during any refrigerant handling.
• Electrical Hazards: HVAC systems utilize significant electrical power. Inspect wiring, connections, and equipment for damage or deterioration. Always de-energize equipment before performing maintenance.
• Slips, Trips, and Falls: Accessing HVAC equipment often requires working at heights or in confined spaces. Use appropriate fall protection and follow safe access procedures. Keep work areas clean and free of obstructions.
• Noise Exposure: Prolonged exposure to loud HVAC equipment can damage hearing. Utilize hearing protection when performing maintenance or working near noisy components.

Remember: If you are unsure about any safety procedures or encounter a potential hazard, consult with a qualified HVAC professional. A safe workspace is a productive workspace.
