The Ultimate PDU Inspection Checklist Template

Why a PDU Inspection Checklist is Essential

A consistent, well-documented inspection process isn't just good practice; it's fundamental for maintaining the stability of your infrastructure. Imagine relying on guesswork to identify potential problems with your power distribution. A checklist removes that subjectivity, creating a repeatable and reliable method for assessing PDU health. This standardization allows you to track trends over time, spot recurring issues quickly, and ultimately, proactively prevent costly downtime. Without a checklist, critical details can be overlooked, potentially leading to equipment failure, data loss, and significant operational disruptions. A formal checklist ensures every aspect of PDU performance is scrutinized, contributing to a safer, more reliable, and ultimately, more efficient data center or server room environment.

Before You Start: Gathering Your Tools

Before you grab your checklist and head to the PDUs, let's make sure you have the right tools to perform a thorough inspection. Having the correct equipment will not only make the process more efficient but also ensure accurate and reliable results. Here's a list of essentials:

• Multimeter: Absolutely critical for measuring voltage, current, and checking for continuity. A digital multimeter (DMM) is recommended for ease of use and accuracy.
• Compressed Air: For safely removing dust and debris from the PDU and its vents. Never use a vacuum cleaner, as it can create static electricity.
• Flashlight/Headlamp: Essential for inspecting PDUs in dimly lit areas or inside racks.
• Screwdrivers (Various Sizes): You may need these to access internal components or remove panels for a closer inspection (check your PDU's manual first).
• Label Maker/Pen & Paper: For documenting findings and updating labels, if needed.
• Personal Protective Equipment (PPE): Safety glasses and gloves are always a good idea.
• (Optional) Outlet Tester: For advanced troubleshooting and verifying wiring integrity.
• (Optional) Thermal Camera: For identifying hotspots and assessing temperature distribution.

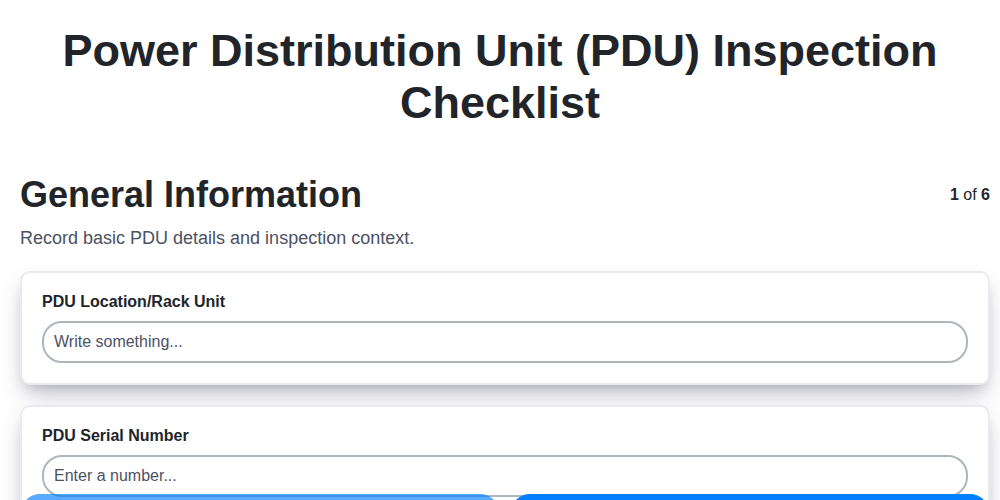

PDU Identification & General Information

Knowing your PDUs inside and out is the first step towards effective maintenance. Don't assume all PDUs are created equal - each unit has specific characteristics crucial for proper operation and troubleshooting. Here's what you need to document:

• Model Number: This is vital for accessing manufacturer specifications, troubleshooting guides, and ensuring compatibility with accessories. Locate the model number on the PDU's label, typically on the front or rear panel.
• Serial Number: Essential for warranty validation and tracking the unit's history. It's often found near the model number.
• Location: Precise rack and slot identification (e.g., Rack 12, Slot 24) allows for quick and accurate physical access during inspections and repairs.
• Circuit Breaker Ratings: Note the amperage rating for each circuit breaker. This information is critical for load balancing and preventing overloads.
• Input Voltage and Frequency: Record the nominal input voltage (e.g., 208V) and frequency (e.g., 60Hz) that the PDU is designed to operate with.
• Power Capacity: Document the overall power capacity of the PDU in Watts or Kilowatts. Understanding the maximum power it can deliver is crucial for preventing overloads.
• Phase Configuration: Identify the phase configuration (single-phase or three-phase) - this impacts how power is distributed.

Maintaining accurate records for each PDU helps streamline maintenance efforts and prevents confusion when addressing power-related issues.

Visual Inspection: A First Look

A thorough visual inspection is the easiest and often most revealing part of the PDU maintenance process. It's your opportunity to catch obvious problems before they escalate. Start by giving the entire unit a once-over, looking for anything that seems out of place or concerning.

Specifically, pay close attention to:

• The Enclosure: Scrutinize the PDU's casing for any cracks, dents, or signs of physical damage. Even minor impacts can compromise the unit's integrity.
• Cable Connections: Ensure all power cables - both incoming and outgoing - are firmly and securely connected. Look for signs of frayed wires, loose connectors, or corrosion. A loose connection can cause intermittent power disruptions.
• Outlet Condition: Inspect each individual outlet for any visible damage, corrosion, or loose pins. A damaged outlet is a potential safety hazard and should be replaced immediately.
• LED Indicators: Verify that all LED lights are functioning correctly. These indicators often provide crucial status information - if they're not illuminating as expected, it's a red flag.
• Dust and Debris: Dust accumulation can impede airflow and lead to overheating. Gently clean away any dust or debris using compressed air. Never use a vacuum cleaner, as it can create static electricity.

Electrical Performance Testing

This is where we move beyond visual checks and dig into the PDU's actual electrical performance. While a thorough assessment might require specialized equipment and expertise, even basic measurements can reveal crucial insights.

Voltage Verification: Using a calibrated multimeter, measure the input voltage at the PDU and the output voltage at a representative outlet. Compare these readings to the PDU's specified operating voltage range (typically found in the product documentation). Significant deviations indicate potential issues with the power source or internal PDU components.

Current Monitoring: Many modern PDUs feature current monitoring capabilities. Regularly review the current draw on each branch circuit. Look for unusual spikes, sustained high current loads, or unexpected fluctuations. These can point to overloaded circuits, faulty equipment, or underlying power quality problems.

Load Capacity Assessment: Calculate the total load on the PDU and compare it to its rated capacity. Overloading a PDU can lead to overheating, premature failure, and potential safety hazards. Distribute the load more evenly across circuits if necessary. A good rule of thumb is to keep your load below 80% of the PDU's maximum capacity.

Outlet Testing (Advanced): For a more comprehensive evaluation, consider using a dedicated outlet tester. These devices verify proper wiring, grounding, and polarity. This is often best left to qualified technicians.

Important Safety Note: Always disconnect power to the PDU and follow proper lockout/tagout procedures before performing any electrical testing. If you're not comfortable performing these tests yourself, consult with a qualified electrician or PDU maintenance specialist.

Environmental Assessment

Maintaining optimal environmental conditions around your PDUs is crucial for their longevity and performance. Excessive heat, humidity, and inadequate airflow can accelerate degradation and lead to premature failures. Here's a closer look at what to assess:

Temperature Monitoring: Elevated temperatures are a primary concern. Use an infrared thermometer to measure the surface temperature of the PDU. Ideally, this should stay below the manufacturer's recommended operating temperature (consult your PDU's documentation). Consistent high temperatures can shorten component lifespan and reduce efficiency.

Humidity Control: Excessive humidity can lead to corrosion and electrical shorts. Monitor the relative humidity in the room. Ideal humidity levels typically range between 40% and 60%. Consider using dehumidifiers if humidity levels consistently exceed this range.

Airflow Assessment: Proper airflow is essential for dissipating heat. Check for obstructions around the PDU that may impede airflow. Ensure that ventilation systems are operating efficiently and that air vents are not blocked by cables or other equipment. Dust buildup on vents significantly reduces airflow; regular cleaning is paramount.

Dust Mitigation: Dust accumulation is a silent enemy. Dust acts as an insulator, trapping heat and reducing the PDU's ability to dissipate it. Utilize compressed air (at low pressure) to gently remove dust from the PDU's surface and vents. Avoid using vacuums, as they can generate static electricity that can damage sensitive components. Schedule regular cleaning intervals, particularly in dusty environments.

Labeling, Documentation & Security Review

Clear and consistent labeling is more than just aesthetics; it's a critical component of safe and efficient PDU management. Ensure each outlet is clearly and permanently labeled with its corresponding circuit number or load assignment. This simplifies troubleshooting and prevents accidental disconnection of critical equipment. Regularly check the integrity of these labels - faded or missing labels can lead to confusion and errors.

Beyond physical labels, maintaining thorough documentation is equally vital. Keep records of all PDU installations, modifications, inspections, and maintenance activities. This historical data provides valuable insights for identifying trends, predicting failures, and optimizing performance. Store this documentation securely and make it accessible to authorized personnel.

Security considerations extend beyond physical access. Review user access controls to ensure only authorized individuals can modify PDU configurations or access sensitive data. Implement strong password policies and regularly audit user permissions. Consider implementing features like tamper evidence seals to detect unauthorized access or modifications. Finally, a well-organized and documented system is itself a strong security measure, reducing the likelihood of human error and facilitating quick responses to incidents.

Creating Your Customized PDU Inspection Template

While generic checklists are a great starting point, a truly effective PDU inspection program requires a customized template tailored to your specific environment and equipment. Here's how to build one:

1. Inventory Your PDUs: Begin by creating a comprehensive inventory of all your PDUs. This should include model numbers, serial numbers, locations (rack/row), and any unique configuration details. This becomes the foundation for your template.

2. Leverage Manufacturer Recommendations: Always consult the manufacturer's documentation for your specific PDU models. They often provide detailed inspection guidelines and recommended testing procedures. Incorporate these directly into your template.

3. Assess Your Risk Profile: Consider the criticality of the equipment connected to each PDU. A PDU feeding a non-critical application might require less frequent or less detailed inspections than one supporting a vital system. Adjust your checklist accordingly.

4. Add Environment-Specific Checks: Your environment dictates unique inspection considerations. For example: * High-Density Environments: Prioritize airflow checks and temperature monitoring. * Unstable Power Grids: Add checks for voltage fluctuations and transient events. * Harsh Environments (Dusty, Humid): Enhance visual inspection for signs of corrosion or damage.

5. Incorporate Findings from Past Inspections: Keep a detailed log of past inspections and any corrective actions taken. This historical data can highlight recurring issues and inform adjustments to your checklist.

6. Digital vs. Paper: Decide whether you're using a digital or paper-based checklist. Digital checklists offer advantages like easy data tracking, automated reporting, and integration with asset management systems.

7. Review and Update Regularly: Your inspection template isn't a set it and forget it document. Review and update it periodically (at least annually) to ensure it remains relevant and effective. New equipment, changing environmental conditions, and industry best practices can all necessitate modifications.
