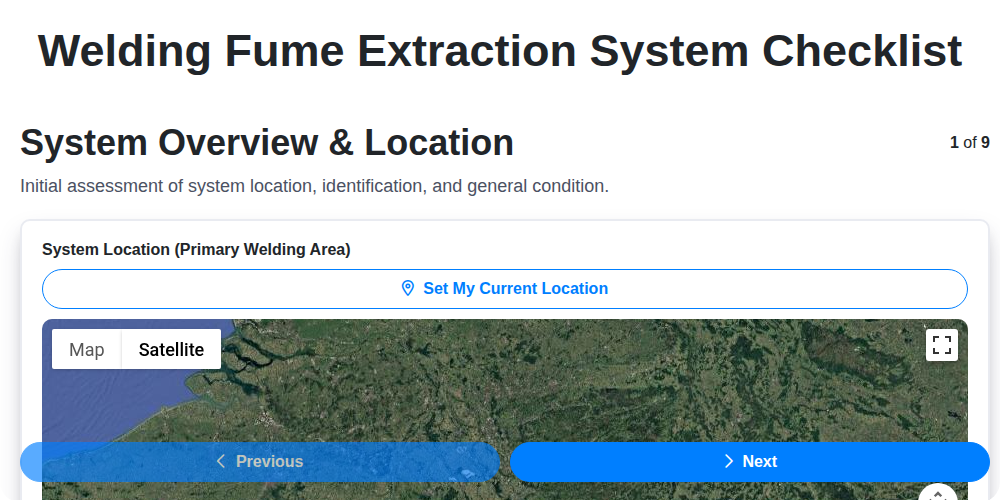

Keeping Your Workplace Safe: A Welding Fume Extraction System Checklist

System Overview & Location

Understanding your welding fume extraction system begins with knowing exactly what you have and where it's situated. This goes beyond simply knowing the manufacturer and model number. A thorough system overview includes reviewing the original design specifications - these documents detail the system's intended performance, airflow rates, filtration efficiency, and component specifications. Keep these readily accessible; they serve as your benchmark for assessing current operation.

Location is also key. Create a detailed system layout diagram, noting the location of all components: LEV hoods, ductwork runs, filters, fan, and exhaust discharge. This diagram should be updated whenever modifications are made to the welding operation or the extraction system itself. Consider environmental factors such as ambient temperature, humidity, and potential for corrosive elements, as these can impact system longevity and efficiency. Finally, ensure adequate space surrounds all components allowing for safe access and ease of maintenance.

Understanding Local Exhaust Ventilation (LEV) Hoods

Local Exhaust Ventilation (LEV) hoods are the frontline defense in capturing welding fumes at their source. Their effectiveness hinges on proper design, placement, and maintenance - making them a critical component of any successful fume extraction system. Let's break down what makes a good LEV hood and why it matters.

Types of LEV Hoods:

• Close-Capture Hoods: These are positioned as close as possible to the welding arc, typically within a few inches. They offer the highest capture efficiency but require careful positioning to avoid interference with the welding process. Examples include push-pull hoods and custom-welded enclosures.
• Side-Draft Hoods: Mounted on the side of the welding area, these hoods capture fumes as they drift away from the arc. They offer a wider area of coverage but generally have lower capture velocities compared to close-capture hoods.
• Enclosing Hoods: These hoods fully enclose the welding area, providing the most complete capture but can restrict visibility and maneuverability. They's often used for robotic welding applications.
• Portable Hoods: Ideal for mobile welding operations, these hoods are designed to be moved as needed and often incorporate flexible ducting.

Key Design Considerations:

• Capture Velocity: This is the speed at which air is drawn into the hood. It must be high enough to overcome the fumes' natural upward drift.
• Hood Shape & Size: The shape and size should be optimized for the type of welding being performed and the fumes generated.
• Material of Construction: The hood material needs to be resistant to heat, corrosion, and chemical exposure.
• Ease of Maintenance: A well-designed hood should be easy to clean and inspect.

Common Issues & Troubleshooting:

• Insufficient Capture Velocity: This can be caused by a blocked fan, leaks in the ductwork, or a poorly designed hood.
• Hood Placement: Incorrect placement can reduce capture efficiency and even push fumes back into the breathing zone.
• Damage or Wear: Regular inspection and repair of hoods are essential to maintain performance.

Properly designed and maintained LEV hoods are your first line of defense against harmful welding fumes, contributing significantly to a safer and healthier work environment.

Ductwork and Connection Integrity

The health of your fume extraction system is intrinsically linked to the integrity of its ductwork. Even a seemingly minor leak can significantly reduce capture efficiency, allowing harmful fumes to escape into the work environment. Regular inspection is key.

Start with a thorough visual assessment of all duct runs, focusing on joints, seams, and bends. Look for signs of corrosion, rust, cracks, or any physical damage. Pay close attention to areas where the ductwork passes through walls or floors, as these are common points of weakness.

Don't underestimate the value of a simple smoke test. With the fan running, introduce a visible smoke source near potential leak points (joints, seams, damaged areas). Observe the ductwork to see if the smoke is escaping. This is a highly effective way to pinpoint even small leaks that might be missed during a visual inspection.

For larger systems, consider using ultrasonic leak detectors, which can identify leaks based on the sound they produce. Remember to document all identified issues and prioritize repairs based on their severity. Addressing leaks promptly not only improves capture efficiency but also extends the lifespan of your ductwork.

Filter System Performance

Maintaining optimal filter system performance is paramount to both worker safety and system efficiency. Filter systems are the final line of defense in capturing harmful welding fumes and particulate matter, and their condition directly impacts the air quality in your workspace. Regularly assessing your filter system involves more than just visual inspection - a proactive approach incorporating performance metrics and preventative maintenance is essential.

Key Indicators of Filter Health:

• Differential Pressure: This is arguably the most critical metric. Monitor the pressure drop across the filter media using the system's gauges (if equipped). A gradual increase in differential pressure indicates dust buildup and reduced airflow. Consistently high readings necessitate cleaning or filter replacement. Establish baseline values and track changes over time to anticipate issues.
• Visual Inspection: While not a sole indicator, visual inspection can reveal surface dust loading and potential damage. Note the color and consistency of the accumulated dust-this can provide clues about the types of contaminants being captured.
• Air Quality Monitoring: Periodically assess the air quality downstream of the filter system. This can be done using air sampling equipment to verify that contaminant levels are within acceptable limits.
• Filter Efficiency: While often requiring specialized testing, periodic filter efficiency testing confirms the filter's ability to remove particulate matter at the rated level.

Maintenance Best Practices:

• Follow Manufacturer Recommendations: Adhere strictly to the filter manufacturer's guidelines for cleaning and replacement intervals.
• Cleaning Methods: Understand the appropriate cleaning methods for your filter type. Compressed air cleaning, shaking, or even chemical cleaning may be necessary. Never use methods that could damage the filter media.
• Filter Replacement: Don't delay filter replacement. Overly saturated filters become ineffective and can compromise system performance.
• Documentation: Maintain meticulous records of filter cleaning and replacement dates. This helps track filter lifespan and optimize maintenance schedules.

Fan and Motor Functionality

The fan and motor are the heart of your fume extraction system, driving the airflow that captures and removes hazardous particles. Neglecting their maintenance can lead to reduced efficiency, increased energy consumption, and ultimately, system failure. Here's what you need to check:

Motor Amperage Monitoring: Regularly monitor the motor's amperage draw using an ammeter. Compare this reading to the motor's nameplate rating. A significant increase in amperage can indicate issues like motor overloading, bearing friction, or electrical problems. Document these readings over time to establish a baseline and identify any concerning trends.

Fan Blade Inspection: Visually inspect the fan blades for any signs of damage - cracks, bends, or excessive buildup of dust and debris. Even minor damage can disrupt airflow and reduce efficiency. Clean the blades as needed, following lockout/tagout procedures.

Belt and Drive System (If Applicable): If your system uses a belt-driven fan, check belt tension regularly. A loose belt will slip, reducing fan speed and increasing energy consumption. Inspect the belt for cracks, fraying, or wear. Lubricate bearings according to the manufacturer's recommendations.

Noise and Vibration: Pay attention to any unusual noises or excessive vibration during operation. These could be signs of bearing failure, impeller imbalance, or other mechanical problems. Investigate promptly to prevent further damage.

Motor Ventilation: Ensure the motor's ventilation openings are clear of obstructions to prevent overheating. Overheating drastically reduces motor lifespan and can cause premature failure.

Pro Tip: Implementing a preventative maintenance schedule for your fan and motor, including lubrication and alignment checks, can significantly extend their operational life and reduce the risk of unexpected downtime.

Exhaust Discharge and Airflow Verification

Proper exhaust discharge and adequate airflow are the final, crucial steps in a welding fume extraction system's effectiveness. Simply capturing fumes isn't enough; they need to be safely released away from the work environment and at a sufficient volume to prevent re-entry.

Here's what to check:

Visual Inspection of the Discharge Point: Begin with a visual assessment. Ensure the exhaust discharge point is free from obstructions like building overhangs, vegetation, or accumulation of debris. Regulations often dictate minimum distances from property lines, ventilation intakes of other buildings, or pedestrian areas - verify compliance with these guidelines. Any blockage can significantly reduce airflow and increase the potential for fumes to recirculate.

Airflow Measurement - Why it Matters: Regular airflow measurement is paramount. A decrease in airflow signifies a problem somewhere in the system - potentially a clogged filter, ductwork obstruction, or a failing fan. While visual inspection is important, quantitative data provides definitive evidence of performance.

Methods for Measuring Airflow:

• Anemometer: A simple, portable anemometer can be used to measure airflow velocity at the discharge point. Record the readings and compare them to the design specifications.
• Smoke Tube/Ribbon: A simple smoke tube or ribbon can be used to visually assess the direction and velocity of the exhaust plume.
• Differential Pressure Gauges: Monitoring pressure drop across the system can indirectly indicate airflow changes.
• Professional Assessment: Consider periodic professional assessments using calibrated equipment for the most accurate results.

Documenting Results: Always record airflow measurements and any observations about the discharge point. This provides a baseline for future comparisons and helps identify trends indicating potential issues. A consistent monitoring schedule-perhaps quarterly or semi-annually-is recommended to ensure ongoing effectiveness.

System Monitoring and Alarm Checks

A robust system isn't just about initial installation; it's about continuous vigilance. Proactive monitoring and reliable alarm systems are your early warning signs for potential issues, allowing for preventative action before problems escalate into costly repairs or, more importantly, compromise worker safety.

Here's what you need to be doing:

• Regular Data Review: If your system is equipped with data logging capabilities (pressure readings, airflow rates, motor amperage, filter saturation levels), review this data regularly. Look for trends, deviations from baseline values, and any unusual spikes. Establish acceptable ranges for each parameter and flag any values that fall outside those boundaries.
• Alarm Functionality Testing: Don't assume your alarms are working just because they exist. Schedule periodic tests of all alarm functions: high filter pressure, low airflow, fan failure, motor overload, etc. Verify that the alarms trigger as expected and that the appropriate personnel are notified. Document these tests.
• Visual Indicators: Many systems utilize visual indicators (lights, gauges) to provide real-time status. Confirm these indicators accurately reflect the system's operational state during routine inspections.
• Remote Monitoring (If Applicable): If your system incorporates remote monitoring capabilities, ensure the connection is stable and that alerts are reliably transmitted to the designated recipients. Regularly test the remote access and notification systems.
• Response Protocol Validation: Have a clear, documented response protocol for each alarm condition. Ensure that all relevant personnel understand their roles and responsibilities when an alarm triggers. Regularly review and update the protocol as needed.

Maintaining Accurate Records

Maintaining meticulous records is the backbone of any successful preventative maintenance program, and your welding fume extraction system is no exception. These records aren't just about ticking boxes; they provide a vital history of your system's performance, allowing you to identify trends, predict potential issues, and justify maintenance decisions.

What should you record? At a minimum, include dates of inspections, descriptions of any issues found (even minor ones), the actions taken to resolve them, and the names of the personnel performing the work. Keep track of filter replacements, motor maintenance, duct cleaning schedules, and any modifications made to the system. Digital record-keeping is highly recommended for ease of access, searchability, and data analysis. However, ensure you also have readily available hard copies in case of system failures. Regular review of these records, ideally quarterly or annually, will highlight areas requiring attention and contribute to extending the lifespan and maintaining the efficiency of your extraction system.

Prioritizing Safety Procedures

Safety isn't just a set of rules; it's a deeply ingrained mindset. To truly protect your workforce and maintain a compliant operation, you need to move beyond simply having safety procedures to actively prioritizing them. This involves more than just ticking boxes on a checklist - it requires a commitment from every level of the organization.

Leading from the Top: Management must visibly champion safety initiatives, providing resources, training, and support. When employees see leadership prioritizing safety, they're more likely to follow suit.

Empowering Employees: Encourage open communication and provide a clear avenue for employees to report concerns without fear of reprisal. Regular toolbox talks focusing on safety best practices and near-miss analysis can be incredibly valuable.

Continuous Improvement: Safety isn't a one and done project. Regularly review and update your procedures based on incident reports, near misses, changes in processes, and evolving regulations. A proactive approach to identifying and mitigating risks is crucial.

Training and Competency: Ensure all personnel involved in welding operations receive comprehensive training on safe practices, fume extraction system operation, and emergency procedures. Refresher training should be conducted periodically to reinforce key concepts.

Accountability: Clearly define roles and responsibilities for safety. Hold individuals accountable for adhering to established procedures and addressing safety concerns promptly. Recognize and reward safe behaviors to reinforce a culture of prevention.

Diagnosing and Resolving Performance Drops

Even with diligent maintenance, your welding fume extraction system can occasionally encounter issues that impact its effectiveness. Recognizing the symptoms early and taking swift action can prevent costly downtime and ensure continued worker safety. Here's a look at some common problems and potential solutions:

1. Reduced Airflow: A noticeable drop in airflow is often the first sign of trouble. This could stem from several factors:

• Clogged Filters: This is the most frequent culprit. A significant pressure drop across the filter system indicates it's time for cleaning or replacement. Regularly check the differential pressure gauges (if equipped) and adhere to the manufacturer's recommended cleaning intervals.
• Blocked Ductwork: Debris accumulation within the ductwork can restrict airflow. A visual inspection and, if necessary, a professional cleaning are required.
• Fan Issues: A failing fan motor, damaged fan blades, or a loose belt (if applicable) can all reduce airflow. Listen for unusual noises and check motor amperage draw.
• Hood Obstruction: Ensure welding hoods are not blocked by materials or equipment.

2. Increased Fume Exposure: If workers are reporting increased fume exposure despite a seemingly functional system, investigate the following:

• Hood Misalignment: Re-evaluate the placement and angle of the extraction hoods. They may need adjustment to effectively capture fumes at the source.
• Process Changes: Has there been a shift in welding processes or materials that generate more fumes? Adjust hood placement or consider system upgrades as needed.
• Increased Production: Higher production rates can saturate the system's capacity. Evaluate whether the system is adequately sized for the current workload.
• Air Leaks: Inspect ductwork connections and hood seals for leaks, which can compromise containment.

3. High-Pressure Drop: A consistently high pressure drop across the system, even after filter maintenance, can point to deeper issues:

• Ductwork Restrictions: Investigate for obstructions beyond simple debris, such as collapsed or damaged ductwork sections.
• System Sizing: The system may be undersized for the welding operation's demands.
• Fan Performance Degradation: The fan motor may be losing efficiency.

4. Unusual Noises: Strange noises emanating from the system can indicate mechanical problems, such as fan blade damage or bearing failure. Promptly investigate and repair any mechanical issues to prevent further damage and ensure safe operation.

Remember: If you are unsure about diagnosing or resolving an issue, always consult with a qualified HVAC or industrial ventilation professional.
