Your Concrete Mix Design Verification Checklist: A Step-by-Step Guide

Why Verify Your Mix Design?

Simply put, verification minimizes risk. A beautiful, well-calculated mix design on paper doesn't guarantee the concrete will perform as expected when poured and cured in the field. Unforeseen variations in material properties, inaccurate field measurements, or even subtle environmental factors can all impact the final product. A verification process acts as a crucial safety net, catching potential issues - like unexpected slump, compromised strength, or poor durability - before they impact structural integrity, project timelines, and budgets. Beyond damage control, verification provides essential documentation for quality assurance, allows for iterative optimization of the mix, and creates a valuable reference point for future projects. Investing the time and resources in verification is a proactive step towards delivering a reliable, high-quality concrete structure.

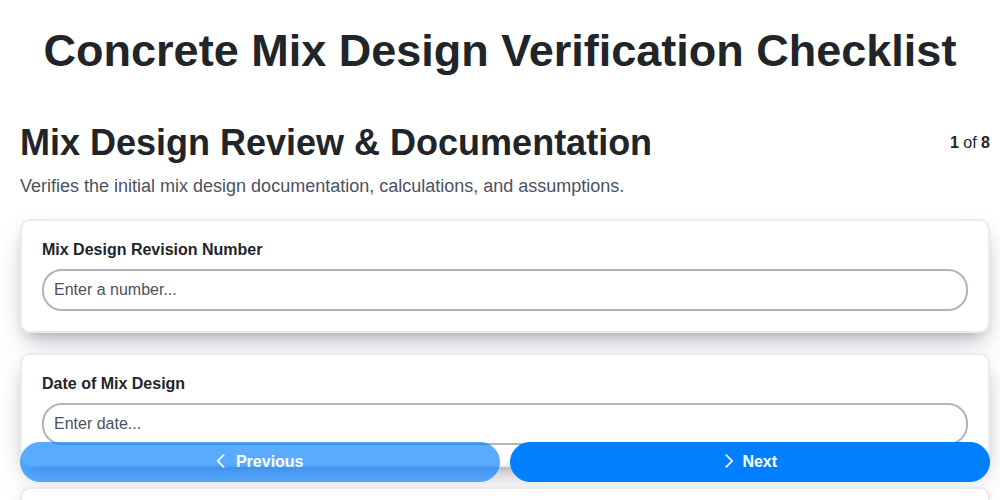

1. Mix Design Review & Documentation

A thorough mix design review forms the bedrock of any successful concrete project. This isn't just about checking numbers; it's about understanding the why behind the mix proportions and ensuring they're aligned with the project's specific needs.

Here's what a comprehensive review entails:

• Design Basis Verification: Scrutinize the design criteria. Does the intended use of the concrete (structural slab, pavement, precast element?) directly inform the mix design? Are the specified performance requirements (strength, durability, finish) clearly defined and supported by relevant structural engineering calculations?
• Material Selection Justification: The choice of cement type (e.g., Type I, Type III, blended cement) has significant implications. Review the rationale behind these choices. Why was this particular aggregate selected? What are the benefits of the chosen admixtures? Document these justifications; they're invaluable for future reference and troubleshooting.
• Mix Proportioning Analysis: Don't just accept the proportions at face value. Examine the water-cement ratio, aggregate-cement ratio, and the overall balance of the mix. Are there any potential areas for optimization to improve workability, reduce cement content, or enhance durability, without compromising performance?
• Theoretical Property Calculations Review: Verify the calculations for key properties like theoretical slump, air content, and estimated compressive strength at various ages (7, 28, 56 days). Are these calculations accurate and consistent with the design requirements? Discrepancies at this stage can save significant time and resources later.
• Documentation is Key: Maintain detailed records of all design assumptions, calculations, and material selections. A well-documented design provides a clear audit trail and facilitates future modifications or troubleshooting.

2. Material Properties Verification

Before even mixing a single batch, a thorough understanding of the materials you're using is paramount. This isn't just about confirming they are the correct types; it's about quantifying their inherent characteristics and ensuring they're suitable for the intended application.

Aggregate Assessment: A comprehensive aggregate analysis goes beyond simply meeting grading requirements. We perform sieve analysis (ASTM C136) to precisely determine particle size distribution, influencing workability and cement paste demand. Specific gravity (ASTM C127) and absorption (ASTM C128) are crucial for accurate mix proportioning, especially regarding water content. Variations in aggregate quality can significantly impact concrete performance, so consistent sourcing and quality control are vital. Furthermore, for projects demanding high durability, tests like soundness (ASTM C88) and unit weight may be necessary.

Cement Characteristics: Verify the cement type corresponds exactly to the mix design specifications. While visual inspection can offer some clues, more detailed assessments like fineness testing (ASTM C188) may be required for specialized applications demanding specific reactivity. A chemical analysis, though less common, can be useful in identifying impurities that might impact strength or durability.

Admixture Examination: Always consult the manufacturer's technical data sheets for each admixture. These sheets provide critical information about dosage rates, compatibility with other admixtures, and potential impact on concrete properties. If multiple admixtures are being used, perform a preliminary compatibility test by mixing them separately and then observing for any signs of reaction or instability before adding them to the concrete.

Water Purity: The quality of water used for mixing concrete directly influences its strength and durability. While potable water is generally acceptable, it's prudent to test for impurities like chlorides, sulfates, and organic matter. Elevated levels of these contaminants can compromise concrete's long-term performance.

3. Trial Batching & Testing

The heart of mix design verification lies in trial batching and testing. This isn't just about mixing some concrete; it's a controlled process to refine the mix design and confirm its performance. We begin by preparing a series of small-scale batches, closely following the initially proposed proportions. These aren't simply 'guesses' - they're meticulously calculated based on the theoretical values.

The first visual assessment is key. Observe the batch's consistency, workability, and overall homogeneity. Is it uniform? Does it appear well-mixed? These initial impressions can highlight potential issues early on. We then move onto standardized tests. A slump test (ASTM C143) is crucial for gauging workability - too low, and it's difficult to place and consolidate; too high, and it can lead to segregation. Unit weight determination (ASTM C138) provides another benchmark, verifying the density and proportions. These early tests allow for minor adjustments-a slight increase in water reducer to improve workability, or a tweak to the aggregate blend to refine the slump. Importantly, every adjustment and observation is meticulously documented. These records form the foundation for confidence in the final, verified mix.

4. Slump & Workability Assessment

Slump is more than just a number; it's a visual indicator of how easily your concrete will flow and consolidate. Achieving the correct slump range is vital for proper placement, compaction, and ultimately, the long-term performance of the structure. The target slump should be dictated by the project specifications and the intended application - a higher slump is generally needed for heavily reinforced areas or intricate formwork.

Beyond the slump test itself, consider the concrete's workability. Is it cohesive? Does it readily flow into corners? Does it segregate easily? These observations are just as important as the numerical slump value. A concrete mix might achieve the specified slump, yet still be difficult to work with due to poor cohesiveness or a tendency to bleed (water rising to the surface).

If the slump is outside the desired range, minor adjustments can be made. Adding a water-reducing admixture (within the manufacturer's recommended dosage) can increase flowability without adding excess water. Conversely, adding a small amount of fines (like cement or fly ash) can improve cohesiveness and reduce segregation. Always meticulously document any adjustments made and the reasoning behind them. Remember, workability is about the behavior of the concrete, not just a number on a report.

5. Strength Testing & Durability Requirements

Determining if your concrete mix performs as expected under real-world conditions requires rigorous strength and durability testing. This isn't just about achieving a 28-day compressive strength; it's about ensuring long-term performance and resistance to degradation.

Compressive Strength - The Foundation: We're likely most familiar with compressive strength testing (ASTM C39). Cylinders are cast from your trial batches, cured under controlled conditions, and then subjected to increasing pressure until failure. Record the load at failure and calculate the compressive strength. Compare the results to your design strength and ensure you're within the acceptable tolerance range specified by the project requirements and relevant codes. Multiple tests should be performed to ensure statistical validity.

Beyond Compression: Flexural Strength Considerations: For applications like pavements, bridge decks, or other structural elements subjected to bending loads, flexural strength testing (ASTM C78) is essential. This test assesses the concrete's ability to resist cracking and failure under flexural stresses.

Durability - Simulating the Elements: Durability testing goes beyond simple strength measurements; it aims to predict the concrete's behavior under specific environmental conditions. The types of tests will depend on the project's exposure risks. Common tests include:

• Freeze-Thaw Resistance (ASTM C666): Essential for regions with freezing temperatures, this test cycles the concrete between freezing and thawing to assess cracking and deterioration.
• Chloride Penetration Resistance (ASTM C1202): Critical for structures exposed to de-icing salts or marine environments. This test measures the rate at which chloride ions penetrate the concrete.
• Abrasion Resistance (ASTM C944): Important for surfaces subject to wear and tear, like pavements and industrial floors.
• Sulfate Resistance (ASTM C1012): Necessary for structures in areas with high sulfate levels in the soil or water.

Thorough durability testing provides invaluable insight into the long-term performance of your concrete mix and helps to ensure its structural integrity for years to come.

6. Air Content Verification

Why is Air Content So Important?

Air content, or entrained air, refers to the tiny, intentionally introduced air bubbles within the concrete mix. While seemingly insignificant, these bubbles play a critical role in improving concrete's long-term durability, particularly in regions experiencing freeze-thaw cycles. When water freezes, it expands. Without sufficient air entrainment, this expansion creates internal pressure, leading to cracking and deterioration of the concrete.

Measuring Air Content: Two Common Methods

We primarily utilize two methods to measure air content:

• Pressure Meter Method (ASTM C231): This method involves using a portable pressure meter to measure the volume of air released from a concrete sample. It's generally used for fresh concrete.
• Volumetric Method (ASTM C173): This older method involves using a balance to determine the weight of concrete and then calculating the volume of air based on the density.

Achieving the Target: Adjustments & Considerations

The target air content is typically specified in the project requirements, often ranging from 4% to 8%, depending on the aggregate size and exposure conditions. Achieving this target requires careful adjustment of admixture dosage, especially when using air-entraining agents. It's vital to understand that air content decreases as concrete ages, so the initial mix design needs to account for this loss. Factors like temperature and humidity can also influence air content, necessitating periodic monitoring during production.

7. Admixture Dosage & Compatibility

Admixtures are essential for modifying concrete properties, but improper dosage or incompatibility can lead to significant problems-from reduced workability to compromised strength and durability. Getting this step right is paramount.

Dosage Accuracy: A Matter of Precision

Always refer to the manufacturer's data sheet for the recommended dosage range of each admixture. Dosage is typically expressed as a percentage of cement weight or volume. Careful measurement is key - using calibrated scales and volumetric containers ensures consistency. Small deviations can have a big impact, particularly with high-range water reducers and air-entraining agents. Double-check your calculations and measurements before adding any admixture to the mix.

Compatibility Testing: Preventing Unforeseen Reactions

When using multiple admixtures, it's crucial to verify their compatibility. Some combinations can lead to undesirable reactions, such as premature setting, reduced air entrainment, or the formation of undesirable byproducts.

Here's a simple compatibility check:

1. Premix: Combine the admixtures in the order recommended by the manufacturers, using a small amount of water (typically 10-20% of the final mix water).
2. Observe: Carefully observe the mixture for any signs of reaction - clumping, separation, gas evolution, or color change.
3. Trial Batch: If the premix appears stable, incorporate the admixture blend into a small trial batch of concrete and observe the fresh and hardened properties.

If any signs of incompatibility arise, consult the admixture manufacturers for guidance or consider using alternative products. Document the compatibility testing results thoroughly.

8. Record Keeping & Sign-off

Meticulous record-keeping is the cornerstone of a successful mix design verification. This isn't just about ticking boxes; it's about building a traceable history of the concrete's journey from design to placement. Each step in the process, from material testing to trial batch results and adjustments made, should be documented clearly and comprehensively.

Here's what your records should include:

• Material Certificates: Copies of supplier certificates for all materials (cement, aggregates, admixtures).
• Testing Data: Complete records of all laboratory tests, including dates, times, test methods, and results.
• Trial Batch Details: Detailed notes for each trial batch, including mix proportions, observations on workability, and any modifications made.
• Strength Test Results: Recorded values for compressive and flexural strength at various ages.
• Admixture Dosage Records: Specific dosages of each admixture used in each trial batch.
• Photographic Evidence: Photos or videos documenting the trial batching process and concrete appearance.

Once all testing is complete and the mix design meets all requirements, formal sign-off is essential. This signifies that all parties involved - the structural engineer, project manager, and concrete supplier - acknowledge and approve the mix design for production use. This sign-off should be a written document, retaining copies for both the project file and the concrete supplier's records. This formal approval provides a clear line of accountability and ensures a shared understanding of the approved concrete mix.

Understanding Material Properties

Understanding the inherent properties of your concrete's raw materials is paramount to a successful mix design. It's not enough to simply order "aggregate" or "cement"; you need to understand what you're getting and how those characteristics will impact the final concrete performance. Let's break down the key properties to consider.

Cement: The type of cement used significantly affects strength development, heat of hydration, and durability. Ordinary Portland Cement (OPC) is common, but blended cements (incorporating fly ash, slag, or silica fume) offer unique properties like improved workability or reduced permeability. Knowing the cement's fineness (surface area) affects hydration rate and early strength.

Aggregates: Aggregates typically comprise 60-80% of the concrete mix, so their characteristics have a huge influence.

• Grading: The particle size distribution dictates workability, slump, and void content. A well-graded aggregate minimizes voids, requiring less cement paste to fill the spaces.
• Specific Gravity: This dictates the aggregate's density and influences concrete's overall density and water-cement ratio calculations.
• Absorption: Aggregate absorption affects the effective water-cement ratio, which directly impacts concrete strength and durability. High absorption aggregates require adjustments to the mix design to compensate for the water they absorb.
• Shape & Surface Texture: Rounded aggregates generally improve workability compared to angular aggregates. Rough-textured aggregates enhance bond strength with the cement paste.

Admixtures: These chemical additions are used to modify concrete properties like workability, setting time, and durability. Understanding the manufacturer's specifications, compatibility with other admixtures, and potential side effects is crucial.

Water: While seemingly simple, water quality is important. Impurities can interfere with cement hydration and reduce concrete strength. The water's pH and the presence of chlorides or sulfates should be evaluated.

The Importance of Trial Batches

Trial batches are the unsung heroes of concrete mix design verification. They're more than just a formality; they're your opportunity to bridge the gap between theoretical calculations and real-world performance. Simply put, a well-designed mix on paper doesn't guarantee it will behave as expected when combined with local materials and conditions.

Each trial batch acts as a miniature experiment, allowing you to visually and physically assess the mix's workability, consistency, and homogeneity before committing to large-scale production. Through these controlled experiments, you can identify and correct potential issues like inconsistent aggregate gradation, unexpected admixture interactions, or variations in material properties.

Don't underestimate the power of observation. A visual inspection of a trial batch can reveal subtle clues that laboratory testing might miss. Is the mix segregated? Is it too stiff or too runny? These observations, combined with standardized tests like slump and unit weight determination, provide invaluable data for fine-tuning the mix design and ensuring a predictable and reliable concrete product. Each batch is a learning opportunity, bringing you closer to achieving the optimal mix for your project's unique demands.

Achieving Optimal Workability

Workability, often measured through a slump test, isn't just about a number; it's about ensuring the concrete flows and consolidates properly, leading to a durable and aesthetically pleasing final product. Too little slump, and you're battling stiff, unmanageable concrete, increasing labor costs and potentially creating voids. Too much slump, and you risk segregation, bleeding, and compromised strength.

Finding that sweet spot depends on several factors, including the application - a foundation pour requires different characteristics than a decorative concrete countertop. Aggregate size and shape play a crucial role; larger, angular aggregates typically demand higher slump values. The type of cement and the presence of admixtures also significantly impact workability.

Fine-tuning the mix design to achieve optimal workability involves a delicate balance. Water reducers (plasticizers and superplasticizers) are your primary tools, allowing you to increase slump without adding excess water, which would compromise strength. Air-entraining agents, while primarily used for freeze-thaw protection, can also subtly influence workability.

It's important to remember that workability isn't a static property. Temperature changes affect concrete consistency - warmer temperatures generally increase slump, while colder temperatures decrease it. Consistent monitoring and adjustments throughout the placement process are key to maintaining the desired workability and ensuring a successful concrete pour. Don't just aim for the target slump; observe the concrete's behavior and be prepared to make minor adjustments as needed.

Interpreting Strength Test Results

Concrete strength testing, primarily compressive strength at 7 and 28 days, is the cornerstone of mix design verification. But simply having numbers isn't enough - understanding what those numbers mean is essential. Here's a breakdown of how to interpret those results and what actions to consider:

1. Comparing to Design Strength: The first and most obvious step is to compare the average strength of your test cylinders to the target design strength specified by the structural engineer. Remember that design strengths are typically minimum values.

2. Statistical Analysis: Beyond the Average: Averages can be misleading. Look at the entire dataset, including the individual cylinder strengths. Calculate the standard deviation - a measure of the variability within your results. A high standard deviation indicates inconsistent mixing or curing conditions and warrants investigation. ACI guidelines and other standards outline minimum acceptable coefficient of variation (COV) limits.

3. Understanding Failure Modes: Observe how the cylinders fail. A clean, uniform failure along the loading axis indicates a well-proportioned mix and proper alignment during testing. Brittle failures, cone failures, or failures along planes of weakness can signal issues with aggregate quality, water-cement ratio, or curing. Document these observations - they've got clues!

4. Impact of Curing Conditions: Curing significantly impacts strength development. Consistent temperature and humidity are vital. Variations in curing conditions between test cylinders and the actual construction site can skew results. Account for any anticipated differences in field curing.

5. When to Investigate & Adjust:

• Below Design Strength: If average strengths consistently fall below the design strength, adjust the mix proportions (e.g., increase cement content, reduce water-cement ratio - with careful consideration of workability).
• High Variability: High standard deviation indicates inconsistent quality. Investigate mixing procedures, material handling, and curing practices.
• Unexpected Failure Modes: Anomalous failure patterns signal underlying mix issues - troubleshoot potential problems with aggregates or admixtures.

6. Record Everything: Meticulously document all test results, observations, and any corrective actions taken. This creates a valuable record for future reference and helps to ensure continuous improvement in concrete quality.

Ensuring Long-Term Durability

Concrete's longevity hinges on more than just initial strength. It's about resisting the relentless forces of the environment - freeze-thaw cycles, chemical attack, abrasion, and more. A thorough verification process directly contributes to this long-term durability. Here's how:

• Air Entrainment Control: Properly entrained air voids provide relief for water pressure during freezing, preventing cracking and scaling. Our verification process meticulously checks and adjusts air content to meet specifications.
• Water-Cement Ratio Management: Maintaining a low water-cement ratio is paramount. A lower ratio results in a denser, less permeable concrete, reducing the ingress of damaging agents. The mix design review and trial batching phases are key to achieving this.
• Aggregate Selection: Durable aggregates are the backbone of a durable concrete mix. We verify aggregate properties, including abrasion resistance and soundness, ensuring they can withstand anticipated wear and tear.
• Chemical Resistance Testing: Depending on the project's environment (e.g., industrial floors, coastal structures), specialized tests may be required to assess resistance to chlorides, sulfates, or acids. Our verification process incorporates these crucial durability assessments.
• Proper Curing: While technically a separate stage, the mix verification process can inform best practices for curing, ensuring the concrete achieves its design strength and durability potential.

Ultimately, proactive durability testing and verification minimize the risk of premature deterioration and maximize the lifespan of the concrete structure, protecting the initial investment and ensuring long-term performance.

Troubleshooting Common Mix Design Issues

Even with meticulous planning, unexpected issues can arise during mix design verification. Here's a breakdown of frequently encountered problems and how to address them:

1. Strength Below Design:

• Possible Causes: Incorrect cement type or dosage, low water-cement ratio (excessive water), inadequate curing, aggregate issues (grading, absorption), air content too high.
• Solutions: Double-check cement type and dosage. Reduce water content (carefully, maintaining workability). Improve curing practices (moisture control). Investigate aggregate properties and potentially adjust grading. Reduce air content. Consider a higher cement content if necessary.

2. Slump Too Low (Mix Too Stiff):

• Possible Causes: Too little water, incorrect aggregate grading (lack of fines), excessive cement content, high-range water reducer (HRWR) dosage too low or ineffective.
• Solutions: Increase water content (while monitoring water-cement ratio). Add a small amount of fines (if appropriate for aggregate characteristics). Verify HRWR dosage and ensure compatibility with cement.

3. Slump Too High (Mix Too Flowy):

• Possible Causes: Too much water, incorrect aggregate grading (excessive fines), over-dosage of HRWR, inconsistent aggregate moisture content.
• Solutions: Reduce water content. Adjust aggregate grading to reduce fines. Verify HRWR dosage and ensure proper mixing. Control aggregate moisture content.

4. Excessive Air Content:

• Possible Causes: Over-dosage of air-entraining admixture, vigorous mixing, improper mixing technique.
• Solutions: Reduce air-entraining admixture dosage. Optimize mixing technique to minimize air entrainment. Ensure proper mixing equipment and maintenance.

5. Workability Issues with HRWR:

• Possible Causes: Incompatibility between HRWR and cement, improper mixing sequence, use of expired HRWR.
• Solutions: Test HRWR compatibility with cement before full-scale production. Follow manufacturer's recommended mixing sequence. Verify HRWR expiry date and use fresh material.

Important Note: Always consult with a qualified concrete professional to diagnose and resolve complex mix design issues. Trial and error should be approached with caution and documented thoroughly.
