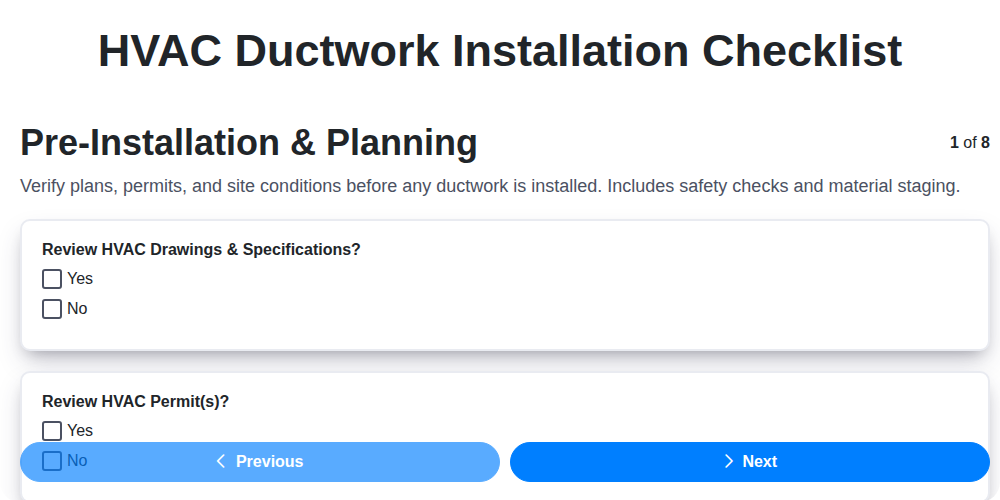

The Ultimate HVAC Ductwork Installation Checklist Template

Why You Need an HVAC Ductwork Installation Checklist

Think of an HVAC ductwork installation as the circulatory system of your home's climate control. Just like a weakened heart struggles to pump blood effectively, poorly installed ductwork severely hinders the performance of your heating and cooling system. Skipping a meticulous checklist isn't just about missing a few steps; it's about compromising comfort, wasting money, and potentially impacting indoor air quality.

Without a systematic approach, critical details are easily overlooked. A seemingly minor error - a leaky joint, an improperly supported run, inadequate insulation - can snowball into significant issues down the line. These issues manifest as uneven temperatures from room to room, skyrocketing energy bills, increased strain on your HVAC equipment (leading to premature failure), and even the introduction of dust, allergens, and pollutants into your living space.

A checklist isn't just a formality; it's a proactive investment in a reliable, efficient, and healthy home environment. It ensures consistency, reduces costly rework, and provides valuable documentation for warranty purposes. Ultimately, a well-executed checklist translates to long-term savings, enhanced comfort, and peace of mind - far outweighing the few minutes it takes to complete.

Pre-Installation Planning & Site Assessment

Before a single piece of ductwork is cut or fitted, a robust planning and site assessment phase is absolutely critical. Rushing into installation without proper groundwork can lead to costly rework, inefficient systems, and frustrated clients. This initial stage is your opportunity to identify potential challenges before they become problems.

Blueprint Breakdown: Start with a thorough review of the architectural and mechanical blueprints. Don't just glance at them - truly understand the design intent, duct sizes, layout, and material specifications. Identify any discrepancies between the plans and the actual site conditions.

Site Reconnaissance: A physical inspection of the job site is essential. Document accessibility limitations - are there narrow hallways, stairs, or tight spaces that will impact material handling and installation? Note the presence of existing utilities (electrical wiring, plumbing pipes) and how they might interact with the ductwork. Assess the structural integrity of the building to ensure it can adequately support the new ductwork system. Look for signs of moisture or mold that may require remediation before installation begins.

Code Compliance & Permits: Verify all necessary permits have been obtained, and a solid understanding of local building codes is in place. Codes dictate everything from duct insulation requirements to fire safety standards. Non-compliance can lead to delays and fines.

Safety First: The site assessment should include a preliminary safety evaluation. Identify potential hazards (e.g., asbestos, lead paint) and develop a safety plan to mitigate them. This plan should be communicated clearly to all personnel involved in the project.

Client Communication: Keep the client informed throughout the planning and assessment phase. Discuss any potential challenges or changes that might impact the project timeline or budget. Open communication fosters trust and minimizes misunderstandings.

Material Verification & Storage: Quality Control

Before a single cut is made or a fitting is joined, taking the time to verify and properly store your materials is crucial. This isn't just about inventory; it's about preventing costly delays, rework, and compromised performance.

Beyond the Count: A Detailed Inspection

Simply confirming you have the right quantity of materials isn't enough. Each delivery should undergo a thorough inspection. Look for:

• Damage: Check for dents, scratches, or other physical damage that could compromise the integrity of the ductwork. Even minor imperfections can lead to leaks or reduced efficiency.
• Defects: Inspect seams, welds, and any factory connections. Look for inconsistencies or signs of manufacturing flaws.
• Material Type: Double-check that the materials match the project specifications. Incorrect material can affect airflow, insulation, and overall system performance.
• Manufacturer's Markings: Verify that the materials are from the approved manufacturer and that the markings are legible and match the project requirements.

Storage Solutions for Long-Term Integrity

Proper storage protects your investment and ensures materials are ready for installation.

• Elevation is Key: Keep all materials elevated off the ground on pallets or racks to prevent moisture damage and insect infestation.
• Weather Protection: Shield materials from direct sunlight, rain, and extreme temperatures. A covered area or tarp is essential.
• Organization & Labeling: Clearly label all materials with their type, size, and project designation. This prevents mix-ups and speeds up the installation process.
• Secure Location: Store materials in a secure location to prevent theft or accidental damage.

Ductwork Fabrication: Precision and Fit

The quality of a ductwork system hinges significantly on the precision of its fabrication. It's not enough to simply cut metal; accurate measurements, clean cuts, and expertly fitted joints are essential for optimal airflow and minimal leakage. Here's a deeper look at the key elements of successful ductwork fabrication:

Accurate Measurement is Paramount:

Before any cutting begins, double and triple-check all measurements. Even slight errors can lead to significant airflow restrictions and require costly adjustments later. Utilize accurate measuring tools, and clearly mark all dimensions on the metal sheets. Consider using a digital layout tool for increased accuracy and efficiency, especially on complex systems.

Cutting for Cleanliness and Accuracy:

Sharp, clean cuts are vital for a tight, airtight fit. Dull blades create jagged edges that make sealing difficult and can compromise the structural integrity of the ductwork. Employ the appropriate cutting method for the metal gauge - shears for thinner gauges, and a break or plasma cutter for thicker materials. Always deburr cut edges to remove any sharp particles that could interfere with sealing.

Joints and Seams: The Foundation of Airtightness:

The way you join sections of ductwork is just as important as the cuts themselves.

• Seam Joining Methods: Choose the appropriate joining method - soldering, riveting, or taping - based on the duct material and code requirements. Each method requires specific skills and tools to ensure a strong, airtight connection.
• Overlap and Alignment: Ensure sufficient overlap for each joint and meticulously align the sections before joining. Misaligned seams create turbulence and increase the risk of leaks.
• Flanges and Transitions: Pay close attention to the fabrication of flanges and transitions. These areas often present challenges due to their complex shapes and angles. Use templates and careful layout to ensure a precise fit.
• Radius Bends: When creating radius bends, ensure a consistent and smooth curve. Improperly formed bends can create significant airflow resistance and noise. Utilize bending tools and templates to achieve a uniform radius.

By prioritizing accuracy and attention to detail during the fabrication process, you lay the groundwork for a high-performing, energy-efficient ductwork system.

Hanging & Supporting Ductwork: Stability & Alignment

Properly hanging and supporting ductwork isn't just about keeping it off the floor; it's about maintaining stability, preventing sagging, minimizing noise, and ensuring precise alignment with registers and diffusers. The way you support your ductwork directly impacts system efficiency and comfort.

Here's what to consider:

• Spacing is Key: Ductwork hangers should be spaced according to manufacturer recommendations and local codes. As a general rule, spacing should be closer for heavier duct sections and longer runs. Uneven spacing leads to sagging and potential stress on the ductwork.
• Hanger Types: Select hanger types appropriate for the duct size, weight, and environment. Options include:
  • Standard Wire Hangers: Cost-effective for general applications.
  • Vibration Isolation Hangers: Essential for noisy equipment or areas where vibration is a concern. These reduce noise transmission to the structure.
  • Saddle Hangers: Provide support for larger, heavier duct sections.
  • Pancake Hangers: Suitable for flat-oval ductwork.
• Secure Attachment: Hangers must be securely fastened to structural members like joists and rafters. Use appropriate fasteners designed for the specific structural material. Avoid using nails, as they can loosen over time.
• Slope Considerations: When installing sloped duct runs (common for condensate drains), ensure hangers maintain the intended slope and prevent sags.
• Alignment with Registers: Pay close attention to alignment when hanging ductwork near registers and diffusers. Misalignment can restrict airflow and reduce comfort.
• Periodic Inspection: Even after installation, periodically inspect hangers to ensure they remain secure and properly positioned. Tighten loose fasteners as needed.

Sealing & Insulating: Maximizing Efficiency

Air leakage is the silent killer of HVAC system efficiency. Even tiny gaps and cracks in ductwork can waste significant energy, leading to higher utility bills and reduced comfort. Proper sealing and insulation are arguably the most critical steps in a successful ductwork installation, and often where corners are cut with regrettable consequences.

Why is Sealing So Important?

Think of your ductwork as a highway for conditioned air. If that highway is riddled with potholes (leaks), a significant portion of the air - and your energy - is lost before it even reaches its intended destination. Even a small leak, the size of a dime, can leak conditioned air equivalent to leaving a window open constantly. This leads to your system working harder, longer, and ultimately costing more to operate.

The Two-Pronged Approach: Sealant and Insulation

Sealing isn't just about slapping on some tape. It's a meticulous process involving multiple layers of defense:

• Mastic vs. Foil Tape: While duct tape looks like a good solution, it degrades quickly and becomes brittle. Instead, use approved duct mastic (a thick, gooey sealant) and foil tape. Mastic fills gaps and crevices, while foil tape provides a durable, airtight seal.
• Joint Wrapping: Consider wrapping joints and seams with fiberglass insulation tape for an extra layer of protection and insulation.
• Pressure Testing is Key: After sealing, a pressure test must be performed to identify any remaining leaks. This is a vital step to guarantee the effectiveness of your efforts.

The Benefits of Insulation

Insulation goes beyond just preventing leaks; it minimizes heat transfer. Uninsulated ductwork running through unconditioned spaces (like attics or crawlspaces) will lose (or gain) heat, forcing your HVAC system to work harder to maintain the desired temperature. Properly insulated ductwork helps:

• Reduce Energy Loss: Keeps conditioned air where it belongs.
• Improve Comfort: Creates a more consistent temperature throughout your home.
• Protect Ductwork: Shields ductwork from extreme temperatures, prolonging its lifespan.

Insulation Types & R-Values: The appropriate R-value (a measure of thermal resistance) for your ductwork insulation will depend on the climate and the location of the ducts. Consult local building codes and a qualified HVAC professional to determine the best insulation choice for your specific needs.

Connecting to HVAC Equipment: Seamless Integration

The connection between your newly installed ductwork and the heating and cooling equipment - whether it's a furnace, air conditioner, heat pump, or other system - is absolutely critical for overall performance and efficiency. A poorly executed connection can create significant airflow restrictions, lead to uneven heating and cooling, and even damage the equipment.

Here's what to keep in mind for a seamless integration:

• Compatibility is Key: Before you even begin connecting, verify that the ductwork you've chosen is compatible with the equipment's specifications. Check for size, shape (round, rectangular, oval), and connection types. Mismatched connections will necessitate adaptors and can introduce turbulence.
• Smooth Transitions: Abrupt changes in duct size or shape cause turbulence and reduce airflow. Use gradual transitions (tapered fittings) whenever possible. These minimize the disruption to airflow and improve overall system efficiency.
• Secure Connections - No Leaks Allowed: Use appropriate clamps, fasteners, and sealing methods to ensure a secure and airtight connection. Leaks at the equipment connection point waste energy and compromise system performance. Proper sealing prevents conditioned air from escaping and unconditioned air from entering.
• Static Pressure Awareness: Consider the static pressure requirements of the equipment. Restrictive connections increase static pressure, which can strain the blower motor and reduce the system's capacity. Ensure the ductwork design adequately accounts for static pressure drop.
• Flexible Duct Considerations: When using flexible duct, keep runs as short and straight as possible to minimize friction loss. Avoid sharp bends and kinks. Support the flexible duct properly to prevent sagging and distortion.
• Professional Guidance: If you're unsure about any aspect of the equipment connection, consult with a qualified HVAC technician. They can provide expert guidance and ensure the job is done right.

Testing & Balancing: Performance Validation

Once the ductwork is physically installed, the real work of optimizing its performance begins. Testing and balancing, often shortened to T&B, isn't just a formality; it's a crucial step to ensure your HVAC system delivers consistent comfort and efficiency.

The process starts with a thorough pressure test. This involves sealing all registers and grilles and pressurizing the duct system to a specific pressure, typically measured in inches of water gauge (iwg). We then monitor the pressure drop over a set time. Any significant drop indicates leaks that must be located and sealed - a critical step to prevent energy waste and uneven heating or cooling.

Next comes airflow measurement. Using a calibrated airflow measuring device (like an anemometer), we're able to determine the actual cubic feet per minute (CFM) delivered through each register and grille. This data is compared against the design CFM specified in the original blueprints. Discrepancies indicate imbalances that need correction.

Balancing dampers, located within the ductwork, allow us to precisely adjust airflow to individual zones or rooms. By strategically adjusting these dampers, we can ensure that each area receives the correct amount of conditioned air, correcting any oversupply or undersupply issues. The goal is to achieve a balanced system where airflow matches the design intent.

Beyond simply adjusting dampers, a well-executed T&B process includes verifying system performance. This involves measuring supply and return air temperatures, static pressure at various points, and overall system efficiency. This allows us to confirm that the system operates within its design parameters and delivers optimal comfort while minimizing energy consumption. Documenting these results provides a valuable baseline for future maintenance and troubleshooting.

Final Inspection & Documentation

The final inspection isn's just about aesthetics; it's a crucial checkpoint ensuring the entire installation meets code, design specifications, and client expectations. This phase involves a meticulous visual assessment of every duct run, connection, and support. Look for any gaps in sealing, compromised insulation, or improperly secured hangers. Don't just look - use tools like thermal imaging cameras to identify hidden air leaks that may not be visible to the naked eye.

Beyond the visual, comprehensive documentation is key. Create a final inspection report detailing any observed issues and corrective actions taken. Include photographs to provide a clear record of the completed work. This report serves multiple purposes: it verifies compliance with permit requirements, provides a valuable resource for future maintenance, and offers tangible proof of quality workmanship for your client. Maintain records of manufacturer warranties and any relevant system performance data. A well-documented final inspection instills confidence in your work and protects you from potential future claims. Finally, secure client sign-off acknowledging completion and satisfaction - a simple but powerful confirmation of a job well done.

Troubleshooting Common Ductwork Installation Issues

Even with meticulous planning and a comprehensive checklist, unexpected challenges can arise during ductwork installation. Here's a breakdown of common issues and practical solutions to keep your project on track:

1. Leaks: The Silent Energy Thief

• The Problem: Hissing sounds, drafts, or increased energy bills are telltale signs of leaks. These can occur at seams, joints, or connections.
• The Solution: Perform a thorough visual inspection. Use a smoke pencil or blower door test to pinpoint leak locations. Seal with appropriate duct sealant (mastic) or foil tape, ensuring a tight, airtight seal. Don't skimp on sealant - multiple thin coats are better than one thick layer.

2. Collapsed or Sagging Ductwork

• The Problem: Improper support or inadequate hangers can lead to ductwork collapsing or sagging, restricting airflow and potentially damaging the system.
• The Solution: Re-evaluate hanger spacing and ensure they're securely attached to structural members. Use larger hangers for heavier duct runs. Consider using flexible ducting in areas prone to sagging.

3. Restricted Airflow: The Can't Breathe Syndrome

• The Problem: Reduced airflow can stem from undersized ducts, improperly fitted transitions, or obstructions in the system.
• The Solution: Verify duct sizing against design specifications. Check for kinks or crimps in flexible ducting. Ensure smooth transitions between ductwork and equipment. Consider consulting a professional to perform a static pressure test.

4. Noise & Vibration: The Unwanted Soundtrack

• The Problem: Banging, rattling, or humming noises can be caused by loose connections, vibrating ducts, or inadequate insulation.
• The Solution: Tighten all connections and secure ductwork to framing. Use duct hangers with vibration-dampening features. Wrap ducts with insulation to reduce noise transmission.

5. Incorrect Duct Sizing: The Too Big or Too Small Dilemma

• The Problem: Undersized ducts lead to restricted airflow and system inefficiency. Oversized ducts can lead to temperature stratification and reduced comfort.
• The Solution: Double-check duct sizing calculations against design specifications. Consult with a qualified HVAC professional to review the system design. If necessary, adjust duct sizes or consider reconfiguring the system.

Remember, early detection and proactive solutions are key to avoiding costly delays and ensuring a successful ductwork installation. When in doubt, always seek the expertise of a licensed HVAC professional.
