The Ultimate Concrete Vibration Checklist Template

Why Use a Concrete Vibration Checklist?

A concrete vibration checklist isn't just a formality; it's a critical safeguard for the integrity and longevity of your concrete structures. Skipping or haphazardly performing this step can lead to costly repairs, premature failure, and compromised safety. A checklist ensures consistency, minimizes errors, and provides a documented record of best practices followed on site. It moves the process beyond guesswork, making it less reliant on individual operator experience (though that's still important!). By systematically addressing each stage - from pre-pour assessment to final sign-off - you reduce the risk of defects like honeycomb, voids, and segregation, ultimately contributing to stronger, more durable, and more reliable concrete work. Think of it as an investment in quality, preventing bigger problems down the line.

Understanding Concrete Vibration Basics

Concrete vibration isn't just random shaking; it's a controlled process that relies on understanding a few key principles. The core concept is to introduce energy into the concrete mix, compelling the particles to rearrange themselves and expel trapped air. This energy is typically delivered through a mechanical vibrator, which generates a frequency-measured in vibrations per minute (VPM)-that causes the concrete to liquefy temporarily.

The ideal frequency isn't universally fixed; it depends on the concrete mix design, specifically the slump. Higher slump concrete, which is more fluid, generally requires a lower frequency because it's easier to compact. Conversely, leaner mixes with lower slump may need higher frequencies to achieve adequate consolidation.

Beyond frequency, amplitude-the intensity of the vibration-also plays a role. While higher amplitude can improve compaction, it also increases the risk of segregation, where the heavier aggregate particles separate from the finer cement paste. Finding the right balance between frequency and amplitude is critical for optimal results. Finally, understanding the relationship between vibration time and concrete behaviour is essential for avoiding over-consolidation and its associated problems.

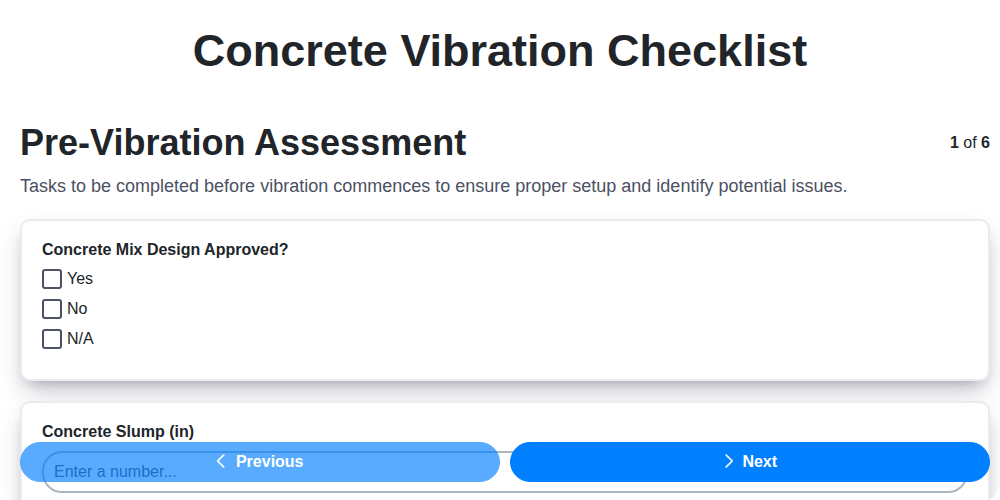

Pre-Vibration Assessment: Setting the Stage

Before you even fire up the vibrator, a thorough assessment is critical. This isn't just a formality; it's about proactively preventing problems down the line. Start by meticulously reviewing the project specifications - these documents detail the exact vibration parameters required, including the allowable slump range, the desired vibration frequency, and any specific instructions from the project engineer. Understanding the concrete mix design is equally important. The slump, which measures the concrete's consistency, directly impacts how easily it will consolidate under vibration. A higher slump generally means less vibration is needed. Don't overlook the rebar! Verify it's correctly placed and securely fastened, as vibration needs to effectively reach the reinforcement. A quick inspection of the formwork is also crucial - ensure its integrity and stability to prevent leaks or movement during the vibration process. Finally, take a moment to assess access and safety, identifying any potential hazards like overhead power lines or uneven ground and creating a safe working area for the team. Skipping these preliminary steps can lead to costly rework and compromise the structural integrity of the finished concrete.

Vibrator Setup & Inspection: Ensuring Functionality

Before a single vibration is applied, a thorough setup and inspection of your vibrator is paramount. This isn't just about ensuring it works, but that it's working correctly and safely. Skipping this step can lead to ineffective consolidation, damaged concrete, or even injury.

Begin by visually inspecting the entire unit. For internal vibrators, carefully examine the probe for any cracks, bends, or blockages - these can significantly impact vibration efficiency and create uneven consolidation. If using an electrical vibrator, pay close attention to the power cord; frayed or damaged cords pose a serious electrocution hazard. Pneumatic vibrators require a check of hoses and connections for leaks and proper pressure. Gasoline-powered vibrators should have their fuel levels checked and any unusual noises investigated.

Next, perform a brief operational test. This doesn't require a full vibration cycle, just enough to confirm the motor is running smoothly and the vibration is occurring at the expected frequency. Listen for any unusual noises - a change in the motor's hum or a rattling sound could indicate a mechanical problem. Consult the manufacturer's specifications to confirm the operating frequency and amplitude are within acceptable ranges. A quick check now can prevent costly delays and rework later.

The Vibration Process: Placement & Monitoring Techniques

Effective concrete vibration isn't just about operating the equipment; it's about precise placement and careful monitoring. These techniques are crucial for ensuring complete consolidation without causing segregation or damaging the concrete.

Probe Depth & Overlap: The depth of probe insertion is a primary factor. As a general rule, insert the probe to roughly two-thirds to three-quarters of the layer thickness. This ensures vibration reaches the lower layers without excessive disturbance. Maintain a consistent overlap between vibration points. A common guideline is 12-18 inches of overlap, creating a continuous wave of consolidation. Insufficient overlap will leave un-vibrated zones, while excessive overlap risks segregation.

Listening for the Shift: Experienced operators often rely on their hearing. As the probe compacts the concrete, the sound of the vibrator will change - typically a rise in pitch. This shift indicates optimal compaction. Continuing to vibrate beyond this point can lead to segregation, where the larger aggregate particles settle out and weaken the concrete.

Visual Cues & Surface Observation: Closely observe the concrete surface during vibration. You should see a visible settling of the mix as air pockets are eliminated. A glossy, smooth surface is a good indicator of proper consolidation. Be particularly attentive around edges, corners, and tie-ins, as these areas are prone to trapping air. If the concrete appears to be "boiling" or churning excessively, reduce the vibration time or probe depth.

Avoiding Rebar Contact: While vibration needs to adequately compact the concrete around reinforcing steel, excessive contact with the rebar should be avoided. This can dislodge the rebar from its intended position, compromising the structural integrity of the concrete. Maintain a safe distance between the probe and the rebar whenever possible.

Post-Vibration Inspection: Verifying Consolidation

The post-vibration inspection is your final opportunity to confirm successful consolidation and identify any potential issues before the concrete cures. Don't rush this step! A thorough visual and tactile inspection can prevent costly rework later. Here's what to look for:

Visual Assessment: The surface should be smooth and even, free from visible air voids, rockiness, or segregation. Look for any signs of formwork distress, such as bulging or cracks. A well-consolidated surface will have a uniform appearance.

Sound Test: This is a crucial, often overlooked, step. Tap the concrete surface with a hammer or a similar striking tool. Listen carefully to the sound. A properly consolidated slab will produce a solid, ringing sound. A hollow or dull sound indicates the presence of voids or un-consolidated areas. Repeat this test at several points across the slab.

Formwork Integrity Check: Inspect the formwork for any movement, shifting, or leakage that might have occurred during vibration. Any visible distress could compromise the concrete's dimensions or strength.

Look for Signs of Segregation: Segregation happens when the different components of the concrete mix separate. You might see a noticeable difference in the aggregate size or density across the surface. While some minor variations are normal, significant segregation requires investigation and potentially corrective action.

Document your observations, even if everything appears satisfactory. This record helps establish a baseline for future comparison and can be invaluable if any issues arise later.

Documentation & Sign-Off: Maintaining Records

Maintaining meticulous records of the concrete vibration process is just as crucial as the vibration itself. These records provide a traceable history of the work performed, offering valuable insights for quality control, troubleshooting potential issues, and demonstrating compliance with project specifications.

Your documentation should include the following:

• Date and Time: Accurate timestamps for each vibration session.
• Location: Precise location within the project site where vibration occurred.
• Vibrator Details: Type of vibrator used (internal, external, surface), make, and model number.
• Operator Information: Name or identification of the operator responsible for the vibration process.
• Concrete Details: Slump and other pertinent details from the concrete batch record.
• Observations: Any unusual occurrences or difficulties encountered during the vibration process (e.g., excessive segregation, formwork movement).
• Environmental Conditions: Record any relevant weather conditions that may impact the concrete.

This information should be logged in a dedicated quality control log or form. Digital recording methods are increasingly common, offering benefits such as easy data analysis and storage. Finally, obtain a signed-off confirmation from the site supervisor or engineer, verifying that the vibration process was completed in accordance with project requirements. This formal acknowledgment provides an auditable trail and confirms responsibility for the work performed.

Common Concrete Vibration Mistakes to Avoid

Even with a comprehensive checklist, mistakes happen. Recognizing these common pitfalls is crucial for maintaining concrete quality. Let's examine some frequent errors and how to steer clear of them.

1. Insufficient Overlap: A primary cause of un-consolidated areas is inadequate overlap between vibration points. Remember, the vibration radius isn't limitless. Failing to overlap by at least 12-18 inches leaves cold zones where air pockets persist.

2. Excessive Vibration (Over-Vibration): While vibration is necessary, too much of a good thing can be detrimental. Over-vibration causes segregation - separating the coarse aggregate from the cement paste, weakening the concrete matrix. Listen to your vibrator - a change in pitch often indicates optimal compaction; don't continue beyond that point.

3. Incorrect Probe Depth: Inserting the probe too shallowly fails to consolidate the lower layers, while forcing it too deep can damage the probe and potentially introduce air. Consult the manufacturer's guidelines for recommended depth relative to layer thickness.

4. Neglecting Edge Consolidation: Corners, edges, and areas around penetrations (pipes, conduits) are prone to trapping air. Give these areas extra attention, sometimes requiring multiple passes.

5. Ignoring Formwork Movement: Vibration transmits energy through the formwork. Watch for signs of formwork shifting or leaking. Instability can compromise the concrete's integrity.

6. Using the Wrong Vibrator Type: Internal vibrators are generally preferred for thicker pours and areas with reinforcement. Surface or external vibrators are less effective for consolidating deep concrete.

7. Operator Inexperience: Vibration isn't a set it and forget it process. Proper technique requires training and experience to judge compaction effectively. Regular retraining is valuable for all operators.

8. Failing to Monitor Sound & Visual Cues: Relying solely on a timer is insufficient. Pay attention to the sounds the vibrator makes and the visual appearance of the concrete surface. These cues are vital for determining optimal compaction.
