Cooling System Performance: Your Ultimate Checklist Template

Introducing Your Cooling System Performance Checklist

Your cooling system is the backbone of comfortable operations and efficient energy use, but its health often goes unnoticed until a breakdown occurs. Proactive maintenance isn't just about preventing costly repairs; it's about optimizing performance, extending equipment life, and ensuring a safe and compliant environment.

This article introduces a comprehensive cooling system performance checklist, designed to guide you through a series of critical assessments. It's more than just a list of items to check; it's a framework for understanding your system's behavior and identifying potential issues before they escalate.

We've structured this checklist to cover all major components - from chillers and cooling towers to pumps, distribution systems, and control instrumentation. Whether you're a seasoned facility manager or a maintenance technician, this guide provides a clear roadmap for ensuring your cooling system operates at peak efficiency and reliability. Let's dive in and give your cooling system the attention it deserves.

Why a Cooling System Checklist Matters

Ignoring your cooling system isn't just about a few degrees warmer; it's about potential disruptions and escalating costs. Think of it like preventative healthcare for your facility. A regular check-up, in this case, a comprehensive checklist, can identify minor issues before they become major headaches.

Here's what's at stake when you skip those vital maintenance checks:

• Unexpected Downtime & Lost Productivity: A sudden chiller failure can halt production, disrupt operations, and impact your bottom line.
• Skyrocketing Energy Bills: Inefficient equipment wastes energy and money. A properly maintained system operates at peak efficiency, saving you significant costs.
• Premature Equipment Failure: Neglect leads to accelerated wear and tear, shortening the lifespan of expensive equipment and requiring costly replacements.
• Environmental Concerns: Refrigerant leaks are harmful to the environment and can result in hefty fines.
• Safety Hazards: Poorly maintained systems can pose safety risks to personnel.

Proactive maintenance is an investment in the long-term health and efficiency of your facility.

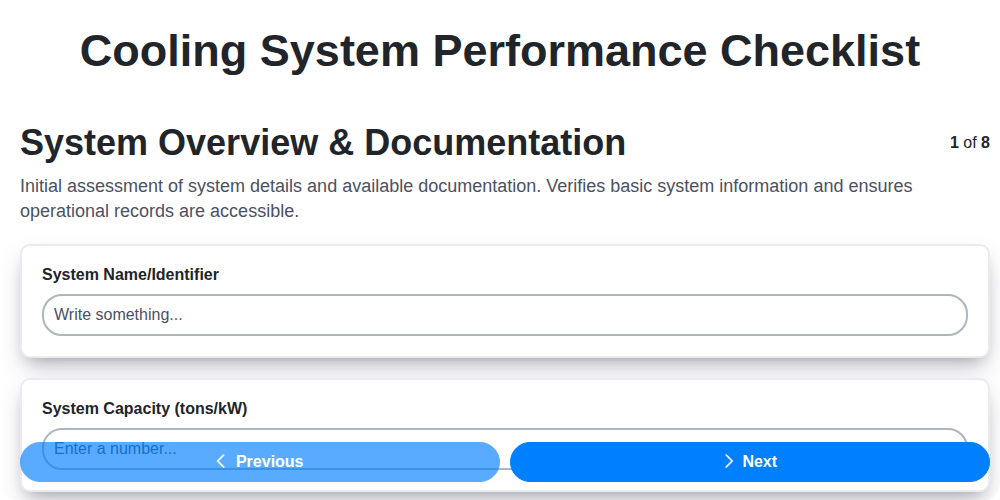

System Overview & Documentation: The Foundation

Before you even touch a wrench, a thorough review of your system's documentation is paramount. Think of it as laying the groundwork for successful maintenance. This isn't just about finding the manufacturer's contact information; it's about understanding the why behind your cooling system's design and operation.

Start by locating and verifying the accuracy of your system drawings (also known as as-built drawings). These drawings detail the layout of all components, piping, ductwork, and electrical connections. Are these drawings current and reflective of any modifications made over time? Outdated drawings can lead to incorrect diagnoses and wasted time.

Next, dive into your maintenance logs. Analyzing past maintenance records - repairs, calibrations, and inspections - can reveal recurring issues, identify potential problem areas, and help you anticipate future needs. Look for patterns, trends, and any notes regarding unusual operating conditions.

Finally, confirm that your system's current operating parameters align with the original design specifications. Deviations can indicate underlying problems. Documenting this baseline information, alongside a detailed inventory of all major components and their manufacturer's information, creates a valuable resource for troubleshooting and future planning. A solid foundation of documentation simplifies everything that follows.

Chiller Performance: Critical Checks for Efficiency

Your chiller is the heart of your cooling system, so ensuring its peak performance is paramount for both energy efficiency and reliable operation. Neglecting key checks can lead to increased energy consumption, premature equipment failure, and costly downtime. Here's a breakdown of critical checks facility managers and maintenance teams should prioritize:

1. Oil Level and Condition: Regularly check the chiller oil level - low oil levels can indicate leaks or excessive consumption, both of which require immediate attention. Equally important is the oil's condition. Dark, sludgy oil is a sign of contamination and potential compressor wear. Schedule oil analysis if you suspect issues.

2. Compressor Discharge Pressure & Temperature: Monitoring these parameters is vital for early detection of compressor problems. Deviations from the manufacturer's recommended range often signal issues with refrigerant charge, internal valve malfunctions, or compressor wear. Document trends over time.

3. Cooling Coil Fouling: The cooling coil's ability to transfer heat is directly related to its cleanliness. Fouling (scale, debris, biological growth) significantly reduces efficiency. Visual inspections and temperature differential measurements across the coil can indicate fouling. Regular coil cleaning is crucial.

4. Vibration Analysis: Excessive vibration is a red flag for mechanical problems. Use a vibration analyzer to identify potential issues like imbalance, misalignment, or bearing wear. Early detection allows for proactive repairs, preventing catastrophic failures.

5. Refrigerant Charge: Maintaining the correct refrigerant charge is absolutely critical for chiller efficiency and environmental responsibility. Overcharging or undercharging both negatively impact performance and can damage the compressor. Regular leak detection and refrigerant top-ups (by a certified technician) are essential.

6. Inlet and Outlet Water Temperatures: Closely monitor chilled water inlet and outlet temperatures. Significant deviations from design specifications often indicate problems with the chiller's operation or the distribution system.

7. Condenser Fan Motor Performance: The condenser fan motor plays a crucial role in rejecting heat. Check for signs of wear, listen for unusual noises, and monitor motor current to ensure optimal performance.

Remember, these checks are a starting point. Consult your chiller's operating manual for specific recommendations and maintenance schedules. Consistent monitoring and prompt corrective actions are key to maximizing chiller efficiency and extending its lifespan.

Cooling Tower Inspection: Maintaining Water Quality

Cooling towers are notorious for their potential water quality challenges, and neglecting them can lead to serious operational and financial repercussions. The warm, moist environment is a breeding ground for algae, bacteria (including Legionella), and scaling minerals. Maintaining pristine water quality isn't just about preventing equipment damage; it's crucial for public health and regulatory compliance.

The Core of the Problem: Scaling, Corrosion, and Biofilm

• Scaling: Mineral deposits (like calcium carbonate and magnesium silicate) accumulate on heat transfer surfaces, reducing efficiency and increasing energy consumption.
• Corrosion: Dissolved oxygen and aggressive water chemistry can corrode tower components, leading to leaks and premature failure.
• Biofilm: Microorganisms form slimy biofilms that insulate heat transfer surfaces, obstruct water flow, and harbor harmful bacteria.

Essential Water Quality Checks:

1. pH Level: Regularly monitor and adjust pH to the optimal range (typically 6.5 - 8.0) to minimize corrosion and scaling.
2. Total Dissolved Solids (TDS): High TDS levels can contribute to scaling and corrosion.
3. Conductivity: A direct indicator of TDS, conductivity should be tracked to ensure consistent water quality.
4. Chlorine/Bromine Residual: Maintain appropriate disinfectant levels to control biological growth.
5. Cycles of Concentration (COC): This measures how many times the dissolved solids have concentrated in the tower water. Higher COC generally indicates better water management, but requires careful monitoring.
6. Microbiological Analysis: Periodic testing for Legionella and other bacteria is essential for public health and regulatory compliance.
7. Scale & Corrosion Coupons: These provide a quantifiable measure of the rate of scale formation and corrosion.

Beyond Testing: Proactive Management

Don't just react to test results. Implement a proactive water management plan that includes:

• Proper Filtration: Remove suspended solids that contribute to scaling.
• Chemical Treatment: Use scale inhibitors, corrosion inhibitors, and biocides as needed. Always follow manufacturer's instructions and consult with a water treatment specialist.
• Blowdown Control: Efficiently remove concentrated water while minimizing water waste.
• Regular Cleaning: Periodically clean the tower to remove accumulated scale, biofilm, and debris.

Pump Performance: Ensuring Reliable Circulation

Pump performance is the backbone of efficient cooling system circulation. Without consistent and reliable pump operation, chilled or condenser water won't reach the necessary locations, impacting chiller efficiency and potentially leading to equipment overheating. Here's what to look for:

Visual Inspection & Alignment: Begin with a thorough visual inspection. Look for signs of corrosion, leaks around the pump casing or seals, and any unusual wear on the impeller. Proper alignment between the pump and motor is critical; misalignment introduces stress, increases vibration, and shortens pump life. Use a laser alignment tool if possible, but a straight edge and level can provide a basic check.

Motor Current & Voltage: Measure the motor's current draw using a clamp meter. Compare this reading to the motor's nameplate rating. Significant deviations (typically above 10-15%) can indicate an issue like impeller blockage, increased head pressure, or motor problems. Also, check the voltage supplied to the motor, ensuring it's within the acceptable range.

Head Pressure & Flow Rate: Head pressure refers to the pressure the pump needs to overcome to circulate the fluid. Monitor this pressure and compare it to the pump's performance curve. A decline in head pressure can indicate scaling within the system, impeller wear, or a blockage. Similarly, measure the flow rate of the circulating fluid; a reduced flow rate is a direct indicator of reduced circulation.

Vibration Analysis: Use a vibration analyzer to identify potential mechanical issues. Excessive vibration can be a sign of bearing problems, impeller imbalance, or cavitation. Address any identified issues promptly to prevent further damage.

Seal & Bearing Health: Seals prevent leaks, while bearings support the rotating shaft. Listen for unusual noises (grinding, squealing) that may indicate seal or bearing degradation. Regularly lubricate bearings according to the manufacturer's recommendations.

Refrigerant Management: Safety and Environmental Responsibility

Refrigerants are the lifeblood of your cooling system, but they also present significant safety and environmental concerns. Historically, many refrigerants contributed to ozone depletion and global warming. While newer alternatives are available, responsible management remains critical.

The Risks:

• Ozone Depletion Potential (ODP): Some older refrigerants, like CFCs and HCFCs, directly damage the ozone layer.
• Global Warming Potential (GWP): Many refrigerants are potent greenhouse gases, significantly contributing to climate change. Even newer HFC refrigerants, while ozone-friendly, have high GWPs.
• Safety Hazards: Refrigerants can be flammable, toxic, or asphyxiating. Improper handling can pose serious risks to personnel.
• Regulatory Scrutiny: Regulations regarding refrigerant use and emissions are becoming increasingly strict globally.

Best Practices for Responsible Refrigerant Management:

• Leak Detection is Paramount: Regular leak detection using appropriate equipment is the most effective way to minimize refrigerant emissions. Don't rely solely on visual inspections; electronic leak detectors are essential.
• Prompt Repairs: Any detected leaks must be repaired immediately by a qualified technician.
• Refrigerant Recovery and Recycling: When equipment is retired or repairs are required, refrigerants should be recovered, recycled, and properly disposed of. Never vent refrigerants to the atmosphere.
• Alternative Refrigerant Evaluation: Consider transitioning to refrigerants with lower GWPs where feasible, always assessing compatibility with existing equipment and considering lifecycle costs.
• Personnel Training: Ensure all personnel handling refrigerants are properly trained in safe handling procedures and regulatory requirements. This includes leak detection, recovery, and disposal.
• Record Keeping: Maintain accurate records of refrigerant purchases, usage, and disposal, as required by regulations.
• Compliance with Regulations: Stay informed about and comply with all applicable federal, state, and local regulations regarding refrigerants. (e.g., EPA Section 608 in the US).

Control System & Instrumentation: Fine-Tuning for Optimal Operation

The control system and instrumentation are the brains and sensory organs of your cooling system. They monitor performance, adjust settings, and ensure everything operates within optimal parameters. Neglecting these components can lead to inefficiencies, instability, and ultimately, system failure. Here's a breakdown of what to check:

1. Sensor Calibration & Verification: This is paramount. Regularly verify the accuracy of temperature sensors, pressure transducers, flow meters, and humidity sensors. Drift over time is common, leading to incorrect readings and misguided adjustments. Use calibrated reference standards to check accuracy. Keep records of calibration dates and results.

2. Control Loop Tuning: Are your control loops responsive and stable? Poorly tuned loops can cause excessive oscillations, slow response times, and wasted energy. Consider a professional tune-up if you suspect issues. Review PID (Proportional, Integral, Derivative) parameters - but proceed with caution; incorrect adjustments can exacerbate problems.

3. Logic Review & Sequencing: Carefully examine the control sequences to ensure they are functioning as intended. Verify that setpoints are appropriate for current conditions and that safety interlocks are operational. Look for opportunities to optimize sequences for energy savings.

4. HMI (Human-Machine Interface) Functionality: If your system utilizes an HMI, ensure it is displaying accurate data, providing clear diagnostics, and allowing for easy navigation. Address any usability issues promptly.

5. Wiring and Connections: Inspect all wiring and electrical connections for damage, corrosion, or looseness. Even a small connection issue can disrupt communication and cause erratic behavior. Tighten connections and replace damaged wiring as needed.

6. Alarm and Event Logs: Regularly review alarm and event logs for recurring patterns or unresolved issues. These logs often provide valuable insights into system behavior. Document resolutions and trends to proactively address potential problems.

Prioritizing these control system checks ensures your cooling system operates efficiently, reliably, and safely.
