Keeping Things Moving: Your Escalator & Moving Walkway Maintenance Checklist Template

Introduction: Why Escalator Maintenance Matters

Escalators and moving walkways are often taken for granted - vital links in our daily routines, seamlessly transporting people between floors and across spaces. But beneath that smooth operation lies a complex system requiring consistent care. Ignoring routine maintenance isn't just about potential inconvenience; it's a gamble with safety and significant financial implications. A sudden breakdown can disrupt business, create accessibility issues, and potentially lead to costly repairs or even legal liabilities. More critically, neglected maintenance can compromise safety, increasing the risk of accidents and injuries to passengers. Investing in preventative maintenance is an investment in reliability, safety, and the longevity of your equipment - ultimately benefitting everyone who uses it.

Understanding Your Escalator or Moving Walkway System

Escalators and moving walkways, while appearing similar, operate on distinct mechanical principles. Understanding these differences is fundamental to effective maintenance.

Escalators primarily rely on a chain drive system. A continuous chain, connected to the steps, rotates around a central drive gear. The handrail is linked to the steps, moving at a slightly slower speed to ensure passenger safety and comfort. Maintenance focuses heavily on the chain's condition, gear lubrication, and the alignment of the steps.

Moving walkways, on the other hand, typically employ a belt or roller system. A continuous belt moves horizontally, providing a flat surface for passengers to walk on. Roller systems use a series of rollers to propel the walkway. Maintenance for moving walkways often includes inspecting the belt or roller condition, ensuring proper tension, and checking the motor's performance.

Both types of systems share common components like motors, gearboxes, and electrical controls. However, recognizing the core differences allows for targeted inspections and more efficient troubleshooting when issues arise. Knowing whether you're dealing with a chain-driven escalator or a belt/roller-based moving walkway informs the specific areas to prioritize during maintenance checks.

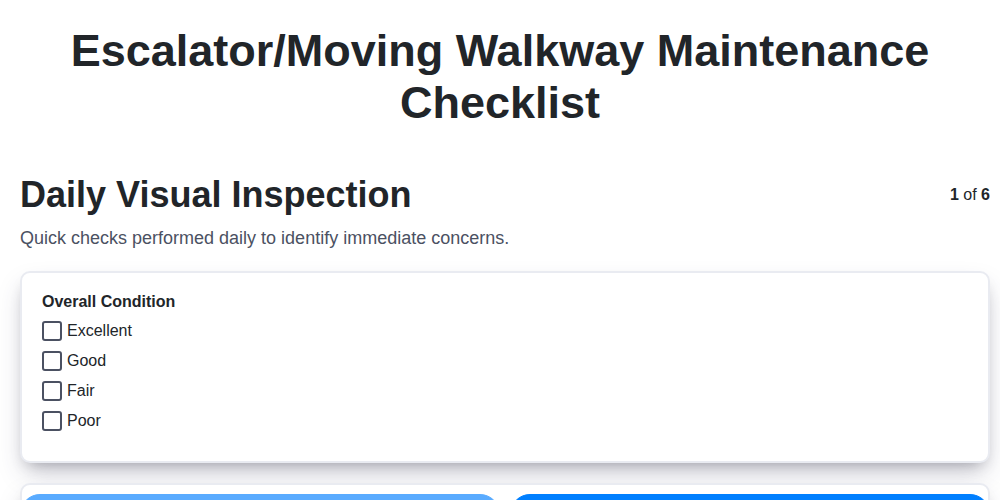

Daily Visual Inspection: A Quick Check

A daily visual inspection is your first line of defense in maintaining a safe and reliable escalator or moving walkway. It shouldn't take more than a few minutes and can prevent small issues from escalating into costly repairs or safety hazards. This quick check is a task everyone on your team can be trained to perform.

Here's what you should be looking for:

• Debris Removal: Scan the treads, comb plates, and chain/belt areas for any debris like coins, paper, or small objects. Even seemingly insignificant items can cause jams or damage.
• Lighting Check: Ensure all lights - tread lights and handrail lights - are functioning correctly. Dim or non-functioning lights can create visibility issues and potential tripping hazards.
• Handrail Alignment: Observe the handrail's alignment with the escalator's edges. A noticeable misalignment can indicate wear or underlying mechanical problems. Report any inconsistencies immediately.
• Unusual Noises: Pay attention to any unusual sounds, such as grinding, squealing, or banging. These sounds often signal a problem that requires further investigation.
• Visible Damage: Quickly inspect for any visible cracks, wear, or damage to the treads, comb plates, skirts, or other components. Don't hesitate to report anything suspicious.

Regular daily checks help build a proactive maintenance approach and contribute significantly to the long-term health of your escalators and moving walkways.

Weekly Functional Checks: Ensuring Smooth Operation

Beyond the daily visual inspection, weekly functional checks are vital for proactively identifying and correcting minor issues before they escalate into major repairs or safety hazards. These checks are designed to verify the escalator or moving walkway is operating as intended and to catch any deviations from optimal performance.

Here's what a thorough weekly functional check should encompass:

• Speed and Acceleration: Observe the escalator or moving walkway during operation. Does the speed feel consistent? Is the acceleration smooth and gradual? Any noticeable fluctuations or jolts warrant further investigation. Record speed readings if possible, and compare them to manufacturer specifications.
• Handrail Synchronization: This is arguably the most critical weekly check. The handrail must maintain a consistent speed closely matching the step speed. A noticeable difference creates a tripping hazard and increases passenger discomfort. Technicians should visually confirm synchronization and, if possible, use a tachometer to measure the speeds.
• Comb Plate Clearance: The gap between the comb plates (the "fingers" that capture the steps as they disembark) and the steps themselves needs to be precise. Too much clearance allows objects to fall through; too little causes binding and excessive wear. Carefully inspect the clearance and report any abnormalities.
• Emergency Stop Button Functionality: Test all emergency stop buttons. Each button must immediately halt the escalator/moving walkway. Document the date and time of each test. This confirms they are responsive and operational in case of an emergency.
• Skirt Inspection: Examine the skirts (the fabric or rubber panels that enclose the sides of the escalator/moving walkway) for any signs of damage - rips, tears, or loose sections. These damages can be a hazard and need immediate repair.

Monthly Preventative Maintenance: Deep Dive

Monthly maintenance provides a crucial opportunity to proactively identify and address potential issues before they escalate into costly repairs or safety hazards. This isn't a quick visual check; it's a more involved process requiring a trained and experienced technician. Here's a closer look at what's involved:

Lubrication - The Lifeblood of Smooth Operation: Proper lubrication is paramount. Technicians should meticulously apply lubricants to all moving parts according to the manufacturer's specifications. This includes chain/belt lubrication, gearbox lubrication (using the correct grade of oil), and any other points identified in the maintenance manual. Insufficient or incorrect lubrication can dramatically shorten the lifespan of components.

Tension Checks & Adjustments: Chain and belt tension directly impact the efficiency and reliability of the system. A technician will precisely measure tension and make necessary adjustments using appropriate tools. Overly tight tension puts undue stress on motors and drive components, while loose tension can cause slippage and noise.

Gearbox Health Assessment: The gearbox is a critical component, often a source of significant maintenance costs. During monthly checks, technicians should inspect the gearbox for any signs of leaks - even a small drip warrants further investigation. Unusual noises emanating from the gearbox also indicate a potential problem requiring immediate attention. Vibration analysis can be incorporated for a more precise assessment.

Motor Current Monitoring - An Early Warning System: Modern maintenance practices often include monitoring the motor's electrical current draw. Deviations from the baseline readings can signal developing issues within the motor's windings, potentially leading to motor failure.

Clearance Measurements & Adjustments: Maintaining proper clearances between moving parts is vital for smooth and safe operation. Using precision measuring tools, technicians will verify that these clearances fall within the manufacturer's specified tolerances. Adjustments are made as needed to ensure consistent performance.

Comprehensive Cleaning: Beyond just surface cleaning, monthly maintenance includes a thorough cleaning of the entire unit, including difficult-to-reach areas like the underside and motor compartment. Accumulated debris can contribute to overheating, corrosion, and system inefficiencies.

Annual Comprehensive Maintenance: The Big Review

This isn't just a routine check; it's a deep dive into the entire system. Annual comprehensive maintenance represents the most thorough assessment of your escalator or moving walkway. We're talking complete disassembly - taking the unit apart to examine every component individually. This allows for a level of scrutiny simply not possible during routine checks.

The process begins with a full structural integrity assessment. We're looking for signs of wear, corrosion, or damage that might be hidden from casual observation. Every moving part, from the motor and gearbox to the chain/belt and treads, receives a meticulous inspection. Specialized testing equipment is used to evaluate motor windings, gear lubrication, and overall system performance under simulated load conditions.

A crucial element of this annual review is the replacement of gearbox oil with the manufacturer-specified type. Clean oil is vital for smooth operation and prevents premature wear. Furthermore, we perform a rigorous electrical system check, testing safety devices and ensuring proper functioning of all control systems. This involves verifying the emergency lowering device operates flawlessly and ensuring all sensors and safety edges are responsive. Following this intensive examination and necessary repairs or replacements, the unit is meticulously reassembled and calibrated to ensure peak efficiency and passenger safety. This annual review is designed to proactively identify and address potential issues before they escalate into costly repairs or, worse, safety hazards.

Safety Systems: Prioritizing Passenger Wellbeing

Escalator and moving walkway safety systems are not optional - they's the last line of defense against potential incidents and are paramount for passenger wellbeing. These systems are designed to prevent accidents, mitigate risk, and ensure a swift and safe response in emergency situations. A proactive approach to maintenance and testing of these systems is absolutely critical.

Here's a breakdown of key safety elements and why consistent checks are vital:

• Emergency Stop Buttons: These must be readily accessible, clearly marked, and tested regularly to confirm immediate functionality. Malfunctioning buttons can delay critical response times.
• Safety Edges & Sensors: These prevent operation when obstructions are detected. Regular inspection ensures they are clean, properly aligned, and functioning correctly.
• Emergency Lowering Devices: In the event of a power failure or other emergency, these devices gently lower the escalator/moving walkway to a safe position. Testing verifies smooth and controlled operation.
• Handrail Alignment and Speed Synchronization: Proper handrail alignment prevents tripping hazards, while synchronization with step speed reduces passenger discomfort and potential falls. Deviations require immediate correction.
• Overload Protection: These systems prevent operation when the escalator/moving walkway is subjected to excessive weight. Regular calibration and testing is essential.
• Signage: Clear and concise safety signage provides passengers with crucial information and instructions, particularly in emergency situations. Signs must be visible, legible, and compliant with relevant standards.

Beyond scheduled testing, staff training is paramount. Personnel should be trained to recognize potential hazards, respond appropriately to emergency situations, and report any concerns promptly. A culture of safety awareness contributes significantly to passenger wellbeing.

Emergency Procedures: Preparedness is Key

Escalator and moving walkway malfunctions, while rare with proper maintenance, can occur. Being prepared for emergencies isn't just about having stop buttons; it's about a comprehensive response plan and well-trained personnel. This section outlines essential emergency procedures to ensure the safety of passengers and personnel.

Passenger Safety First:

• Clear Communication: Immediately stop the escalator/moving walkway and clearly announce the situation to all passengers. Use concise, understandable language.
• Passenger Evacuation: If the malfunction poses a direct threat to passenger safety (e.g., sudden jerking, visible structural damage), initiate a controlled evacuation. Trained personnel should guide passengers to safety, ensuring no one attempts to climb down the escalator.
• Assistance for Passengers: Provide assistance to passengers who may need help evacuating, including those with disabilities, elderly individuals, or those with young children.

Personnel Response:

• Secure the Area: Prevent unauthorized access to the immediate area around the malfunctioning escalator/moving walkway. Use barriers and signage.
• Contact Qualified Technicians: Immediately notify a qualified escalator/moving walkway technician to diagnose and repair the problem. Do not attempt repairs unless you are specifically trained and authorized.
• Incident Reporting: Thoroughly document the incident, including the time, date, description of the malfunction, actions taken, and contact information for technicians involved. This record is crucial for analysis and prevention of future incidents.
• Lockout/Tagout Procedures: Implement proper lockout/tagout procedures to prevent accidental restart of the escalator/moving walkway during repair.
• Post-Incident Review: After the repair, conduct a review to identify the root cause of the malfunction and implement preventative measures to avoid recurrence. This includes evaluating maintenance procedures and personnel training.

Training is Paramount: Regularly train personnel on emergency procedures, including how to operate emergency stop buttons, assist passengers, and communicate effectively during an incident. Practice drills can significantly improve response effectiveness.

Documentation & Record Keeping: Building a Maintenance History

A robust documentation and record-keeping system is the cornerstone of any successful escalator and moving walkway maintenance program. It's more than just ticking boxes; it's about building a verifiable history of the equipment's condition and all maintenance performed. This history is invaluable for several reasons: it facilitates proactive troubleshooting, justifies maintenance decisions, demonstrates compliance, and supports future repairs and replacements.

Your records should include, at minimum:

• Date and Time of Inspection/Service: Essential for tracking frequency and identifying trends.
• Description of Work Performed: Clearly detail the tasks completed, including specific parts inspected or replaced. Vague entries like general maintenance are unhelpful.
• Technician's Initials/Signature: Provides accountability and confirms who performed the work.
• Findings & Observations: Note any unusual noises, vibrations, wear patterns, or other observations that might indicate future issues. Even seemingly minor details can be significant.
• Parts Replaced: List every part replaced, including the part number and supplier information. This aids in tracking replacement cycles and identifying potential supplier issues.
• Measurements: Record important measurements (e.g., chain tension, comb plate clearance) taken during inspections to monitor performance over time.
• Digital Photos/Videos: Including visual documentation can be incredibly valuable for showing the condition of components before and after maintenance.

Consider utilizing a computerized maintenance management system (CMMS) to streamline record keeping and generate reports. However, even a well-organized paper-based system is preferable to no system at all. Consistent and accurate record keeping transforms maintenance from a reactive chore into a proactive strategy for maximizing equipment lifespan and ensuring safety.

Common Escalator Issues & Troubleshooting

Escalators, like any mechanical system, aren't immune to problems. Recognizing common issues early can prevent larger breakdowns and keep your flow of people moving. Here's a look at frequent escalator challenges and some basic troubleshooting tips. (Note: These are suggestions only. Always consult a qualified technician for repairs.)

1. Handrail Speed Discrepancy:

• The Problem: The handrail moving faster or slower than the steps is a significant safety concern. It can cause people to trip or lose their balance.
• Possible Causes: Belt slippage, motor issues, or a problem with the handrail drive system.
• Troubleshooting (Limited): Visually inspect the handrail belt for wear and tear. Don't attempt any adjustments - contact a technician immediately.

2. Unusual Noises (Grinding, Squealing, Clunking):

• The Problem: Unexpected noises often indicate mechanical problems. Ignoring them can lead to further damage.
• Possible Causes: Lack of lubrication, worn bearings, loose components, or chain/belt issues.
• Troubleshooting (Limited): Note the type and location of the noise. Record it if possible. This information will be helpful for the technician.

3. Steps Skipping or Jerking:

• The Problem: Uneven or jerky step movement is not only uncomfortable but also potentially dangerous.
• Possible Causes: Chain/belt problems, worn rollers, or issues with the drive mechanism.
• Troubleshooting (Limited): Observe the pattern of the movement. Report it clearly to a technician.

4. Comb Plate Problems (Steps Not Aligning):

• The Problem: Comb plates that aren't properly aligned with the steps can trap objects or create a tripping hazard.
• Possible Causes: Wear and tear, misalignment due to impact, or structural issues.
• Troubleshooting (Limited): Carefully observe the alignment. Do not attempt to adjust the comb plates yourself.

5. Emergency Stop Button Malfunction:

• The Problem: A non-functional emergency stop button is a critical safety failure.
• Possible Causes: Electrical problems, button damage, or a faulty wiring connection.
• Troubleshooting: Test the emergency stop buttons regularly (as part of your preventative maintenance schedule) and report any failures immediately.

Important Reminder: This guide provides only basic observations. Escalator maintenance and repair require specialized knowledge and equipment. Never attempt to diagnose or repair an escalator yourself. Always contact a qualified professional.

Cost-Effective Maintenance Strategies

While consistent maintenance undoubtedly involves an investment, embracing cost-effective strategies can significantly reduce long-term expenses and maximize the value of your escalator or moving walkway system. It's about shifting from a reactive "fix-it-when-it-breaks" approach to a proactive one.

Here's how to make your maintenance budget work harder:

• Prioritize Preventative Maintenance: This is the cornerstone of cost-effective maintenance. Regularly scheduled inspections and preventative tasks (lubrication, minor adjustments) are far less expensive than major repairs or replacements caused by neglect.
• Operator Training: Empowering operators to perform basic daily visual inspections and debris removal can catch minor issues before they escalate into bigger problems. Simple training programs pay for themselves quickly.
• Early Issue Detection: Implement systems for early issue detection. This could include vibration analysis, thermal imaging, or even simple monitoring of operational sounds. Identifying potential problems before they manifest as failures minimizes downtime and repair costs.
• Parts Management: Maintain an inventory of critical spare parts to avoid lengthy delays when repairs are needed. Analyze historical failure data to predict which parts are most likely to fail and prioritize stocking those.
• Negotiate Service Contracts Wisely: Carefully evaluate service contracts with multiple vendors. Focus on contracts that emphasize preventative maintenance and offer flexible response times.
• Energy Efficiency Considerations: Ensure proper alignment and lubrication to minimize energy consumption, translating to lower operating costs and a reduced carbon footprint.
• Data-Driven Decisions: Track maintenance costs, repair frequencies, and equipment performance to identify areas for improvement and optimize maintenance strategies.

Training Your Team: Essential Skills

Effective escalator and moving walkway maintenance hinges on a well-trained team. It's not enough to simply assign tasks; personnel need the right skills and knowledge to identify potential issues, perform routine checks, and respond appropriately to emergencies.

Training should encompass several key areas:

• Safety Procedures: This is paramount. Team members must understand lockout/tagout procedures, safe work practices around moving machinery, and emergency response protocols.
• Equipment Familiarity: Provide thorough training on the specific models of escalators and moving walkways your facility uses. This includes understanding their components, functionality, and potential failure points.
• Visual Inspection Techniques: Train personnel to recognize subtle signs of wear, damage, or misalignment. This includes understanding the sounds and vibrations of properly functioning equipment.
• Lubrication and Maintenance Tasks: Provide hands-on training for routine maintenance tasks, ensuring they are performed correctly and consistently.
• Troubleshooting Basics: Equip team members with the skills to diagnose common issues and escalate complex problems to qualified technicians.
• Emergency Procedures: Conduct regular drills to ensure team members are prepared to handle emergencies, such as entrapments or equipment malfunctions.

Consider incorporating a combination of classroom instruction, hands-on training, and manufacturer-provided resources to create a comprehensive training program. Ongoing refresher training is also essential to reinforce skills and keep personnel up-to-date on best practices. A well-trained team translates directly to safer operation, reduced downtime, and extended equipment lifespan.

Regulatory Compliance: Meeting Standards

Escalator and moving walkway maintenance isn't just about keeping things running smoothly; it's about adhering to a complex web of regulations designed to protect public safety. Failing to comply can result in hefty fines, legal action, and even facility closures. Understanding your obligations is paramount.

In the United States, the American Society for Testing and Materials (ASTM) provides standards (e.g., ASTM F23.01) that outline best practices for escalator and moving walkway maintenance. While these aren't legally binding laws themselves, they are frequently referenced in building codes and serve as a benchmark for acceptable maintenance practices.

Beyond ASTM, the Occupational Safety and Health Administration (OSHA) has general safety requirements that apply to all workplace equipment, including escalators and moving walkways. These regulations cover areas such as guarding, lockout/tagout procedures, and employee training.

Local building codes and fire codes also often contain specific requirements for escalator and moving walkway maintenance, varying significantly by jurisdiction. It's crucial to research and understand the specific codes applicable to your location. Some states or cities might have their own elevator/escalator inspection programs that mandate regular inspections and maintenance.

Furthermore, accessibility regulations like the Americans with Disabilities Act (ADA) have indirect implications for escalator and moving walkway maintenance, ensuring these systems are usable and accessible to all individuals.

Maintaining meticulous records of all maintenance activities is essential for demonstrating compliance during inspections. These records should include dates, descriptions of work performed, and the names of qualified technicians involved. Staying informed about regulatory updates and proactively addressing any deficiencies is key to maintaining a safe and compliant operation.

Extending Escalator Lifespan: Best Practices

Escalators are a significant investment, and maximizing their lifespan is crucial for long-term cost savings and operational efficiency. While the checklist outlined above covers essential maintenance, several best practices can further contribute to extending the life of your escalator system.

Beyond the Routine: Proactive Measures

• Environment Matters: Dust, debris, and moisture can accelerate wear and tear. Implement strategies to minimize exposure, such as regular cleaning of the surrounding area and consideration of protective coverings in harsh environments.
• Load Management: While escalators are designed to handle certain load capacities, consistently exceeding these limits can shorten their lifespan. Monitor usage patterns and consider options like temporary load restrictions during peak hours if necessary.
• Handrail Optimization: The handrail experiences significant friction and wear. Ensure proper alignment, lubrication, and regular inspection of the handrail system to minimize wear. Consider using high-quality handrail materials.
• Vibration Mitigation: Excessive vibration can damage components. Check for loose mounting points and consider vibration dampening measures if necessary.
• Early Issue Detection: Train personnel to recognize early warning signs of potential problems, such as unusual noises, vibrations, or changes in performance. Promptly addressing these issues can prevent more significant (and costly) repairs later.
• Component Upgrades: As technology advances, consider upgrading critical components to more efficient and durable alternatives. This can improve performance and extend the overall lifespan of the escalator.
• Regular Performance Monitoring: Implement a system for regularly monitoring escalator performance metrics, such as speed, current draw, and noise levels. This data can provide valuable insights into the health of the system and identify potential problems before they escalate.
