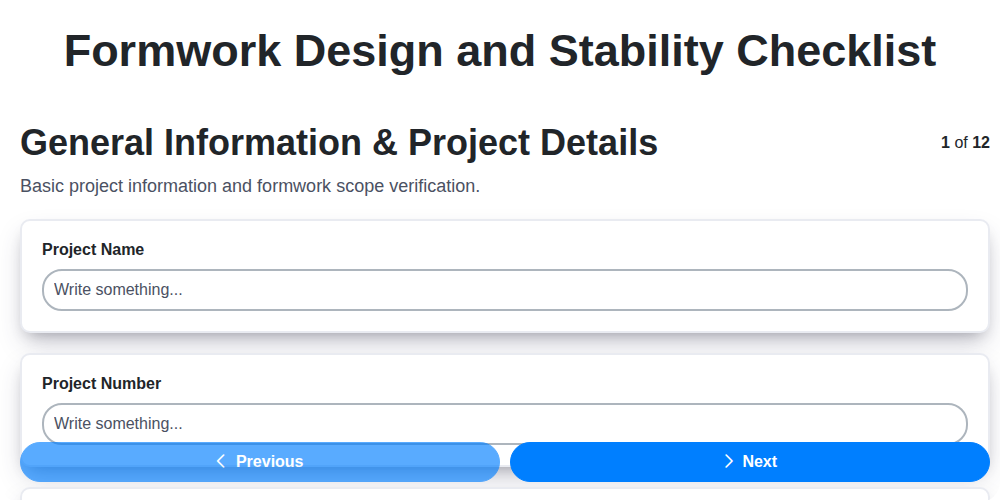

Formwork Design & Stability Checklist Template: Your Concrete Success Guide

Introduction: Building a Solid Foundation with Formwork

Formwork isn't just about shaping concrete; it's about creating a solid foundation for a structure's longevity and safety. Think of it as the temporary skeleton that dictates the final form - a critical, often unseen, element in any concrete project. Without meticulously planned and properly executed formwork, you risk costly delays, structural instability, and potentially dangerous consequences. This article dives into a comprehensive checklist to guide you through the complexities of formwork design and stability, ensuring you build on a foundation of strength and precision. Let's explore the essential steps to create concrete structures that stand the test of time.

Why Formwork Design & Stability Matter

Think of formwork as the sculptor's mold - it dictates the final shape of the concrete. A flawed mold creates a flawed sculpture. Similarly, inadequate formwork design or compromised stability can lead to a cascade of problems that impact the entire construction project.

Beyond simply holding the concrete in place during pouring, formwork plays a critical role in:

• Ensuring Structural Integrity: Properly designed and stable formwork guarantees the concrete achieves the intended shape and dimensions, directly impacting the overall structural performance of the building or infrastructure.
• Preventing Costly Rework: Formwork failure mid-pour is a nightmare scenario, leading to concrete waste, delays, and significant financial losses due to demolition and reconstruction.
• Maintaining Project Schedule: Delays caused by formwork issues push back completion dates, impacting budgets and reputation.
• Guaranteeing Safety: Unstable formwork poses a serious risk to construction workers. Collapses and failures can result in injuries or even fatalities.
• Achieving Aesthetic Goals: The quality of the formwork surface directly affects the final appearance of the concrete structure. A well-executed formwork system results in a smooth, clean finish, reducing the need for extensive post-pour treatments.

Essentially, investing in robust formwork design and ensuring its stability isn't just about following best practices; it's about safeguarding the project's success, protecting the safety of workers, and delivering a long-lasting, reliable structure.

Template Overview: Your Step-by-Step Guide

Let's break down how to effectively utilize this Formwork Design & Stability Checklist. Think of it as your roadmap to a structurally sound and safe concrete pour. Here's a streamlined walkthrough:

Phase 1: Project Initialization & Data Gathering (Sections 1 & 2)

1. Document Project Details: Begin by meticulously documenting all project-specific information in Section 1. This establishes a clear understanding of the scope.
2. Load Calculation Foundation: Section 2 is where the math begins. Thoroughly calculate all relevant loads - dead, live, lateral, and hydrostatic - and apply appropriate safety factors. Accurate loads are the bedrock of a stable design.

Phase 2: Design & Material Selection (Sections 3-7 & 8)

3. Material Selection & Specifications: Based on load calculations, select formwork materials (plywood, steel, etc.) and tie rods/bars that meet the required strength and durability.
4. Detailed Design: Work through sections 3-7, outlining specific dimensions, spacing, and connections for each formwork element. This is where you translate the load requirements into tangible design choices.
5. Joint Considerations: Don't overlook Section 8! Proper joint design and material compatibility are critical for maintaining formwork integrity.

Phase 3: Practical Implementation & Verification (Sections 9-12)

6. Integration & Clearance: Ensure adequate clearance for reinforcement and secure anchorage for embedded items (Section 9).
7. Site Assessment: Section 10 focuses on adapting your design to the reality of the construction site - addressing ground conditions and accessibility.
8. Documentation & Approval: Section 11 demands meticulous record-keeping through drawings and calculations. Always seek professional review and approval before construction begins (a crucial reminder!).
9. Compliance Check: Finally, ensure adherence to local codes and regulations outlined in Section 12.

Project Setup & Data Collection

Before a single piece of plywood is cut or a tie rod is ordered, thorough project setup and data collection are absolutely crucial. This initial phase establishes the framework for a safe and efficient formwork design process. Skipping steps here can lead to costly rework, delays, and potential safety hazards down the line.

The process begins with a deep dive into the project documentation - drawings, specifications, and any supporting information provided by the architect or engineer. We need to understand the precise geometry of the structure, the concrete mix design (including strength and slump), and any embedded items or reinforcement details. This information dictates the pressures formwork will need to withstand and influences material selection.

Beyond the official documents, a site visit is invaluable. Observing the existing ground conditions, assessing access routes for materials and equipment, and identifying potential environmental challenges (like prevailing wind patterns or uneven terrain) are all vital. Accurate measurements of dimensions, heights, and slopes that may not be perfectly represented in the drawings provide critical real-world data. Don't underestimate the power of simple observation - a seemingly minor detail noticed on-site can significantly impact the final formwork design. Finally, record all findings systematically - a well-organized data sheet is your best friend throughout the entire project.

1. General Project Information

Before diving into the nitty-gritty of formwork design, establishing a solid foundation of project-specific information is absolutely crucial. This initial step ensures everyone involved - engineers, contractors, and workers - is on the same page and that the formwork design accurately reflects the intended structure and its environment.

Think of it as laying the groundwork before you lay the concrete. Gathering this information upfront prevents costly errors, rework, and potential safety hazards later on. It's not just about ticking boxes; it's about understanding the why behind every design decision.

Key details to document include the precise project name and location, the type of structure being built (residential slab, commercial wall, bridge pier, etc.), and, importantly, the planned concrete mix design - noting the specified strength, density, and slump. Access to the full set of architectural and structural drawings is also essential for accurate formwork layout. Finally, a brief description of the project's overall goals and any unique challenges or constraints should be included.

2. Load Calculations & Analysis

Accurate load calculations are the bedrock of a safe and stable formwork system. Underestimating the forces acting on the formwork can lead to catastrophic failures, while overestimating can unnecessarily increase costs. Let's break down the key load types you need to consider:

1. Dead Loads: The Concrete's Weight

This is the weight of the concrete itself. It's calculated by multiplying the volume of concrete by its density. Typical concrete densities range from 23 to 24 kN/m³ (145 to 150 pounds per cubic foot). Precise knowledge of the concrete mix design is essential here, as variations in aggregate type and cement content will affect density. Remember to account for the weight of the formwork itself in this calculation - it's part of the total dead load.

2. Live Loads: Dynamic Forces

Live loads represent temporary or moving forces acting on the formwork. These can include the weight of workers, equipment (like concrete vibrators), and any stored materials on the formwork surface. While typically smaller than dead loads, live loads can create significant dynamic impacts, particularly during concrete placement. Conservative estimates should be used, considering the most demanding scenarios likely to occur during construction.

3. Lateral Pressure: Concrete's Push

As wet concrete is placed, it exerts lateral pressure against the formwork. This pressure isn't uniform; it's generally highest at the point of placement and decreases with distance. The magnitude of this pressure depends on several factors including the height of the concrete lift, the viscosity of the concrete mix, and the vibration method used. Codes often provide tables or formulas to estimate this lateral pressure, but a more detailed analysis may be required for complex geometries or high concrete lifts.

4. Wind Loads: External Forces

Wind can exert considerable force on formwork, particularly on tall or exposed structures. These loads depend on wind speed, formwork geometry, and the exposure category of the site. Local building codes will specify wind load requirements, and it's crucial to design the formwork to resist these forces.

5. Earth Pressure:

For structures like retaining walls or basement slabs, earth pressure acting against the formwork must be considered. This pressure depends on the soil type, density, and the angle of repose.

Combined Loads:

It's crucial to remember that these loads rarely act in isolation. You must perform a combined load analysis, considering the worst-case scenarios where multiple loads act simultaneously. This combined load analysis will determine the ultimate design loads that the formwork must safely resist.

3. Material Selection & Properties

Selecting the optimal formwork material isn's simply about raw strength; it's a balancing act. Each option presents unique advantages and disadvantages concerning cost, durability, reusability, and ease of handling. Let's break down common choices and their key properties.

Plywood: A popular choice due to its affordability and workability. Plywood offers reasonable bending strength and is relatively easy to cut and fasten. However, it's susceptible to moisture damage and can be less durable than other options, particularly for repeated use. Consider exterior-grade plywood for outdoor applications. Its deflection limit is generally around L/240, depending on thickness and species.

Oriented Strand Board (OSB): Generally more cost-effective than plywood, OSB offers good strength and dimensional stability. However, it's even more vulnerable to moisture and has a lower deflection limit (typically L/360) compared to plywood. It's typically best suited for projects where reusability isn't a primary concern.

Metal (Steel/Aluminum): Offers exceptional strength, durability, and reusability, making it ideal for large-scale projects with repetitive formwork needs. Metal forms can withstand higher pressures and offer excellent surface finish. However, they are more expensive upfront and require specialized equipment and expertise for handling and fabrication. Aluminum offers a lighter alternative to steel, reducing handling challenges.

Plastic (Polypropylene/Polyurethane): Lightweight and resistant to moisture and chemicals, plastic forms are excellent for producing smooth concrete surfaces. They are increasingly popular for modular formwork systems. While reusability is a major benefit, the strength can be lower than metal or timber, and they are often more costly than plywood or OSB initially.

Composite Materials: Combining the benefits of different materials, composite formwork offers enhanced strength, reduced weight, and improved durability. These often come with a higher price tag and may require specialized handling techniques.

Key Properties to Consider:

• Bending Strength (Modulus of Rupture): A measure of the material's resistance to bending forces. Higher bending strength allows for greater spans and thinner formwork panels.
• Modulus of Elasticity: Describes the material's stiffness; a higher modulus means less deflection under load.
• Deflection Limit: The maximum allowable deflection under load, typically expressed as L/X (where L is the span and X is a numerical value).
• Density: Affects the weight of the formwork, impacting handling and installation.
• Moisture Resistance: Crucial for durability and preventing warping or swelling.
• Cost: A significant factor, especially for large-scale projects.
• Reusability: Impacts long-term costs and environmental impact.

4. Formwork Geometry & Layout

The visual and structural integrity of your concrete element is directly tied to the precision of your formwork geometry and layout. Beyond simply creating the shape, thoughtful planning addresses constructability, material efficiency, and minimizes potential stress points. Here's a breakdown of critical elements:

Panel Optimization: Break down the formwork into manageable panels. Larger panels, while potentially faster to erect, can be harder to handle and more susceptible to deflection. Smaller panels increase the number of joints, demanding more robust connections. Strike a balance that optimizes both aspects based on available resources and site conditions.

Joint Placement is Critical: Joints represent potential weak points. Strategically place them in areas of low stress, ideally along lines of symmetry or where loads are evenly distributed. Avoid concentrating joints at corners or locations where significant bending forces are anticipated. Consider using stepped joints to better distribute loads and prevent stress concentrations.

Curved Surfaces & Complex Shapes: Working with curves or intricate geometries demands meticulous planning. Fabricate custom formwork panels, consider using flexible formwork systems, or utilize a combination of both. Ensure accurate templates are used for fabrication and that the formwork can be easily aligned and secured.

Tie Rod/Bar Integration: Account for tie rod/bar placement during the layout phase. The formwork design should facilitate easy installation and accessibility for these crucial structural components. Avoid obstructions and ensure sufficient space for adjustments during assembly.

Constructability & Access: Think about how the formwork will be assembled, moved, and dismantled. Layout the panels to allow for ease of access for workers and equipment. Avoid tight corners or obstructions that might hinder the construction process.

Ultimately, a well-planned formwork layout not only creates the desired shape but also contributes significantly to the overall stability and efficiency of the construction process.

5. Support System Design

The support system is the backbone of your formwork, directly responsible for distributing loads and maintaining stability. Improperly designed supports can lead to formwork failure and potential hazards. Here's a breakdown of crucial considerations:

1. Support Spacing: The Foundation of Distribution

Spacing isn't arbitrary. It's dictated by a careful balance of several factors: the load imposed by the concrete, the strength and stiffness of the formwork material, and the support's own load-bearing capacity. Too close, and you're overspending on supports; too far, and you risk deflection and potential collapse. Calculations, based on established engineering principles, determine the optimum spacing. Remember to account for live loads during construction activities - extra weight from workers and equipment will add stress on the support system.

2. Types of Supports: Choosing the Right Tool

Several support types are available, each suited to different situations:

• Shoring Towers: Modular, adjustable towers are ideal for complex geometries and varying heights. Their flexibility makes them suitable for tall structures like walls and cores.
• Raking Shores: These angled supports are excellent for stabilizing excavations and forming sloping surfaces, often used in basement construction.
• Flying Shores: Used when ground conditions are poor or construction access is limited, flying shores transfer the load to adjacent stable structures.
• Needle Beams: Temporarily support slabs during construction, allowing for the removal of existing columns.

3. Ground Conditions: Ensuring a Solid Base

The ground beneath your supports must be stable and capable of bearing the imposed loads. Conduct a thorough geotechnical investigation to assess soil bearing capacity. If the ground is weak, consider ground improvement techniques such as soil stabilization or the use of reinforced concrete pads to distribute the load over a larger area.

4. Load Capacity & Settlement:

Each support must be rated for the maximum load it will experience, including the weight of the formwork, concrete, workers, and equipment. Account for potential settlement, especially on less-than-ideal ground. Settlement can induce stresses within the formwork and compromise its stability. Implement measures to minimize settlement, such as using wider footing areas or employing ground improvement techniques.

5. Connections & Bracing:

Secure connections between support elements are crucial. Use appropriately sized fasteners and ensure joints are properly aligned. Bracing provides lateral stability and prevents supports from overturning or buckling. Adequate bracing is especially important for taller structures or when dealing with uneven ground conditions.

6. Sheathing and Face Stability

Sheathing and face stability are critical to preventing unsightly bulges, cracks, and even failures in your concrete pour. Imagine the pressure - concrete is incredibly heavy! Without proper attention to these elements, your formwork can buckle or bow outward, compromising the finished concrete's dimensions and aesthetic.

Here's a breakdown of key considerations:

• Adequate Sheathing Thickness: The thickness of your plywood or OSB directly impacts its resistance to bending. Consult material specifications and load calculations to determine the appropriate thickness based on the span and anticipated load. Don't cut corners here - it's a common mistake that leads to problems.
• Robust Fastening: Securely fastening the sheathing to the supporting frame is non-negotiable. Use appropriate screws or nails spaced according to manufacturer recommendations and load calculations. Avoid relying solely on staples, as they are prone to pulling out under pressure. Double-check that connections are tight and secure.
• Bracing is Essential: Diagonal bracing, often using temporary lumber or metal supports, provides lateral stability to the sheathing. These braces resist the outward pressure exerted by the concrete, preventing the form from spreading. Strategically place braces along the panels to distribute the load effectively.
• Panel Spacing: Maintain appropriate spacing between panels, often dictated by the sheathing manufacturer. Too-wide spacing reduces the panel's ability to distribute the load.
• Form Release Considerations: When selecting sheathing, consider the form release agent being used. Some agents may affect the sheathing's strength or bond.
• Regular Inspection: Throughout the concrete pouring process, visually inspect the sheathing for any signs of bulging, cracking, or movement. Address any issues immediately.

7. Tie Rod/Bar Design & Placement

Tie rods and bars are the unsung heroes of formwork stability, working tirelessly to resist the outward pressure exerted by wet concrete. Their design and placement are critical to preventing formwork failure and ensuring a safe, structurally sound pour. Here's a closer look at key considerations:

Spacing & Load Distribution: The distance between tie rods or bars isn't arbitrary. It's directly calculated based on the anticipated load, the strength of the formwork panels, and the tensile capacity of the tie itself. Closer spacing generally means greater stability, but also increased cost and labor. A structural engineer will determine the optimal spacing to achieve a balance. Uneven load distribution can create localized stresses; therefore, spacing should be consistent and adjusted where necessary to account for varying concrete pressures.

Sizing for Strength: Tie rods aren't just about resisting force; they must do so without buckling or yielding. The diameter and grade of the steel used are determined by load calculations, considering factors like concrete pressure, formwork height, and any lateral bracing. Larger diameter rods generally offer greater tensile strength and resistance to buckling.

Material Selection: High-strength steel is the standard choice for tie rods due to its exceptional tensile properties. The specific grade of steel will depend on the anticipated loads and project requirements.

Connection Details - A Weak Link is a Broken Link: The connections between tie rods and the formwork are a crucial point of vulnerability. These connections must be robust enough to transmit the force from the tie rod directly into the formwork without slippage or failure. Proper clamping, welding (where appropriate and qualified), or bolting techniques are essential. Incorrectly installed or loose connections are a leading cause of formwork failures.

Strategic Placement - Beyond Just Spacing: Tie rod placement isn't just about even spacing. Consider the geometry of the formwork and the potential for localized pressure buildup. Areas with complex shapes or overhangs might require closer spacing or strategically placed tie rods to counteract these pressures.

Ease of Removal - Planning Ahead: While structural integrity is the priority, consider the practicalities of tie rod removal before the concrete hardens. Accessibility and ease of removal can significantly reduce labor costs and potential damage to the concrete. Threaded connections and accessible locations are key to simplifying the removal process.

8. Joint Considerations: Resin & Mortar

Joints in formwork aren't just gaps; they're points of potential weakness. Proper jointing is critical for maintaining formwork integrity and preventing blowouts or shifting during the concrete pour. Two primary methods exist: resin-based joints and mortar-based joints, each with their own advantages and limitations.

Resin-Based Joints: These offer superior strength and watertightness, making them ideal for complex shapes, applications where leakage is unacceptable, or projects demanding high load-bearing capacity. Epoxy resins are common, providing excellent adhesion to most formwork materials. However, resin joints are typically more expensive and require careful mixing and application to ensure proper curing and bond strength. Temperature and humidity conditions significantly impact resin performance, so adherence to manufacturer's instructions is vital.

Mortar-Based Joints: A more economical option, mortar joints are suitable for simpler formwork configurations and projects where a degree of leakage is tolerable. Cement-based mortars provide reasonable strength and stability when properly compacted. However, mortar joints are generally less watertight than resin joints and can be more susceptible to cracking, particularly under significant stress. Careful selection of mortar mix and proper compaction techniques are essential for achieving adequate joint performance.

Ultimately, the choice between resin and mortar joints depends on a combination of project requirements, budget constraints, and the expertise available for installation. Always consult with a structural engineer to determine the most appropriate jointing method for your specific application.

9. Reinforcement & Embedded Item Integration

The smooth placement of reinforcement and the secure integration of embedded items are critical not only for the structural integrity of the final concrete element but also for the stability of the formwork itself. Ignoring these aspects during the design and construction phases can lead to significant issues - from obstructed rebar placement and compromised concrete cover to formwork damage and delays.

Here's what you need to consider:

1. Clearance is Key:

Formwork design must account for the necessary clearance for rebar placement, tying, and congestion. Overly tight spaces hinder efficient placement and can increase the risk of rebar damage. Consider the bar size, spacing, and lapping lengths when determining formwork dimensions. This isn't just about making the job easier; it's about ensuring proper concrete coverage, which directly impacts the long-term durability and corrosion resistance of the reinforcement.

2. Formwork Penetration Minimization:

Every penetration through the formwork - whether for embedded conduits, pipes, or other items - weakens the system. While embedded items are essential, minimize the number and size of these penetrations. Design these items to run around formwork components whenever feasible, rather than requiring them to pass through.

3. Securing Embedded Items:

Embedded items need to be securely supported and positioned within the formwork to prevent them from shifting during concrete placement. This might involve using temporary supports, spacers, or tie-downs. The method of securing depends on the item's size, weight, and its interaction with the surrounding concrete.

4. Formwork Material Compatibility:

Ensure that the materials used to secure embedded items are compatible with the formwork material. For example, certain adhesives might react negatively with certain types of wood or plastic formwork, potentially compromising their integrity.

5. Coordination and Communication:

Clear communication and close coordination between the structural engineer, formwork designer, and construction crew are vital. Any potential conflicts or challenges related to reinforcement or embedded items should be identified and addressed before construction begins. A detailed plan, including the placement sequence and support methods, should be shared with all involved parties.

10. Constructability & Site Assessment

Constructability and site assessment are often overlooked but can be the difference between a smooth pour and a costly delay. It's not enough to have a perfect design on paper; it needs to be realistically implementable within the project's constraints. This phase involves a thorough evaluation of the site and construction methods to identify potential challenges before formwork is even erected.

Consider these critical factors:

• Accessibility: Can formwork components be easily transported and maneuvered to the work area? Limited access might necessitate smaller panel sizes or specialized lifting equipment, impacting design and cost.
• Ground Conditions: Uneven ground requires leveling or temporary shoring to ensure a stable base for the formwork. Soft soil may necessitate ground improvement techniques.
• Existing Structures/Obstacles: Proximity to existing buildings, utilities, or other obstructions can complicate formwork placement and require careful planning to avoid damage or interference.
• Weather Impacts: Anticipate potential weather conditions during construction - strong winds can destabilize tall formwork, heavy rain can saturate the ground, and extreme temperatures can affect concrete curing rates. Develop mitigation strategies accordingly (e.g., wind bracing, temporary drainage, insulated blankets).
• Construction Sequencing: The order in which construction tasks are performed can significantly impact formwork stability. For example, early pouring of a section might require temporary bracing to support subsequent operations.
• Labor Availability & Skill: Consider the availability of skilled labor for formwork erection and the potential need for specialized training.

A proactive site assessment, involving stakeholders from design, construction, and subcontractors, helps identify and address these challenges early, minimizing risks and optimizing the construction process.

11. Documentation: Drawings & Reports

Thorough documentation isn't just about ticking a box; it's about building a robust and verifiable record of your formwork design and construction. This documentation serves multiple crucial purposes: demonstrating compliance with regulations, facilitating troubleshooting during construction, and providing a valuable resource for future projects.

Drawings - The Visual Story:

Your formwork drawings are more than just blueprints; they're a narrative of your design. Include detailed plans illustrating panel layouts, support locations, tie rod/bar placement, and any specialized elements. Dimension everything clearly, noting material specifications and load assumptions. As-built drawings reflecting any on-site modifications are equally vital - ensuring accurate records for future reference.

Reports - The Analytical Backbone:

• Design Calculations: Preserve all calculations used to determine formwork stability, tie rod/bar sizing, and support spacing. Clearly outline assumptions and methodologies.
• Inspection Reports: Document regular inspections, noting any deficiencies and corrective actions taken. Photo documentation is highly recommended.
• Material Certificates: Maintain records of all formwork materials, including manufacturer certificates verifying compliance with specifications.
• Method Statements: Outline the proposed construction methodology, addressing potential risks and mitigation strategies.
• Change Management Logs: Track any deviations from the original design, detailing approvals and justifications.

A well-maintained documentation package provides a clear audit trail, safeguarding the project's integrity and demonstrating due diligence throughout the construction process.

12. Regulatory Compliance & Safety

Formwork design and construction aren't just about engineering principles; they're heavily influenced by legal frameworks and stringent safety regulations. Ignoring these aspects can lead to hefty fines, project delays, and, most importantly, serious accidents.

Local Building Codes: Your Foundation

Your first step is to thoroughly research and adhere to all applicable local building codes. These codes vary significantly depending on your region and the type of structure being built. They often dictate minimum formwork dimensions, allowable deflections, and material requirements. Don't assume general guidelines are sufficient - specific local ordinances take precedence. Contact your local building department early in the project to understand their requirements and obtain necessary permits before any work begins.

Industry Standards: Best Practices for Success

While local codes establish the legal baseline, adhering to recognized industry standards elevates your approach and demonstrates a commitment to quality and safety. Key standards to consider include:

• ACI (American Concrete Institute) standards: ACI offers comprehensive guidelines for concrete construction, including formwork design and construction.
• BS (British Standards): If operating in the UK or working to UK standards, BS codes provide detailed specifications for formwork.
• EN (European Norms): Relevant for projects within the European Union.

Familiarize yourself with these standards and incorporate their recommendations into your design and construction practices.

Prioritizing Safety: A Non-Negotiable

Safety isn't just a regulatory requirement; it's a moral obligation. Formwork presents inherent risks, including falls, collapses, and material handling hazards. Implementing a robust safety plan is paramount:

• Worker Training: Ensure all personnel involved in formwork construction receive thorough training on safe work practices, hazard recognition, and proper equipment usage.
• Personal Protective Equipment (PPE): Mandate the use of appropriate PPE, including hard hats, safety glasses, gloves, and fall protection harnesses.
• Regular Inspections: Conduct frequent inspections of the formwork, both during and after construction, to identify and address potential hazards proactively.
• Safe Access & Egress: Provide safe and accessible pathways for workers to enter and exit the work area.
• Emergency Procedures: Establish clear emergency procedures and ensure all workers are familiar with them.

Compliance isn't just about avoiding penalties; it's about protecting lives and ensuring the long-term success of your project.

Conclusion: Ensuring Concrete Success

Investing the time and effort into thorough formwork design and execution isn't just about avoiding headaches - it's about guaranteeing the long-term integrity and success of your concrete project. By systematically working through this checklist, collaborating with experienced professionals, and prioritizing safety at every stage, you've laid the foundation for a structurally sound, aesthetically pleasing, and durable concrete structure. Remember, a well-designed and properly installed formwork system isn't just a temporary solution; it's an integral component of the final product, and its success directly contributes to the overall success of your construction project.
