Mastering Learning Zones: Your HVAC Performance Checklist Template

Why Learning Zones Demand HVAC Excellence

Beyond simply maintaining comfortable temperatures, learning zones-classrooms, lecture halls, training facilities-present unique HVAC challenges that demand a higher level of performance. Unlike office spaces with relatively consistent occupancy patterns, learning environments often experience fluctuating numbers of occupants, unpredictable heat loads from equipment and lighting, and varying activity levels that significantly impact indoor air quality and thermal comfort.

Think about a packed lecture hall versus an empty study room. The HVAC system needs to adapt seamlessly to these shifts, preventing overheating and ensuring adequate ventilation. Furthermore, the learning process itself is sensitive to environmental factors. Poor air quality can lead to drowsiness and reduced concentration, while uneven temperatures create distractions and discomfort. A poorly functioning HVAC system isn't just an inconvenience; it directly impacts the effectiveness of learning and the overall well-being of occupants. Achieving HVAC excellence in these zones is, therefore, a critical investment in the educational experience and a vital component of a productive learning environment.

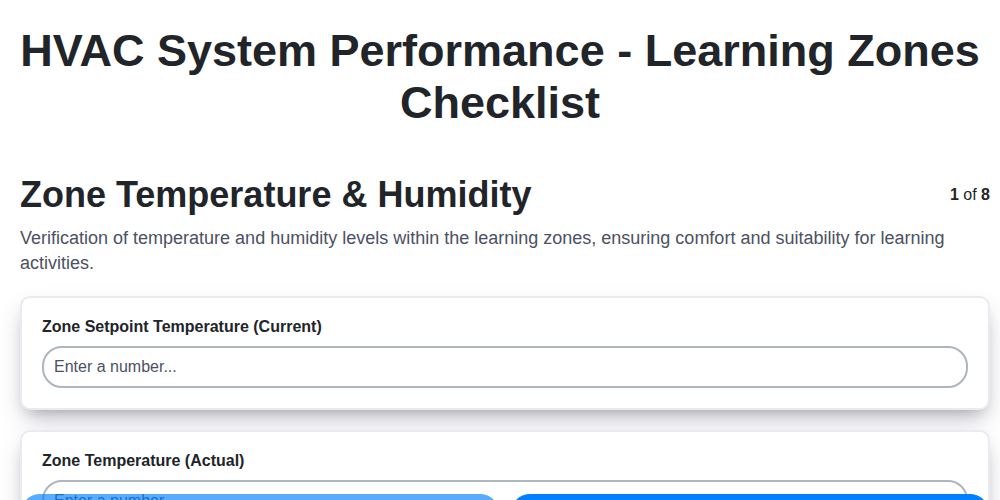

Introducing Your HVAC Performance Checklist Template

We understand that consistently maintaining optimal HVAC performance across your learning zones can feel overwhelming. That's why we've created a downloadable, customizable HVAC Performance Checklist Template to simplify the process. This isn't just a static list; it's a living document designed to be tailored to your specific building and equipment.

Inside, you're not just getting the checklist points outlined in the previous section. You're receiving a structured document with:

• Pre-defined fields for recording data: Temperature readings, airflow measurements, equipment status, and more, all neatly organized.
• Space for notes and observations: Capture important details and track recurring issues.
• Checkboxes for easy task completion: Clearly mark items as completed and stay on track.
• Customization options: Add or remove checklist items to suit your unique needs and equipment.
• Frequency guidance: Suggestions for how often each section should be reviewed (weekly, monthly, quarterly, annually).

Zone Temperature & Humidity: The Comfort Foundation

Maintaining consistent and comfortable zone temperatures and humidity levels is the bedrock of a well-performing HVAC system in learning environments. It's more than just avoiding complaints; it's about creating an atmosphere conducive to focus and learning. But what constitutes comfortable can vary - generally, a temperature range of 68-78°F (20-26°C) and a relative humidity between 30-60% is considered ideal for most occupants.

However, a single number doesn't tell the whole story. Temperature and humidity variations within a zone are just as important - or even more important - than the average readings. A classroom with a consistently warm spot near the window and a chilly corner near the ventilation unit creates discomfort and distractions.

What to Check:

• Spot Checks: Regularly walk through the learning zone and observe the general feel. Do students/staff seem comfortable? Are they adjusting their clothing or requesting changes?
• Data Logging: Implement a data logging system to record temperature and humidity readings at various locations throughout the zone over a period of time (ideally, 24 hours). This will reveal patterns and identify problem areas that might not be apparent during a brief visual inspection.
• Equipment Influence: Note how different pieces of equipment (AHUs, FCUs, VRF units) impact the temperature and humidity in their respective areas.
• External Factors: Consider the impact of external factors like sunlight, outdoor temperature, and building orientation.

Troubleshooting Common Issues:

• Uneven Temperatures: Could be caused by poor air distribution, blocked vents, insufficient insulation, or zoning issues.
• High Humidity: Might indicate inadequate ventilation, a refrigerant leak, or a drainage problem.
• Low Humidity: Often caused by dry air intake or insufficient humidification.

Airflow & Ventilation: Breathing Easy in the Classroom

Proper airflow and ventilation are absolutely critical for a comfortable and healthy learning environment. Stuffy classrooms can lead to drowsiness, difficulty concentrating, and even contribute to the spread of illness. It's about more than just temperature; it's about bringing in fresh air and removing stale, potentially contaminated air.

Let's assess how well your classroom ventilation is performing. Here's a practical look:

What to Observe:

• Vent Obstructions: Walk around the room and carefully examine each supply and return air vent. Are they blocked by furniture, boxes, or other obstructions? Even partial blockage significantly reduces airflow.
• Air Movement: Notice the general air movement in the room. Is it consistent? Do you feel a comfortable breeze, or does the air feel stagnant? Look for areas of poor circulation, often found in corners or behind furniture.
• Drafts: While consistent airflow is good, excessive drafts can be uncomfortable and distracting. Investigate any areas where drafts are noticeable.

Simple Measurements You Can Take:

While professional airflow measurement requires specialized equipment, you can get a basic sense of airflow with a simple anemometer (available for a reasonable price online). Take readings at different locations within the classroom to identify areas of weak airflow. Aim for consistent readings across the space. Significant variations suggest a problem with ductwork or vent balancing.

Common Ventilation Issues & How to Address Them:

• Blocked Vents: The easiest fix - simply clear any obstructions. Consider rearranging furniture to maximize airflow.
• Dirty Filters: Clogged filters restrict airflow and reduce efficiency. Stick to your scheduled filter replacement plan (typically every 1-3 months, depending on the environment).
• Ductwork Leaks: Leaky ducts waste energy and reduce airflow. Professional duct leakage testing and sealing can significantly improve ventilation performance.
• Imbalanced Airflow: Some vents may be delivering more or less air than others. A qualified HVAC technician can balance the airflow to ensure even distribution.
• Exhaust Fan Issues: Ensure exhaust fans in restrooms and kitchens are functioning properly to remove odors and moisture.

By paying attention to these details, you can create a more comfortable and healthy learning environment where students can thrive.

Decoding Equipment Performance: AHUs, FCUs, & VRFs

Understanding the nuances of your HVAC equipment is critical for targeted maintenance and optimization. Let's break down the essentials for Air Handling Units (AHUs), Fan Coil Units (FCUs), and Variable Refrigerant Flow (VRF) systems - the workhorses of many learning zone HVAC setups.

Air Handling Units (AHUs): The Central Hub

AHUs are typically large, centralized units responsible for conditioning and distributing air throughout a significant portion of a building. Key performance indicators to monitor include:

• Supply Air Temperature: Ensure it's within the design range for the zones it serves.
• Return Air Temperature: A significant difference between supply and return temperatures indicates heat gain or loss in the ductwork.
• Fan Motor Amperage: High amperage can signal a failing motor or issues with airflow.
• Coil Temperatures: Monitor entering and leaving coil temperatures for both heating and cooling coils.
• Refrigerant Pressures (requires qualified technician): Deviations from normal pressures can point to refrigerant leaks or compressor problems.
• Filter Pressure Drop: Excessive pressure drop indicates a clogged filter hindering airflow and increasing energy consumption.

Fan Coil Units (FCUs): Zone-Level Comfort

FCUs are smaller, self-contained units often found within individual classrooms or offices. Their performance is often tied directly to occupant comfort. Focus on these points:

• Coil Cleanliness: Dirty coils reduce efficiency and increase energy consumption. Regular cleaning is essential.
• Fan Speed: Adjust fan speed to match the zone's heating or cooling demand.
• Water Valve Operation (for chilled/hot water systems): Ensure proper valve modulation to maintain desired temperatures.
• Airflow from Registers: Verify adequate and even airflow throughout the space.
• Noise Levels: Unusual noises can indicate mechanical issues or failing components.

Variable Refrigerant Flow (VRF) Systems: Precision & Efficiency

VRF systems offer zoned control and energy efficiency, but require specialized knowledge for troubleshooting. Consider these aspects:

• Indoor and Outdoor Unit Performance: Ensure both units are operating within specified ranges.
• Refrigerant Flow: Monitor refrigerant flow rates and pressures (requires qualified technician) to detect imbalances or leaks.
• Heat Pump Mode Efficiency: Evaluate performance in both heating and cooling modes.
• Communication Errors: Check for any error codes or communication issues between indoor and outdoor units.
• Zone Control Functionality: Verify that individual zones are responding correctly to thermostat settings.

Important Note: Many VRF and AHU maintenance tasks, especially those involving refrigerant handling or electrical components, should only be performed by qualified and licensed HVAC technicians. Incorrect maintenance can damage equipment, void warranties, and pose safety hazards.

Control System Operation: Fine-Tuning for Efficiency

The brain of your HVAC system - the control system - dictates how everything works together. It's not enough for equipment to function; it needs to function optimally. A poorly configured or neglected control system can negate the benefits of even the most efficient HVAC equipment.

Let's break down key areas to scrutinize and fine-tune:

1. Scheduling is Paramount: Review your existing HVAC schedules. Are they still accurate, given changes in occupancy or building usage? Overriding schedules for extended periods can mask underlying problems, so establish a process for documenting and resolving these overrides. Consider dynamic scheduling based on occupancy sensors or weather forecasts.

2. Sensor Accuracy & Calibration: Temperature and humidity sensors are the control system's "eyes and ears." Inaccurate sensor readings lead to incorrect actions, wasting energy and compromising comfort. Regularly check sensor calibration against known references. Drift can occur over time, especially in dusty or extreme environments.

3. Zoning Logic - Are Zones Working as Expected? Verify that zone temperatures are maintained within acceptable ranges. Investigate any zones consistently operating outside their intended parameters. Check for issues like blocked vents, poorly insulated areas, or incorrect zone assignments. Ensure interlocks (e.g., disabling cooling when windows are open) are functioning correctly.

4. Demand Limiting & Load Shedding: During peak demand periods, control systems can strategically reduce HVAC output to avoid exceeding energy limits and costly demand charges. Confirm that demand limiting and load shedding strategies are configured and effective.

5. Trending and Data Analysis: Modern control systems generate a wealth of data. Utilize this information to identify trends, diagnose problems, and optimize performance. Look for patterns of excessive runtime, temperature fluctuations, and unusual energy spikes. Set up alerts to proactively address issues before they escalate.

6. Integration with Building Management Systems (BMS): If you have a BMS, ensure seamless integration with the HVAC control system. This allows for centralized monitoring, control, and data analysis, providing a holistic view of building performance.

Noise and Vibration: Minimizing Distractions

Excessive noise and vibration in learning zones can significantly impact concentration and create a disruptive environment. It's often overlooked, but addressing these issues is crucial for optimal learning. Sources can be varied, ranging from HVAC equipment itself (fans, compressors, ductwork) to external factors like traffic or construction.

Identifying the Culprits:

• HVAC Equipment: Listen carefully near air handling units, fan coil units, and ductwork for buzzing, humming, or rattling noises. These can be signs of failing bearings, unbalanced fans, or loose components.
• Ductwork: Vibrations in ductwork can transmit noise throughout the zone. Check for loose connections, inadequate supports, and resonance.
• External Sources: Determine if noise is penetrating the building envelope from outside. Windows, doors, and poorly insulated walls can be culprits.
• Piping: Water pipes can transmit vibrations, especially if not properly isolated.

Mitigation Strategies:

• Equipment Isolation: Install vibration isolators on equipment mounts to dampen vibrations.
• Ductwork Balancing: Ensure proper ductwork support and balancing to reduce resonance and noise transmission.
• Acoustic Linings: Consider applying acoustic linings to ductwork and noisy surfaces.
• Sealing Gaps: Seal gaps and cracks around windows, doors, and walls to block external noise.
• Regular Maintenance: Implement a maintenance schedule that specifically addresses noise and vibration issues. This includes lubricating bearings, tightening connections, and inspecting equipment for wear.
• Sound Masking (as a last resort): In some cases, strategically placed white noise generators can help mask distracting noises, but this is best used in conjunction with other mitigation strategies.

Air Quality: A Healthy Learning Environment

The link between indoor air quality (IAQ) and student performance is increasingly clear. Poor IAQ can lead to a range of issues, from headaches and fatigue to decreased concentration and even respiratory problems. Creating a healthy learning environment starts with prioritizing the air students and staff breathe.

Beyond Basic Ventilation: While adequate ventilation is a crucial first step - bringing in fresh air to dilute contaminants - it's often not enough. Modern learning zones can be sources of various pollutants, including:

• Volatile Organic Compounds (VOCs): Released from furniture, flooring, cleaning supplies, and even building materials.
• Particulate Matter (PM): Tiny particles from outdoor pollution, dust, and even printers and copiers.
• Carbon Dioxide (CO2): High CO2 levels, often due to poor ventilation, can lead to drowsiness and reduced cognitive function.
• Allergens: Pollen, dust mites, and pet dander can trigger allergic reactions and asthma.

Proactive Air Quality Management:

Here's how to move beyond basic ventilation:

• Regular Filter Changes: This is paramount. Follow manufacturer recommendations and consider upgrading to higher-MERV filters for better particulate filtration.
• Source Control: Select low-VOC building materials and cleaning supplies. Properly ventilate areas with potential emission sources (e.g., art rooms, science labs).
• Indoor Air Quality Monitoring: Consider periodic IAQ testing to identify specific pollutants and guide remediation efforts. CO2 monitors are becoming increasingly accessible and provide real-time feedback.
• Humidity Control: Maintaining proper humidity (30-60%) discourages mold growth and reduces the presence of dust mites.
• Professional Duct Cleaning: Periodic cleaning of ductwork removes accumulated dust, debris, and potential allergens.
• Outdoor Air Intake Filtration: Utilize high-efficiency filters on outdoor air intakes to minimize the introduction of pollutants from the surrounding environment.

Energy Consumption: Balancing Comfort & Savings

Monitoring your HVAC system's energy consumption isn't just about finding ways to cut costs - it's about understanding how your system is working and identifying opportunities for optimization. Start with a baseline. Track energy usage monthly, noting peak demand and any unusual spikes. Many modern building management systems (BMS) provide real-time data, but even a simple spreadsheet can be incredibly valuable.

Look beyond just kilowatt-hour (kWh) numbers. Analyze consumption patterns by zone. Are certain learning zones consistently using more energy than others? This could indicate issues with zoning, equipment sizing, or occupant behavior. Consider benchmarking your energy performance against similar facilities using resources like ENERGY STAR Portfolio Manager.

Simple adjustments can yield significant savings. Optimize scheduling - are you running the system when zones are unoccupied? Fine-tune temperature setpoints to find the sweet spot between comfort and efficiency. Don't forget the power of a good economizer cycle, leveraging outdoor air for free cooling when conditions are favorable. Finally, consider implementing energy-efficient upgrades, such as variable speed drives (VSDs) on fans and chillers, or upgrading to more efficient HVAC equipment during replacement cycles. Remember, a holistic approach - combining data analysis, operational adjustments, and strategic investments - is the key to maximizing energy savings while maintaining a comfortable learning environment.

Maintenance & Service Records: Tracking Your Progress

Maintaining meticulous records isn't just about compliance; it's about understanding your HVAC system's health and proactively preventing issues. A well-maintained logbook is your system's biography, detailing its lifespan and any interventions. What should you be tracking?

• Date and Description of all Maintenance: Every filter change, coil cleaning, lubrication, or inspection needs a record. Include specifics - type of filter used, refrigerant levels, who performed the work.
• Repair Logs: Detailed notes on any repairs are essential. Document the problem, the solution, parts replaced, and the technician's name. Recurring issues will be clearly visible.
• Performance Data: Track key performance indicators (KPIs) like airflow, temperatures, energy consumption, and refrigerant pressures over time. This provides a baseline for identifying deviations and potential problems.
• Equipment Manuals & Warranty Information: Keep all relevant documentation readily accessible. This is invaluable for troubleshooting and warranty claims.
• Service Contracts & Agreements: Track expiration dates and ensure timely renewals.

Regularly reviewing these records allows you to identify trends, anticipate future needs, and optimize maintenance schedules, ultimately extending the lifespan and efficiency of your HVAC system.

Beyond the Checklist: Proactive Strategies for Optimization

The checklist provides a valuable snapshot, but true optimization goes beyond periodic assessments. It's about fostering a culture of continuous improvement and leveraging data to drive decisions. Here's how to elevate your HVAC performance beyond the basics:

1. Smart Building Integration: Modern buildings are increasingly equipped with Building Management Systems (BMS) and IoT sensors. Integrate your HVAC system with these platforms to gain real-time data on temperature, humidity, airflow, and energy consumption. This allows for automated adjustments, predictive maintenance, and rapid response to anomalies. Imagine your system automatically adjusting ventilation based on CO2 levels or preemptively scheduling maintenance based on equipment runtime - that's the power of smart integration.

2. Occupancy-Based Control: Learning zones aren't always full. Implementing occupancy sensors and linking them to HVAC controls can dramatically reduce energy waste. Systems can automatically adjust temperatures and ventilation based on whether a classroom is occupied, eliminating unnecessary heating or cooling of empty rooms.

3. Predictive Maintenance: Reactive maintenance is costly and disruptive. Transition to a predictive maintenance approach by analyzing equipment performance data. Identify patterns and anomalies that indicate potential failures before they occur. This allows for scheduled repairs and replacements, minimizing downtime and extending equipment lifespan.

4. Energy Audits & Retro-Commissioning: Periodically conduct comprehensive energy audits to identify areas for improvement. Retro-commissioning, a systematic process of evaluating and optimizing existing building systems, can uncover hidden inefficiencies and unlock significant energy savings.

5. Feedback Loops & Continuous Learning: Establish clear channels for occupants to provide feedback on comfort levels. Regularly review performance data and maintenance records to identify trends and areas for further investigation. HVAC optimization isn's a one-time project; it's an ongoing process of learning and refinement.
