Mastering Calibration: Your Spray Verification Checklist Template

Why Spray Verification Matters

Beyond simply ensuring you're applying the right amount of product, verification digs deeper into the quality of your application. Think about it: even if your flow rate is technically correct, a poorly maintained sprayer can deliver an uneven or distorted spray pattern. This leads to inconsistent coverage - some areas getting too much product (risking phytotoxicity or environmental impact), while others are left vulnerable to pests or disease. A damaged nozzle can create droplet size issues; large droplets drift more easily, wasting product and potentially impacting non-target areas, while tiny droplets evaporate, reducing their effectiveness. Verification helps identify these subtle, but significant, problems before they compromise your results and negatively impact your bottom line. It's about maximizing your investment in both product and labor, and ensuring you're doing what's best for your crops, your environment, and your budget.

Understanding Your Spraying Equipment

Before you even think about calibration, it's crucial to have a solid understanding of the components that make up your spraying system. This isn't just about knowing the names of the parts; it's about understanding how they function and interact.

The Core Components:

• Tank: This is your reservoir for the spray solution. Different tank materials (plastic, stainless steel) offer varying levels of durability and chemical compatibility. Always check the tank's chemical resistance chart before mixing solutions.
• Pump: The heart of your sprayer, the pump creates the pressure needed to push the solution through the system. Types include diaphragm pumps (common for smaller sprayers), piston pumps, and gear pumps. Each has its own pros and cons in terms of pressure, flow rate, and maintenance.
• Nozzles: These are arguably the most critical element. They determine droplet size, spray pattern, and application rate. Understanding nozzle types (flat fan, cone, hollow cone, etc.) and their characteristics is essential for achieving the desired coverage.
• Pressure Regulator: This device maintains a consistent pressure in the system, ensuring uniform application rates, even with variations in engine speed or tank pressure.
• Hoses & Fittings: These connect the components and must be made of materials compatible with the chemicals being used. Inspect regularly for cracks or leaks.
• Filters: Protect your nozzles and pump from clogging by removing debris from the spray solution. Clean or replace filters regularly.
• Agitation System: (For tanks with additives) This ensures uniform mixing within the tank, preventing settling or separation of components.

Knowing the purpose and function of each of these components will not only help you troubleshoot problems but also allow you to make informed decisions about equipment maintenance and selection.

Gathering Your Calibration Tools

To accurately verify your sprayer's performance, you're going to need a few key tools. Don't worry, most are readily available and relatively inexpensive. Here's a breakdown of what you'll need and what to look for:

• Stopwatch: A simple stopwatch (digital or analog) is crucial for timing the flow rate measurement. Precision is key, so choose one that's easy to read and accurate.
• Measuring Container: A graduated cylinder or a clear, marked bucket is needed to accurately measure the volume of spray solution. Choose a size appropriate for the flow rate you anticipate - a larger bucket is fine for lower flow rates, but too large will make small measurements inaccurate.
• Scale (for liquids): If you are working with liquids and require precise measurements beyond what a graduated cylinder offers.
• Pressure Gauge: This is essential for checking the sprayer's operating pressure and ensuring it aligns with the nozzle manufacturer's recommendations. Make sure it's compatible with your sprayer's fittings.
• Notebook and Pen/Digital Recording Method: A dedicated notebook or a digital document will be your record-keeping hub. Note all readings, date, time, and any adjustments made. Accurate records are vital for tracking performance over time.
• Clean Water: Using clean water for calibration prevents contamination and ensures accurate readings.

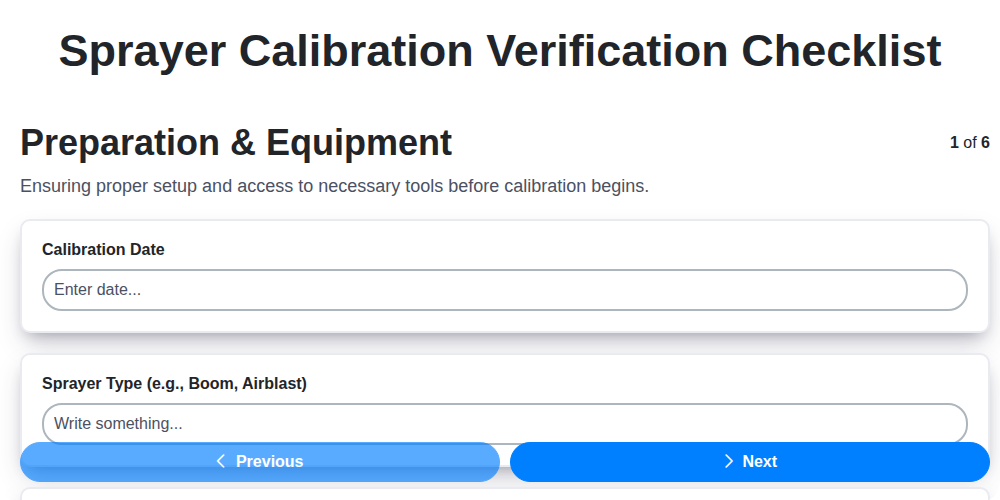

Step-by-Step: The Spray Verification Checklist

Here's a breakdown of the calibration process, presented as a clear, actionable checklist. Follow these steps carefully to ensure your sprayer is performing optimally.

1. Gather Your Supplies: You'll need a stopwatch or timer, a graduated cylinder or measuring bucket (accurate to at least 0.1 gallons), clean water (or your intended spray solution), a pressure gauge compatible with your sprayer, and a pen and notebook (or digital recording method).

2. Prepare the Sprayer & Work Area: Choose a level, open area free from obstructions and away from sensitive plants or water sources. Fill the sprayer tank to the appropriate level with clean water. Allow the sprayer to run for a few minutes to ensure a stable pressure and consistent readings.

3. Inspect the Nozzles: Examine each nozzle for signs of wear, clogging, or damage. Clean or replace any problematic nozzles. Note the type and size of each nozzle you're using, as this information is crucial for accurate calculations. Ensure nozzles are properly oriented according to the manufacturer's recommendations.

4. Determine Flow Rate: Using the stopwatch, measure the amount of spray solution discharged for a set time, typically 15-30 seconds. Carefully measure the volume collected using the graduated cylinder or measuring bucket. Calculate the flow rate using the following formula: (Volume Collected (gallons) / Time (seconds)) x 60 = Flow Rate (gallons per minute). Compare your calculated flow rate to the nozzle manufacturer's specifications.

5. Verify Spray Pressure: Connect the pressure gauge to the sprayer's outlet. Observe and record the operating pressure. Ensure this pressure aligns with the manufacturer's recommended pressure for the installed nozzles. Adjust the pressure regulator as necessary to achieve the correct setting.

6. Evaluate Spray Pattern: Visually inspect the spray pattern produced by each nozzle. Look for even distribution, consistent overlap, and any abnormalities, like a broken fan or irregular droplet size. For flat fan nozzles, check the fan angle to ensure it's correct.

7. Document Your Findings: Meticulously record all readings (nozzle type/size, flow rate, pressure, date, time, weather conditions) in a designated logbook or digital spreadsheet. This record-keeping is vital for tracking performance and identifying potential issues.

8. Make Adjustments & Re-Verify: If any of your findings deviate from the recommended specifications, make the necessary adjustments (e.g., replacing nozzles, adjusting pressure). After making changes, repeat the entire process to ensure the corrections were effective.

Nozzle Inspection: Ensuring Accurate Distribution

Nozzles are the heart of your sprayer's performance; they dictate the droplet size, spray pattern, and ultimately, the evenness of your application. A seemingly minor issue with a single nozzle can drastically impact the effectiveness of the entire process. Regular and thorough nozzle inspection is therefore non-negotiable.

Start by visually inspecting each nozzle. Look for obvious signs of wear and tear, such as cracks, chips, or erosion. Discoloration can indicate chemical damage or internal corrosion. Even if a nozzle looks okay, it might be producing an inaccurate spray pattern.

Clogs are a common culprit. These can be caused by debris, sediment, or hardened chemicals. Try cleaning nozzles with a small wire or nozzle cleaning tool. Always follow the manufacturer's recommendations for cleaning - harsh chemicals can damage the nozzle.

Beyond obvious damage, check for deviations in the spray pattern itself. A flat fan nozzle should produce a uniform, flat spray. Look for gaps, distortions, or a "wilted" appearance. Fan angles can drift over time, leading to uneven coverage. A simple visual comparison between nozzles can reveal discrepancies.

Consider replacing nozzles periodically, even if they appear functional. Wear and tear accumulates over time, and replacement ensures optimal performance. Keep a stock of common nozzle types and sizes on hand for quick swaps. Don't mix and match nozzle types within the same spray boom - this will guarantee uneven distribution. Finally, always handle nozzles with care; they are precision instruments and easily damaged.

Flow Rate Verification: Calculating Application Speed

Understanding flow rate isn't just about confirming a number; it's about translating that number into a practical application speed across your field or landscape. Here's how to calculate it:

The Formula:

Application Speed (mph) = (Flow Rate (gallons per minute) x 60) / Acreage per Minute

Let's break that down:

• Flow Rate (gallons per minute): This is the value you calculated in the previous step - the amount of spray solution your nozzle delivers in one minute.
• Acreage per Minute: This depends on your forward speed (how fast you're driving the sprayer). Here are some examples for common speeds:
  • 3 mph: Approximately 0.25 acres per minute.
  • 5 mph: Approximately 0.42 acres per minute.
  • 7 mph: Approximately 0.59 acres per minute.
  • 10 mph: Approximately 0.83 acres per minute.

Example:

Let's say your flow rate is 15 gallons per minute, and you're traveling at 5 mph.

Application Speed = (15 x 60) / 0.42 = 2143 gallons per acre.

Important Considerations:

• Overlapping Passes: This calculation assumes no overlap. If you are overlapping passes (which is common to ensure complete coverage), you'll need to adjust the application speed accordingly.
• Field Shape: The shape of your field can also influence the required application speed to achieve the desired coverage.
• Record Keeping: Always record your calculated application speed alongside your calibration data.

Pressure Adjustment: Achieving Optimal Spray

Proper sprayer pressure is the linchpin of accurate application. Too low, and you risk uneven coverage and drift; too high, and you risk damaging plants, increasing drift, and wasting product. Understanding how to adjust pressure effectively is crucial for achieving optimal spray performance.

Most sprayers are equipped with a pressure regulator, typically located on the supply hose. This regulator controls the pressure exerted by the sprayer. The ideal pressure is usually specified by the nozzle manufacturer and will be found in the nozzle's technical data sheet - always refer to this information. It's not a 'one-size-fits-all' number!

Here's a breakdown of how to approach pressure adjustment:

• Start Low: Begin with the pressure regulator set to the lowest setting.
• Gradual Increases: Slowly increase the pressure, observing the spray pattern. You're aiming for a consistent, full fan pattern (for flat fan nozzles) or even distribution.
• Nozzle Behavior: Listen for the sound of the nozzles. A healthy, regulated pressure will produce a steady, even sound. A sputtering or whistling sound indicates improper pressure.
• Pressure Gauge is Key: A pressure gauge is absolutely necessary for accurate adjustment. It provides a visual indication of the pressure being exerted, allowing you to make precise changes.
• Altitude Considerations: Remember that altitude affects pressure. Higher altitudes will require slightly lower pressures to achieve the same application rate.
• Check Regularly: Pressure can fluctuate due to changes in tank level, terrain, and weather conditions. Check the pressure regularly during operation and make adjustments as needed.

Always prioritize safety and consult your equipment manual for specific instructions on pressure adjustment for your sprayer model.

Spray Pattern Evaluation: Visualizing Coverage

A consistent, uniform spray pattern is just as critical as accurate flow rates and pressure. Visually assessing your spray pattern allows you to catch issues that numbers alone might miss. Here's how to do it:

The 'Paper Test': The easiest method involves laying down large sheets of paper (newspaper, cardboard, or even tarps work) in the spray path. Run the sprayer for a few seconds and then carefully lift the sheets. Examine the pattern for evenness. Are there gaps or overlaps? A good pattern should be relatively uniform with minimal streaking.

Distance and Angle Observation: Observe the spray pattern from multiple angles and distances. This helps identify unevenness that might not be obvious from a single viewpoint. Stand back, and then move closer to assess the pattern's edge definition. A well-defined edge indicates good nozzle performance.

Consider Wind Effects: Even slight breezes can dramatically alter the spray pattern. Repeat your visual assessment on a calm day, or factor wind direction into your interpretation of the pattern.

Look for Droplet Size Variation: While a detailed droplet size analysis requires specialized equipment, you can get a general sense of droplet size by observing the appearance of the pattern. Fine, consistent droplets indicate a good pattern, while large, uneven droplets suggest a problem with the nozzles or pressure.

Record Keeping & Analysis: Tracking Your Results

Consistent record keeping isn't just about ticking a box; it's the foundation for understanding your sprayer's performance over time and identifying potential issues before they become major problems. A well-maintained calibration log transforms data into actionable insights.

Your records should include, at minimum: date, time, weather conditions (temperature, wind speed & direction, humidity), nozzle type & size, operating pressure, measured flow rate, any adjustments made, and the name of the person performing the calibration. Beyond the basics, note any observations - unusual spray patterns, unexpected drift, or even the general condition of the nozzles.

Analyze your data regularly. Are you consistently within the target range? Are there trends you observe based on weather conditions or time of year? For instance, a gradual decrease in flow rate over several applications might indicate wear on the nozzles, prompting a replacement schedule. Comparing calibration results from different seasons can highlight the impact of temperature fluctuations on pressure and flow. This proactive approach prevents surprises during critical applications and ultimately optimizes your entire spraying operation. Consider using a spreadsheet or specialized app for easy data entry and analysis.

Troubleshooting Common Calibration Issues

Calibration isn't always a smooth process. Here's a breakdown of frequent problems and how to address them:

1. Inconsistent Flow Rate:

• Possible Cause: Clogged nozzles, incorrect pressure, worn nozzles, or a malfunctioning regulator.
• Solution: Clean or replace nozzles. Verify pressure is within the recommended range. Inspect the regulator for leaks or damage and replace if necessary. Check for air leaks in hoses and connections.
• Advanced Tip: If you're using multiple nozzles, test each individually to isolate the source of the problem.

2. Pressure Fluctuations:

• Possible Cause: Leaks in the system (hoses, connections, tank fittings), a faulty pressure regulator, or inconsistent water pressure from the source.
• Solution: Carefully inspect all connections for leaks. Replace damaged hoses and fittings. Ensure the water source provides consistent pressure. Have the pressure regulator professionally serviced or replace it.

3. Uneven Spray Pattern:

• Possible Cause: Nozzles misaligned, incorrect nozzle angle, or a build-up of debris on the nozzles.
• Solution: Adjust nozzle angles to ensure proper overlap. Clean nozzles thoroughly. If the problem persists, try rotating nozzles to different positions.

4. Low Flow Rate Despite Correct Pressure:

• Possible Cause: Viscosity of the spray solution is too high. Some adjuvants or pesticides can thicken the mixture.
• Solution: Dilute the spray solution further with water to reduce viscosity. Consider using a different adjuvant. Consult product labels for compatibility information.

5. Regulator Not Maintaining Pressure:

• Possible Cause: Internal damage to the regulator, incorrect regulator size for the system, or a blocked regulator screen.
• Solution: Clean the regulator screen. If cleaning doesn't resolve the issue, the regulator likely needs replacement. Ensure the regulator is properly sized for the sprayer's operating pressure and flow rate.

This list isn't exhaustive, but covering these common issues will help get you back on track. Remember, regular maintenance and diligent record-keeping are your best defenses against calibration problems!

Beyond the Checklist: Advanced Calibration Techniques

While the checklist provides a solid foundation for sprayer calibration, certain situations demand a more nuanced approach. For larger operations, variable rate applications, or when dealing with sensitive crops, consider these advanced techniques.

Droplet Size Analysis: Beyond visually inspecting the spray pattern, utilizing a droplet size analyzer provides precise data on droplet diameter distribution. This is invaluable for minimizing drift, optimizing coverage, and understanding the impact of different nozzle types and pressures. Droplet size is typically measured in microns (µm); a good target range often depends on the application (e.g., smaller droplets for foliar applications, larger droplets for weed control to reduce drift).

Application Rate Mapping: For fields with varying terrain or crop density, application rate mapping creates a visual representation of the actual product delivered across the field. This involves using GPS and sensors to measure spray volume and compare it to the intended rate. Discrepancies can then be addressed by adjusting nozzle placement, sprayer speed, or application rates on a section-by-section basis, optimizing resource use and improving outcomes.

Boundary Layer Measurements: More advanced users may employ boundary layer probes to assess the air movement near the crop canopy. This data can inform decisions about sprayer speed and nozzle orientation to ensure adequate penetration and coverage, particularly in dense foliage.

Nozzle Wear Testing: Regularly subjecting nozzles to accelerated wear testing helps predict their lifespan and identify when replacement is necessary, even if visual inspection doesn't reveal significant changes. This proactive approach minimizes performance degradation and ensures consistent application quality.

Tank Mix Compatibility Assessment: While not directly a calibration technique, understanding the impact of tank mix components on spray droplet behavior and nozzle performance is crucial. Always conduct jar tests to evaluate compatibility and avoid issues like nozzle clogging or altered spray patterns.
