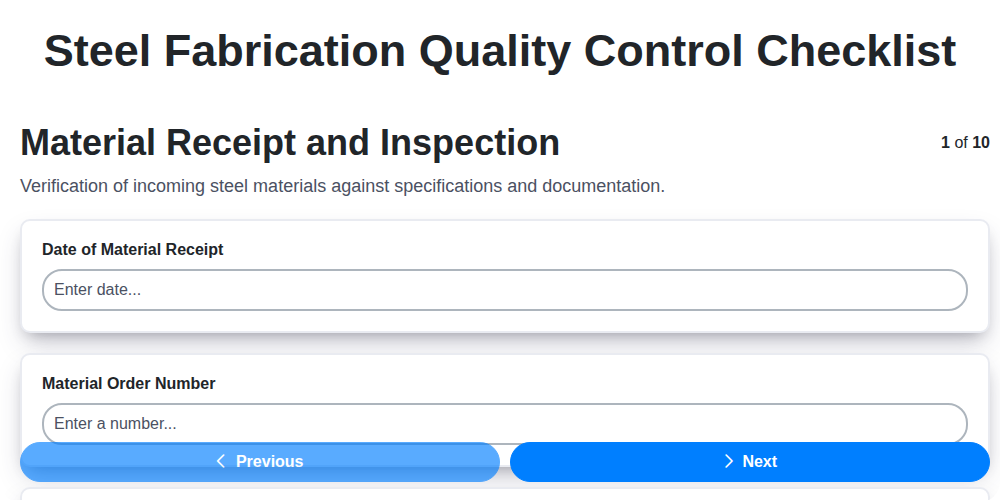

Steel Fabrication Quality Control Checklist Template

Introduction: Why a Steel Fabrication Quality Control Checklist Matters

Steel fabrication plays a vital role in countless industries, from towering skyscrapers to intricate machinery. But the strength and reliability of a fabricated steel structure aren't simply guaranteed by the inherent properties of the material. They depend entirely on the meticulous execution of every step in the fabrication process. A seemingly minor oversight - a missed measurement, an improperly executed weld, a lapse in documentation - can compromise the entire project, leading to costly rework, delays, or, in the worst-case scenario, structural failure.

That's where a comprehensive quality control checklist becomes absolutely essential. This isn't about ticking boxes for compliance; it's about building a culture of precision and ensuring that every piece of steel meets the highest standards of safety and performance. A robust checklist provides a roadmap for consistent quality, minimizes risks, and ultimately safeguards the reputation of fabricators and the success of their clients. It's an investment in peace of mind, structural integrity, and long-term value.

Understanding Your Project Requirements & Relevant Standards

Before a single piece of steel is cut, a thorough understanding of your project's specific requirements and the governing industry standards is absolutely paramount. These aren't just bureaucratic hurdles; they are the bedrock of a safe, structurally sound, and compliant finished product.

Project requirements often stem from architectural and structural engineering drawings, specifications, and procurement documents. These details dictate everything from material grades and thicknesses to welding procedures and surface treatments. Missing or misinterpreting a single detail can have cascading effects, leading to costly rework, delays, and potentially compromising the integrity of the entire structure.

Beyond project-specific directives, a robust knowledge of relevant industry standards is essential. These standards provide a framework for best practices, ensuring consistent quality and safety across the fabrication process. Common standards impacting steel fabrication include:

• AISC (American Institute of Steel Construction): Focuses on design, fabrication, and erection of steel structures.
• AWS (American Welding Society): Establishes welding codes and procedures. (e.g., AWS D1.1 for Structural Welding)
• ASTM International: Develops and publishes consensus standards for materials, systems, and services. (e.g., ASTM A36 for structural steel)
• Local Building Codes: Ensure compliance with regional regulations.

A proactive approach involves thoroughly reviewing all project documents, seeking clarification on any ambiguities, and ensuring that all team members are familiar with the applicable standards. Failing to do so can expose you to significant risks and liabilities.

Template Overview: A Stage-by-Stage Approach

This template provides a structured approach to steel fabrication quality control, broken down into ten key stages. Each stage includes a checklist with specific points to verify, ensuring a comprehensive evaluation at every step.

1. Material Receipt & Inspection: Focuses on verifying material certificates, checking for physical defects, and documenting any discrepancies. This section confirms you're starting with the right materials, in the right condition.

2. Shop Drawings & Fabrication Plans: This critical stage emphasizes the alignment between design intent and fabrication execution. It ensures everyone is working from the same accurate information, minimizing errors before they occur.

3. Cutting & Preparation: Focuses on dimensional accuracy and edge quality after cutting. Precise cuts are foundational to a structurally sound finished product.

4. Welding: This section is designed to confirm adherence to approved Welding Procedure Specifications (WPS) and identify any weld defects. Includes space to document welder qualifications and NDT results.

5. Fitting & Assembly: Checks for proper fit-up, alignment, and the use of temporary bracing to maintain stability during the welding process.

6. Dimensional Accuracy: Provides a dedicated check to ensure final assemblies meet the specified dimensions outlined in the shop drawings.

7. Surface Treatment & Painting: Focuses on the preparation of surfaces before painting and verification of correct paint application according to project specifications.

8. Bolting & Fastening: Provides checks for correct bolt grade, proper torque application, and overall fastener engagement.

9. Identification & Marking: Ensures all fabricated pieces are clearly marked with identification numbers and project details for easy traceability.

10. Documentation & Record Keeping: Provides a space to record all inspection results, corrective actions, and supporting documentation, crucial for auditing and future reference.

Each checklist item includes a space for initials and date, confirming the verification process and creating a traceable audit trail throughout the fabrication process. Download the complete checklist to implement this stage-by-stage approach to quality control.

1. Material Receipt & Inspection: Verifying Quality at the Source

The foundation of any robust steel fabrication project lies in the quality of the raw materials received. This initial stage, material receipt and inspection, is critical for preventing costly errors and ensuring the final product meets required specifications. Don't assume delivery equals quality; a thorough inspection is mandatory.

Upon arrival, the first step is verifying the accompanying Mill Certificates (also known as Certificates of Analysis) against the original purchase order. These certificates provide crucial details about the material's chemical composition, mechanical properties, and manufacturing process. Cross-reference these details meticulously; any discrepancies should be immediately flagged and investigated before the materials enter the fabrication process.

Beyond the paperwork, a visual inspection is essential. Look for any signs of damage incurred during transit: dents, scratches, rust, or corrosion. Even seemingly minor imperfections can compromise the material's structural integrity. Use calibrated measuring tools to confirm the actual dimensions match the purchase order specifications. Pay close attention to the material's surface - any visible defects, like pitting or inclusions, need to be documented.

For critical projects, consider conducting non-destructive testing (NDT) at this stage, such as ultrasonic thickness gauging to check for hidden corrosion or inconsistencies. Proper documentation of all findings, including any deviations from the purchase order, is paramount. Clear labeling of all received materials with date, supplier, and certificate numbers establishes a robust traceability system, vital for quality assurance and potential investigations. Remember: the strength of the final steelwork is only as good as the materials it's built from.

2. Shop Drawings & Fabrication Plans: Ensuring Accuracy and Coordination

Shop drawings are the blueprints for your fabrication process. They translate the engineer's design into precise instructions for the fabricator. Therefore, their accuracy and coordination are paramount. This stage isn't just about confirming dimensions; it's about identifying potential clashes, resolving ambiguities, and ensuring all stakeholders are on the same page before any cutting or welding begins.

Here's a deeper look at what's involved:

• Thorough Review: Don't just glance at the drawings. Conduct a detailed review, checking all dimensions, weld symbols, connection details, and material specifications against the original design documents.
• Clash Detection: Utilize software or manual techniques to identify any potential clashes or interferences between fabricated components. Addressing these proactively saves significant time and cost later.
• Engineer Approval: Secure formal approval from the engineer of record. This signifies that the shop drawings accurately reflect the design intent and are suitable for fabrication. Never proceed without this approval.
• Communication is Key: Foster open communication with the design team. Address any discrepancies or questions promptly and document all clarifications. A simple email confirming a change can prevent costly errors.
• Version Control: Implement a robust version control system to track changes and ensure everyone is working from the latest revision. Clearly label all drawings with revision numbers and dates.
• 3D Modeling (Optional): Consider utilizing 3D modeling software to visualize the fabricated structure and identify potential issues before fabrication begins. This can significantly reduce the risk of errors and improve coordination.

3. Cutting & Preparation: Precision in Every Cut

The foundation of any robust steel fabrication hinges on meticulous cutting and preparation. A poorly executed cut can compromise structural integrity and introduce stress points that can lead to failures down the line. This stage isn't just about separating material; it's about setting the stage for accurate welding, assembly, and overall product quality.

Our process begins with a thorough review of the shop drawings to confirm cutting dimensions and edge specifications. We utilize a range of cutting methods - oxy-fuel, plasma, laser, and saw - chosen based on the material type, thickness, and desired edge quality. Regardless of the method employed, our operators are highly skilled and utilize calibrated equipment to ensure dimensional accuracy within specified tolerances.

Beyond dimensional precision, edge quality is paramount. We strive for clean, square edges free from burrs, excessive heat discoloration (especially crucial for painted finishes), and any form of mechanical stress. Deburring and grinding processes are integrated where necessary to achieve the required surface finish. Regular tool maintenance and operator training are essential to maintaining these high standards. We meticulously document all cutting parameters, including machine settings and operator verification, to ensure consistency and traceability. Any deviations from the plan are immediately flagged and addressed, preventing minor errors from escalating into larger issues.

4. Welding: Critical Inspection Points for Strong Joints

Welding is arguably the most critical stage in steel fabrication, directly impacting the structural integrity of the finished product. A seemingly minor flaw can compromise the entire assembly. Therefore, meticulous inspection is paramount. Here's a breakdown of essential inspection points:

1. Pre-Weld Checks:

• Welder Qualification: Verify that the welder possesses the necessary qualifications and certifications for the specific welding process and material being used. Records should be readily accessible.
• WPS Adherence: Confirm strict adherence to the approved Welding Procedure Specification (WPS). Deviations, even seemingly insignificant ones, must be documented and justified.
• Surface Cleanliness: Ensure the base metal surfaces are free from rust, scale, grease, paint, and other contaminants. These can lead to porosity and weak welds.
• Fit-Up: Precisely align and fit the pieces to be welded, ensuring proper gap and root opening as specified in the WPS.

2. During Welding Observation:

• Visual Monitoring: Closely observe the welding process for signs of instability, excessive spatter, or any unusual behavior.
• Shielding Gas Flow: Monitor shielding gas flow rates to ensure adequate protection and prevent atmospheric contamination.

3. Post-Weld Inspection (Visual & NDT):

• Visual Inspection (VT): A thorough visual examination is the first line of defense. Look for:
  • Cracks: Inspect the weld toe, root, and throughout the weld for any signs of cracking.
  • Porosity: Identify any gas pockets within the weld.
  • Undercut: Examine for lack of sufficient weld metal at the toe of the weld, creating a groove.
  • Incomplete Penetration: Check for lack of weld metal reaching the full depth of the joint.
  • Overlap: Look for weld metal lying on the base metal surface.
• Non-Destructive Testing (NDT): Based on project specifications and code requirements, NDT methods such as:
  • Radiographic Testing (RT): X-ray or gamma ray inspection for internal defects.
  • Ultrasonic Testing (UT): Uses sound waves to detect subsurface flaws.
  • Magnetic Particle Testing (MT): Detects surface and near-surface cracks.
  • Dye Penetrant Testing (PT): Reveals surface-breaking flaws. These tests should be performed by qualified personnel and documented thoroughly.

Any weld defects discovered require immediate corrective action, including re-welding and subsequent re-inspection. Documentation of all findings and corrective measures is essential for traceability and quality assurance.

5. Fitting & Assembly: Achieving Perfect Alignment

Fitting and assembly represent a critical juncture in the steel fabrication process - where individual components transform into a cohesive structure. Poor fit-up at this stage can lead to costly rework, compromised structural integrity, and delays. Achieving perfect alignment isn't simply about getting pieces to touch; it's about ensuring they interlock precisely according to the shop drawings and engineering specifications.

This process begins with meticulous preparation. Ensure all cut pieces are accurately labeled and organized for easy identification. Temporary bracing and supports are vital - they maintain the intended geometry during welding and prevent distortion. These braces should be strategically placed and firmly secured, designed to counteract any forces that could pull or twist the assembly out of alignment.

Careful visual inspection is paramount. Cross-check dimensions at each stage, using calibrated measuring tools like squares, levels, and plumb bobs. Don't hesitate to make minor adjustments; a small correction now can prevent significant problems later. Remember to continually refer back to the approved shop drawings, verifying that each joint aligns perfectly. Experienced fitters often develop an intuitive sense for proper alignment, but even the most seasoned professionals rely on accurate measurement and careful observation. Finally, document any adjustments made, noting the reason and the person responsible - this contributes to a comprehensive fabrication record.

6. Dimensional Accuracy: Validating Against Specifications

Dimensional accuracy is paramount in steel fabrication; a slight deviation can compromise structural integrity and lead to costly rework. This stage goes beyond simply checking measurements - it's about validating that the fabricated piece or assembly precisely aligns with the specifications outlined in the shop drawings and engineering documents.

The process typically begins with a thorough verification of each piece before assembly. This includes using calibrated measuring tools - tape measures, squares, levels, and laser measuring devices - to confirm all dimensions are within the specified tolerances. Pay particular attention to critical dimensions marked as such on the drawings.

Once components are assembled, the overall structure undergoes a comprehensive dimensional check. This includes verifying squareness, straightness, plumbness, and levelness. Sophisticated tools like total stations and 3D laser scanners can be employed for larger or more complex assemblies to ensure accuracy across multiple dimensions.

Any discrepancies discovered must be documented meticulously, along with the corrective actions taken to bring the piece or assembly back into compliance with the specifications. It's crucial to re-measure after corrections to confirm the accuracy and prevent recurrence of the issue. Remember, a proactive and meticulous approach to dimensional accuracy builds confidence and ensures the final product meets the intended performance requirements.

7. Surface Treatment & Painting: Protecting Against Corrosion

Surface treatment and painting are critical final steps in steel fabrication, going far beyond aesthetics. They act as the primary defense against corrosion, significantly extending the lifespan and structural integrity of the fabricated component. Without proper preparation and application, even the highest quality steel can be vulnerable to environmental degradation.

The process typically begins with thorough surface preparation. This might involve abrasive blasting (sandblasting, grit blasting) to remove mill scale, rust, and any existing contaminants. The cleanliness level achieved - often measured in SSPC (Society for Protective Coatings) or NACE standards - directly impacts paint adhesion and long-term protection. A profile is created on the surface to physically lock the paint into the metal.

Following blasting, a primer coat is applied. Primers are specifically formulated to provide initial corrosion resistance and promote adhesion of the topcoat. The type of primer chosen depends on the environment the steel will be exposed to - for example, zinc-rich primers offer superior sacrificial protection.

Finally, one or more coats of a durable topcoat are applied. The topcoat provides a protective barrier against UV radiation, moisture, and chemical attack. Considerations for selecting the topcoat include color, gloss, and application method (brush, spray, etc.). Multiple thin coats are generally more effective than a single thick coat, as they minimize the risk of runs, sags, and pinholes. Regular inspection and maintenance of the paint system, including touch-ups, are essential for preserving its protective properties over time.

8. Bolting & Fastening: Secure Connections

Bolting and fastening are often the final, crucial step in steel fabrication, and their integrity directly impacts the structural performance of the finished product. This stage demands meticulous attention to detail to ensure secure and reliable connections.

First, verifying the correct bolt grade is paramount. Referencing the project specifications and material certifications is essential to confirm that the bolts meet the required strength and performance characteristics. Using the wrong grade can compromise the entire structure's load-bearing capacity.

Next, proper torque application is absolutely critical. Under-torquing can result in loose connections and potential failure, while over-torquing can damage the bolts or the connected materials. Using calibrated torque wrenches and adhering to the manufacturer's recommended torque values is non-negotiable. Consider using electronic torque wrenches that provide a verifiable record of applied torque.

Beyond torque, proper bolt engagement is vital. Ensure that the bolt fully engages the threads of both the bolt and the receiving nut or tapped hole. Visual inspection for proper alignment and thread engagement is a simple yet important check.

Finally, document everything. Record the bolt grade, torque values, and any observations regarding the bolting process. This documentation provides traceability and supports quality assurance efforts. A well-executed bolting process, coupled with thorough documentation, ensures a robust and lasting connection.

9. Documentation & Record Keeping: Maintaining Traceability

Documentation and record keeping are the unsung heroes of quality steel fabrication. They're not just about ticking boxes; they's about creating a verifiable trail that demonstrates adherence to specifications, identifies areas for improvement, and provides invaluable insights should any issues arise. A robust documentation system is the backbone of traceability, allowing you to track a piece of steel from raw material to finished product and beyond.

What should be included? It's more than just a sign-off sheet. Key elements include:

• Material Certificates (Mill Certificates): These are essential. Keep them organized and readily accessible.
• Welder Qualification Records: Proof of welder competency is vital for ensuring weld integrity.
• Welding Procedure Specifications (WPS): Document the exact welding procedures followed.
• Non-Destructive Testing (NDT) Reports: Results from any NDT performed (radiography, ultrasonic, magnetic particle, etc.) must be meticulously recorded.
• Inspection Reports: Detailed records of all inspections, including dates, inspectors, findings, and corrective actions taken.
• Drawing Revisions & Approvals: Keep track of all drawing revisions and approvals.
• Deviation Logs: Document any deviations from the original design or fabrication plan, with justifications and approvals.
• Corrective Action Reports: Record any corrective actions taken to address deficiencies identified during inspection or testing.

Digital record keeping is increasingly common, offering advantages like searchability, accessibility, and security. However, regardless of the format, clear labeling, secure storage, and adherence to your company's retention policy are paramount. Remember, thorough documentation isn't just a legal requirement; it's a commitment to quality and a powerful tool for continuous improvement.
