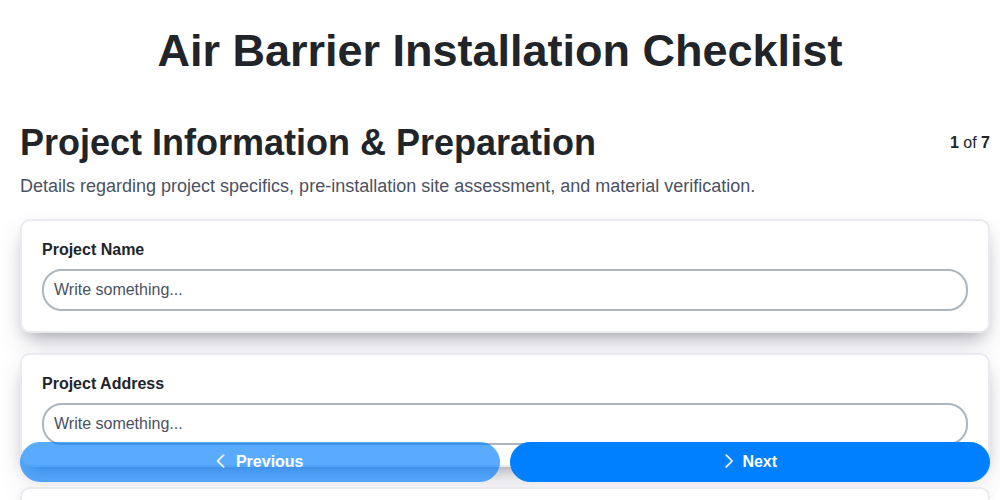

The Ultimate Air Barrier Installation Checklist Template

Introduction: Why an Air Barrier Checklist Matters

An air barrier is more than just a material; it's a critical component of a building's overall performance, acting as a protective shield against uncontrolled air leakage. Why does this matter? Because unchecked air movement can dramatically impact your building's energy efficiency, indoor air quality, and structural integrity. Think higher heating and cooling bills, uncomfortable drafts, potential moisture damage leading to mold growth, and even compromised indoor air quality due to pollutants entering from outside.

While the concept of an air barrier seems straightforward, proper installation is surprisingly complex. Subtle errors, overlooked details, or simply deviating from manufacturer specifications can significantly diminish its effectiveness - potentially rendering the entire system useless. That's where a detailed, step-by-step checklist becomes indispensable. It's not merely a formality; it's your guarantee of a job done right, ensuring the air barrier performs as intended and delivers the long-term benefits it promises. A checklist provides structure, promotes consistency, and acts as a record of best practices, protecting everyone involved from costly mistakes and performance failures.

Project Setup & Planning: Laying the Foundation

Before a single roll of air barrier material is touched, thorough project setup and planning are absolutely critical. Rushing this phase is a recipe for costly errors, rework, and compromised performance. This isn't just about scheduling; it's about understanding the project's unique requirements and creating a clear roadmap for success.

1. Design Review & Coordination: The first step is a meticulous review of the architectural and engineering drawings. Confirm the intended air barrier location, detailing, and any specific requirements. Coordinate with the design team to address any ambiguities or potential conflicts before construction begins. Don't assume - ask clarifying questions.

2. Material Selection & Compatibility: Selecting the right air barrier system isn't just about price. It's about compatibility with the building's construction methods, the substrate materials, and the overall design intent. Consider factors like climate, building type, and the potential for future maintenance. Always check the manufacturer's specifications to ensure compatibility and adherence to their installation guidelines. A mismatched system can lead to adhesion failures and compromised performance.

3. Subcontractor Coordination: Air barrier installation rarely happens in a vacuum. It requires close coordination with other trades - framing, roofing, insulation, and electrical/plumbing. A well-defined schedule, clear communication channels, and a shared understanding of priorities are essential to avoid delays and ensure a seamless integration of the air barrier into the overall building envelope.

4. Site Access & Logistics: Consider site access, material storage, and workspace requirements. Adequate space for material handling and installation is crucial. Think about protecting the installed air barrier from damage during subsequent construction activities. A proactive approach to site logistics can prevent costly rework and delays.

5. Building Codes & Permits: Ensure the air barrier installation complies with all applicable building codes and permit requirements. Obtain any necessary permits and approvals before commencing work. Familiarize the installation team with the specific code requirements and inspection procedures.

Substrate Assessment: Preparing the Surface

Before a single roll of air barrier material is laid, a thorough assessment and preparation of the substrate is absolutely critical. This isn't a step to rush or skip - it's the foundation upon which the entire air barrier system's performance relies. A flawed substrate will compromise adhesion, create weak points, and ultimately lead to air leakage.

Here's a breakdown of what to look for and how to address common issues:

1. Identification is Key: First, clearly identify the substrate. Is it sheathing (OSB, plywood), concrete, masonry, or something else? Each material presents unique challenges and requires specific preparation techniques.

2. Cleaning: Removing the Contaminants The substrate must be clean. This means removing any loose debris, dust, dirt, grease, oil, old paint, or other contaminants that could inhibit adhesion. Power washing (if appropriate for the substrate), scraping, and sweeping are common cleaning methods.

3. Surface Condition: Repairing Imperfections Inspect the substrate for existing damage. This includes cracks, voids, deteriorated areas, nail pops, or unevenness. These imperfections need to be repaired before air barrier installation. Use appropriate patching compounds or repair methods compatible with the substrate and air barrier system. Don't just cover the problem - fix it!

4. Moisture Content: Wood's Hidden Challenge For wood substrates like sheathing, moisture content is a major concern. High moisture content can negatively impact adhesion, leading to blistering, delamination, and ultimately, air leakage. Use a moisture meter to check moisture levels and allow the wood to dry adequately before proceeding. Consult manufacturer's specifications for acceptable moisture ranges.

5. Priming: The Manufacturer's Prescription Many air barrier systems require a primer to ensure proper adhesion. Always consult the manufacturer's installation instructions to determine if a primer is necessary and follow their recommendations precisely regarding application rates, drying times, and compatible primer products. A properly applied primer acts as a bonding agent, creating a stronger and more durable connection.

Ignoring these preparatory steps is a recipe for disaster. Invest the time and effort upfront - it will pay off significantly in the long run with a more effective and durable air barrier system.

Material Selection & Review: Choosing the Right Air Barrier

Selecting the appropriate air barrier material is a critical first step, impacting not only performance but also ease of installation and long-term durability. There's no one-size-fits-all solution; the best choice depends on the building design, climate, budget, and desired level of airtightness. Let's explore common air barrier types and key considerations:

Common Air Barrier Material Options:

• Fluid-Applied Membranes: These liquid coatings are sprayed or rolled onto surfaces, providing a seamless, flexible barrier. Ideal for complex geometries and retrofits. Look for low VOC options and check for UV resistance if exposed to sunlight.
• Self-Adhered Membranes (SAMs): Often used on sheathing, SAMs offer excellent airtightness and bonding strength. They can be a good option for new construction, but may require specialized tools for installation.
• Weather-Resistant Sheathing (WRB): While not a standalone air barrier in all cases, modern WRBs often incorporate air barrier properties. Consider their permeability ratings and compatibility with other building components.
• Spray-Applied Polyurethane Foam: Provides both air and insulation properties. Requires specialized equipment and trained installers. Ensure compliance with fire safety codes.
• Air Barrier Films: Typically installed as a secondary layer to improve airtightness. Look for durable films that are resistant to tearing and punctures.

Key Selection Considerations:

• Permeability: A lower permeability rating generally indicates a tighter air barrier, but consider the risk of moisture entrapment.
• Compatibility: Verify compatibility with other building materials, adhesives, and sealants.
• Durability: Consider resistance to UV exposure, temperature fluctuations, and mechanical damage.
• Fire Resistance: Ensure the material meets local fire safety codes and regulations.
• VOC Content: Opt for low-VOC options to minimize environmental impact and improve indoor air quality.
• Manufacturer's Data Sheets & Specs: Always refer to the manufacturer's technical data sheets for specific performance characteristics, installation instructions, and warranty information. This is your definitive guide.

Installation Steps: A Detailed Breakdown

Let's dive into the nitty-gritty. This section provides a detailed breakdown of each installation step, outlining key considerations and best practices. Remember, always refer to the manufacturer's specific instructions as they are paramount.

1. Substrate Preparation: The Foundation of Success

Don't underestimate the importance of this step! A compromised substrate will inevitably lead to air barrier failure. Thorough cleaning is crucial. Remove all loose debris, dust, dirt, grease, and any existing contaminants. For wood substrates, address any rot or insect damage with appropriate repairs. Moisture content is key - aim for levels within the manufacturer's recommended range. Priming is often a required pre-treatment, particularly with certain air barrier systems - verify this requirement and apply the primer according to the manufacturer's specifications. Ensure any repairs, such as patching drywall or repairing sheathing, are fully cured before proceeding.

2. Air Barrier Material Application: Precision Matters

Whether you're working with a self-adhered membrane, a spray-on coating, or a fluid-applied product, precision is paramount. For self-adhered membranes, overlap panels as specified (typically 2-4 inches) and roll the membrane firmly to ensure full contact and adhesion. When spraying or applying a fluid-applied product, maintain a consistent application rate and film thickness. Over-application can lead to bubbling and cracking, while under-application leaves areas vulnerable to air leakage. Pay close attention to corners and intersections, using corner trowels or specialized tools to create smooth, consistent transitions. Environmental conditions (temperature and humidity) significantly impact adhesion - consult the manufacturer's guidelines for optimal application windows.

3. Seam and Joint Treatment: Bridging the Gaps

Seams and joints are notorious weak points in air barrier systems. These areas require meticulous attention. Overlap seams consistently, following the manufacturer's recommendations. Use compatible sealants, ensuring they are specifically designed for use with the chosen air barrier material. Tool the sealant properly to create a watertight, durable connection. For corners, consider using specialized corner tapes or membranes to create a robust, airtight seal. Don't forget to meticulously seal any penetrations that cross seams - these are common areas for leaks.

4. Penetration Sealing: The Last Line of Defense

Penetrations for pipes, wires, and vents represent a significant challenge to air barrier integrity. Each penetration must be individually sealed with a compatible sealant or flashing. Avoid creating unnecessary gaps around penetrations; flashings should fit snugly and be securely fastened. Maintaining a small gap (typically 1/8 inch) is often recommended to accommodate building movement. Keep a detailed log of each penetration sealed, noting the sealant used and the date of application. This log can be invaluable for future maintenance and troubleshooting.

Seam and Joint Treatment: Eliminating Leakage Points

Seams and joints represent the Achilles' heel of any air barrier system. They're the most vulnerable points where air can easily leak, negating the effectiveness of the overall installation. Proper seam and joint treatment demands meticulous attention and adherence to manufacturer's recommendations.

Here's a breakdown of critical considerations:

• Understanding Joint Types: Recognize the different joint types you're dealing with: butt joints (where two pieces meet directly), lapped joints (where one piece overlaps another), and corners (both internal and external). Each requires a tailored approach.
• Manufacturer's Instructions are Paramount: Absolutely always follow the air barrier manufacturer's detailed instructions for seam and joint treatment. They're specifically designed for their system and will detail appropriate sealant types, application methods, and curing times. Don't improvise.
• Full-Depth Sealant Application: Ensure the sealant penetrates fully into the joint, creating a continuous airtight bond. This often requires the use of a caulking gun and proper nozzle selection.
• Backer Rods - When Necessary: For wider joints or gaps, use backer rods to control sealant depth and prevent three-sided adhesion (which can lead to sealant failure).
• Flashing Integration: Where the air barrier meets flashing (around windows, doors, and roof penetrations), ensure a robust, airtight seal. This often involves careful detailing and the use of compatible sealants. Pay special attention to overlapping flashing and ensure complete contact.
• Corner Treatments: Corners are notoriously difficult to air seal. Use specialized corner treatments like mitered corners, corner beads, or sealant application techniques to ensure an airtight seal. Proper corner preparation is key - clean and prime surfaces as needed.
• Regular Inspection: Following installation, perform a thorough visual inspection of all seams and joints. Look for gaps, cracks, or signs of sealant failure. Address any issues promptly to maintain the air barrier's integrity.

Penetration Sealing: Addressing Critical Openings

Penetrations - those essential openings for pipes, wires, vents, and ducts - are also prime culprits for air leakage if not properly addressed. They represent weak points in your building's envelope, and a seemingly small gap around a single pipe can significantly impact overall airtightness. The key to effective penetration sealing isn't just about slapping on some sealant; it's about a layered approach and meticulous attention to detail.

Identifying the Culprits: Before you even begin sealing, conduct a thorough survey of all penetrations. This includes not just visible openings, but also those hidden within walls and ceilings. Document each penetration's location, size, and purpose. This log will be invaluable for future reference and maintenance.

Choosing the Right Sealing Method: The ideal sealing method depends on the size and type of penetration, as well as the air barrier material being used. Common methods include:

• Sealants: Suitable for smaller penetrations. Choose a sealant compatible with both the air barrier and the penetrative material (e.g., rubber, PVC, metal).
• Wraps/Membranes: These create an airtight seal around the penetration, effectively encapsulating it within the air barrier system. They're particularly useful for larger penetrations and those with irregular shapes.
• Expanding Foam (with Caution): While low-expansion foam can be effective, use it judiciously. Over-expansion can damage surrounding materials. Always follow manufacturer instructions carefully and ensure the foam is compatible with the air barrier system.
• Combination Methods: Often, a combination of methods provides the best results. For example, a wrap can be used to seal around a large pipe, with sealant applied to address any small gaps.

Addressing Movement: Remember that buildings move - due to temperature changes, wind loads, and settling. When sealing penetrations, allow for this movement. Avoid creating rigid seals that could crack or fail over time. Use flexible materials and allow for a slight gap between the penetration and the surrounding air barrier.

Documentation is Key: Just like with the initial assessment, document every penetration that's been sealed, along with the sealing method used. This provides a clear record of your work and simplifies future inspections and maintenance. A photo log is a fantastic addition to this documentation.

Quality Control: Visual Inspection and Testing

Quality control isn't just about checking off boxes; it's about verifying performance. A comprehensive approach to air barrier quality control involves both careful visual inspection and, when feasible, performance testing.

Visual Inspection: The First Line of Defense

A thorough visual inspection should be conducted throughout the installation process and upon completion. Look for the following:

• Coverage: Ensure the air barrier has been applied consistently across the entire substrate, without gaps or omissions. Pay close attention to corners, edges, and around penetrations.
• Adhesion: Examine the air barrier for signs of inadequate adhesion. Look for bubbles, wrinkles, or areas where the material is lifting. While difficult to definitively assess visually, a firm press and a keen eye can often reveal issues.
• Seam Integrity: Closely inspect all seams, joints, and overlaps. These are common areas for leakage. Verify that sealant is applied correctly and that overlaps meet manufacturer's specifications.
• Penetration Sealing: Confirm that all penetrations (pipes, wires, vents) are properly sealed and that the sealing method is appropriate for the type of penetration.
• Damage: Look for any signs of damage to the air barrier, such as punctures, tears, or abrasion.

Performance Testing: Going Beyond the Visual

While visual inspection is vital, performance testing provides objective data to confirm air barrier effectiveness.

• Blower Door Testing: This is the gold standard for air leakage testing. A blower door measures the rate of air leakage in a building under controlled pressure. Lower leakage rates indicate a more effective air barrier.
• Infrared Thermography (IRT): IRT uses an infrared camera to detect temperature differences on building surfaces. These differences can highlight areas of thermal bridging (where heat flows easily through the building envelope) and air leakage. While not a direct measurement of air leakage, it's an excellent tool for identifying problem areas.
• Smoke Testing (Limited Use): Smoke pencils or smoke machines can be used to visually identify air leakage paths, particularly around windows, doors, and penetrations. This method is best used in conjunction with other testing methods.

Documenting Results:

Regardless of the testing method used, meticulously document the results. Photos, measurements, and observations should be recorded and retained for future reference. These records provide valuable insights for improving future installations and demonstrating compliance with building codes.

Documentation: Maintaining a Record of Installation

Comprehensive documentation isn't just a good practice; it's vital for warranty validation, future maintenance, and demonstrating compliance with building codes and energy efficiency standards. A robust record-keeping system provides a clear audit trail of the entire air barrier installation process.

Here's what should be included in your documentation package:

• Checklist Completion: The signed and dated checklist itself, serving as primary evidence of the steps taken. Ensure all sections are clearly marked as complete and any corrective actions are noted with details and dates.
• Material Specifications: Copies of manufacturer's data sheets, product specifications, and safety data sheets (SDS) for all air barrier materials used.
• Substrate Assessment Reports: Any reports detailing the condition of the substrate prior to air barrier installation. This includes photos, moisture readings, and notes on any repairs made.
• Photographic Evidence: High-quality photographs of the installation process, including substrate preparation, material application, corner detailing, and penetration sealing. Clearly label each photo with location and date.
• Testing Results: Any test results obtained, such as blower door testing reports, infrared thermography scans, or other air leakage assessments. Include details about the testing methodology and any corrective actions taken based on the findings.
• Corrections Log: A detailed log of any corrections made during the installation process, including the date, description of the issue, and corrective action taken.
• Sign-Off Records: Formal sign-off documents from the air barrier installer, general contractor, and building owner, acknowledging completion and acceptance of the installation.
• As-Built Drawings: Updated drawings reflecting the actual air barrier layout and detailing, particularly important for complex installations.

Digital vs. Physical Records:

While physical records have their place, digitizing your documentation offers significant advantages: ease of sharing, secure storage, and improved searchability. Consider using a cloud-based document management system to keep all records organized and accessible. Regardless of the format, always retain these records for the duration of the building's warranty period and beyond.

Troubleshooting Common Air Barrier Issues

Even with meticulous planning and adherence to a comprehensive checklist, unforeseen challenges can arise during air barrier installation. Recognizing and swiftly addressing these issues is crucial for maintaining the integrity of the air barrier system. Here's a breakdown of common problems and potential solutions:

1. Poor Adhesion: This is often caused by inadequate substrate preparation. Ensure the surface is clean, dry, and free of contaminants. Primer application may be required, even if not initially planned. Test adhesion in a discreet area before proceeding with the full installation. Consider surface temperature - extreme temperatures can affect adhesion.

2. Bubbles and Wrinkles: Often related to improper material application. Ensure the air barrier is applied evenly and at the correct thickness. Trapped air can be released by gently rolling the material with a hand roller or soft-bristled brush. For fluid-applied systems, adjust the application technique to avoid pooling.

3. Gaps and Overlaps: These create pathways for air leakage. Careful attention to detail during application and meticulous sealing of seams and joints are essential. Double-check lap lengths and ensure proper coverage in all areas, especially around corners and penetrations.

4. Material Degradation: Improper storage or exposure to extreme weather can damage air barrier materials. Store materials in a cool, dry place and protect them from direct sunlight. Check material condition before installation and discard any damaged rolls or containers.

5. Difficulty Sealing Penetrations: Penetrations are often the weakest link in the air barrier system. Use appropriate sealing methods (sealants, wraps, membranes) and ensure a tight, airtight seal around each penetration. Remember to account for building movement and potential future penetrations.

6. Visible Seam Issues: Uneven seams or visible inconsistencies can be cosmetic concerns, but may also indicate an underlying adhesion or application problem. Re-evaluate the application technique and ensure proper overlap and sealing.

Proactive Prevention is Key: Regular site inspections and open communication between the installation team and project managers can help identify and address potential issues before they escalate. Don't hesitate to consult with the air barrier manufacturer's technical support team for assistance with complex situations or unique application challenges.

Best Practices for Long-Term Air Barrier Performance

Maintaining an air barrier's effectiveness isn't a one-and-done deal. It's an ongoing commitment to protecting your building's envelope. Here's how to ensure your air barrier performs optimally for years to come:

• Regular Inspections: Schedule periodic visual inspections (at least every 5 years, more frequently in harsh climates or buildings with high turnover). Look for signs of damage, cracking, delamination, or degradation. Document findings and promptly address any concerns.
• Protect from Physical Damage: During construction, renovation, or maintenance, be vigilant about protecting the air barrier from physical impacts. Cover exposed areas when not in use and instruct workers to avoid unnecessary contact.
• Consider Climate Impacts: Different climates present unique challenges. In areas with extreme temperatures, UV exposure can degrade certain air barrier materials. In humid environments, moisture intrusion can lead to mold growth and weakening of the barrier. Choose materials appropriate for your climate and implement preventative measures (e.g., UV-reflective coatings, enhanced drainage).
• Maintain Adjacent Components: The air barrier's performance is often linked to the condition of adjacent building components like cladding, windows, and roofing. Address any issues with these components promptly, as they can indirectly impact the air barrier's integrity.
• Avoid Abrasive Cleaning: When cleaning the exterior of the building, avoid using harsh chemicals or abrasive cleaning methods that could damage the air barrier's surface. Opt for gentle cleaning solutions and soft-bristled brushes.
• Repair, Don't Replace (When Possible): Minor damage to the air barrier can often be repaired effectively, rather than requiring a full replacement. Utilize compatible repair materials and follow manufacturer's recommendations for patching and sealing.
• Document Maintenance: Keep a log of all maintenance and repair work performed on the air barrier, including dates, descriptions of work, and materials used. This documentation will be valuable for future reference and warranty claims.

Final Sign-Off and Project Completion

Once the quality control and testing phases are complete, and any necessary corrections have been implemented and verified, the final step is securing a formal sign-off and marking the project as complete. This isn't just about ticking a box; it's about establishing a clear record of acceptance and ensuring ongoing accountability.

The sign-off process should involve representatives from all key stakeholders: the air barrier installer, the general contractor, and the building owner (or designated representative). A standardized sign-off form is highly recommended. This form should explicitly state that the air barrier installation has been performed according to the project specifications, manufacturer's instructions, and relevant building codes. It should also acknowledge that all identified deficiencies have been addressed to the satisfaction of all parties.

Photographic documentation played throughout the process becomes particularly valuable here. Having a readily available visual record supports the sign-off and provides a reference point should any future questions or concerns arise.

Beyond the formal sign-off, it's crucial to provide the building owner with comprehensive documentation including:

• The completed Air Barrier Installation Checklist: A record of all steps taken and verifications performed.
• Manufacturer's Installation Guidelines: For future maintenance or repairs.
• Warranty Information: Covering the air barrier materials and installation.
• Testing Results: Blower door test data, infrared thermography reports.

This thorough handover ensures the building owner understands the air barrier system and how to maintain its performance over time, contributing to long-term building efficiency and occupant comfort. Finally, retain a copy of all documentation for your own records - it's a testament to the quality of your work and a valuable asset for future projects.
