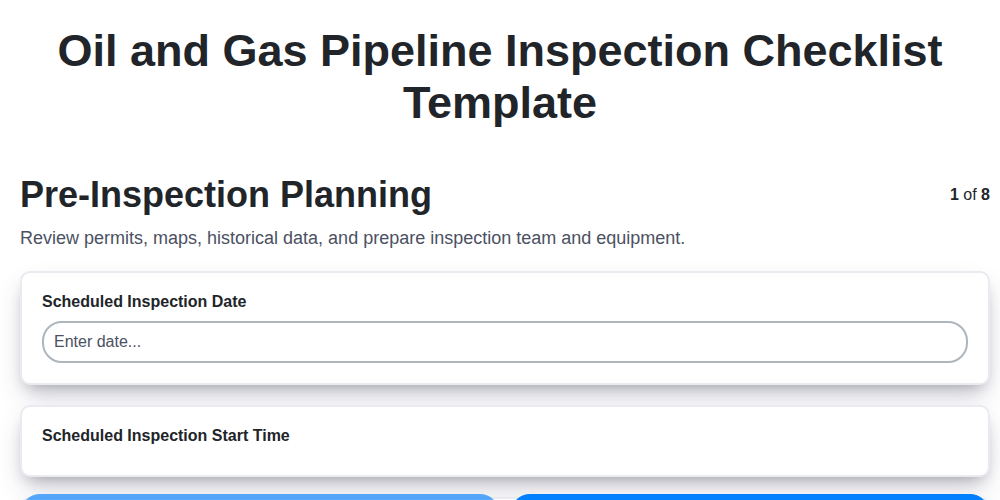

Your Essential Guide to the Oil and Gas Pipeline Inspection Checklist Template

Why Pipeline Inspection Checklists Matter

Beyond simply ticking boxes, a well-structured pipeline inspection checklist represents a proactive commitment to safety, regulatory compliance, and operational efficiency. It's the foundation for a robust pipeline integrity management system. Think of it as more than just a document; it's a risk mitigation strategy in action. A consistent, documented inspection process demonstrates due diligence to regulators, stakeholders, and, most importantly, the communities and environment surrounding your infrastructure. Skipping or shortcutting inspections can lead to costly repairs, environmental damage, and potential harm - all of which a thorough checklist helps to prevent. It provides an objective record of asset condition, identifies potential issues early, and ultimately safeguards the flow of vital resources while minimizing risk.

Understanding Regulatory Frameworks

Navigating the regulatory landscape for oil and gas pipelines can feel overwhelming, but understanding the core frameworks is crucial for compliance and operational integrity. In the United States, the Pipeline and Hazardous Materials Administration (PHMSA) is the primary federal agency responsible for pipeline safety. Their regulations, found in Title 49 of the Code of Federal Regulations (49 CFR), cover a wide range of areas, from design and construction to operation and maintenance. These rules mandate specific inspection frequencies, record-keeping requirements, and reporting protocols.

Beyond federal oversight, state and local authorities often have their own pipeline safety regulations that may be more stringent than federal rules. These can address issues like pipeline route selection, emergency response planning, and public awareness programs. Furthermore, international pipelines operate under the regulatory regimes of the countries they traverse, which can vary significantly in their approach and enforcement. Staying abreast of these constantly evolving regulations is a continuous process, requiring proactive monitoring and expert guidance. Failing to do so can lead to hefty fines, operational shutdowns, and, most importantly, compromise safety.

Pre-Inspection Planning: Setting the Stage

Before boots even hit the ground, meticulous planning is the bedrock of a successful pipeline inspection. This phase isn't just about ticking boxes; it's about proactively minimizing risks and ensuring a focused, efficient process. Think of it as laying the groundwork for accurate data collection and effective action.

First, a deep dive into historical data is crucial. Review past inspection reports, maintenance records, and any anomaly reports. Identify recurring issues, areas of concern, and trends that might influence your current inspection strategy. This historical context informs your scope and helps anticipate potential problems.

Next, gather all relevant documentation. This includes operating procedures, detailed pipeline schematics (as-builts), regulatory guidelines (like those from PHMSA or equivalent), and any relevant engineering reports. Having this information readily available prevents delays and ensures consistency.

Clearly define the scope of the upcoming inspection. What specific segments of the pipeline will be examined? What are the primary objectives - a general assessment, a targeted investigation of a specific area, or a focused review of a particular component? A well-defined scope keeps the inspection focused and prevents wasted effort.

Finally, assemble a qualified inspection team. Ensure each member possesses the necessary expertise, training, and appropriate equipment. Don's underestimate the importance of clear communication and coordination within the team. A well-prepared team, armed with the right information and resources, is the first step toward a successful pipeline inspection.

Right-of-Way Assessment: External Factors

The right-of-way (ROW) isn't just a strip of land; it's the pipeline's first line of defense against external threats. A thorough assessment here can reveal potential issues long before they escalate into serious problems. We're looking for anything that could compromise the pipeline's integrity or accessibility for maintenance.

Here's a breakdown of what to look for during a ROW assessment:

• Vegetation Management: Overgrown vegetation can obstruct visual inspections, hinder access for repairs, and even create a fire hazard. Evaluate the effectiveness of current vegetation control measures and identify areas needing attention. Consider the type of vegetation - some species have more aggressive root systems that can impact the pipeline.
• Encroachments: Are there any signs of unauthorized construction, farming, or other activities near the pipeline? Even seemingly minor encroachments can create access issues and increase risk. Document any observed encroachments and initiate corrective action as needed.
• Erosion & Stability: Slopes along the ROW are particularly vulnerable to erosion. Look for signs of landslides, slumping, or gully formation. The presence of standing water can exacerbate erosion problems. Instability can also impact buried pipelines, potentially causing stress and damage.
• Third-Party Activity: Construction projects or agricultural practices (tilling, fertilization) in the vicinity of the pipeline can impact its stability and potentially damage the coating. Communication with neighboring landowners is crucial.
• Drainage Patterns: Natural drainage patterns can alter over time. Ensure that drainage structures (culverts, ditches) are functioning correctly and not contributing to erosion or flooding near the pipeline. Assess for debris accumulation.
• Wildlife Activity: While less direct, significant wildlife activity (e.g., burrowing animals) can indirectly impact ROW stability.

Pipeline Physical Condition: A Visual Check

A thorough visual assessment is the cornerstone of any pipeline integrity program. This isn's just a cursory glance; it's a systematic, detailed examination of the pipeline's exterior. Start by walking the right-of-way, paying close attention to any areas with limited visibility, such as heavily vegetated zones or near water crossings.

Look for telltale signs of degradation. Corrosion can manifest as pitting, blistering, or general thinning of the pipe wall. Note the type and extent of corrosion observed - is it localized or widespread? Dents and gouges can weaken the pipeline and should be documented with their dimensions and location. Inspect any seam defects, which are particularly important in welded pipelines. Even seemingly minor surface anomalies should be recorded, as they can be indicators of underlying issues.

Pay close attention to the condition of any pipeline coating. Loss of coating exposes the pipe to accelerated corrosion. Document the percentage of coating loss and the underlying condition of the pipe. Remember to photograph any anomalies and record their precise location using GPS coordinates or right-of-way markers. This documentation forms the basis for further investigation and potential remediation efforts. Don's underestimate the power of meticulous observation - it's often the first line of defense against pipeline failure.

Cathodic Protection (CP) Monitoring: Shielding Against Corrosion

Cathodic protection (CP) is your pipeline's first line of defense against corrosion - essentially, it creates an artificial, protective layer that prevents rust from forming. Monitoring CP is not just a 'nice to have'; it's absolutely critical for maintaining pipeline integrity and preventing costly failures.

During a CP inspection, you'll be measuring and recording several key parameters. Potential Readings are paramount. These tell you how negatively charged the pipeline surface is - a more negative potential indicates better protection. You're looking for potentials that are sufficiently negative, but not too negative, as that can lead to hydrogen embrittlement. Current Output from your rectifiers (the devices providing the protective current) must be checked to ensure they're operating within their design specifications. Sacrificial anodes, if used, need visual inspection for signs of corrosion - they're sacrificing themselves to protect the pipeline, so their depletion is expected, but excessive degradation signals a problem. Finally, a holistic assessment of the entire CP system is needed to detect any anomalies or areas where protection may be compromised. A properly functioning CP system is the silent guardian of your pipeline's longevity.

Leak Detection Systems (LDS): Early Warning Signs

Leak Detection Systems (LDS) are your pipeline's first line of defense against potentially catastrophic failures. They're not just about detecting leaks; they're about providing early warning signs, allowing for swift intervention before a minor issue escalates into a major incident. Modern LDS utilize a variety of technologies, including fiber optic sensing, acoustic monitoring, pressure gradient analysis, and volatile organic compound (VOC) detection, each offering unique strengths in identifying leaks of varying sizes and types.

The core function of any LDS is to establish a baseline of normal operating conditions. Deviations from this baseline trigger alarms, indicating a potential leak. However, it's crucial to understand that LDS aren't foolproof. Factors like instrument drift, background noise, and environmental conditions can sometimes generate false positives. Regular calibration and maintenance are therefore essential to ensure accuracy and reliability. Furthermore, a layered approach-combining LDS data with visual patrols and aerial surveys-provides a more comprehensive leak detection program. Finally, remember that the effectiveness of an LDS hinges on a well-trained team capable of interpreting data, investigating alarms promptly, and implementing corrective actions swiftly.

Erosion Control: Safeguarding Pipeline Stability

Erosion around pipelines isn't just an aesthetic issue; it's a serious threat to pipeline integrity and surrounding infrastructure. When soil is consistently washed away, it undermines the pipeline's support, increasing stress and potentially leading to cracking, leaks, or even catastrophic failure. Beyond the direct impact on the pipeline itself, erosion can damage access roads, drainage systems, and surrounding property, creating hazardous conditions and costly remediation efforts.

Effective erosion control measures are, therefore, a critical component of a robust pipeline management program. These measures aren't just about preventing soil loss; they're about proactively safeguarding the pipeline's stability and protecting the environment. Common techniques include riprap installation (placing layers of rock to stabilize slopes), vegetation establishment (using plants with strong root systems to bind the soil), and the construction of drainage structures to divert water away from vulnerable areas.

Regular inspections are vital to ensure these controls remain effective. Look for signs of riprap displacement, sediment buildup in drainage channels, and vegetation die-off. Addressing these issues promptly, whether it's re-grading a slope or re-planting vegetation, can prevent minor problems from escalating into major risks. Early detection and swift action are the cornerstones of successful erosion control.

Pipeline Integrity Components: Valve and Pig Inspection

Pipeline integrity hinges on the reliable performance of its components, and valves and pigs (pipeline inspection gauges) are undeniably critical. These elements demand meticulous inspection to ensure they're functioning as intended and not contributing to potential hazards.

Valve Inspection: Beyond the Visual

Valve inspections shouldn's be limited to a quick visual check. While observing for corrosion, physical damage, and proper labeling is essential, a more in-depth assessment is required. This includes:

• Operational Testing: Valves must be cycled through their full range of motion to verify smooth operation and proper sealing. Look for any binding, excessive force required for actuation, or signs of leakage during operation.
• Stem and Packing Examination: Inspect valve stems for wear, corrosion, and any signs of distress. Packing material should be checked for deterioration or leakage, which can indicate a compromised seal.
• Actuator Verification: If valves are actuated (automated), confirm the actuator is functioning correctly and delivering the appropriate force. Check electrical connections and control signals.
• Position Indication: Verify that position indicators (if equipped) accurately reflect the valve's actual position.

Pig Inspection: Tracking and Performance

Pipeline pigs, or ILIs (In-Line Inspection tools), are essential for detecting anomalies and gathering data about the pipeline's condition. Pig inspection involves several layers:

• Pre-Run Inspection: Before deployment, each pig should undergo a thorough inspection, including a visual assessment for damage, a check of its functionality (e.g., powering on electronic components), and verification of its correct configuration.
• Post-Run Inspection: After a pig run, the tool must be carefully inspected for any signs of damage sustained during its transit. This includes checking for scrapes, dents, or wear on the tool's sensors and housing.
• Data Analysis Review: Critically review the data collected by the pig. Look for anomalies, patterns, and potential areas of concern. Validate the data with other inspection methods where possible.
• Pig Tracking System Evaluation: If a pig tracking system is used (as it often is for laterals or complex pipelines), evaluate the system's functionality and accuracy. Ensure pig location data is reliable.
• Pig Selection & Maintenance: Maintain a record of pig usage and performance, to help with selection of appropriate pig tools for specific inspection tasks, and to track maintenance needs.

Documentation and Reporting: Creating a Record

Thorough documentation isn't just about ticking boxes; it's the bedrock of a robust pipeline integrity management system. It provides a historical record, facilitates analysis, and demonstrates due diligence in the event of an incident. Here's a breakdown of what constitutes effective documentation and reporting:

What to Document:

• Detailed Observations: Go beyond simple "yes/no" answers. Describe the condition, location, and dimensions of any anomalies. Use clear and concise language.
• Photographic Evidence: A picture truly is worth a thousand words. Include high-quality photos of all findings, especially anomalies or areas of concern. Label photos with date, time, location, and a brief description.
• Measurements & Data: Record all relevant measurements, such as potential readings, current outputs, joint gap measurements, and valve operating pressures.
• Environmental Conditions: Document weather conditions (temperature, rainfall, wind speed) as these can influence inspection results and potential degradation.
• Personnel Involved: Record the names and qualifications of the inspectors and any other personnel involved in the inspection.
• Equipment Used: Specify the make, model, and calibration status of all equipment used during the inspection.

Creating the Report:

• Standardized Format: Use a consistent report format to ensure clarity and comparability across inspections.
• Clear and Concise Language: Avoid jargon and technical terms that may not be understood by all readers.
• Executive Summary: Provide a brief overview of the inspection findings, including any significant anomalies or recommendations.
• Detailed Findings Section: Present the detailed findings, organized by inspection area (e.g., Right-of-Way, CP System, LDS).
• Corrective Action Recommendations: Clearly outline the recommended corrective actions, assigning responsibility and setting deadlines.
• Digital Records: Migrate to electronic data management systems to improve accessibility, traceability, and data analysis. Consider GIS integration for spatial data visualization.

Retention and Accessibility:

Establish a clear record retention policy that complies with regulatory requirements and company policy. Ensure that all records are readily accessible to authorized personnel. Regularly review and update documentation procedures to reflect changes in regulations or best practices.

Leveraging Technology for Efficient Inspections

The landscape of pipeline inspection is rapidly evolving, and embracing technology is no longer a luxury, but a necessity for efficiency, accuracy, and safety. Gone are the days of relying solely on manual visual inspections. Today's advanced tools are transforming how we assess pipeline integrity.

Drones (UAVs): Aerial inspections using drones offer a bird's-eye view of the right-of-way, quickly identifying vegetation encroachment, ground disturbances, and potential access issues that might be missed from the ground. They're particularly valuable for long stretches of pipeline and difficult-to-access areas.

Robotics and Intelligent Piggling: Sophisticated inline inspection tools, or "pigs," are equipped with advanced sensors to detect corrosion, cracks, and other anomalies within the pipeline. Recent advancements include AI-powered analysis of pig data, allowing for earlier anomaly detection and more accurate risk assessment. Smart pigs are becoming increasingly common.

Geographic Information Systems (GIS): Integrating inspection data with GIS platforms allows for a spatial understanding of pipeline assets and associated risks. This facilitates better planning, improved tracking of anomalies, and more informed decision-making.

Artificial Intelligence (AI) and Machine Learning (ML): AI and ML algorithms are being used to analyze inspection data, predict potential failures, and optimize inspection schedules. They can also automate image analysis and anomaly detection, reducing human error and increasing efficiency.

Digital Twins: Creating digital replicas of pipelines allows for simulations, predictive maintenance, and enhanced operational insights. These digital twins can incorporate data from various inspection techniques to provide a comprehensive view of pipeline health.

Augmented Reality (AR): AR applications can overlay inspection data onto the real-world view of the pipeline, providing inspectors with real-time information and guidance during on-site inspections.

By adopting these technologies, pipeline operators can significantly enhance their inspection programs, improve pipeline integrity, and ensure the safe and reliable transportation of vital resources.

Common Challenges and How to Overcome Them

Pipeline inspections, while crucial, aren't without their challenges. From logistical nightmares to technical complexities, here's a look at common roadblocks and practical solutions to keep your program on track.

1. Limited Right-of-Way Access: Thick vegetation, private property restrictions, and challenging terrain can severely limit access for visual inspections. Solution: Proactive communication with landowners and stakeholders is essential. Utilize drones and remote sensing technologies (e.g., LiDAR, thermal imaging) to supplement ground-based inspections. Coordinate inspection schedules in advance and obtain necessary permits.

2. Data Overload and Analysis Paralysis: Modern inspection technologies generate vast amounts of data - potential readings, LDS alarms, anomaly reports - which can be overwhelming. Solution: Implement a robust data management system with automated reporting capabilities. Prioritize data analysis based on risk. Train analysts to effectively interpret data trends and identify critical anomalies. Invest in data visualization tools.

3. Maintaining Consistency Across Inspection Teams: Different inspectors may interpret inspection criteria differently, leading to inconsistencies in findings. Solution: Develop clear and concise inspection guidelines and provide standardized training for all inspectors. Use photographic examples to illustrate acceptable and unacceptable conditions. Implement a peer review process to ensure consistency.

4. Corrosion Under Insulation (CUI): Detecting corrosion hidden beneath insulation is notoriously difficult. Solution: Employ specialized inspection techniques like guided wave ultrasonics, infrared thermography, and radiographic testing to identify CUI. Implement a proactive CUI mitigation program that includes insulation removal and replacement.

5. Aging Infrastructure & Legacy Data: Older pipelines often lack detailed records, making it difficult to assess their condition accurately. Solution: Invest in historical data recovery efforts, including reviewing old as-builts and maintenance records. Conduct thorough condition assessments to establish a baseline for future monitoring. Accept that uncertainty exists and implement a conservative inspection frequency.

6. Unexpected Weather Conditions: Inclement weather can disrupt inspection schedules and compromise data quality. Solution: Develop contingency plans for adverse weather conditions. Utilize weather forecasting tools to anticipate disruptions and reschedule inspections as needed. Invest in weather-resistant inspection equipment.

Continuous Improvement: Refining Your Checklist

Your initial pipeline inspection checklist is a fantastic starting point, but treating it as a static document is a missed opportunity. Continuous improvement should be woven into the fabric of your inspection program. Here's how to actively refine your checklist and maximize its effectiveness:

Feedback Loops are Essential: Don't operate in a vacuum. Regularly solicit feedback from the inspectors themselves. They're on the ground, seeing the pipeline firsthand, and their insights are invaluable. Questions to ask: Is the checklist easy to use? Are there any items that are redundant or unnecessary? Are there any areas that are not adequately covered?

Post-Inspection Analysis: After each inspection cycle, conduct a thorough analysis of the findings. Are there recurring anomalies or trends emerging? These often point to gaps in your checklist or underlying operational issues. Don't just note the problems; investigate the root causes.

Technology Integration: Leverage technology to streamline your checklist and improve data quality. Digital checklists with photo capture and GPS tagging can dramatically reduce errors and enhance reporting. Consider using data analytics tools to identify patterns and predict potential failures.

Regulatory Updates: Stay abreast of any changes to regulations and industry best practices. Update your checklist accordingly to ensure ongoing compliance. Subscribing to industry newsletters and attending conferences are great ways to stay informed.

Pilot Testing: Before implementing major changes to your checklist, consider pilot testing them on a small segment of the pipeline. This allows you to identify any unforeseen consequences and make adjustments before rolling them out across the entire system.

Data-Driven Adjustments: Track key performance indicators (KPIs) related to your inspection program, such as inspection completion rates, anomaly detection rates, and corrective action completion times. Use this data to identify areas for improvement and track the effectiveness of your refinements.
