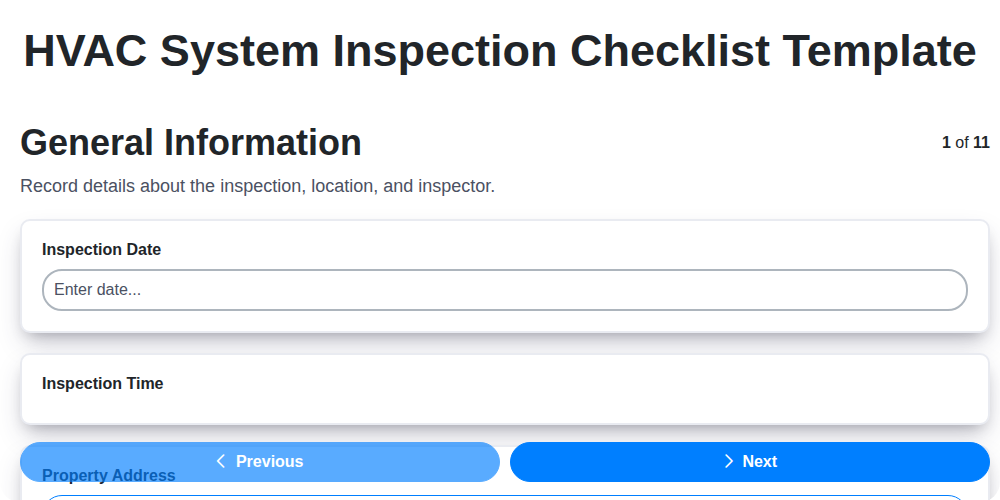

Your Ultimate HVAC Inspection Checklist Template

Why Regular HVAC Inspections Matter

Ignoring your HVAC system's needs is like neglecting the foundation of your home's comfort. While it might seem like a minor inconvenience to postpone maintenance, the consequences can quickly escalate. A seemingly small issue - a dirty filter, a slightly loose wire - can snowball into major problems.

Think about it: your HVAC system works tirelessly, battling extreme temperatures and humidity. This constant strain takes a toll. Without regular inspections, efficiency drops, repair costs skyrocket, and the lifespan of your system is drastically reduced. You're essentially paying more for less comfort, and risking a sudden, expensive breakdown when you need it most.

Regular inspections aren't just about preventing breakdowns; they're about optimizing performance, improving air quality, and protecting your investment. A proactive approach now saves you money, headaches, and potential discomfort later. Don't wait for a crisis-schedule an inspection today!

Gathering Your Tools: What You'll Need

Before you dive into inspecting your HVAC system, it's essential to gather the right tools. Trying to wing it with inadequate equipment can lead to inaccurate assessments and potentially unsafe situations. Here's a rundown of what you'll need, broken down into essential, helpful, and optional categories.

Essentials:

• Screwdriver Set: Both Phillips and flathead screwdrivers are your go-to for accessing and tightening various components.
• Flashlight: Critical for illuminating dark corners and inspecting hard-to-reach areas. A headlamp can be especially helpful for hands-free operation.
• Work Gloves: Protect your hands from dirt, debris, and sharp edges.
• Safety Glasses: Shield your eyes from dust and potential projectiles.
• Measuring Tape: Useful for checking clearances around outdoor units and ductwork.

Helpful Tools:

• Fin Comb: Straightens bent fins on the outdoor unit, improving airflow. (Use with care!)
• Duct Tape: For temporarily sealing small ductwork leaks. Note: This is a temporary fix - professional repair is recommended.
• Vacuum with Brush Attachment: Removes dirt and debris from coils and registers.
• Digital Thermometer: Provides more accurate temperature readings than a standard thermometer.

Optional (For More Detailed Inspection - Use with Caution & Knowledge):

• Multimeter: For checking voltage and amperage (requires electrical knowledge and safety precautions!).
• Leak Detector: For detecting refrigerant leaks (requires specialized training and equipment).

Always prioritize safety and refer to the manufacturer's instructions for specific tools and procedures.

Outdoor Unit Assessment: A Visual Check

The outdoor unit, often the workhorse of your HVAC system, deserves a thorough visual assessment. Start by clearing away any debris - leaves, branches, overgrown plants - that might be obstructing airflow. A minimum of 2 feet of clearance around the unit is generally recommended. Next, carefully examine the fins. Bent or damaged fins restrict airflow and reduce efficiency. While minor bends can sometimes be straightened with a fin comb (available at most hardware stores), significant damage warrants professional attention. Inspect the fan blades for any cracks, breaks, or excessive dirt buildup. A damaged fan blade can cause imbalance and noise, potentially leading to further complications. Finally, visually check the wiring connections. Look for any signs of corrosion, fraying, or loose connections. While you shouldn't attempt to repair electrical issues yourself, noting these observations is valuable information for your HVAC technician.

Refrigerant Levels and Pressures: The Critical Component

Refrigerant, often referred to as "Freon" (though that's a brand name now), is the lifeblood of your air conditioning system. It's the working fluid that absorbs heat from your home and transfers it outdoors. Maintaining proper refrigerant levels and pressures is absolutely critical for efficient cooling and system longevity.

Unfortunately, refrigerant leaks are a common problem. Over time, small leaks can develop due to corrosion, faulty connections, or damage to the system. These leaks not only reduce cooling capacity but can also put undue stress on the compressor, potentially leading to premature failure - a very expensive repair!

Why You Can't DIY This One:

Accurately measuring refrigerant levels and pressures requires specialized gauges and a trained eye. Improper handling of refrigerants is also environmentally concerning; some refrigerants contribute to ozone depletion and global warming. Trying to top off refrigerant without identifying and repairing the underlying leak is a temporary fix that only postpones a larger problem.

What a Professional Will Check:

Your HVAC technician will use a manifold gauge set to measure the suction and discharge pressures of the system. They'll compare these readings to the manufacturer's specifications to determine if the refrigerant level is correct. They'll also use leak detection methods - often electronic sniffers or UV dye - to pinpoint the source of any leaks. If a leak is detected, it must be repaired before adding more refrigerant.

Electrical System Review: Safety First

Your HVAC system relies on electricity, making a thorough electrical review paramount for safety and optimal performance. This isn't a task for the faint of heart or those without proper training - electricity can be dangerous. Here's what a qualified technician will check:

• Voltage and Amperage: Ensuring the system is receiving the correct voltage and amperage is critical to prevent damage and potential hazards.
• Wiring Connections: Loose or corroded wiring can create resistance, leading to overheating and posing a fire risk. Technicians will meticulously inspect all connections, tightening and cleaning as needed.
• Capacitors: Capacitors are vital components that help start and run the system. Bulging, leaking, or damaged capacitors are a significant safety concern and need immediate replacement.
• Grounding: Proper grounding is essential for preventing electrical shock. A technician will verify the grounding system is secure and functioning correctly.
• Overload Protection: Checks will be made to ensure overload protection devices, such as circuit breakers or fuses, are appropriately sized and working to protect the system from damage.

Important Safety Note: Never attempt to diagnose or repair electrical components in your HVAC system yourself. Always hire a licensed and qualified technician to handle any electrical work.

Airflow and Ductwork Evaluation

Proper airflow is critical for your HVAC system's performance. Restricted airflow forces the system to work harder, reducing efficiency and potentially leading to breakdowns. Our evaluation goes beyond a simple visual check, focusing on identifying and addressing common airflow issues.

We're looking for several key areas:

• Ductwork Inspection: We're carefully examining all accessible ductwork for leaks, cracks, and disconnections. Even small leaks can significantly reduce system efficiency. We use a smoke pencil or similar method (if appropriate and safe) to pinpoint potential leak locations.
• Register Balance: We check the airflow from each register in your home to ensure balanced distribution. Uneven airflow can indicate blockages or ductwork imbalances.
• Blower Motor Assessment: We listen for unusual noises emanating from the blower motor, which could indicate wear and tear or potential mechanical issues.
• Filter Impact: A dirty air filter severely restricts airflow. We're confirming the filter isn't the culprit behind reduced efficiency - and reminding you of the importance of regular filter changes!
• Obstructions: We check for obstructions in vents and registers - anything from furniture to misplaced rugs can impede airflow.

We're not just looking for existing problems; we're also providing recommendations for improving airflow, such as duct sealing or register adjustments, to optimize your system's performance.

Indoor Unit Inspection: Coil and Drain Line Focus

The indoor unit is the heart of your heating and cooling system, and a thorough inspection here can prevent a surprising number of issues. Let's zoom in on two critical components: the evaporator coil and the condensate drain line.

Evaporator Coil Inspection:

The evaporator coil is responsible for absorbing heat from your home during the cooling process. Over time, it accumulates dust, dirt, and debris, which reduces its efficiency and can lead to frozen coils and reduced airflow. Visually inspect the coil for excessive dirt or grime. While a deep cleaning requires professional equipment, you can often remove loose debris with a vacuum cleaner attachment. A dirty coil forces your system to work harder, increasing energy consumption and potentially shortening its lifespan.

Condensate Drain Line Focus:

Just like any system, your indoor unit produces condensate - water. This water is directed to a drain line, which channels it away from the unit. A clogged drain line is a common problem, leading to water buildup, potential water damage to your ceilings and floors, and even system shutdowns. During your inspection, check the drain line for any visible blockages. You can often clear minor clogs by flushing the line with a mixture of water and vinegar. Listen for gurgling sounds, which may indicate a partial blockage. Note: If you suspect a significant clog, it's best to contact a professional to avoid further damage.

Filter Condition and Replacement: Breathing Easy

A dirty air filter is arguably the easiest and most impactful maintenance task you can perform for your HVAC system. Think of it as your system's first line of defense against dust, pollen, pet dander, and other airborne particles. When the filter is clogged, it restricts airflow, forcing your system to work harder - leading to higher energy bills and potential breakdowns.

How Often Should You Replace Your Filter?

The general recommendation is to replace your filter every 1-3 months. However, this can vary based on several factors:

• Filter Type: Thicker, pleated filters typically last longer than cheaper fiberglass filters.
• Household Size: Larger households generate more dust and debris.
• Pets: Homes with pets require more frequent filter changes.
• Allergies/Respiratory Issues: Individuals with allergies or respiratory problems benefit from more frequent filter replacements.
• Air Quality: Areas with high pollen or pollution levels necessitate more frequent changes.

Choosing the Right Filter

• MERV Rating: This stands for Minimum Efficiency Reporting Value. Higher MERV ratings indicate better filtration, but also increased airflow restriction. Start with a MERV 8-11 filter and adjust based on your system's performance.
• Size: Consult your HVAC system's manual or the existing filter to determine the correct size.
• Type: Consider options like fiberglass, pleated, electrostatic, and HEPA filters, weighing their filtration capabilities and airflow restrictions.

Pro Tip: Set a reminder on your calendar or phone to ensure you don't forget to replace your filter! Clean filters lead to cleaner air and a healthier, more efficient HVAC system.

Safety Device Verification: Protecting Your Home

Your HVAC system incorporates several safety devices designed to prevent hazards like carbon monoxide poisoning, overheating, and electrical malfunctions. Verifying their proper function is a critical part of any inspection. Let's break down the key devices and what to look for:

Carbon Monoxide (CO) Detectors: These are non-negotiable! Ensure you have working CO detectors on every level of your home and outside sleeping areas. Test them monthly by pressing the test button. Replace batteries annually (or as indicated by the manufacturer). If your CO detector alarms, evacuate your home immediately and contact emergency services. Note: HVAC systems that burn fuel (gas, oil) are a higher risk for CO production.

High-Limit Switches: These devices are primarily found in furnaces. They automatically shut off the burner if the furnace gets too hot, preventing overheating and potential fires. While you can't directly "test" a high-limit switch yourself, a qualified technician can do so during a professional inspection. Unusual noises or intermittent heating can be a sign of a faulty high-limit switch.

Flame Sensors: (Gas Furnaces) These sensors detect the presence of a flame and ensure that gas isn't flowing to the burner without ignition. A dirty or faulty flame sensor can cause the furnace to shut down intermittently. A technician can clean or replace a flame sensor as needed.

Draft Diverters: (Older Gas Appliances) These devices direct combustion gases away from living areas. Check for obstructions or damage to the draft diverter.

Emergency Shut-Off Switches: Familiarize yourself with the location of the main gas shut-off valve for your home. In case of an emergency, knowing how to quickly shut off the gas supply can be vital.

Important Reminder: Many safety device checks require specialized knowledge and equipment. Do not attempt these checks yourself unless you are a qualified HVAC technician. Always prioritize safety and consult a professional for any concerns.

Performance Metrics: Measuring Efficiency

Beyond a visual inspection, understanding a few key performance metrics can provide valuable insights into your HVAC system's efficiency and potential issues. These aren't always easy to interpret without a baseline understanding, but even noting these numbers during an inspection allows for comparison and early detection of problems.

Temperature Difference (Supply vs. Return Air): This is arguably the most important metric. Ideally, the difference between the supply air (what's blowing out of the vents) and the return air (what's being sucked back into the system) should be around 15-20 degrees Fahrenheit for cooling and 30-40 degrees Fahrenheit for heating. A smaller difference indicates reduced efficiency, possibly due to airflow restrictions, a malfunctioning compressor, or inadequate refrigerant.

Operating Temperatures: Record the temperatures of key components like the evaporator coil (cooling) and the furnace flue (heating). Significant deviations from expected temperatures can point to issues. For example, a consistently high evaporator coil temperature suggests restricted airflow or low refrigerant.

Energy Consumption: While more complex to track precisely, noting your energy bills before and after an inspection can reveal overall system performance trends.

Humidity Levels (Cooling Mode): For cooling systems, humidity control is crucial. Excessive humidity can indicate problems with the dehumidifier function.

Remember to document these numbers during each inspection to establish a baseline and track changes over time. If you're uncomfortable interpreting these metrics, always consult with a qualified HVAC professional.

Recommendations and Next Steps: Planning for Peak Performance

Okay, so you're armed with your inspection checklist and a good understanding of your system's current status. Now what? This section focuses on turning those findings into action and setting yourself up for ongoing peak HVAC performance.

Prioritize Repairs Based on Severity: Not all recommendations are created equal. We're going to categorize issues as either Critical, Recommended, or Routine.

• Critical Repairs: These are issues that, if left unaddressed, pose a safety hazard, lead to major system damage, or result in significant efficiency loss. Examples include refrigerant leaks, electrical faults, and malfunctioning safety devices. Address these immediately.
• Recommended Repairs: These issues, while not immediately critical, will impact system efficiency and lifespan. Consider addressing these in the near future, particularly during the off-season when HVAC professionals are less busy and rates may be lower.
• Routine Maintenance: This category includes tasks like duct cleaning or minor adjustments. These are good to schedule periodically for optimal performance.

Develop a Maintenance Schedule: Don't let your HVAC system become an "out of sight, out of mind" appliance. Create a recurring maintenance schedule that includes:

• Monthly: Filter replacement (a MUST!)
• Quarterly: Visual inspection of outdoor unit, clearing debris.
• Annually: Professional HVAC inspection and maintenance.

Consider Upgrades & Efficiency Improvements: While performing routine maintenance, it's a good time to evaluate if any upgrades could benefit you. This might include:

• Smart Thermostat Installation: Optimizes energy usage and provides remote control.
• Duct Sealing: Reduces energy loss and improves airflow.
• New, More Efficient HVAC System: If your system is aging or inefficient, a new unit can provide significant long-term savings and improved comfort.

Document Everything: Keep detailed records of all inspections, repairs, and upgrades performed on your HVAC system. This documentation will be invaluable for future troubleshooting and can even impact the lifespan of your warranty.

By proactively addressing these recommendations and establishing a consistent maintenance plan, you can ensure your HVAC system operates efficiently, reliably, and safely for years to come.
