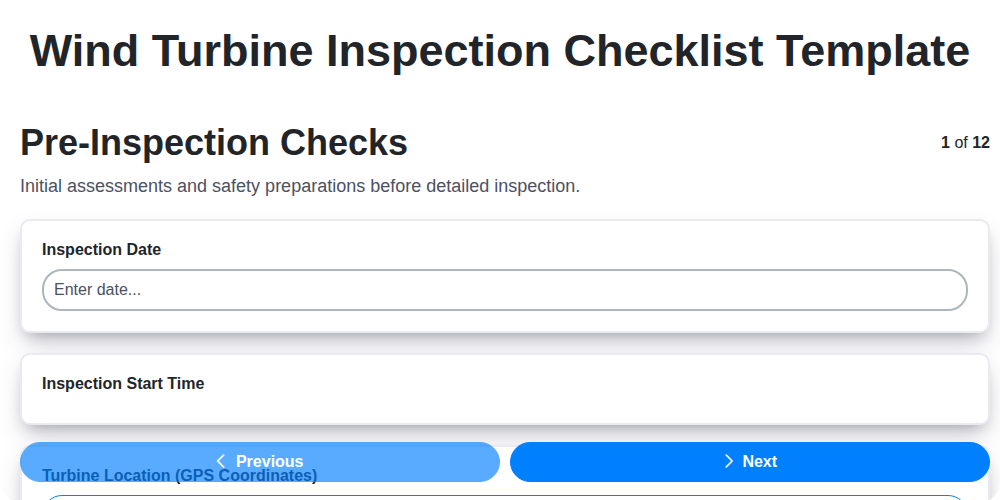

Wind Turbine Inspection Checklist Template: Your Comprehensive Guide

Why Wind Turbine Inspections Matter

Wind turbines represent a significant investment, both financially and in terms of environmental benefit. Ignoring preventative maintenance and comprehensive inspections is essentially gambling with that investment. The consequences can range from reduced energy production and increased downtime to catastrophic failures that are costly to repair and potentially dangerous.

Beyond the immediate financial implications, neglecting turbine health has broader impacts. Decreased efficiency means relying more on fossil fuel alternatives, hindering progress towards renewable energy goals. Unplanned outages disrupt power grids, impacting communities and businesses. And a major turbine failure can pose significant safety risks to personnel and the surrounding environment.

Regular inspections aren't just about fixing problems after they arise; they're about proactively identifying vulnerabilities, optimizing performance, and extending the operational lifespan of these vital assets. They're an essential element of responsible wind farm management and a commitment to a sustainable future.

Building Your Wind Turbine Inspection Checklist

Creating a truly effective wind turbine inspection checklist isn't simply about ticking boxes; it's about tailoring a process that proactively identifies potential issues and maximizes turbine lifespan. Here's a breakdown of how to construct a checklist that works for your specific needs:

1. Know Your Assets: Begin by thoroughly documenting each turbine in your fleet. This includes model number, serial number, commissioning date, previous maintenance records, and any known issues. This baseline data provides context for future inspections.

2. Consult the Source - Manufacturer's Guidelines: The turbine manufacturer's service manuals are essential. They outline specific inspection points, frequencies, and acceptable tolerances. Don't deviate from these unless there's a compelling reason and qualified engineering oversight.

3. Risk Assessment: Identify the most common failure points for your turbine models based on industry data, operational experience, and environmental factors (e.g., coastal turbines face increased corrosion risks). Prioritize inspection of these areas.

4. Layered Approach to Frequency: Not every item needs to be inspected on the same schedule. Categorize checklist items into:

• Routine (Monthly/Quarterly): Visual inspections, basic operational checks.
• Periodic (Annual/Bi-Annual): More in-depth assessments, oil analysis, insulation resistance tests.
• Conditional (Event-Driven): Triggered by specific events (e.g., unusual vibration readings, lightning strike).

5. Standardize and Digitalize: Move beyond paper checklists. Digital platforms offer numerous advantages:

• Real-time Data Capture: Easier to record findings with photos and notes.
• Automated Reporting: Streamlined generation of inspection reports.
• Trend Analysis: Identify patterns and predict future maintenance needs.
• Centralized Access: Enable remote monitoring and collaboration among technicians.

6. Continuous Improvement: Regularly review and update your checklist based on inspection findings, operational experience, and evolving industry best practices. Feedback from technicians in the field is invaluable.

Pre-Inspection: Setting the Stage

Before a single climb up the tower or a visual check of a blade begins, a thorough pre-inspection phase is absolutely critical. This isn't just about checking the weather; it's about establishing a baseline and mitigating risks before any hands-on work commences. Neglecting this initial step can compromise safety, skew inspection results, and potentially lead to further complications.

First and foremost, weather conditions must be meticulously recorded. Wind speed, temperature, precipitation, and visibility all directly impact the safety and reliability of the inspection process. High winds can make climbing treacherous, while poor visibility can hinder visual assessments.

Next, verify that all necessary permits and approvals are in place. Operating without proper authorization can lead to legal ramifications and project delays. Confirm that all personnel involved are properly trained and equipped with the appropriate Personal Protective Equipment (PPE). This includes harnesses, hard hats, gloves, and any specialized safety gear required for working at height.

Don't overlook the condition of your inspection equipment. Ensure drones are charged, thermal cameras are calibrated, and measurement devices are functioning correctly. A faulty tool can lead to inaccurate readings or, worse, a safety hazard. Finally, perform a preliminary site assessment to identify any immediate hazards, such as loose debris, uneven terrain, or wildlife activity. A little observation upfront can prevent a lot of problems later.

Tower Inspection: Structural Integrity

The tower is the backbone of the entire wind turbine, and its structural integrity is absolutely critical for safe and reliable operation. Visual inspections should be conducted regularly, paying close attention to the entire surface from ground level and, when possible, from a safe elevated position. Look for any signs of cracking, corrosion, dents, or deformation. Even seemingly minor blemishes should be documented and investigated further.

Pay particular attention to areas prone to stress concentration, such as weld seams, bolted connections, and transitions between different tower sections. Corrosion is a major threat, especially in coastal environments or areas with high humidity. Look for signs of rust, pitting, and peeling paint. Dents and deformation can indicate past impacts or structural weaknesses.

Bolted connections are another key area of concern. Verify bolt tightness and look for signs of corrosion or thread damage. Periodic torque verification is a standard practice. Document any irregularities with detailed photographs and measurements. Remember that subtle changes over time can be indicative of underlying structural issues, so consistent record-keeping is essential for trend analysis. If any significant damage or concerns are identified, a more detailed engineering assessment should be conducted immediately.

Nacelle Examination: Heart of the Turbine

The nacelle houses the vital components that convert wind energy into electricity, making its thorough examination critical. Our inspection goes beyond a cursory glance, focusing on preventing costly downtime and ensuring optimal performance. We begin with a visual assessment of the nacelle's exterior, meticulously checking for any signs of leaks, cracks, or damage to the enclosure seals. Access doors are scrutinized to guarantee secure closure and proper sealing, protecting internal components from environmental factors.

The cooling system, responsible for maintaining optimal operating temperatures, receives dedicated attention. This involves inspecting cooling fans, radiators, and heat exchangers for efficiency and identifying any signs of deterioration. We then delve into the internal components, paying close attention to gearbox lubrication and condition, generator windings, and the overall integrity of the electrical systems housed within. Any abnormalities, such as unusual noises, vibrations, or temperature fluctuations, are carefully documented and prioritized for further investigation, ensuring the continued health of the turbine's 'heart.'

Blade Assessment: Capturing the Wind's Power

Wind turbine blades are the critical interface between the wind and the energy generation process. Their efficiency and integrity directly impact a turbine's output and overall health. Blade assessment goes beyond a simple visual scan; it's a comprehensive evaluation designed to identify potential issues before they escalate into costly repairs or catastrophic failures.

Here's a deeper dive into key areas of blade inspection:

Leading Edge Erosion: This is arguably the most common and visually apparent blade degradation. Rain, hail, sand, and even insect impacts gradually erode the leading edge, reducing aerodynamic efficiency. Severity is often categorized using standardized scales (e.g., a visual grading system), noting the depth and extent of the erosion. Regular monitoring and proactive repair (often with specialized coatings or fillers) are crucial.

Trailing Edge Damage: While less visually dramatic than leading edge erosion, damage to the trailing edge can also significantly impact performance. Look for cracks, chips, and delamination - signs of stress and potential structural weakness. These defects can disrupt airflow and increase turbulence.

Blade Root Inspection: The area where the blade connects to the hub bears significant stress. Any cracks or signs of fatigue in this region are a serious concern and require immediate attention. Close visual inspection, often aided by dye penetrant testing, is essential.

Lightning Strike Damage: Lightning strikes are a real threat to wind turbines. While turbines are equipped with lightning protection systems, strikes can still cause localized damage. Look for burn marks, cracks, and discoloration.

Delamination: This refers to separation between the layers of composite material within the blade. It's often invisible to the naked eye but can be detected using non-destructive testing methods like ultrasonic inspection. Delamination weakens the blade's structural integrity.

Beyond Visual Inspection: Advanced techniques like drone inspections (with high-resolution cameras and thermal imaging), rope access inspections, and non-destructive testing (NDT) - including ultrasonic and thermographic surveys - are frequently employed to detect subtle damage and assess internal blade condition. These technologies provide a more comprehensive picture of blade health and enable proactive maintenance strategies.

Gearbox & Generator: Power Transmission Essentials

The gearbox and generator are arguably the most critical components within a wind turbine, responsible for converting the slow-speed rotation of the blades into usable electrical power. Understanding their function and diligently inspecting them is paramount to ensuring long-term turbine reliability and maximizing energy production.

Gearbox Inspection: A Critical Point of Failure

Gearboxes are complex machines subjected to immense stress. Failures are often costly and disruptive, making proactive maintenance essential. Key areas of focus during inspection include:

• Oil Analysis: Spectrometric oil analysis provides a wealth of information about wear metals, contaminants, and overall oil condition. Trend analysis of these results is invaluable for predicting potential failures before they occur.
• Temperature Monitoring: Elevated bearing temperatures are a telltale sign of impending problems. Regular thermal imaging can quickly identify hotspots.
• Vibration Analysis: Analyzing vibration patterns can reveal imbalances, misalignments, and bearing degradation - often detectable long before visible signs of damage appear.
• Visual Checks: Look for oil leaks, unusual noises, and any physical damage.

Generator Inspection: The Power Source

The generator converts mechanical energy into electrical energy. Inspections should focus on maintaining its efficiency and preventing costly repairs. Important checks include:

• Insulation Resistance Testing: Measuring the insulation resistance of the generator windings is crucial for detecting degradation. A declining resistance indicates potential insulation breakdown.
• Bearing Health: Generator bearings are subject to high loads and require careful monitoring for temperature, vibration, and lubrication condition.
• Electrical Connections: Thoroughly inspect all electrical connections for corrosion, looseness, and proper torque.
• Stator and Rotor Condition: Visually examine the stator and rotor windings for signs of overheating, damage, or contamination.

Safety & Electrical Systems: Safeguarding Operations

Wind turbine operations inherently involve high voltages, significant heights, and complex machinery, making robust safety protocols and meticulous electrical system maintenance absolutely critical. A failure in either area can lead to serious injury, equipment damage, and prolonged downtime.

Prioritizing Personnel Safety: Before any electrical or safety-related inspection, a thorough risk assessment is mandatory. This includes evaluating weather conditions, ensuring adequate lighting, and verifying the proper use of personal protective equipment (PPE) - including arc flash protection, fall arrest harnesses, and insulated tools. Lockout/Tagout procedures must be strictly followed to de-energize circuits before any work begins. Regular safety training for all personnel involved in inspections and maintenance is non-negotiable.

Electrical System Integrity - A Deep Dive: Beyond visual inspections, a systematic approach is essential. This encompasses:

• Insulation Resistance Testing (Megger): Regular measurement of winding insulation resistance is key to detecting degradation and potential failure points within generators, gearboxes, and transformers.
• Infrared Thermography: Thermal imaging allows for the detection of hotspots indicating loose connections, overloaded circuits, or failing components without physical contact.
• Partial Discharge Testing: This advanced technique detects subtle electrical discharges that can precede catastrophic insulation breakdown.
• Grounding System Verification: A comprehensive assessment of the grounding system ensures proper fault current path and minimizes the risk of electric shock.
• Cable Inspection: Inspecting cables for physical damage, cracking, and signs of overheating is crucial.
• Arc Flash Hazard Analysis: Conducting and regularly updating arc flash hazard analysis is vital for determining appropriate PPE requirements.

Proactive identification and resolution of electrical issues - coupled with a continuous focus on safety - are paramount to maintaining the reliability and longevity of wind turbine operations.

Post-Inspection: Documentation & Recommendations

The inspection itself is only half the battle. Meticulous documentation and actionable recommendations are what transform data into meaningful improvements and preventative action. A robust post-inspection process ensures findings aren't lost, and corrective measures are prioritized and tracked.

Here's what a thorough post-inspection process should encompass:

• Detailed Reporting: Beyond simply checking boxes, the report should include detailed descriptions of all findings - even seemingly minor issues. Photographs and videos are invaluable for visually documenting damage and providing context. Measurements (e.g., crack length, bearing temperature) should be clearly recorded.
• Severity Rating System: Implement a consistent severity rating system (e.g., Low, Medium, High, Critical) to categorize defects based on potential impact on turbine operation and safety. This allows for prioritization of repairs.
• Root Cause Analysis (When Applicable): For recurring issues or significant findings, a brief root cause analysis can help identify underlying problems and prevent future occurrences.
• Actionable Recommendations: Clearly outline recommended repair or maintenance actions for each finding. Be specific - "Replace blade leading edge material" is more helpful than "Repair blade." Include estimated costs and timelines where possible.
• Responsible Party & Due Date: Assign responsibility for each recommended action to a specific individual or team and establish a clear due date for completion.
• Tracking & Follow-up: Implement a system for tracking the status of recommended actions and schedule follow-up inspections to verify that corrective measures have been implemented effectively. This closed-loop system ensures accountability and continuous improvement.
• Centralized Database: Storing all inspection reports, photos, and recommendations in a centralized digital database allows for easy access, analysis, and trending of data across the entire wind farm fleet.
