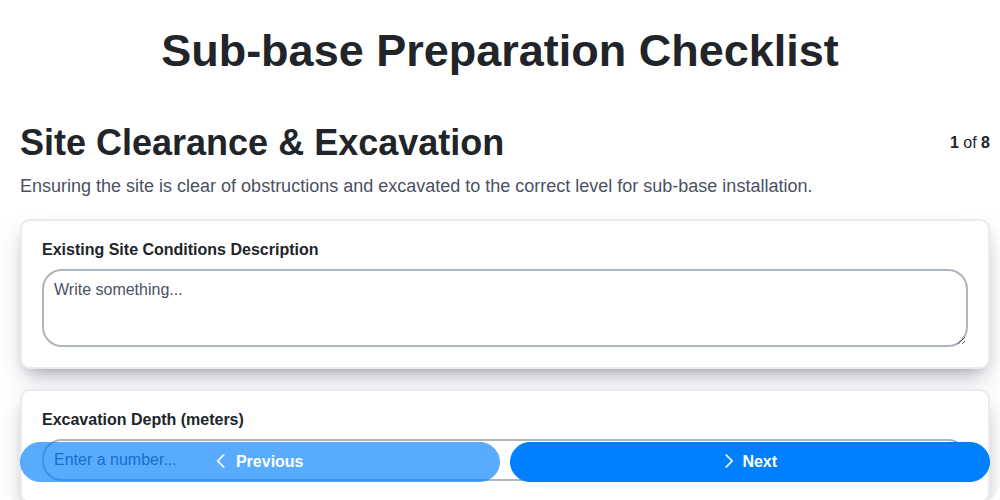

Sub-Base Preparation Checklist Template: Your Foundation for Success

Why a Sub-Base Preparation Checklist Matters

A poorly prepared sub-base isn't just an inconvenience; it's a recipe for costly problems down the road. Imagine cracking asphalt, sinking pavers, or even structural issues impacting the entire project - all stemming from a foundation that wasn't properly laid. Think of it like building a house on shifting sand - no matter how beautiful the finishes, the instability will eventually cause issues. This checklist isn't about ticking boxes; it's about preventing these future headaches. Investing time and attention to sub-base preparation upfront drastically reduces the risk of premature failure, minimizes costly repairs, and extends the lifespan of your final surface, ensuring a return on your initial investment and a long-lasting, reliable result. Beyond the immediate costs, a proper sub-base contributes to the overall project reputation and client satisfaction.

Step 1: Site Clearance & Excavation

The first and arguably most crucial step is preparing the site - essentially, clearing the canvas on which your sub-base will be built. This isn't just about removing visible debris; it's a comprehensive process aimed at ensuring a stable and uniform base.

Begin by removing all vegetation, including grass, shrubs, and trees. Grubbing is essential - this means removing the roots as well, preventing future settlement caused by decaying roots. Any existing structures, foundations, or other obstructions need to be demolished and removed. Topsoil, which is often unsuitable for sub-base compaction, must be stripped and stockpiled separately for reuse elsewhere on the project (e.g., landscaping).

Excavation depth is critical. It needs to be precisely as specified in the project plans, accounting for the anticipated compaction of the sub-base material. Don't underestimate the importance of documenting existing ground levels at key points across the site - this provides a valuable baseline for later reference and helps ensure accuracy throughout the process. Improper site clearance can lead to a multitude of problems down the line, so taking the time to do it right is an investment in the entire project's longevity.

Step 2: Grading and Leveling the Site

Accurate grading and leveling are the cornerstones of a properly prepared sub-base. This isn't just about creating a flat surface; it's about establishing the correct slopes for drainage and ensuring the finished surface has a stable foundation. Improper grading can lead to water pooling, uneven settling, and ultimately, premature failure of your project.

The process begins with establishing baseline elevations based on the project plans and site survey data. This information dictates the precise height of the finished sub-base. Utilizing laser levels, automatic graders, or traditional surveying techniques, carefully shape the excavated area, ensuring uniform slopes that direct water away from structures. It's crucial to consider the natural topography and adjust grading accordingly to maintain positive drainage.

Regularly check elevations throughout the process - don't rely solely on initial readings. Small errors can accumulate, leading to significant issues later on. Use a transit, laser level, or other surveying tools to verify that grades are maintained within the specified tolerances. Document all elevation checks and any adjustments made, creating a clear record of the grading process. Remember, precision is key to long-term stability.

Step 3: Geotextile Installation (If Required)

Geotextile fabric isn't always necessary, but when specified, its proper installation is crucial for a successful sub-base. This non-woven layer acts as a barrier, preventing the migrating of sub-base aggregate into the underlying soil, while simultaneously allowing for drainage. Think of it as a filter and a stabilizer.

Before you begin, verify the geotextile specifications outlined in your project plans. These will dictate the correct type (woven vs. non-woven, permeability), weight (measured in ounces per square yard), and UV resistance needed for your application.

Installation is straightforward, but attention to detail is key. Unroll the geotextile directly over the prepared subgrade, ensuring it's smooth and free of wrinkles or folds. Overlap the edges by at least six inches (and follow manufacturer's recommendations for specific overlap requirements, which can vary). Secure the overlapping edges using pins, staples, or small tacks to temporarily hold them in place. It's vital to ensure consistent tension throughout the installation to prevent rippling or buckling. Finally, double-check that the geotextile remains intact and properly positioned throughout subsequent construction phases, especially during material placement. Incorrect placement can compromise its functionality and ultimately impact the project's longevity.

Step 4: Material Delivery and Storage

The success of your sub-base hinges not only on proper placement and compaction but also on the quality and availability of the materials themselves. Poorly handled or contaminated aggregate can compromise the entire foundation. This section outlines the critical steps for material delivery and storage.

Receiving and Inspection:

• Verify Specifications: Before unloading, confirm the delivered material matches the project specifications regarding aggregate size, gradation, and material type. A Certificate of Compliance from the supplier should be reviewed and signed off on.
• Visual Inspection: Conduct a thorough visual inspection of the delivered load. Look for signs of contamination (e.g., clay, organic matter), segregation of aggregate sizes, or damage. Document any discrepancies.
• Quantity Verification: Ensure the quantity delivered matches the order and is accurately recorded.

Storage Best Practices:

• Designated Area: Store aggregate in a designated area away from potential contaminants like dust, debris, and standing water. A hard, level surface is preferable to prevent settling and mixing.
• Protection from Elements: Protect aggregate from prolonged exposure to rain and sunlight. Cover the stockpile with tarps if necessary to prevent moisture absorption, which can affect compaction.
• Stockpile Management: Organize stockpiles to facilitate easy access and prevent unnecessary handling. Avoid driving equipment over the base of stockpiles.
• Material Tracking: Implement a system for tracking material usage and ensuring accurate inventory control. This helps prevent shortages and minimizes waste.
• Segregation Prevention: If using multiple aggregate types, clearly identify and segregate stockpiles to prevent accidental mixing. Proper signage is essential.

Step 5: Sub-Base Material Placement

The way you place your sub-base material is crucial to its performance. Simply dumping aggregate isn't enough - careful placement ensures a uniform layer ready for compaction. Here's what you need to focus on:

Layer Thickness is Key: We typically recommend placing the sub-base material in layers no thicker than 6-8 inches (15-20 cm). This allows for more effective compaction and prevents the material from being pushed around during the process. Thicker layers are much harder to fully compact and can lead to uneven settlement.

Equipment Matters: Utilize appropriate spreading equipment like bulldozers, loaders, or graders to distribute the material evenly. These machines provide greater control over placement compared to manual methods.

Avoiding Segregation: This is a critical point. As you spread the aggregate, be mindful of segregation - the separation of different aggregate sizes. Heavy stones can sink to the bottom, while smaller particles rise to the surface, creating a non-uniform mix. To prevent this:

• Controlled Spreading: Avoid sudden stops or abrupt changes in direction during spreading, as this can cause segregation.
• Minimal Drop Heights: When using loaders, minimize the drop height from the bucket to the ground. A lower drop height reduces the impact that can cause aggregate separation.
• Rake and Level: After spreading, use rakes or leveling bars to ensure a uniform distribution of aggregate sizes across the entire area.

By paying careful attention to these details during material placement, you'll set the stage for a well-compacted and long-lasting sub-base.

Step 6: Sub-Base Compaction: Achieving Density

Sub-base compaction is arguably the most critical step in ensuring a stable and long-lasting foundation. Simply placing the aggregate isn't enough; it needs to be thoroughly compacted to its specified density. This process minimizes settling, prevents cracking in the finished surface, and significantly extends the lifespan of your project.

The goal is to reduce the air voids within the aggregate matrix, effectively interlocking the particles and creating a solid, uniform base. Achieving this requires careful attention to detail and adherence to project specifications.

Choosing the Right Equipment:

The selection of compaction equipment is paramount. Options range from plate compactors (suitable for smaller areas and thinner layers) to vibro-tamps and pneumatic rollers (ideal for larger areas and deeper layers). The equipment must be appropriately sized and calibrated for the material being compacted and the target density. Overcompaction can be just as detrimental as undercompaction, potentially damaging the aggregate.

Moisture Control - The Key to Success:

Moisture content plays a vital role in compaction. Typically, the optimal moisture content is between 80% and 105% of the aggregate's maximum dry density (as determined by a Proctor test). Too little moisture will result in inadequate compaction, while excessive moisture can weaken the aggregate and hinder proper interlocking. Field moisture testing is essential-a simple squeeze test can provide a quick indication, but laboratory testing offers a more precise measurement.

Layering and Passes:

Compaction should be performed in thin, even layers, generally not exceeding 4-6 inches in thickness. Multiple passes with the compaction equipment are typically required to achieve the specified density. The number of passes will depend on the equipment being used, the material properties, and the target density. Maintain a detailed compaction log, recording the equipment used, the number of passes, and any observations regarding the compaction process.

Verifying Density:

Regular density testing is crucial to ensure the sub-base meets the required specifications. Common methods include the sand cone test and nuclear density gauges. These tests measure the in-place density of the compacted material and allow for adjustments to be made as needed. Don't compromise on quality control - consistent density testing is the best way to ensure a foundation you can rely on.

Step 7: Quality Control & Testing

Quality control isn't just a formality; it's the bedrock of a reliable sub-base. Without diligent testing, you're essentially building on assumptions - a risky proposition! This phase focuses on verifying that the sub-base meets the specified density, gradation, and overall quality outlined in the project plans.

Here's a breakdown of the key quality control and testing procedures:

1. Density Testing: This is arguably the most critical test. We typically employ methods like the Proctor test (ASTM D698/AASHTO T 310) and the sand cone test (ASTM D1556/AASHTO T 310). These tests measure the in-place density of the compacted sub-base material. Results are compared to the specified density achieved under laboratory conditions. Multiple tests should be performed across the site and throughout the layers. Record all readings meticulously!

2. Gradation Analysis: Ensuring the correct size and distribution of aggregate particles is vital for proper compaction and drainage. A sieve analysis (ASTM C136/AASHTO T 30) is used to determine the particle size distribution. Results should align with the project's aggregate specification.

3. Moisture Content: Optimal moisture content is crucial for effective compaction. We measure moisture content before and during compaction. Excessively wet or dry material will not compact properly. Adjust water content as needed to achieve the ideal compaction conditions.

4. Visual Inspection: Don't underestimate the value of a thorough visual inspection! Look for signs of segregation, uneven compaction, or inadequate drainage. Document any irregularities and take corrective action immediately.

5. Independent Verification: To ensure impartiality and accuracy, it's best practice to have these tests conducted by an accredited, independent testing laboratory. Their reports provide a robust and defensible record of the sub-base quality.

Documentation is Key: Maintain detailed records of all test results, including the date, location, testing method, and results. These records serve as a crucial audit trail and demonstrate due diligence.

Final Inspection and Sign-Off

The final inspection isn't just a formality; it's the crucial last step to confirm a solid foundation. This stage involves a thorough review of all previously completed tasks, verifying that the sub-base meets project specifications and addresses any potential concerns. A designated representative - typically a project engineer, site supervisor, or the client - should conduct this inspection, accompanied by the construction team responsible for the sub-base preparation.

During the inspection, pay close attention to:

• Uniformity and Leveling: Ensure the sub-base is uniformly compacted and level across the entire area, adhering to the specified grades and slopes.
• Compaction Density: Confirm that compaction density meets or exceeds the required percentage, referencing previous density test results.
• Material Quality: Visually inspect the sub-base material for any signs of contamination or segregation.
• Drainage: Verify proper drainage pathways are unobstructed and functioning as intended.
• Overall Appearance: Assess the general appearance of the sub-base - it should be well-finished and ready to receive the next layer of construction.

Once all aspects are deemed satisfactory, a formal sign-off document should be completed, including the date, inspector's name and signature, and a statement confirming compliance with project specifications. This document serves as a record of approval and protects all parties involved. Any deviations from the plan, even minor ones, must be documented and resolved before sign-off is granted.
