Streamline Your Project: The Ultimate Utilities Coordination Checklist Template

Why Utilities Coordination Matters

Think about it: electricity, water, gas, telecommunications - modern construction fundamentally relies on these utilities. Failing to properly coordinate their installation and connection isn't just an inconvenience; it's a recipe for costly setbacks and potential hazards. Imagine the project timeline derailed by an unexpected gas line strike, or the budget inflated by the need for emergency repairs after accidentally damaging an underground fiber optic cable.

The consequences extend far beyond immediate financial implications. Damage to utilities can trigger environmental contamination, leading to fines and remediation efforts. It can also pose serious safety risks to workers and the public, potentially resulting in injuries or even fatalities. Furthermore, a lack of coordination can strain relationships with utility companies, leading to delays in service connections and impacting future project approvals. Ultimately, proactive utilities coordination is a crucial element of responsible and successful construction management.

Understanding the Risks of Poor Coordination

Ignoring or underestimating the importance of utilities coordination can trigger a cascade of problems, each escalating the cost and complexity of your project. Beyond the immediate disruption, the risks are substantial and far-reaching.

Consider the potential for property damage. Striking an underground gas line isn't just an inconvenience; it's a dangerous situation that can result in explosions, fires, and structural damage to buildings and infrastructure. Similarly, damage to electrical cables can lead to power outages, equipment failure, and potential hazards for workers and the public.

Then there's the financial impact. Repair costs, fines for regulatory violations, legal fees, and project delays all contribute to a significant financial burden. A single utility strike can easily add tens of thousands of dollars to your project budget, and potentially much more depending on the severity of the incident. Insurance claims may not cover all losses, and deductibles can be substantial.

The legal and regulatory consequences are also severe. Non-compliance with safety regulations and permitting requirements can lead to hefty fines, project shutdowns, and even legal action. Public perception and potential lawsuits add another layer of risk.

Finally, consider the impact on project reputation. Delays, accidents, and safety concerns can damage your company's reputation and erode client trust, impacting future business opportunities. A project gone wrong due to inadequate utility coordination can be a long-term liability.

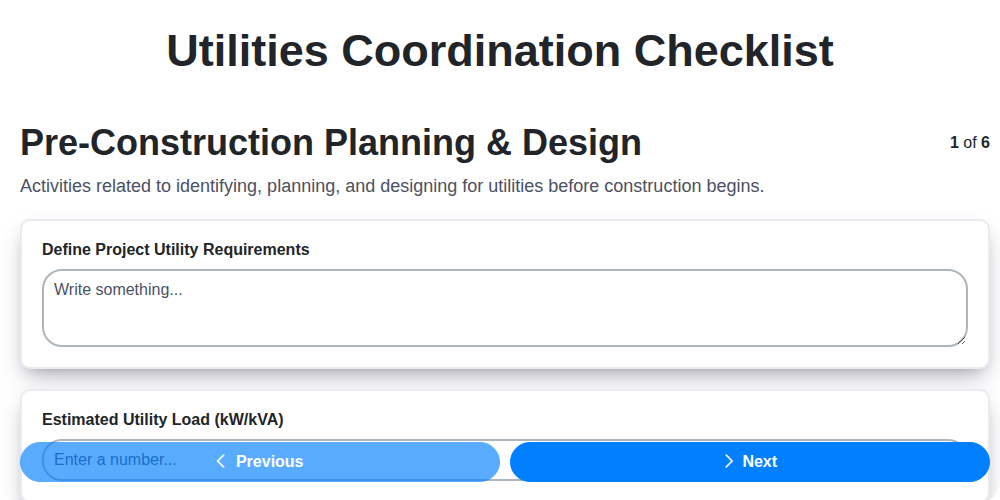

The Ultimate Utilities Coordination Checklist

Before we dive into the granular steps of the checklist, let's solidify why this process is so vital. Utility coordination isn't just a bureaucratic hurdle; it's a cornerstone of safe, efficient, and cost-effective construction. Imagine the scenario: you're excavating for a new foundation, and suddenly, you hit a major gas line. The consequences are far-reaching-project delays, hefty fines, potential environmental damage, and, most importantly, risk to human life.

This isn's a hypothetical situation. Utility strikes are surprisingly common, and their cost-both financially and reputationally-can be devastating. Beyond the immediate dangers, neglecting utility coordination can lead to subtle but equally problematic issues. Improperly installed utilities can lead to future maintenance headaches, reduced system efficiency, and potential liabilities for years to come.

Think of it like building a house: you wouldn't skip the foundation. Similarly, a robust utilities coordination plan is the essential foundation for your construction project. It ensures everything is properly routed, protected, and connected, setting the stage for a successful and sustainable outcome. This checklist isn't just about following rules; it's about building responsibly and safeguarding everyone involved.

Phase 1: Pre-Construction Planning & Utility Research

Before a single shovel hits the ground, thorough utility research is paramount. This isn't just a formality; it's the bedrock of a safe, efficient, and cost-effective project. Think of it as detective work - piecing together a map of what lies beneath the surface.

Where to Begin Your Search:

• Online Resources are Your Friend: Start with your local government's online portals. Many municipalities offer publicly available utility maps, though these may not always be complete or entirely accurate. Check for GIS (Geographic Information System) databases - these are increasingly common.
• Historical Records: A Glimpse into the Past: Don't overlook historical records! Older projects, permits issued in previous years, and even aerial photographs can provide valuable clues about past utility installations. Libraries, historical societies, and online archives can be goldmines.
• Utility Company Databases: Most utility companies maintain their own records of infrastructure locations. Contacting them directly is essential, but be prepared for potential limitations in their publicly available data.
• Previous Project Documentation: If the site has been previously developed, obtain documentation from prior construction projects. As-built drawings and permit records can reveal hidden utilities.
• Neighboring Properties: Information from adjacent properties can sometimes shed light on utilities that may extend onto your site.
• Beware of Assumptions: Never assume the absence of a utility. Verify everything through multiple sources. A false assumption can lead to serious consequences.

Documentation is Key:

Meticulously document every source of information, including dates of contact, names of individuals spoken with, and any discrepancies found. This documentation will be invaluable during coordination meetings and can protect you from liability if issues arise later. Create a simple spreadsheet or tracking system to organize your findings - consistency is vital!

Phase 2: Accurate Location & Verification - Beyond the '811' Call

While contacting your local One-Call service (like 811 in the US) is the vital first step, relying solely on that marked location isn't enough. The '811' call provides a baseline, but the accuracy and completeness of those markings can vary depending on the age of the utility maps and the complexity of the underground infrastructure. This phase demands a deeper dive.

Think of the '811' call as the starting point of a detective's investigation - you're now responsible for verifying and augmenting the initial clues. Here's what that entails:

• Private Utilities - The Unmarked Territory: One-Call typically only marks utilities they own and maintain. Private utilities - homeowner gas lines, sprinkler systems, even older telecommunications lines - often go unrecorded. Direct communication with property owners and previous occupants is essential to uncover these hidden lines. Don't be afraid to ask questions!
• Map Discrepancies & Aging Infrastructure: Utility maps are often outdated. Lines may have been relocated or added without updating official records. Visual inspection of the site, along with historical records (if available), can reveal discrepancies.
• Ground-Penetrating Radar (GPR) - A Powerful Tool: Consider employing Ground-Penetrating Radar (GPR). This technology uses radio waves to detect subsurface objects, including unmarked utilities. While there's an upfront cost, GPR can be invaluable in complex areas or when dealing with aging infrastructure where map accuracy is questionable. It significantly reduces the risk of accidental strikes.
• Positive Confirmation - The Written Guarantee: Always, always get written confirmation from the utility companies regarding the exact location of marked utilities. An email or signed document provides a valuable record and a clear line of accountability. Don't just rely on a verbal assurance.
• Daylighting/Potholing (Advanced Technique): In situations demanding the highest level of certainty, particularly before excavation, a technique called daylighting or potholing might be warranted. This involves carefully removing soil by hand to expose the utility lines directly. This is a labor-intensive method, typically reserved for critical areas.

By going beyond the initial '811' call and implementing these verification techniques, you're proactively minimizing risks and setting the foundation for a safe and efficient excavation process.

Phase 3: Collaborative Coordination with Utility Companies

Phase 3 isn't just about notifying utilities; it's about collaborating with them. Early engagement and open communication are the cornerstones of a successful utility coordination process. Simply marking utilities isn't enough; you need to establish a working relationship.

Here's how to ensure effective collaboration:

• Design Review Meetings: Schedule meetings where your design team can present project plans to utility representatives before finalizing designs. This proactive approach allows for early identification of potential conflicts and collaborative problem-solving. Don't be afraid to ask what if? scenarios.
• Dedicated Point of Contact: Request a dedicated point of contact within each utility company. Having a single person to coordinate with streamlines communication and ensures accountability.
• Regular Progress Updates: Keep utility companies informed of project progress, especially any changes that might affect their infrastructure. Even seemingly minor adjustments can have downstream implications.
• Understanding Utility Constraints: Recognize that utility companies often operate under strict timelines and have limited resources. Be mindful of their constraints and work to find mutually beneficial solutions.
• Formal Agreements: Document all agreements and responsibilities in writing through formal service connection agreements or letters of instruction. This minimizes misunderstandings and protects all parties involved.
• Embrace Technology: Utilize online portals or shared platforms for document sharing, communication, and tracking progress. This fosters transparency and facilitates real-time collaboration.
• Be Proactive, Not Reactive: Don't wait for issues to arise. Regularly check in with utility representatives to ensure everything is on track and address any concerns before they escalate.

Phase 4: Safe Construction and Installation Practices

Phase 4 represents the critical period of active construction and installation. While meticulous planning and coordination have laid the groundwork, a single lapse in judgment can lead to costly damage, delays, and serious safety incidents. This section outlines essential practices to ensure a secure and efficient construction process.

Hand Digging: The Golden Rule

Never assume you know what lies beneath. Even with marked utilities, there's always the possibility of unmarked lines or inaccurate markings. Always use hand digging within a designated safe zone around marked utilities - typically a minimum of 24 inches, but check local regulations. This allows for careful excavation and verification before using mechanical equipment. If unexpected utilities are discovered during mechanical excavation, immediately cease work and switch to hand digging.

Qualified Personnel and Ongoing Training

Only trained and qualified personnel should perform work near utilities. This includes understanding the potential hazards, recognizing utility markings, and knowing the proper procedures for safe excavation. Regularly refresh training to keep skills sharp and reinforce best practices. Document all training sessions for record-keeping and compliance purposes.

Constant Communication and Spot Checks

Maintain open communication between all team members throughout the construction process. Daily "toolbox talks" should include a review of utility locations and safety protocols. Implement spot checks to ensure adherence to safety procedures and identify potential hazards before they escalate. Designate a utility spotter whose sole responsibility is to monitor excavation activities and verify utility locations.

Safe Use of Equipment:

When mechanical equipment is used near utilities, ensure it is operated by qualified personnel and that appropriate safety measures are in place. Maintain safe operating distances and regularly inspect equipment for any malfunctions. If directional drilling or other specialized techniques are used, follow manufacturer guidelines and engage experienced operators.

Emergency Response Protocol:

Have a clear and well-rehearsed emergency response protocol in place in case of a utility strike. This should include contact information for utility companies, emergency services, and designated personnel. Regularly review and update the protocol to reflect changing conditions and best practices. Ensure all personnel are familiar with the protocol and know their roles in an emergency situation.

Documentation is Key

Thoroughly document all excavation activities, utility locations, and any deviations from the approved plan. This documentation serves as a valuable record for future reference and can be crucial in the event of an incident.

Phase 5: As-Built Documentation & Handover

Accurate and complete as-built documentation isn't just a formality; it's a critical handover for long-term maintenance, future modifications, and overall property management. Think of it as the project's final, and arguably most important, chapter.

Here's what needs to happen in this phase:

• Comprehensive Record Keeping: During construction, meticulous record-keeping is paramount. This includes noting any deviations from the original plans - a relocated conduit, a different pipe diameter, changes in elevation - everything. Photos and brief descriptions are invaluable.
• Creating As-Built Drawings: The as-built drawings are the central piece of this phase. These drawings accurately reflect the actual location and configuration of all utilities installed. They should be clearly labeled, using consistent symbology, and digitally formatted for easy access and sharing. Don't simply update the original design drawings; create a completely new set based on field observations.
• Utility Connection Records: Compile and organize all utility connection records, including meter readings, connection dates, and contact information for service providers. This information is essential for future billing and troubleshooting.
• Digital Format & Accessibility: Deliver the as-built documentation in a digital format (PDF, CAD files, GIS data) that's easily accessible to the property owner, facility managers, and any future contractors. Cloud-based platforms are increasingly common for secure storage and collaboration.
• Formal Handover Meeting: Schedule a formal handover meeting to review the as-built documentation with the property owner and relevant stakeholders. Address any questions and ensure everyone understands the contents.
• Retention & Archiving: Establish a clear process for retaining and archiving the as-built documentation, ensuring its availability for years to come. Adhere to any legal or regulatory requirements regarding record retention.

Proper as-built documentation protects everyone involved - it minimizes future surprises, streamlines maintenance, and contributes to the long-term value of the property.

Leveraging Technology for Enhanced Coordination

While traditional methods of utility coordination - phone calls, emails, and paper-based checklists - have their place, technology offers transformative improvements in efficiency, accuracy, and collaboration. Several digital tools and platforms are revolutionizing the way construction teams manage utilities.

Cloud-Based Coordination Platforms: These platforms centralize all utility-related information, including maps, as-built drawings, service agreements, and communication logs. Real-time updates and collaborative features ensure everyone stays informed and can easily share critical data. Permissions-based access controls limit visibility to authorized personnel, enhancing data security.

GIS (Geographic Information Systems) Integration: Integrating GIS data provides a visual and interactive representation of underground utilities, allowing teams to identify potential conflicts and plan routes more effectively. Advanced GIS tools can also be used to analyze utility data and predict potential problems.

Drones for Site Surveys: Drones equipped with imaging and mapping capabilities can quickly and accurately survey project sites, identifying above-ground utility obstructions and providing valuable data for planning and coordination.

Mobile Apps for Field Communication: Mobile apps streamline communication between field crews and office personnel, enabling instant updates on utility locations, potential conflicts, and progress reports. Many apps integrate with cloud-based coordination platforms for seamless data synchronization.

BIM (Building Information Modeling): Incorporating utility information into BIM models provides a 3D representation of the project, allowing stakeholders to visualize utility routes and identify potential clashes before construction begins. This proactive approach minimizes rework and reduces the risk of costly errors.

By embracing these technologies, construction teams can move beyond reactive coordination to a proactive and data-driven approach, improving safety, reducing delays, and ultimately delivering projects more efficiently.
