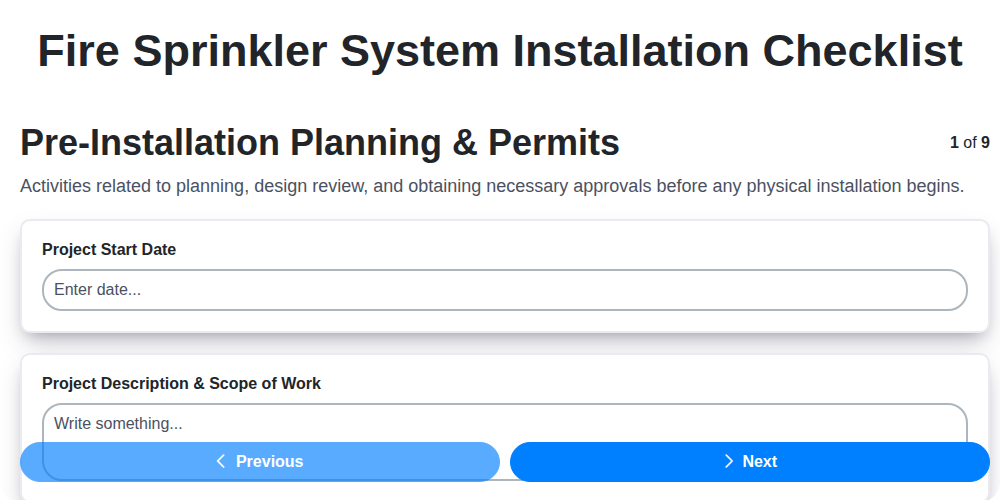

The Ultimate Fire Sprinkler Installation Checklist Template

Introduction: Why a Fire Sprinkler Installation Checklist Matters

A fire sprinkler system isn't just a fixture; it's a vital safety net for your building and everyone inside. But a system is only as reliable as its installation. Cutting corners, skipping steps, or overlooking critical details during the installation process can have devastating consequences - a system that fails when it's needed most. This isn't about simply checking boxes; it's about ensuring a life-saving system functions precisely as designed. A comprehensive checklist provides a structured approach, minimizing errors, guaranteeing code compliance, and ultimately, increasing the likelihood of a fully operational and dependable fire suppression system when every second counts. Let's dive into what makes a detailed checklist so crucial for a successful fire sprinkler installation.

Phase 1: Planning & Permitting - Laying the Groundwork

A robust fire sprinkler system begins long before any pipes are cut or sprinkler heads are installed. This initial planning and permitting phase is the bedrock upon which a safe and compliant system is built. Skipping or shortcutting this stage is a recipe for delays, rework, and potentially serious safety consequences.

Understanding Local Codes and NFPA Standards: Your first task is to become intimately familiar with the applicable building codes and fire safety regulations in your jurisdiction. These codes often reference the National Fire Protection Association (NFPA) standards, particularly NFPA 13, which details the requirements for the installation of sprinkler systems. Don't assume that a generalized understanding is enough - thoroughly research the specifics for your project's location and occupancy type.

Design Review & System Layout: Work closely with a qualified fire protection engineer to review the system design. This isn't just about verifying dimensions; it's about ensuring the design is appropriate for the building's architecture, occupancy classification, and potential fire hazards. Consider factors like ceiling height, room layout, and the presence of any heat-sensitive equipment.

The Permit Process: Securing the necessary permits is a critical legal requirement. Submit the sprinkler system design plans to your local fire marshal or building department for approval. Be prepared to answer questions and potentially make revisions based on their feedback. The permit process can take time, so start early! A denied permit can halt the entire project.

Beyond the Basics: Considerations for Complex Projects: For projects involving unusual layouts, high-hazard areas, or specific occupancy types (e.g., hospitals, schools), the planning and permitting phase requires even greater attention to detail. Coordination with other trades, structural engineers, and accessibility specialists might be necessary to ensure the sprinkler system integrates seamlessly and doesn't compromise other critical building systems.

Ultimately, meticulous planning and permitting establish a solid foundation for a fire sprinkler system that protects lives and property effectively.

1.1 Code Research and Compliance

Navigating the world of fire safety regulations can feel overwhelming, but it's the cornerstone of a compliant and effective sprinkler system. Before any physical work begins, a thorough understanding of applicable codes is paramount. This isn't merely about ticking boxes; it's about ensuring the system is designed and installed to meet the specific needs of the building and its occupants.

Your starting point should be your local building codes - these are the primary legal requirements for fire protection in your area. Don't stop there; also consider:

• NFPA Standards: The National Fire Protection Association (NFPA) publishes widely adopted standards, with NFPA 13 (Standard for the Installation of Sprinkler Systems) being particularly crucial. While not law themselves, these standards are often referenced in local codes and considered best practices.
• International Building Code (IBC): The IBC provides a framework for building codes and frequently references NFPA standards.
• Occupancy-Specific Requirements: Different building occupancies (e.g., residential, commercial, industrial) have unique fire safety requirements. Be sure to identify the building's occupancy classification and understand the associated code provisions.
• Accessibility Requirements: Ensure the system design and installation comply with accessibility guidelines, considering factors like valve location and clearances.
• Keep Up-to-Date: Codes evolve. Regularly check for updates and amendments to ensure ongoing compliance.

Failure to conduct thorough code research can lead to costly rework, delays in project completion, and, most importantly, compromise the safety of the building and its occupants. Contacting your local building department and a qualified fire protection engineer early in the process is always recommended.

1.2 System Design Review & Approvals

The foundation of a successful fire sprinkler system lies in a thorough and rigorous design review. This isn't just about ensuring the layout looks right on paper; it's about verifying the system's ability to effectively suppress a fire based on the building's specific characteristics and occupancy hazards.

Key Review Areas:

• Occupancy Classification: Confirm the assigned occupancy classification aligns with the building's actual use and hazards. Misclassification can lead to inadequate system capacity.
• Hazard Analysis: Verify the hazard analysis accurately reflects the types and quantities of materials present, potential fire loads, and any unique risks.
• Water Supply Adequacy: Scrutinize the design's water supply calculations. Ensure the available water pressure and flow rate are sufficient to activate all sprinkler heads effectively, considering potential pressure losses due to friction in the piping.
• Sprinkler Head Selection & Placement: Ensure the chosen sprinkler head types (standard spray, extended coverage, quick response, etc.) and their placement are appropriate for the specific hazard and ceiling conditions. Consider heat release rates and potential obstructions.
• System Layout: Review the overall system layout for potential design flaws, such as dead ends or areas with inadequate coverage.
• Compliance with Codes & Standards: Ensure the design adheres to all relevant local codes, NFPA 13, and any applicable insurance requirements.

The Approval Process:

• Submit to Authority Having Jurisdiction (AHJ): The design must be submitted to the AHJ for review and approval before any installation begins. This often involves detailed calculations, hydraulic reports, and drawings.
• Address AHJ Comments: Be prepared to address any comments or required modifications from the AHJ promptly and thoroughly.
• Record Approvals: Maintain meticulous records of all approvals and correspondence related to the design review process. These records are essential for future inspections and modifications.

Proper design review and approvals are not simply bureaucratic hurdles; they are critical safeguards that ensure the fire sprinkler system performs as intended when lives and property are at risk.

1.3 Permit Acquisition & Utility Location

Securing the necessary permits is more than just a formality-it's a legal requirement and a crucial step in ensuring your sprinkler system installation meets all applicable codes and regulations. Before any digging or installation begins, you must obtain permits from your local building department or fire marshal. This process typically involves submitting detailed system design drawings and specifications for review. Be prepared for potential revisions or clarifications requested by the reviewing authority - it's part of the process.

Parallel to the permit application, rigorous utility location is absolutely essential. Hitting an underground utility line during excavation can lead to costly repairs, service disruptions, and, most importantly, safety hazards. Always call your local Call Before You Dig service (typically 811 in the US and Canada) well in advance of any excavation. They will mark the location of underground utilities, including gas, electric, water, and telecommunications lines. Don't proceed with excavation until you're certain of the utility locations and have taken appropriate precautions. Document the utility location markings for your records. Failure to do so can result in serious legal and financial repercussions.

Phase 2: Site Preparation & System Layout

Before a single pipe is cut or a sprinkler head is installed, meticulous site preparation and system layout are paramount. This phase sets the stage for a smooth and efficient installation process, minimizing potential complications and ensuring the final system aligns perfectly with the building's design and safety requirements.

First, the installation area needs thorough clearing. Remove any existing obstructions - debris, temporary structures, or equipment - that could hinder access or interfere with the system's placement. This includes clearing pathways for material transport and workspace accessibility.

Next, a critical verification step: compare the planned system layout directly against the architectural drawings. This isn't just a visual check; it's a confirmation that the intended locations of sprinkler heads, pipes, and supporting structures are accurately reflected in the physical space. Discrepancies, however minor they seem, must be addressed before any installation begins. This may involve clarifying the design with the architect or engineer, and adjusting the planned layout accordingly.

Accessibility is key. Ensure sufficient space around the installation areas for equipment operation and safe working conditions. Protect existing building elements, such as walls, floors, and ceilings, from accidental damage. Temporary barriers, protective coverings, and careful material handling are essential during this phase. A well-prepared site translates to a faster, more accurate, and safer installation process.

2.1 Site Clearing and Access

Before any pipework or sprinkler head installation can begin, the designated area requires thorough clearing and preparation. This isn't just about removing visible debris; it's about creating a safe and efficient workspace.

Begin by removing any obstructions, including furniture, stored materials, and temporary construction elements. Pay close attention to potential hazards like exposed wiring, sharp edges, or unstable flooring. Address these hazards appropriately, ensuring they pose no risk to the installation team.

Accessibility is paramount. Clearly define access routes for materials and equipment. Consider the size and weight of sprinkler system components and ensure pathways are wide enough and structurally sound to accommodate them. Protect existing landscaping or delicate architectural features with temporary barriers or ground cover. If the site involves multiple levels, clearly mark stairwells or elevator access points. Remember to coordinate with other trades to avoid conflicts and ensure a smooth workflow. A well-cleared and accessible site significantly reduces the risk of accidents, delays, and damage to the building.

2.2 Sprinkler Head and Piping Layout Verification

Before any piping or sprinkler head installation begins, a meticulous verification process is crucial. This isn't just a cursory glance; it's a detailed comparison of the approved sprinkler system design drawings against the actual building layout. This step identifies and resolves discrepancies before they become costly and time-consuming problems.

What to Verify:

• Sprinkler Head Locations: Confirm that the planned locations for each sprinkler head align precisely with the architectural drawings and occupancy considerations. Pay close attention to ceiling heights, obstructions (lighting fixtures, HVAC ducts), and any modifications made to the building since the design phase.
• Sprinkler Head Types: Verify that the specified K-factor and response type of each sprinkler head match the design requirements for its specific location, considering heat loading and potential fire hazards.
• Piping Route Confirmation: Trace the planned piping route, ensuring it follows the design and doesn't encounter unexpected obstructions or require deviations that compromise the system's integrity.
• Clearance Dimensions: Double-check all clearance distances from sprinkler heads to walls, ceilings, and other obstructions, as mandated by NFPA 13. Incorrect clearances can significantly reduce the sprinkler's effectiveness.
• Obstruction Analysis: Thoroughly analyze the environment around each sprinkler head. Are there any new obstructions that weren't accounted for in the original design? If so, adjustments to the sprinkler head location or type may be necessary.
• Coordination with Other Trades: Ensure coordination with other trades (HVAC, electrical, architectural) to avoid conflicts and ensure seamless integration of the sprinkler system into the overall building design.

This verification process requires a collaborative effort involving the design engineer, installer, and building owner to guarantee a safe and reliable fire suppression system.

Phase 3: Installation - From Pipes to Control Valves

The heart of the sprinkler system installation lies in the meticulous execution of Phase 3. This isn't simply about connecting pipes and hanging heads; it's about creating a functional, reliable, and code-compliant life safety system. This phase demands precision, adherence to design specifications, and a commitment to quality workmanship.

Pipework - The Foundation of Protection

First, the piping backbone takes shape. Accurate cutting, threading (or appropriate joining methods like solvent welding or welding) and placement of pipes are critical. Remember to double-check all dimensions against the design drawings before proceeding. Supporting the pipes correctly is equally vital - inadequate support can lead to sagging, potential leaks, and compromised system integrity. Install hangers at the intervals specified in the design, ensuring they are securely fastened and aligned properly. Don't overlook the importance of firestopping - seal all pipe penetrations through walls and floors to maintain the building's fire resistance rating.

Sprinkler Head Precision

Once the pipes are in place, the sprinkler heads are installed. This requires an even greater level of care. Verify the K-factor and type of each head against the design - incorrect sprinkler head selection can drastically impact the system's effectiveness. Securely mount each head, ensuring it's at the correct height and orientation, with the necessary clearance from any obstructions like light fixtures or ceiling materials. NFPA 13 provides specific guidelines for these clearances, and strict adherence is essential.

Riser and Control Valve Integration

The riser serves as the main artery of the sprinkler system, connecting the water supply to the distribution piping. Install the riser according to plan, ensuring proper alignment and secure connections. The control valve is the critical point for system control and shutdown. Its installation and operation must be performed meticulously, complying with all local codes and regulations. Proper signage and labeling of the control valve are vital for firefighters and maintenance personnel. Finally, a thorough pressure test of the entire system is conducted, followed by a flushing process to remove any debris and ensure optimal water quality. This phase requires a dedicated team with specialized knowledge and experience to guarantee a fully operational and dependable fire protection system.

3.1 Pipe Installation and Support Systems

Proper pipe installation and support are the backbone of a reliable fire sprinkler system. This section details the critical steps involved, focusing on both material handling and structural integrity.

Material Selection and Preparation:

The choice of pipe material (steel, CPVC, etc.) must strictly adhere to the approved system design. Prior to installation, inspect all pipes for damage, defects, or inconsistencies. For steel pipes, ensure threads are properly chased and lubricated. CPVC pipes require specific cutting and deburring techniques to avoid weakening the material. Always wear appropriate personal protective equipment (PPE) during pipe handling and cutting.

Joining Methods:

The chosen joining method (welding, solvent welding, threading) must be performed by qualified personnel following approved procedures. For welded systems, proper weld penetration and quality control are paramount. Solvent welding of CPVC requires adequate ventilation and proper curing times. Threaded connections need to be adequately sealed to prevent leaks. All joints should be pressure tested according to specifications before moving forward.

Support Systems - Ensuring Stability & Code Compliance:

Sprinkler pipe supports are not merely about preventing sag; they's about maintaining the system's integrity and ensuring code compliance. The spacing of supports is dictated by NFPA 13 and local building codes - deviating from this can compromise the system's ability to function properly during a fire.

Common support types include:

• Hangers: Used to suspend pipes from ceilings or structural members. Proper hanger selection (weight rating, material compatibility) is crucial.
• Cleats: Used to secure pipes along walls or floors.
• Stanchions: Used to support pipes above suspended ceilings.
• Pipe Saddles: Used to guide pipes around obstacles.

Ensure that all supports are securely fastened to the building's structural members. Use corrosion-resistant hardware where applicable to prevent deterioration. Regularly inspect support systems for signs of loosening or corrosion. Document all support locations on as-built drawings. Remember that inadequate support can lead to pipe stress, leaks, and even system failure.

3.2 Sprinkler Head Placement & Alignment

Proper sprinkler head placement and alignment are critical for effective fire suppression. It's not simply about sticking a sprinkler head in the ceiling; precise positioning and orientation directly impact spray pattern and coverage area.

Height Considerations: Sprinkler head height is dictated by the design, often influenced by ceiling construction and obstructions. Excessive height reduces water pressure at the head, diminishing its effectiveness. Conversely, heads too close to the ceiling can be easily damaged and might not have sufficient clearance to disperse water properly. Always adhere to the specified height indicated on the system design drawings.

Obstruction Clearance: A crucial aspect of sprinkler head placement is ensuring adequate clearance from obstructions like light fixtures, ductwork, and architectural features. NFPA 13 outlines specific clearance distances based on the type of obstruction and sprinkler head. Failure to provide sufficient clearance can impede spray patterns, preventing the head from effectively reaching the fire.

Alignment and Orientation: Sprinkler heads are designed to spray in specific directions. The design will indicate the required orientation - whether it needs to be directly downward, angled, or sideways. Incorrect alignment can result in water spraying against walls or ceilings instead of toward the fire source. This can significantly reduce the area protected and delay fire suppression.

Decorative Considerations (with Caution): While aesthetics are important, remember that functionality always takes precedence. Avoid placing sprinkler heads in locations that compromise their ability to discharge properly, even if it means making compromises in visual appeal. If decorative fixtures are unavoidable, ensure they are specifically designed to allow for unobstructed water discharge.

Verification & Documentation: Following installation, meticulously verify the placement and alignment of each sprinkler head against the design specifications. Document any deviations and obtain approval from a qualified inspector before proceeding. Consistent and accurate placement is the cornerstone of a reliable fire suppression system.

3.3 Riser Installation & System Connections

The riser is the backbone of your fire sprinkler system, serving as the primary vertical conduit for water delivery. Proper riser installation is paramount to system reliability and compliance. This section details the critical steps involved.

Riser Pipe Installation: Begin by ensuring the riser pipe is perfectly plumb and securely anchored to the building structure. Use appropriate clamps and supports as specified in the system design, maintaining consistent spacing to prevent sagging or movement. Consider using a laser level for precision alignment.

Check Valve Installation: If the system design incorporates check valves (which is common), install them accurately according to the manufacturer's instructions and the approved plans. Proper orientation is essential for their functionality.

Pressure Gauge Placement: Pressure gauges provide vital information about system pressure. Install them at designated locations, ensuring clear visibility and accessibility for maintenance personnel. Use appropriate gauges rated for fire sprinkler systems and ensure they are calibrated for accuracy.

Connection to Water Supply: The connection point to the building's water supply is a critical juncture. It must be made by a licensed plumber and conform to all applicable codes. Verify the water supply's adequacy to meet the system's demands. A backflow preventer may be required, and must be installed and tested correctly.

System Connections (Branch Lines): Connecting the branch lines (the pipes that extend from the riser to the sprinkler heads) requires careful attention to detail. Ensure a secure and leak-free connection using appropriate fittings and approved methods (welding, threading, or Victaulic couplings). All connections should be pressure tested during the hydrotest phase.

Insulation Considerations: In some environments, risers may require insulation to prevent freezing or condensation. Apply appropriate insulation materials, ensuring they are fire-rated and compatible with the piping system.

Always consult the system's approved shop drawings and relevant codes for specific requirements and detailed instructions.

3.4 Control Valve and Alarm Panel Integration

The integration of the control valve and alarm panel is a crucial juncture, serving as the system's central nervous system. This section isn't just about connecting wires; it's about ensuring a responsive, reliable, and properly notified response to any potential fire event.

Valve Supervision: The control valve(s) must be electrically supervised. This means the panel constantly monitors their position - ensuring they are in the open position for normal operation. If the valve closes unexpectedly, the panel immediately triggers an alarm, alerting personnel and potentially the fire department. Wiring configurations (normally open or normally closed circuits) must adhere strictly to approved methods and local codes, preventing false alarms while guaranteeing rapid notification of a valve failure.

Panel Programming & Sensitivity: The alarm panel needs to be meticulously programmed to recognize sprinkler system signals. This involves configuring input/output assignments, setting alarm thresholds, and establishing notification protocols. Sensitivity adjustments are vital - too sensitive, and the system will be prone to nuisance alarms; too insensitive, and a real fire might go undetected. Proper testing and calibration are essential to achieve the optimal balance.

Trouble Signals: Beyond fire alarms, the panel should also monitor and report trouble signals. These can include low water pressure, valve malfunction, power failure to the sprinkler system, or a fault in the supervisory circuit. Prompt resolution of trouble signals is vital for maintaining system readiness.

Documentation & Testing: Comprehensive documentation of all wiring diagrams, programming configurations, and testing results is paramount. Regular testing of the entire alarm panel integration, including valve supervision and notification protocols, should be conducted according to a documented schedule, typically outlined in the fire alarm system's maintenance plan.

Phase 4: Testing, Documentation & Final Inspection

The installation isn't complete until the system has been thoroughly tested, documented, and approved by the relevant authorities. This phase is critical to ensure the system functions as designed and meets all required safety standards.

Hydrostatic Testing: This is your first and most vital test. The entire system must undergo a hydrostatic test, typically holding a pressure of 150% of the system's working pressure for a specified duration (usually one hour). Carefully monitor gauges for any leaks or pressure drops. All leaks must be addressed and repaired before proceeding.

Flushing: After the hydrostatic test, flushing is essential to remove any debris that may have accumulated during installation and testing. Flush the system until the water runs clear. This ensures optimal sprinkler head performance.

Flow Testing & Nozzle Discharge: Conduct flow testing to verify the system's water supply and pressure capabilities at various points in the system. Also, test the discharge pattern of representative sprinkler heads to ensure proper coverage.

Alarm Panel Integration & Functionality: Confirm the sprinkler system is properly connected to the fire alarm panel. Verify that all alarm signals are transmitted correctly and that the panel's supervisory functions are operating as intended. This includes testing tamper switches and other safety features.

Documentation is Key: Meticulous record-keeping is crucial throughout this phase. Document all testing results, including dates, times, pressures, flow rates, and any observed anomalies. Collect all inspection reports and certifications.

As-Built Drawings: Finalize the as-built drawings to accurately reflect the installed system's layout, component locations, and any deviations from the original design. These drawings become invaluable for future maintenance and modifications.

Final Inspection & Certification: Schedule a final inspection with the local fire marshal or designated authority. Address any noted deficiencies promptly and obtain the required certification upon successful completion of the inspection. This certification confirms that the system meets all applicable codes and regulations. Providing the building owner with a complete set of documentation, including the as-built drawings, operation and maintenance manuals, and certification paperwork, ensures their understanding and responsibility for long-term system maintenance and functionality.
