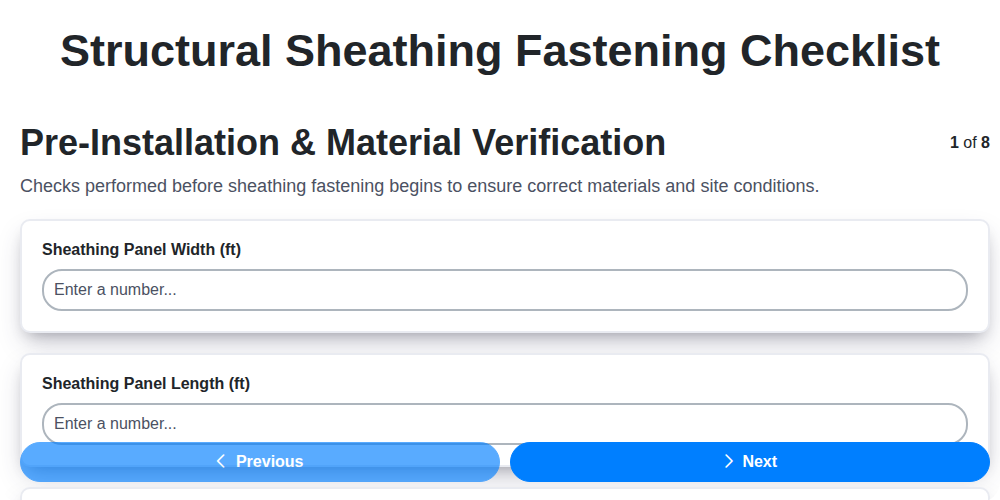

Nailed It: Your Structural Sheathing Fastening Checklist Template

Getting Started: Why a Sheathing Fastening Checklist Matters

Why bother with a checklist? Because cutting corners on structural sheathing installation can lead to a cascade of problems down the line. It's not just about getting the job done quickly; it's about building a structure that's safe, durable, and performs as intended for years to come.

Think of it this way: sheathing forms the backbone of your walls and roof. It resists racking forces (the tendency to distort under wind or seismic loads), provides a nailing surface for siding and roofing, and contributes significantly to the overall structural integrity of the building. Improper fastening - whether it's too few nails, nails that are the wrong size, or nails driven at incorrect angles - compromises that integrity.

Here's what can go wrong without a solid fastening plan:

• Squeaks and Movement: Loose sheathing creates annoying squeaks with every gust of wind or footstep.
• Racking Issues: Insufficient fastening weakens the wall's ability to resist racking forces, making the building vulnerable to wind damage.
• Siding/Roofing Failures: Inadequate sheathing fastening can lead to premature failure of siding and roofing materials.
• Increased Energy Costs: Gaps and voids created by poor installation can compromise the building's thermal envelope, leading to higher energy bills.
• Costly Repairs: Fixing sheathing issues after the building is enclosed is significantly more expensive and disruptive than getting it right the first time.

A checklist provides a systematic approach, ensuring every step is accounted for, and minimizing the risk of costly errors. It's your safety net against preventable problems and a foundation for a long-lasting, well-built structure.

Material Verification: Ensuring the Right Sheathing for the Job

Choosing the correct sheathing is the foundational step - getting it wrong can compromise the entire structure's integrity and performance. It's not enough to just grab a stack of wood; meticulous verification is essential.

First, check the project plans thoroughly. The specified sheathing type (OSB, plywood, or potentially others depending on the application) will be clearly outlined. Note the exposure rating - this dictates its suitability for different climate conditions and building heights. An Exposure 1 rating, for example, is for interior applications or areas protected from the elements, while Exposure 2 handles more demanding environments.

Next, examine the sheathing itself. Look for manufacturer's markings stamped directly onto the panels. These markings provide crucial information, including the sheathing grade (e.g., Premium, Standard), the exposure rating, and the panel dimensions. Ensure this information matches the specifications on the project plans. Discrepancies should be flagged and resolved before installation begins.

Don't overlook the moisture rating, especially for exterior applications. Sheathing can be moisture-resistant (MR) or exterior grade. Using the wrong type can lead to premature failure and costly repairs down the line. A quick check of the manufacturer's website or technical documents can provide clarity if you're unsure.

Finally, if you have any doubts or uncertainties, always consult with the project architect or engineer. Better to be safe than sorry when it comes to structural integrity.

Fastener Selection: Choosing the Right Nail or Screw

Choosing the right fastener is more than just grabbing a handful of nails. It's a critical decision impacting the structural integrity and longevity of your sheathing. Here's a breakdown of common options and considerations:

Nails: The Traditional Choice

• Ring Shank Nails: These are a contractor favorite. The ringed shank provides exceptional holding power by gripping the wood fibers tightly, reducing the chance of nail "float" or pull-out. Ideal for areas prone to wind uplift or seismic activity.
• Spiral Shank Nails: Similar to ring shank nails, spiral shank nails offer excellent holding power due to the twisting design. They often drive easier than ring shank nails.
• Common Nails: While less expensive, common nails offer less holding power than ring or spiral shank nails and are generally not recommended for structural sheathing applications.
• Bright vs. Dull Nails: Dull nails are typically hot-dipped galvanized and offer superior corrosion resistance compared to bright, electro-galvanized nails. Choose dull nails for exterior applications.

Screws: The Increasingly Popular Alternative

• Advantages: Screws generally offer superior holding power compared to nails, especially in areas with high racking loads. They are also less likely to loosen over time due to wood movement.
• Types: Specialized sheathing screws are designed with features like flat heads for flush installation and self-drilling tips to minimize splitting.
• Considerations: Screws are typically more expensive than nails and require a specialized driver. Pre-drilling may be necessary to prevent splitting, especially with hardwoods.

Key Selection Factors:

• Sheathing Type: OSB and plywood sheathing often have specific fastener recommendations from the manufacturer.
• Local Codes: Check local building codes for fastener requirements.
• Exposure Conditions: For exterior applications, prioritize corrosion-resistant fasteners (e.g., stainless steel, hot-dipped galvanized).
• Load Requirements: Consider the anticipated loads the sheathing will experience (wind, seismic, racking). Higher loads necessitate stronger fasteners.

Always refer to the sheathing manufacturer's specifications for their recommended fastener type and schedule.

Layout & Spacing: A Foundation for Stability

Proper sheathing layout isn't just about aesthetics; it's critical for distributing loads and maximizing racking strength. A well-planned layout minimizes waste, ensures consistent panel support, and prevents weak points in your wall system.

Panel Orientation & Staggering: Begin by carefully assessing the framing layout. Align the first panel with the edges of the framing, ensuring a tight fit. Subsequent panels should be staggered to avoid continuous vertical or horizontal joints. A common rule is to stagger joints by at least six inches - the more, the better, especially for larger projects or areas prone to high wind loads. This prevents a line of weakness where multiple panel edges coincide.

Edge Alignment and Support: Pay close attention to how the sheathing edges align with the framing members. Ideally, each panel edge should land directly on a stud or joist. If this isn't possible, use blocking. Blocking, short pieces of lumber installed between framing members, provides crucial support where panel edges fall between studs. Without adequate support, the edges can sag, buckle, or pull away from the framing.

Minimizing Waste: Careful planning during layout significantly reduces material waste. Before beginning installation, create a simple layout diagram to optimize panel placement and determine the most efficient cutting pattern. This is especially important for more expensive sheathing materials like plywood.

Dealing with Obstructions: Be prepared for obstructions like electrical boxes, plumbing pipes, or HVAC ductwork. Plan your layout to minimize the number of cuts required around these items. When cutting around obstructions, ensure the remaining panel sections are large enough to maintain structural integrity. Smaller sections may require additional fastening.

Remember: A well-planned layout is the bedrock of a structurally sound wall. Don't rush this crucial step!

Fastening Patterns: Perimeter and Field Density

Achieving the right balance of fastener density - especially between the perimeter and field of a sheathing panel - is critical for structural integrity and preventing issues like squeaks, racking, and moisture intrusion. Think of the perimeter as the 'edge lock' that secures the panel to the framing, while the field fasteners distribute the load and maintain stability.

Generally, increased fastener density along the perimeter (typically doubling the spacing, meaning 6 on center instead of 12) is essential. This helps to securely anchor the panel and prevent it from lifting or shifting. The precise spacing requirements, however, always depend on the sheathing type (OSB or plywood), its grade, the framing spacing, and local building codes.

The field density - the spacing of fasteners in the central area of the panel - is typically less frequent than the perimeter. Again, consult the manufacturer's specifications. A common field spacing might be 12 on center, but it could be more or less depending on the project's specific conditions and the grade of the sheathing. Ignoring these specifications risks compromising the structural performance of the wall assembly and potentially leading to costly repairs later on. Don't guess - check the guide!

Edge Distance & Blocking: Preventing Split Frames

Maintaining adequate edge distances and strategically placed blocking are crucial for preventing frame splitting and ensuring the long-term integrity of your sheathing system. When fasteners are installed too close to the edges of a sheathing panel, the wood fibers can be compressed and split, weakening the connection and potentially leading to panel failure.

Edge Distance Requirements:

Consult your sheathing manufacturer's installation guidelines for precise edge distance requirements. These distances typically range from 3/8 to 1/2 from the panel edge to the center of the fastener. This space allows for wood fiber movement and prevents splitting as the panel expands and contracts with changes in humidity. It's especially critical when using fasteners near the ends of panels. Failure to adhere to these distances can result in visible splits, cracked sheathing, and compromised racking strength.

The Role of Blocking:

Blocking is short pieces of lumber (typically 2x4s or 2x6s) strategically installed within the framing. Their purpose is twofold:

• Support Panel Edges: When panel edges land between framing members, blocking provides essential support, preventing sagging and ensuring a secure connection. This is particularly important for longer spans.
• Prevent Fastener Kick-Out: Blocking provides a solid backing for fasteners, preventing them from "kicking out" of the framing member when driven. This is essential for ensuring proper fastener hold and load transfer.

Where to Use Blocking:

• Panel Edges Between Framing: Whenever a sheathing panel edge falls between two framing members, install blocking to provide support.
• Longer Panel Spans: When using longer sheathing panels (typically exceeding 8-10 feet), additional blocking is recommended to minimize deflection and maintain a stable connection.
• Per Manufacturer's Instructions: Always adhere to the blocking requirements outlined in the sheathing manufacturer's installation guide. They often specify the size and spacing of blocking based on panel dimensions and load considerations.

Improper edge distances and the absence of necessary blocking can create significant weaknesses in your structural system. Taking the time to implement these best practices will result in a stronger, more durable, and longer-lasting sheathing installation.

Quality Control: Signs of a Solid Installation

A well-installed sheathing wall isn't just about following a checklist; it's about seeing the results. Here's what to look for to confirm your sheathing is performing as intended.

A Flat and Uniform Surface: Visually inspect the sheathing wall from a distance. It should appear flat and relatively uniform, without excessive waviness or bowing. Minor imperfections are normal, but significant deviations indicate potential issues with framing or fastening.

Flush Fastener Heads: Look closely at each fastener head. They should be flush with the sheathing surface - neither sunk too far (overdriven) nor protruding. A consistent head appearance across the entire wall is a great sign.

No Fastener "Kick-Outs": Carefully examine the angle at which fasteners are driven. They should be straight and perpendicular to the sheathing surface. "Kicked-out" fasteners, where the fastener isn't driven squarely, indicate poor technique and reduced holding power.

Tight Panel Edges: Walk along the edges of the sheathing panels. They should be tightly fitted, with minimal gaps. While a small expansion gap (typically 1/8") is intentional, excessive gaps can signal panel movement or framing problems.

A Solid, Resonant Sound: Tap along the sheathing wall with a hand or tool. A solid, consistent sound indicates a well-secured wall. A hollow or muffled sound suggests inadequate fastening or structural weaknesses.

Absence of Squeaks and Movement: Gently apply pressure to the sheathing. It should feel rigid and stable, with no noticeable squeaks or movement. Squeaks are a red flag - indicating loose fasteners or panel separation.

Panel Alignment: Check that panels are aligned consistently along walls and ceilings, avoiding a haphazard appearance. While minor misalignments can be addressed cosmetically, larger discrepancies might reveal underlying framing issues.

Documentation & Sign-Off: Proof of Compliance

Beyond the physical act of fastening, solid documentation is your best defense against potential issues down the line. It provides a clear record of the installation process, demonstrates adherence to specifications, and offers peace of mind for everyone involved.

Here's what a robust documentation system should include:

• The Installation Checklist: Use a detailed checklist (like the one outlined in this article) during the installation process. It serves as a real-time guide for the installer and a record of what was completed. Printed copies are great, but a digital checklist with photo upload capabilities can be even more effective.
• Photographic Evidence: A picture is worth a thousand words. Document key steps of the sheathing installation with photographs. Capture perimeter fastening, field fastening, edge distances, any blocking installed, and overall panel alignment. These photos can be invaluable if questions arise later.
• Material Records: Keep a clear record of all materials used - the type of sheathing (OSB or plywood), its grade (e.g., Exposure 1), the type and size of fasteners, and any sealants or treatments applied. This information is crucial for warranty claims and material traceability.
• Installer Sign-Off: At the completion of the installation, have the installer (or foreman) sign a form acknowledging that the work was performed in accordance with the plans, specifications, and this installation checklist. This provides a formal declaration of compliance. Include date, installer's name, and contact information. A digital signature is becoming increasingly common and provides a secure and verifiable record.
• Retention: Store all documentation securely, both physically and digitally, for the duration of the building's warranty period and beyond. Easy access to this information can prevent costly delays and disputes.

Example Sign-Off Form Elements:

• Project Name:
• Date of Installation:
• Installer Name:
• Installer Signature:
• Confirmation: "I confirm that the structural sheathing installation was performed in accordance with the plans, specifications, and this installation checklist."
