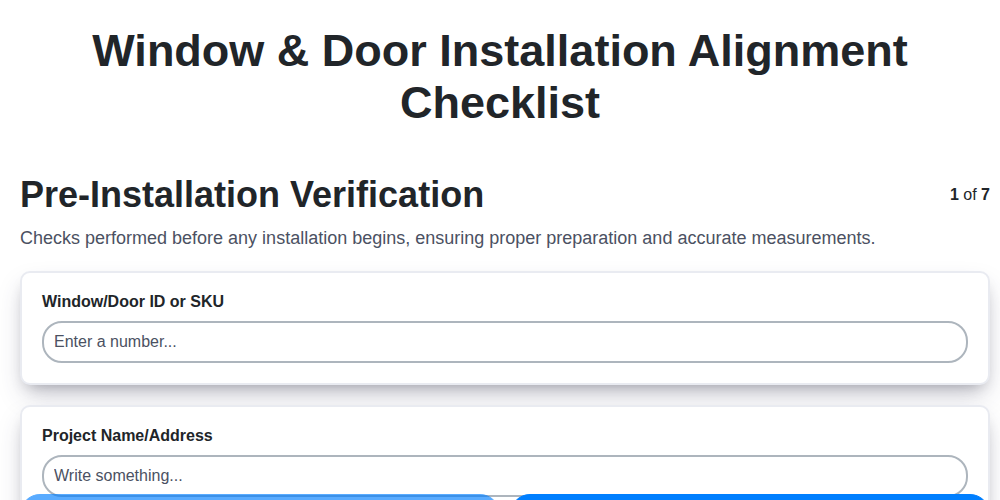

The Ultimate Window & Door Installation Alignment Checklist Template

Why Precise Alignment Matters: Beyond Just Looks

Beyond aesthetics, precise alignment of your windows and doors directly impacts your home's performance and longevity. Misalignment isn't just about a crooked appearance; it triggers a cascade of issues. Think about it: even a small gap created by a skewed window can significantly compromise your home's energy efficiency. That means higher heating and cooling bills as precious conditioned air leaks out, especially during extreme weather.

Water infiltration is another major concern. Poor alignment weakens the weather-resistant seal, allowing moisture to penetrate the frame and surrounding structure. This can lead to rot, mold growth, and costly repairs down the line. Beyond structural damage, water intrusion can compromise indoor air quality and pose health risks.

Finally, consider the operational impact. A window or door that isn't properly aligned will likely be difficult to open and close smoothly, potentially leading to binding, friction, and increased wear and tear on moving parts. This reduces the lifespan of your investment and creates daily frustrations. Proper alignment isn't just about looks; it's about protecting your home and ensuring it functions optimally for years to come.

Preparing the Rough Opening: Your Foundation for Success

The rough opening is more than just a hole in your wall; it's the crucial foundation upon which a perfect window or door installation is built. Neglecting this stage can lead to a host of problems down the line, from energy leaks to operational headaches. Let's make sure yours is ready for success.

First, thoroughly clear out any old debris, insulation, or existing framing remnants. A clean slate is essential for accurate measurements and proper alignment. Next, meticulously check for level and plumb. Use a long level (4-foot or longer is ideal) to assess both vertical and horizontal surfaces. Significant deviations here require correction before you proceed - don't skip this step! Minor adjustments might involve adding shims behind existing framing or even replacing damaged components.

Beyond just level and plumb, inspect the structural integrity of the framing. Is the wood solid and free from rot? Are the studs securely fastened? Any signs of weakness or instability need to be addressed to ensure the window or door is properly supported. Finally, double-check your measurements one last time against the manufacturer's specifications. A slight error here can make the entire installation process significantly more challenging. Remember, accuracy at this stage pays dividends later.

Tools of the Trade: Essential Alignment Equipment

While a few simple tools can get you started, having the right equipment significantly improves accuracy and efficiency when aligning windows and doors. Here's a rundown of the essential alignment tools you're going to need:

• Levels (Multiple): Don't rely on just one! A 4-foot level is crucial for checking long stretches, while a smaller torpedo level is handy for tight spaces. Digital levels offer precise readings, which can be a real advantage.
• Framing Square: This is your best friend for ensuring the rough opening is square - a non-negotiable for proper alignment.
• Measuring Tape (25ft Minimum): Accurate measurements are key. A longer tape measure allows you to reach across wider openings easily.
• Shims: Plastic or composite shims are essential for temporary and sometimes permanent adjustments. Have a variety of thicknesses on hand.
• Shim Tool (or Putty Knife): Makes inserting and adjusting shims much easier and prevents damage to the window or door frame.
• Pencil: For marking measurements and shim placement.
• Laser Level (Optional, but Highly Recommended): A laser level projects a perfectly straight line, making it incredibly easy to check for level and plumb across entire walls - a huge time saver!
• Digital Angle Finder (Optional): Offers precise angle measurements beyond what a traditional framing square can provide.

Step 1: Initial Placement & Temporary Securing

Careful placement is paramount. Gently lower the window or door into the rough opening, avoiding any forceful movements that could damage the frame or surrounding structure. It's much easier to make adjustments before everything is permanently secured.

Once in place, the initial securing is crucial for stability during the alignment process. Employ shims - typically plastic or composite - to wedge the window or door snugly against the rough opening. These aren't permanent; they're temporary placeholders that allow for precise adjustments in the subsequent steps. Distribute the shims strategically, generally placing them at the corners and along the sides, to provide even support and prevent sagging or shifting. Don't over-shim; a few well-placed shims are better than a wall of them making adjustments difficult. The goal is to hold the unit temporarily in position while you begin the alignment checks.

Step 2: Vertical Alignment - Ensuring a True Upright

Achieving perfect vertical alignment is crucial for a weatherproof and aesthetically pleasing window or door installation. A window that leans even slightly can compromise its ability to seal properly against the elements and create an unbalanced look.

Here's how to verify and adjust for vertical alignment:

• The Level Test: Using a long level (at least as long as the window or door's width), place it against the vertical edges. Observe where the bubble falls - is it centered, leaning left, or leaning right? Any deviation indicates a need for adjustment.
• Diagonal Measurement Confirmation: Measure diagonally from corner to corner (top left to bottom right, and top right to bottom left). These measurements must be identical. Any discrepancy immediately signals a vertical alignment issue. A slight difference can often be corrected with shimming, but a significant difference may require further investigation of the rough opening.
• Shim Placement Strategy: When adjusting, add or remove shims strategically along the vertical edges. Avoid overcrowding shims in one area; distribute them evenly to ensure consistent pressure and support. A slight adjustment to a few well-placed shims often yields the best results. Remember to re-check both the level and diagonal measurements after each adjustment.
• Addressing a Severe Lean: If the window/door is significantly out of vertical, carefully examine the rough opening for any irregularities or distortions. Minor corrections can often be made with shims, but more substantial issues may require addressing the framing itself.

Step 3: Horizontal Alignment - Achieving Perfect Level

Achieving perfectly level installation is crucial for weatherproofing, smooth operation, and a professional finish. Start by placing a long level across the top edge of the window or door frame. It's often easier to see slight variations from this vantage point. Note any deviation from true horizontal - even a tiny gap can create a problem later.

Now, carefully adjust the shims at the bottom of the frame. This is where precision matters. Small adjustments to the shims can make a big difference. Don't just cram shims in; place them strategically to evenly distribute pressure and create a consistent bearing surface.

Key Considerations:

• Consistency is Key: Aim for consistent gaps - typically 1/8 to 3/16 - between the frame and the rough opening. This allows for expansion and contraction without putting undue stress on the seal.
• Look for Bowing: While leveling, visually inspect the frame to ensure it isn's bowing or warping. This indicates a potential structural issue that needs addressing before proceeding.
• Double-Check: Once you're satisfied with the level, step back and visually inspect the alignment again from different angles. It's easy to miss a slight error from close up. A fresh perspective can help catch subtle discrepancies.

Step 4: Diagonal Measurement & Squareness Confirmation

Confirming squareness isn't just about eyeballing it - a subtle skew can manifest as operational issues and weather leaks later. The most reliable method is a diagonal measurement. Here's how:

1. Measure Diagonally: Using a tape measure, measure diagonally from one corner of the rough opening to the opposite corner. Record this measurement.
2. Repeat: Measure the other diagonal - from the remaining two corners. Record this measurement as well.
3. Compare: The two measurements must be identical (within a tolerance of 1/16 is generally acceptable). If they differ, the rough opening is not square.
4. Adjust & Re-Measure: To correct a non-square opening, carefully apply pressure to the framing to shift it, then re-measure the diagonals. Repeat this process until the measurements match. A slight adjustment can make a significant difference! This step is crucial, and don't rush it.

Step 5: Operating Functionality Check (Windows & Doors)

Once the alignment is confirmed, it's time to ensure the window or door operates smoothly and functions as intended. This crucial step catches any issues caused by misaligned components or binding that might not be visually apparent.

For Windows:

1. Open and Close Repeatedly: Operate the window multiple times - open, close, and lock - to identify any sticking, binding, or unusual noises.
2. Check for Smoothness: The window sash should glide effortlessly within the frame. If you encounter resistance, investigate the shims and ensure nothing is obstructing its movement.
3. Locking Mechanism: Test the locking mechanism thoroughly. It should engage and disengage easily and securely.
4. Weatherstripping: Examine the weatherstripping as the window opens and closes. It should compress and expand properly, creating a tight seal.

For Doors:

1. Swing Freely: Open and close the door several times, checking for smooth movement. It shouldn't drag or stick.
2. Latch Engagement: Ensure the latch engages the strike plate securely and consistently.
3. Door Knob/Handle Operation: Test the door knob or handle for smooth and easy operation.
4. Deadbolt Function: If applicable, test the deadbolt to ensure it locks and unlocks smoothly.
5. Check for Gaps: As you open and close the door, visually inspect for any gaps between the door and the frame - these indicate alignment issues that need correction.

Step 6: Fine-Tuning & Shim Adjustment

Shim adjustment is where the real precision comes in. Don't rush this step; it's about making tiny tweaks for a perfectly aligned and functional window or door. Start by gently pressing down on each shim, one at a time, and observing the effect on the window/door's alignment. Use a level to check vertical and horizontal alignment after each adjustment.

The goal isn't just to achieve perfect levelness; it's also to ensure even pressure distribution. Avoid over-shimming in any one area, which can warp the frame or put undue stress on the sealing. A good rule of thumb is to use a variety of shim sizes to fill gaps evenly.

Pay close attention to how the window/door operates while you're adjusting the shims. A slight change in shim placement can drastically affect opening and closing. If you notice binding or rubbing, it's a sign that you need to fine-tune the shim placement to relieve the pressure point. Remember to regularly check diagonal measurements to confirm squareness throughout the process. Finally, once you've achieved the desired alignment and operation, firmly seat all the shims and check again for any shifts.

Step 7: Final Inspection: A Comprehensive Review

The final inspection is your last line of defense against potential problems down the road. Don't rush this step! It's about verifying that all the previous checks were performed correctly and that the window or door is truly ready to perform flawlessly.

Start with a thorough visual sweep. Step back and observe the window or door from multiple angles - inside, outside, and from a distance. Look for any visible gaps, unevenness, or signs of stress on the frame. A trained eye can often spot subtle issues that might be missed otherwise.

Next, re-check the operation. Open and close the window or door several times, paying close attention to the movement. Listen for any unusual noises - creaks, rattles, or scraping. Ensure the latch engages smoothly and securely. For doors, check for proper swing and latch alignment. Windows should open and close effortlessly, without binding or resistance.

Verify the sealing. Inspect the caulking or weatherstripping for any gaps or imperfections. Run your finger along the seal to ensure a consistent, watertight connection between the window/door and the frame. If you find any weak spots, address them immediately.

Finally, confirm all shims have been removed and the area is clean. A stray shim left behind can cause future problems. Document everything - take photos or videos to serve as a record of the installation. Have both the installer and homeowner sign off on the completed work, acknowledging that the window or door meets the agreed-upon standards. This provides a valuable layer of protection and accountability.

Documenting the Installation: Proof of Proper Alignment

Documentation isn't just a good practice; it's your safety net. A well-documented installation provides concrete evidence that the window or door was installed correctly, protecting you from future disputes and potential warranty issues. Here's what you should be capturing:

Photographic Evidence: Take detailed photos throughout the entire installation process. These shouldn't just be snapshots; think about documenting each key step. Capture:

• Pre-Installation: Photos of the rough opening before anything is touched, highlighting its dimensions and condition.
• Alignment Checks: Photos of your level readings at various points (top, bottom, sides, diagonals). Include close-ups of shims in place.
• Final Product: Multiple photos of the fully installed window or door from different angles, showcasing its alignment and the quality of the sealing.

Measurement Records: Don't rely solely on photos. Record precise measurements. Write down the readings from your level, the diagonal measurements, and the dimensions of any gaps you're working with. A simple notebook or a digital document works well.

Installer Details: Include the installer's name, company, and contact information on your documentation.

Sign-Off Sheet: Create a simple sign-off sheet where the installer and the homeowner (or a designated representative) can acknowledge the completed work. This sheet should include a brief description of the installation, any noted issues, and a space for signatures and dates.

Digital Backup: Store your documentation digitally, preferably in multiple locations (cloud storage, external drive). This ensures that your records are safe and accessible even if something happens to the original documents. This digital record is invaluable if questions arise later on.

Common Alignment Mistakes & How to Avoid Them

Even the most experienced installers can fall victim to common alignment errors. Recognizing these pitfalls and knowing how to steer clear of them is key to a successful window or door installation.

1. Ignoring the Rough Opening: A square and level rough opening is the bedrock of a proper alignment. Skipping the pre-installation verification - failing to level and plumb the opening - almost guarantees alignment issues down the line. Avoid it by: Thoroughly check and correct the rough opening before even touching the window or door.

2. Relying Solely on Visual Inspection: What looks aligned isn't always actually aligned. The human eye can be deceiving. Avoid it by: Always use levels, squares, and measuring tapes to confirm alignment. Don't trust your eyes alone.

3. Improper Shimming Techniques: Packing shims too tightly, using excessive numbers of shims in one spot, or using the wrong type of shims can distort the frame and create problems. Avoid it by: Stagger shims, use a moderate number, and use composite or plastic shims to avoid rot and warping.

4. Overlooking Diagonal Measurements: Failing to check diagonal measurements is a common oversight. Diagonal measurements reveal whether the window or door is truly square. Avoid it by: Always measure diagonally from corner to corner - both vertically and horizontally - to confirm squareness.

5. Rushing the Process: Proper alignment takes time and careful attention. Rushing the installation increases the likelihood of mistakes. Avoid it by: Allocate sufficient time for each step of the process and resist the urge to cut corners.*

6. Forgetting to Account for Expansion and Contraction: Materials expand and contract with temperature and humidity changes. Failing to account for this movement can lead to issues later on. Avoid it by: Leave a small gap (typically 1/8 - 3/16) between the window/door and the rough opening to allow for expansion and contraction.
